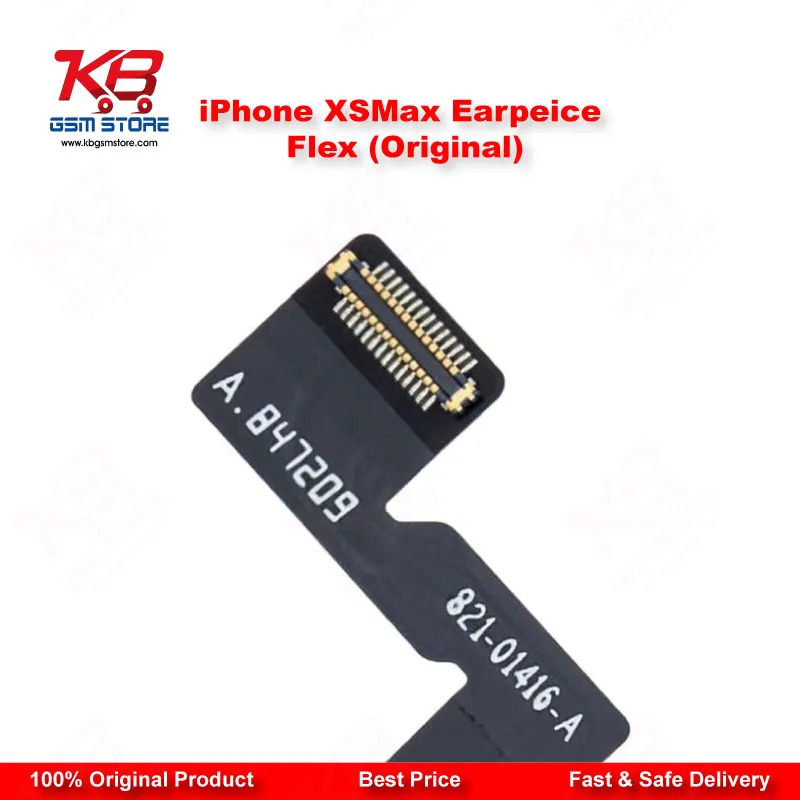

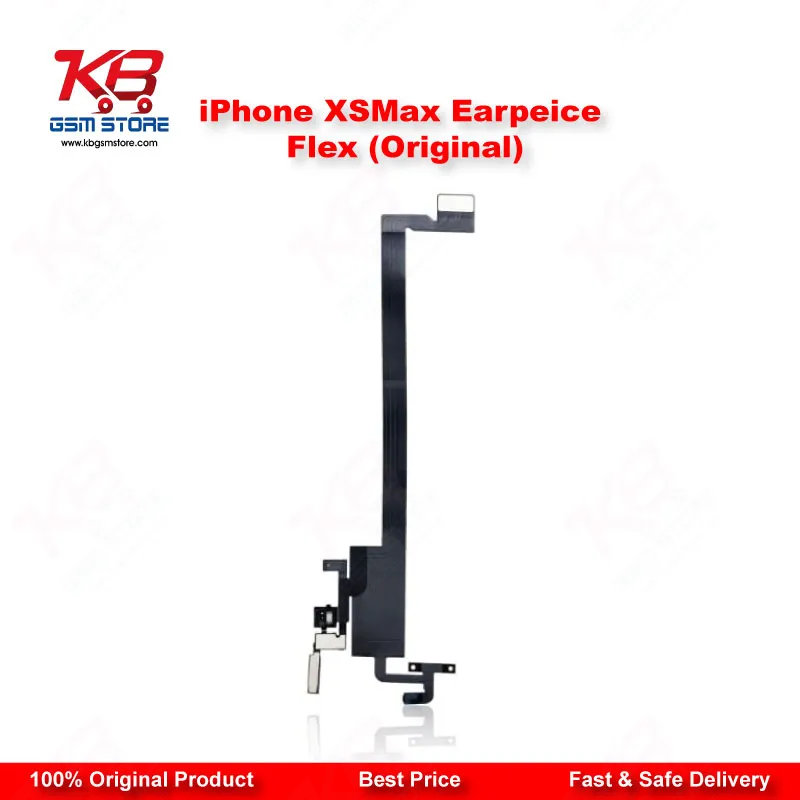

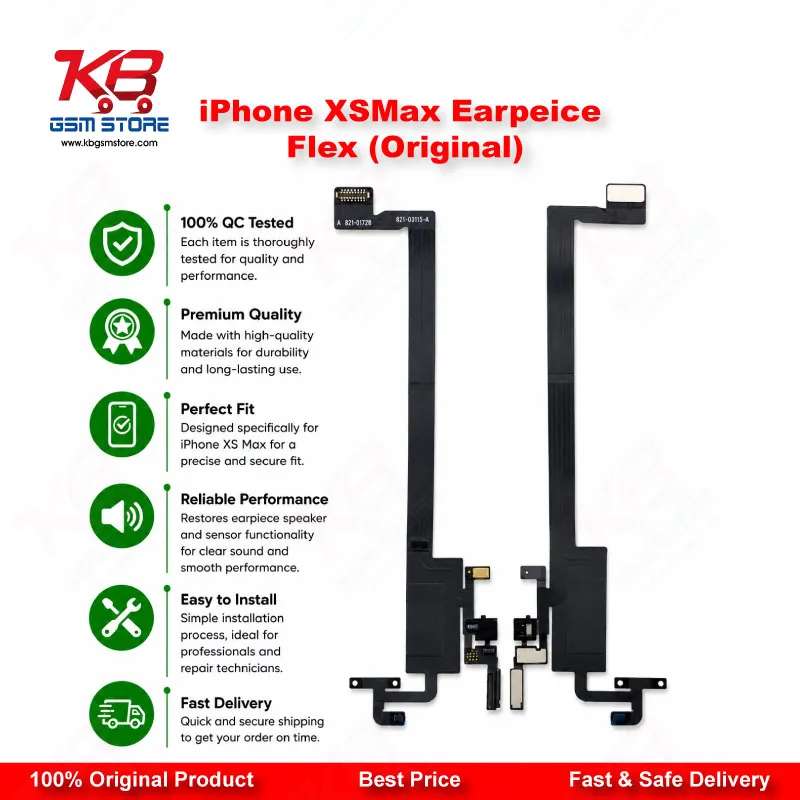

When a customer brings in an XS Max complaining about call audio problems, you check three things first: the earpiece speaker, the flex cable connecting it, and the proximity sensor circuit. This earpiece flex cable handles the second part of that chain — it's the connector path between the logic board and the earpiece assembly, carrying signal for the earpiece contact, proximity sensor, ambient light sensor, and front-facing microphone.
You'll reach for this part in a few common scenarios. A phone with audio problem during calls — distorted sound, low volume, or dead silence on the earpiece side — often traces back to a damaged or corroded flex rather than the speaker itself. Another common case: the screen doesn't turn off when the phone is held to the ear during a call, which points to a faulty proximity sensor connection. If a customer says their face keeps pressing buttons mid-call, that's the same proximity sensor fault. Liquid damage cases also hit this flex hard, since it sits near the earpiece grille where moisture gets in first.
This is an original component, not an aftermarket clone. That distinction matters for ambient light sensor accuracy and proximity sensor calibration — aftermarket flex cables on XS Max units are known for inconsistent sensor readings, which leads to comeback repairs. An original flex matches the device's expected sensor tolerances, so auto-brightness and screen-off behavior during calls work the way the customer expects after the repair.
One thing every technician should know before quoting this job: this flex cable does not include the earpiece speaker or the Face ID module. If the customer's actual complaint is "no Face ID after my screen was changed" or "earpiece doesn't work at all," check whether the issue is the speaker, the Face ID dot projector/sensor assembly, or this flex — they're separate components and swapping the wrong one wastes time and the customer's money. This part fixes the connection and sensor pathway; it assumes the earpiece speaker and Face ID hardware themselves are functional.
Installation requires standard ESD precautions on your repair bench. Ground yourself before handling the flex, since the proximity and ambient light sensor components are sensitive to static discharge. Avoid bending the flex cable beyond a tight radius during removal or installation — over-bending the ribbon section can crack the internal traces and create an intermittent fault that's harder to diagnose than the original complaint. Test the proximity sensor and earpiece function before fully reassembling the screen, since reopening a sealed XS Max twice to fix a bad connection costs you time and adhesive.
In your repair workflow, this flex cable sits early in the diagnostic chain for any audio or sensor complaint on XS Max units. Check it before condemning the earpiece speaker outright — a worn or damaged flex produces symptoms that look identical to a dead speaker, and replacing the wrong part means the dead phone audio issue comes right back. For shops running high volume on iPhone XS Max screen and audio repairs, keeping this flex in stock alongside your earpiece speakers and screen assemblies avoids a second supplier order mid-job.
Pair this part with a proper ESD strap, a fine-tip spudger for flex removal, and a microscope or magnifier if your bench does close sensor and connector work. For technicians also handling board-level repair on XS Max units, this flex connects to the same logic board area where audio IC faults and tristar-related charging issues often show up — worth checking while the device is already open.
