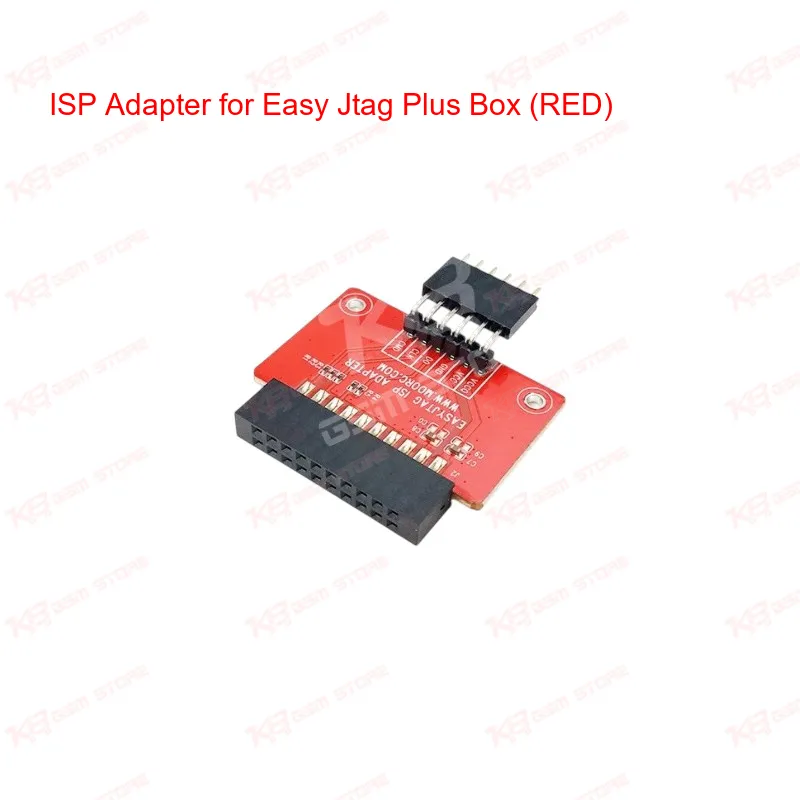

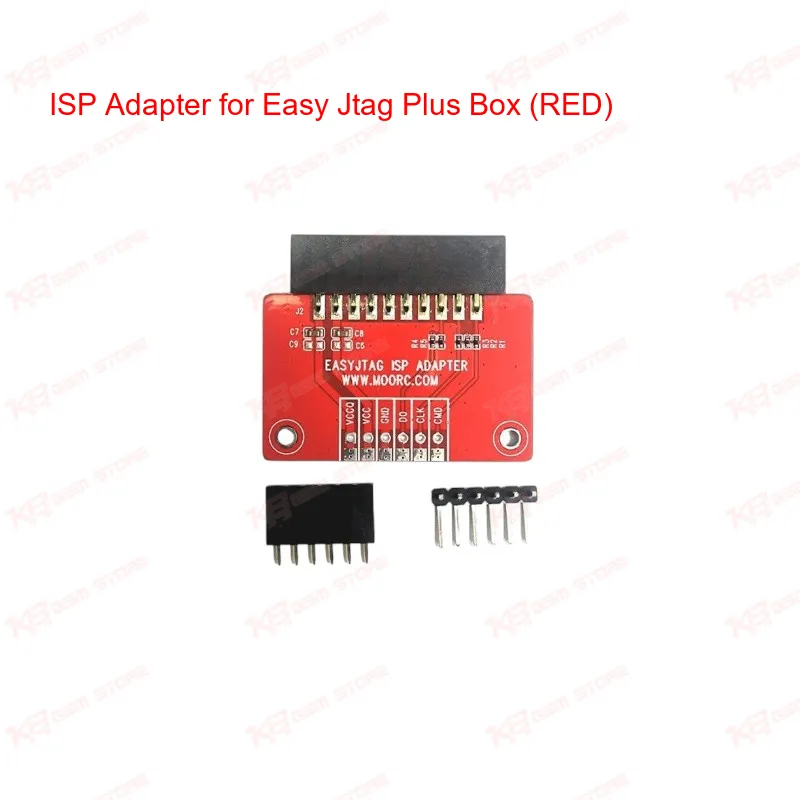

When a phone comes in dead after flash or stuck on boot loop, chip-off is not always your first move. The ISP Adapter for Easy Jtag Plus Box (RED) lets you talk to the eMMC or UFS chip directly on the board through its ISP test points, so the chip stays soldered while you read, write, or repair its data through the Easy Jtag Plus box. This keeps your repair bench workflow faster and protects the board from the extra heat stress that chip-off work always brings. You solder the adapter's 1-bit or 4-bit connector to the correct ISP test points on the board, based on the pinout for that specific chipset, then connect the adapter to the Easy Jtag Plus box through its ISP interface. Once connected, you run the box's software to detect the chip, pull a firmware backup, repair corrupted partitions, or recover user data before attempting a full flash. This matters most on boards where the eMMC or UFS chip is still healthy but the software layer has failed, since ISP access avoids unnecessary chip removal. The red color on this adapter is not just cosmetic. On a busy repair bench with multiple ISP and JTAG adapters lying around, color coding saves time when you're switching between tools mid-job. Technicians running high-volume dead phone recovery work often keep this red ISP adapter dedicated to eMMC/UFS operations, separate from JTAG or boot-repair adapters, to avoid mixing up connections during a rush. This adapter fits into the eMMC/UFS repair operation stage of the mobile repair workflow, sitting right after initial diagnostics and before any decision to attempt chip-off. If your diagnostics point to a firmware fault, corrupted partition table, or a bad boot area rather than a physically damaged chip, ISP access through this adapter is the safer first attempt. Only when ISP communication fails to detect the chip should you consider board-level chip removal as a backup step. Because the adapter connects through soldering rather than a socket, your solder joint quality directly affects read/write stability. A weak or cold joint on the test points causes intermittent detection, which technicians sometimes mistake for a bad chip when the real fault is the connection itself. Clean the test points, use a fine-tip iron, and keep your ISP wires short to reduce noise during data transfer. This adapter works within the same hardware ecosystem as the Easy Jtag Plus box's eMMC socket, U-socket, and JTAG connectors, so you're not limited to ISP-only repair. On boards where JTAG points are accessible, you can switch to a JTAG adapter for boot repair, then return to this ISP adapter for a deeper eMMC service operation like partition management or firmware repair. This flexibility is why the Easy Jtag Plus ecosystem stays popular with technicians handling FRP lock removal, pattern unlock failures, and hardware fault diagnostics on the same bench. Pair this adapter with a stable soldering station and a microscope for test point work, since ISP pinouts on modern chipsets pack pins close together. A steady hand and the right tip size reduce the chance of bridging adjacent points, which is the most common cause of failed ISP detection reported by technicians working on compact boards.
