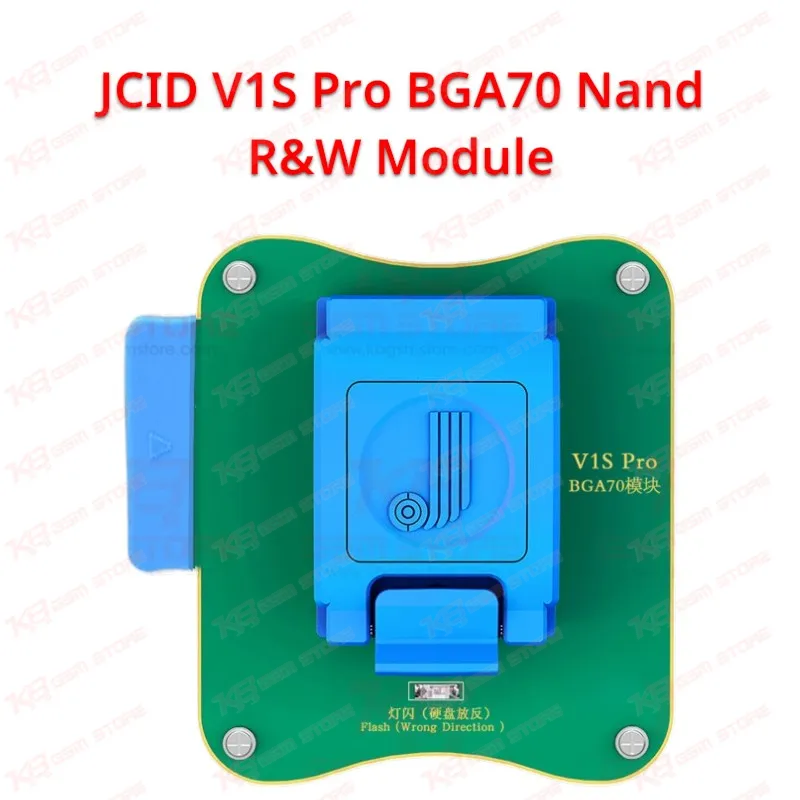

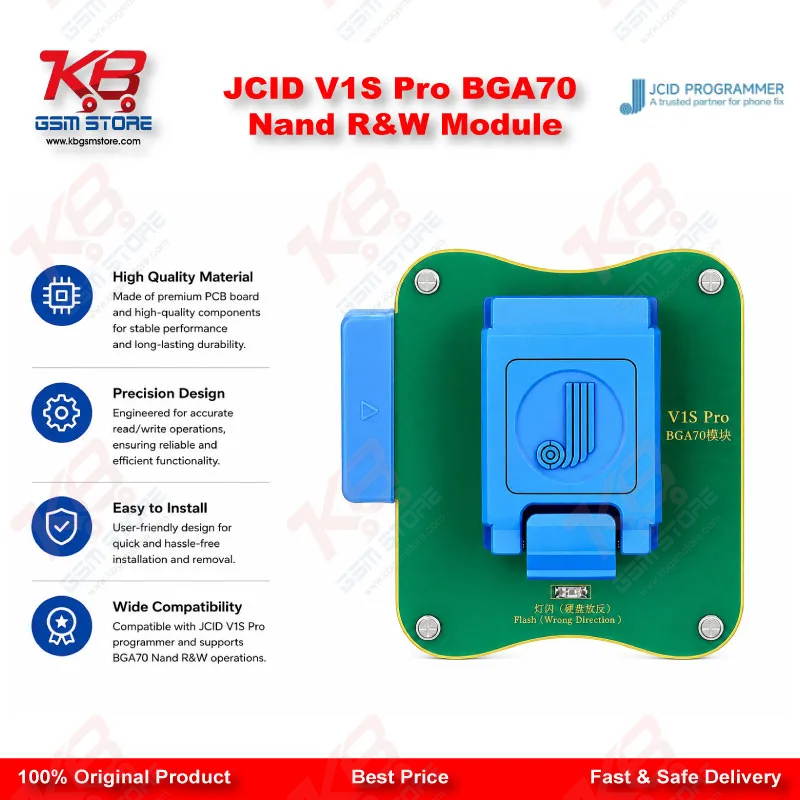

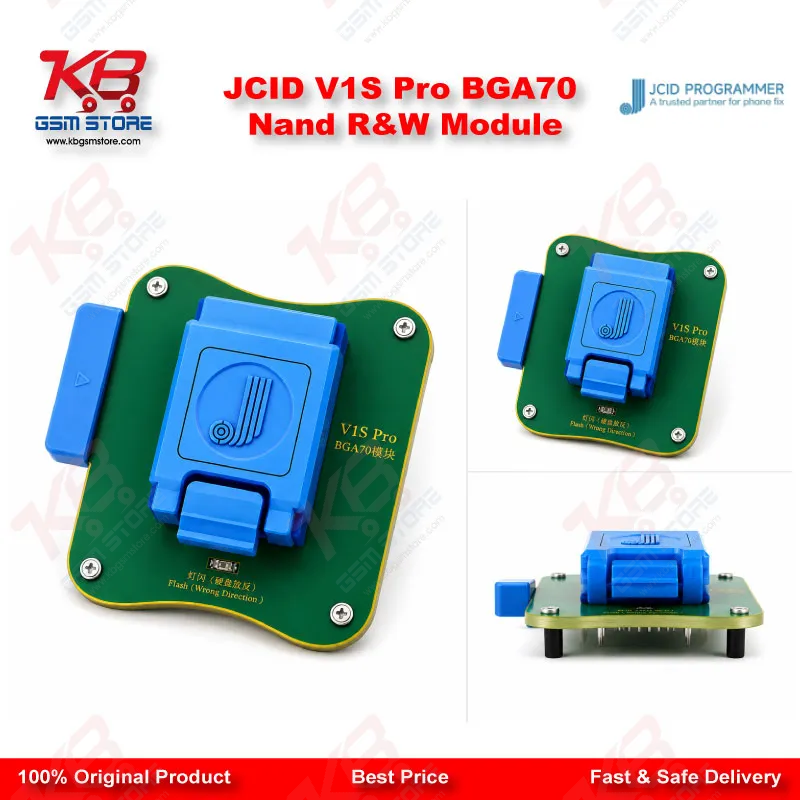

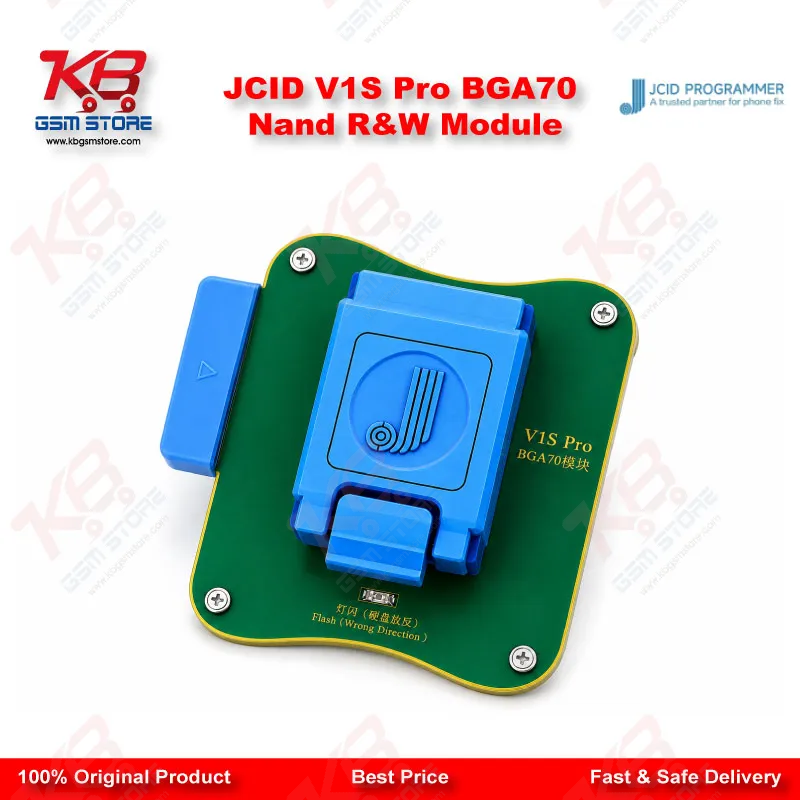

JCID V1S Pro BGA70 Nand R&W Module

Working on a dead phone from the iPhone 6S to 7 Plus generation still eats up bench time if your NAND tool cannot pull SYSCFG data cleanly, and that gap is exactly what the JCID V1S Pro BGA70 Nand Module closes. This module plugs into the BGA70 socket on your JC V1S Pro programmer and gives you direct NAND read, write, and format access on the exact chipset generation these devices use, without lifting the NAND chip off the board first. You seat the motherboard onto the module, connect through the V1S Pro base, and the programmer talks to the flash memory over the BGA70 footprint that iPhone 6S through 7 Plus boards share with the SE and the matching iPad 5, 6, 7, and Pro 1/2 models. That non-removal approach matters on a busy bench: you skip the reballing step that a traditional NAND swap demands, cut the risk of pad damage on an already fragile board, and get a board back to the customer faster. Technicians reach for this module in a few recurring scenarios. A board stuck on hang on logo after a bad flash often needs a fresh SYSCFG write rather than a full chip replacement, and this module handles that write directly through the BGA70 pads. A dead after flash board where the NAND partition table got corrupted responds the same way — you format the affected region and rewrite clean data instead of hunting for a donor chip. Boards with a corrupted baseband or Wi-Fi calibration area, which usually shows up as a persistent network issue or signal drop after a repair, also fall inside this module's working range since SYSCFG and calibration data sit in the same NAND space the module accesses. Because the V1S Pro platform carries functions forward from the JC Pro1000S and V1SE generation, a shop that already owns those modules is not starting from zero. The BGA70 board slots into the same base unit, follows the same WiFi-connected workflow for firmware updates and function expansion, and keeps your existing bench setup relevant instead of forcing a second programmer purchase. For a shop that services the 6S-7 Plus generation regularly — trade-in refurb centers, repair chains, and general GSM software workshops all see steady volume from these models even years after release — that continuity keeps tooling cost down per repair. Handling the module itself is straightforward. Seat it fully onto the V1S Pro base before powering on, make sure the board-under-repair sits flat against the BGA70 contacts, and run the read/write/format function from the V1S Pro software once the connection is confirmed. Misalignment is the most common source of a failed read on any NAND module, so a clean seat matters more than the software settings on most jobs. This is a module, not a standalone programmer — you need the JC V1S Pro base unit already on your bench for the BGA70 board to function, and it does not operate as an independent flash tool. Within a mobile repair workflow, this module sits at the diagnostics-to-flashing stage: after you have identified a NAND-related fault through initial diagnostics, the BGA70 module is what actually executes the read, write, or format action that resolves it, before the board moves back to assembly and functional testing.
