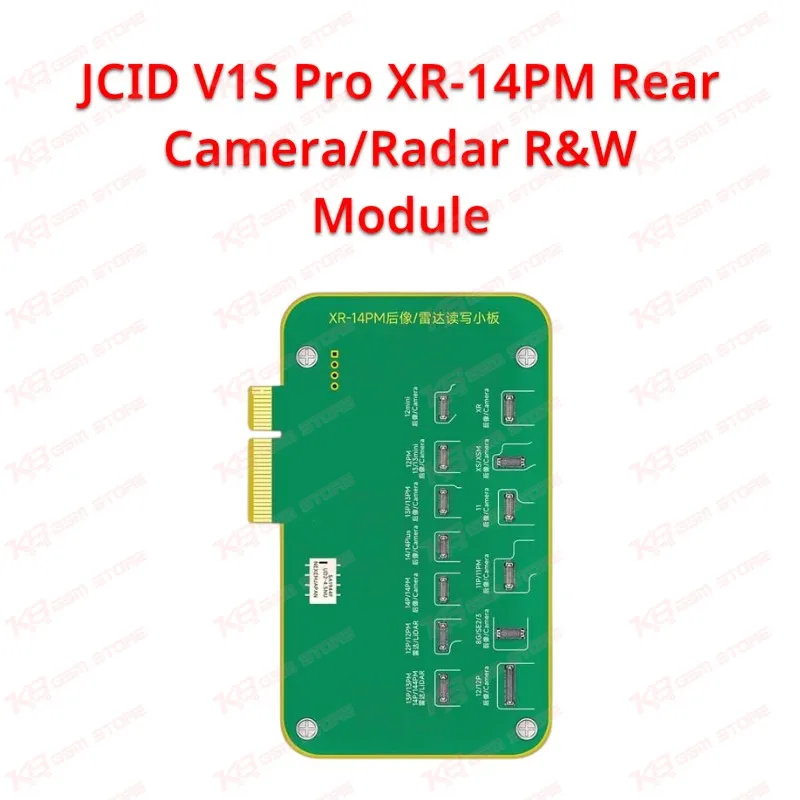

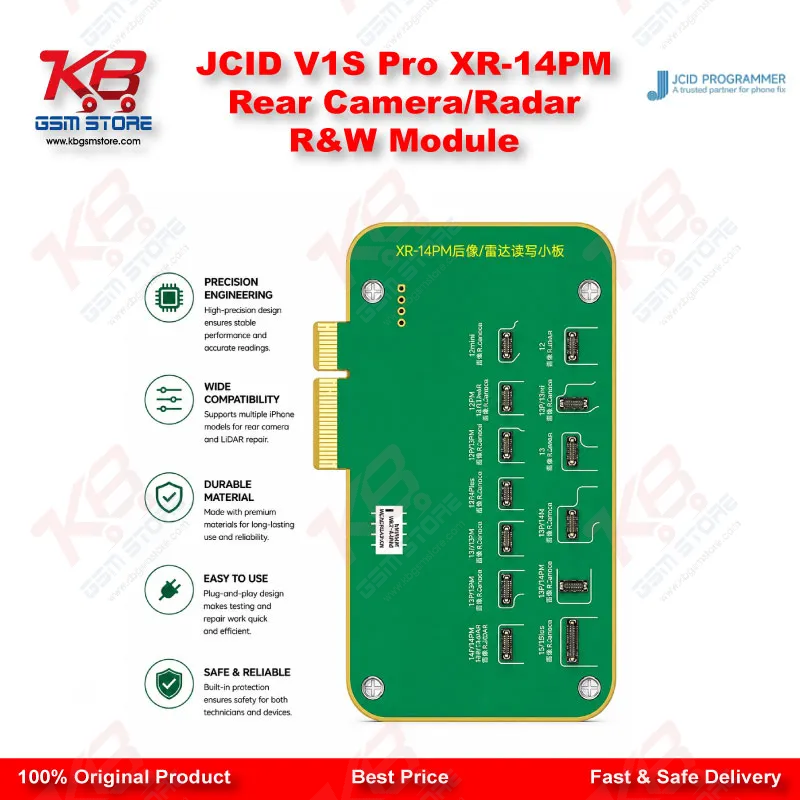

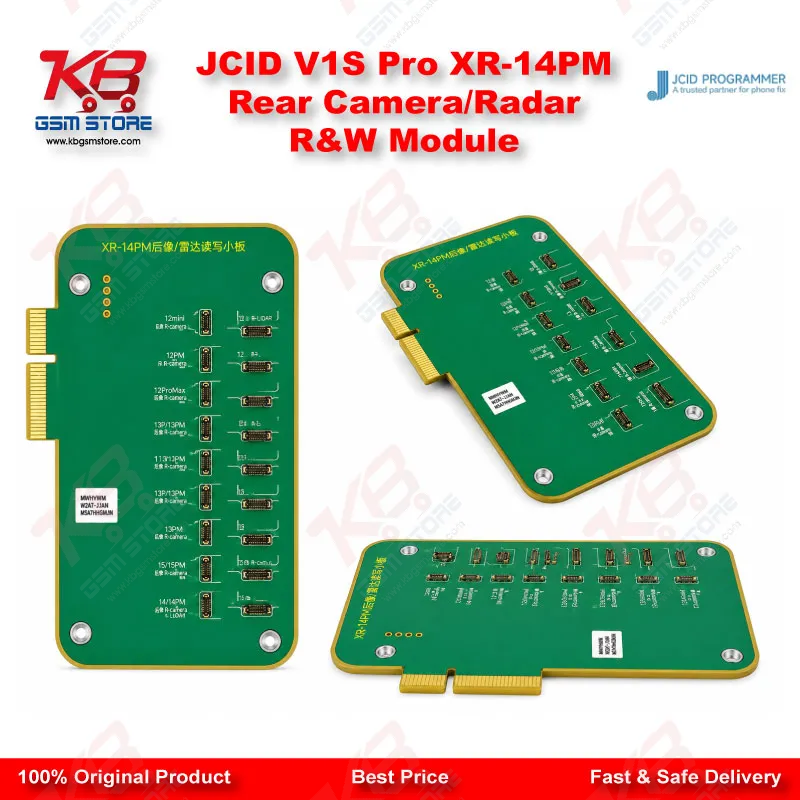

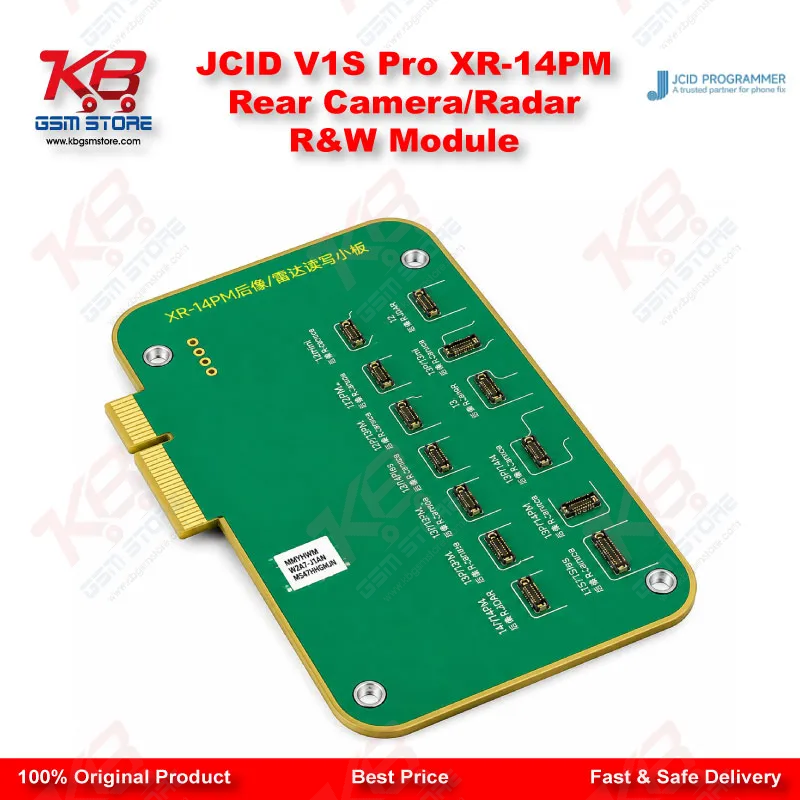

Rear camera and radar mismatches are two of the most frustrating faults you deal with on modern iPhone boards, and the JCID V1S Pro XR-14PM Rear Camera/Radar R&W Diode Test Module gives you a direct path to solving both. Instead of swapping parts on guesswork, this module lets you scan the diode circuits on the rear camera and radar lines of iPhone XR through 14 Pro Max boards and pinpoint exactly which pin is behaving abnormally, cutting down diagnostic time significantly on a busy repair bench. The module works as part of the JCID ecosystem, connecting to the V1S Pro or V1SE programmer to unlock its full read/write and diode-testing functions, so you get one consistent workflow whether you are chasing a camera fault or a radar fault. When a customer's phone throws a pop-up warning after a rear camera replacement, the cause is almost always a code mismatch between the new lens and the logic board's stored data. This module addresses that directly: paired with the correct JCID camera repair FPC cable, it reads the encrypted data from a working original lens and writes it into the repair cable, or pulls unbound data through cloud burning when the original lens is damaged or unavailable, restoring proper camera recognition without needing a full donor board. The same logic applies to radar faults on 12 Pro and later Pro models, where a mismatched or non-genuine radar sensor causes frozen 3D scanning, failed Face ID depth mapping, or broken portrait-mode photography. Using the module with the matching JCID radar repair FPC cable, you can rebind the radar data correctly and bring 3D scanning back online rather than telling the customer the board is unrepairable. For technicians handling high volumes of camera and radar complaints, having a diode test module on the bench changes how you approach these jobs. You stop swapping known-good cameras and radars just to test a suspicion, and instead scan the actual diode behavior first, confirming whether the fault sits on the flex cable, the connector, or a component on the board itself. This is especially valuable on boards where the camera works intermittently or where a phone passes basic function tests but still throws intermittent pop-up errors, since diode-level testing exposes issues that a simple swap test misses. The module fits naturally into a workshop that already runs JCID tools for face ID, battery, or true tone repairs, since it shares the same V1S Pro or V1SE programmer base and follows the same operating logic your team is already familiar with. Rather than adding another disconnected tool to the bench, it extends the capability of hardware you likely already own. For shops handling a steady stream of iPhone board-level repairs, this module reduces wasted parts, shortens diagnostic time on camera and radar complaints, and gives you a repeatable, documented process for fixing pop-up and 3D scanning faults instead of relying on trial and error. It is a focused, workflow-specific tool built for technicians who repair rear camera and radar issues regularly and want a reliable way to confirm the fault before committing to a repair path.
