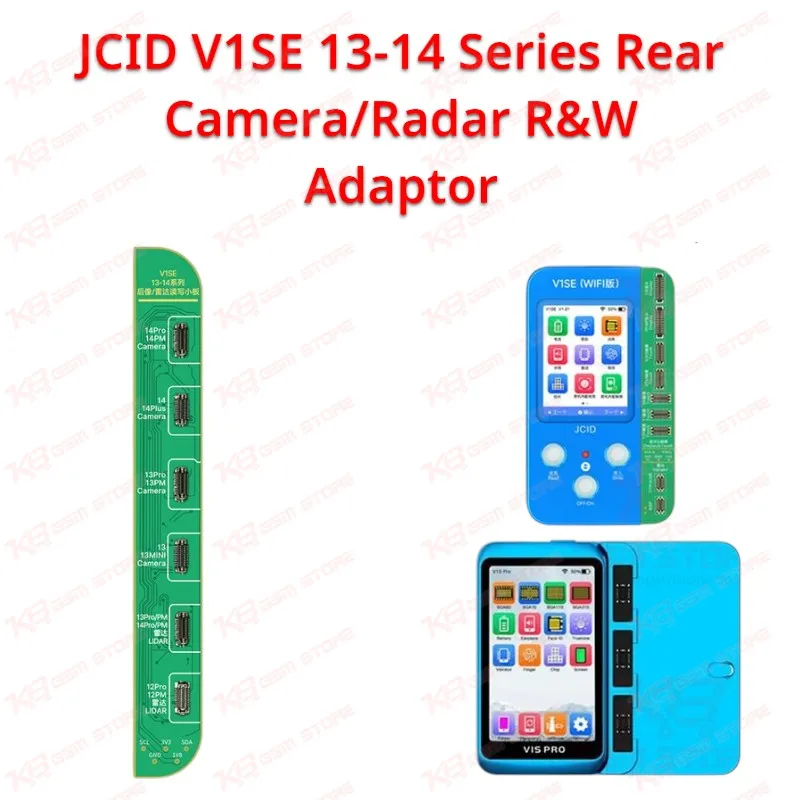

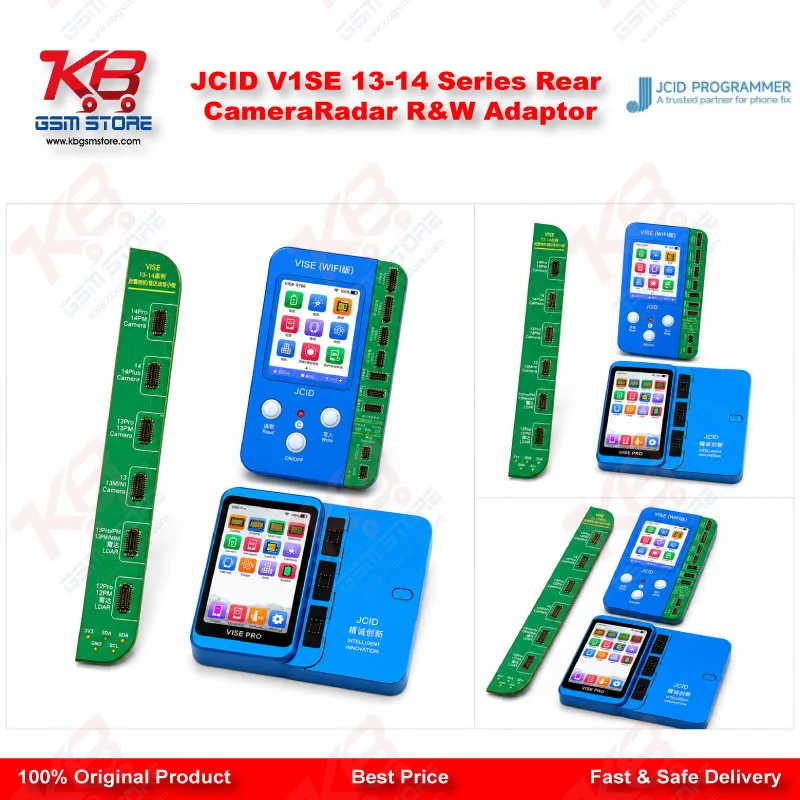

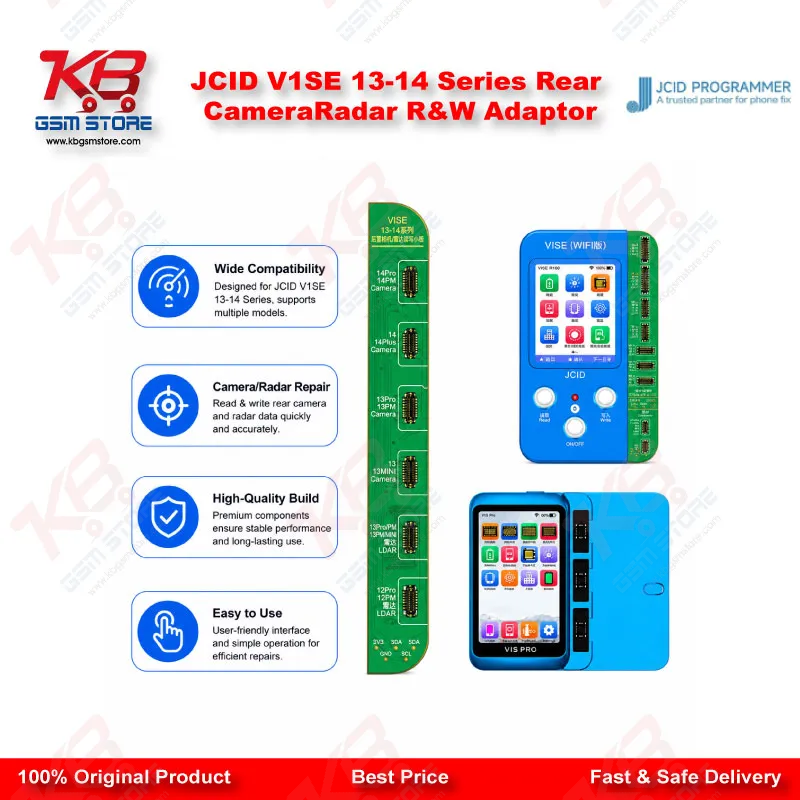

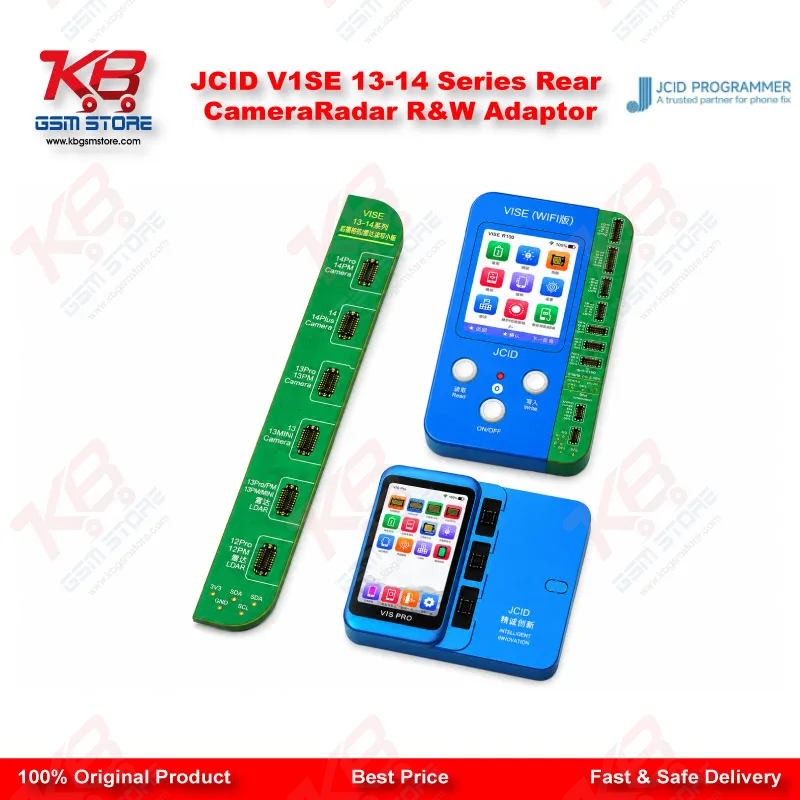

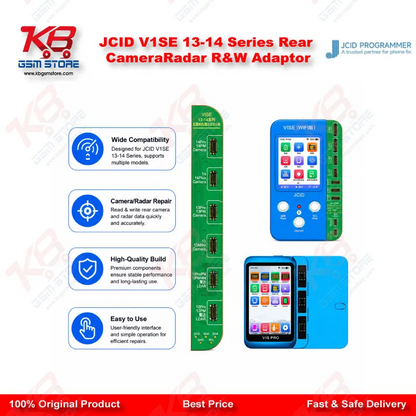

Every technician who handles iPhone camera replacements on the bench knows the pop-up window headache: you swap in a new rear camera, the screen boots fine, then a warning fires up telling the user the camera can't be verified. That error comes from Apple's part-pairing system, and on the 13 and 14 series it locks out a non-genuine module until the data on the logic board matches what the camera expects. The JCID 13-14 Series Rear Camera/Radar Adaptor exists to close that gap. It attaches to your V1SE or V1S Pro programmer and gives it a direct line into the rear camera and LiDAR flex data, so you can read the original values off a working board or write fresh, matched data after a part swap. On a dead phone with a burnt camera IC, this is often the difference between a clean repair and a customer walkaway. The board covers two separate repair paths that Pakistani workshops run into constantly. First is straight rear camera pairing on the 13 series (13, 13 mini, 13 Pro, 13 Pro Max) and the full 14 series (14, 14 Plus, 14 Pro, 14 Pro Max) — this clears the pop-up warning after you install a new or donor rear camera. Second is LiDAR/radar repair on the Pro models — 12 Pro, 12 Pro Max, 13 Pro, 13 Pro Max, 14 Pro, and 14 Pro Max — where a non-genuine radar sensor causes the camera app to freeze or the phone to lose distance-ranging accuracy in portrait mode and AR apps. Both faults trace back to the same root cause: mismatched encrypted identifiers between the sensor and the logic board, and this adaptor is built specifically to rewrite that data cleanly. In a typical workshop workflow, you'd reach for this after diagnostics confirm the fault sits at the camera or radar level rather than a board-side hardware fault. If a customer walks in complaining the camera hangs on logo-adjacent freezes during photo capture, or the LiDAR distance sensor stopped responding after a screen or back-glass job disturbed the flex connector, this tool lets you isolate and fix the pairing without ordering a full logic board repair. It sits in the same category as True Tone boards and Face ID adaptors on the V1SE ecosystem — swap-on daughterboards that extend one programmer into multiple repair functions instead of forcing you to buy a dedicated box for every fault type. Set-up on the bench is straightforward for anyone already running a V1SE or V1S Pro: connect the adaptor to the programmer, seat the target flex or board connection, and run the read/write function from the JCID software. No soldering is required for the adaptor connection itself, though camera or radar module swaps upstream still call for standard microsoldering skill depending on how the original part failed. Keep in mind this board is not a standalone unit — it has no independent processor or software of its own, so it only functions when paired with a compatible JCID programmer, and results depend on running the latest JCID firmware and software release for full 13/14 series support. For a repair shop already stocked with a V1SE or V1S Pro, this adaptor turns a common iPhone 13/14 series complaint — camera pop-up error or LiDAR ranging fault — into a data-level fix instead of a parts-replacement guessing game, keeping repair turnaround fast and the original programmer investment working across more job types.
