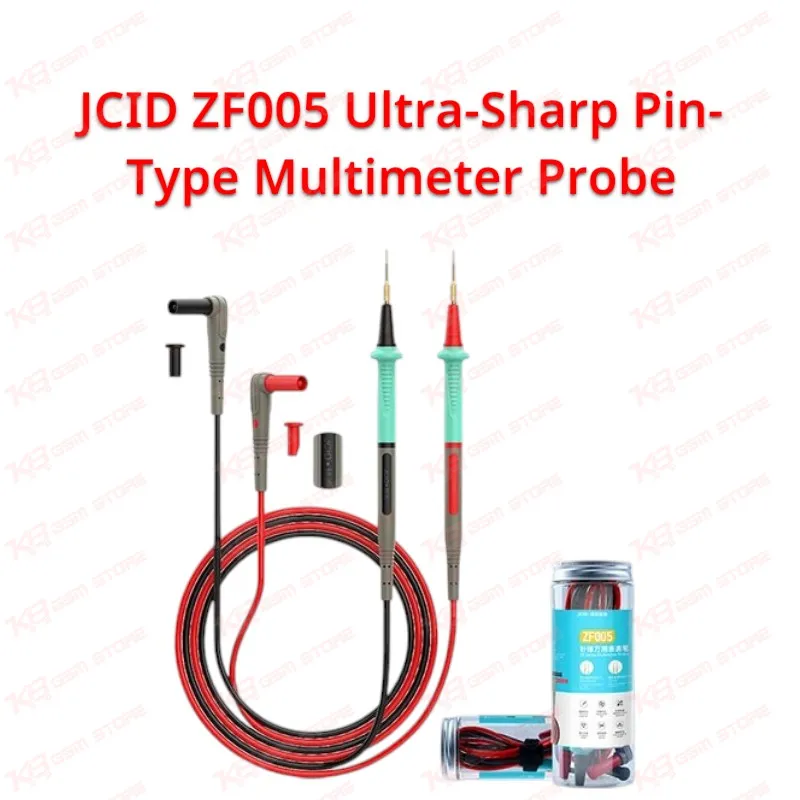

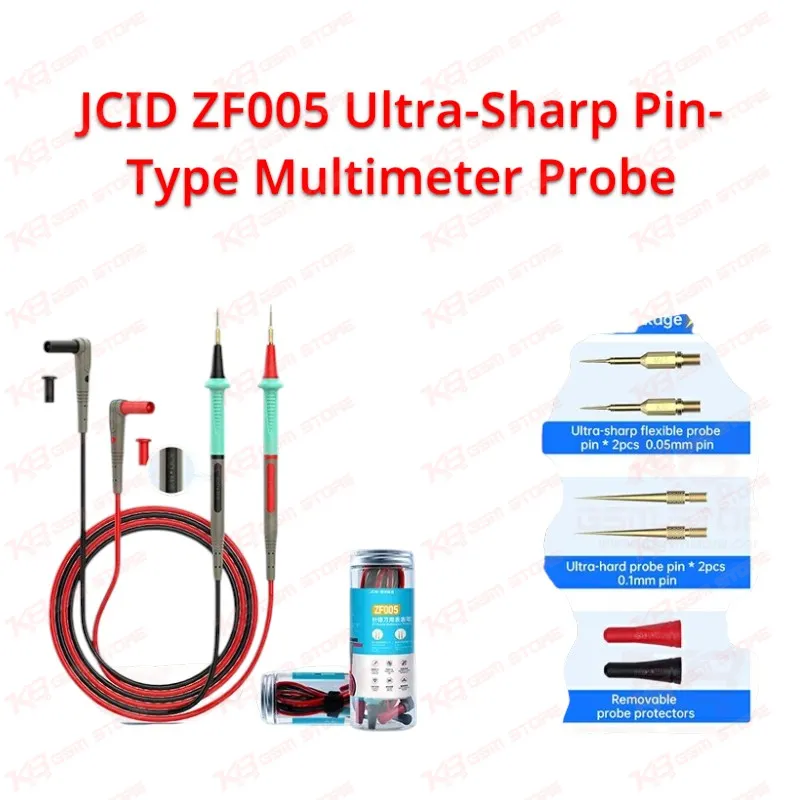

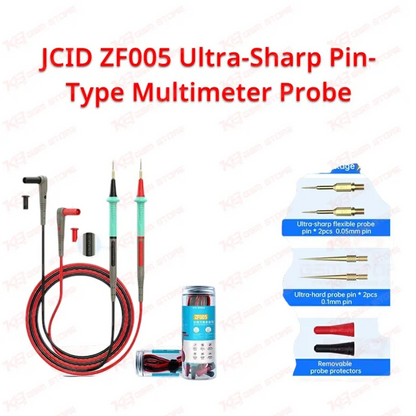

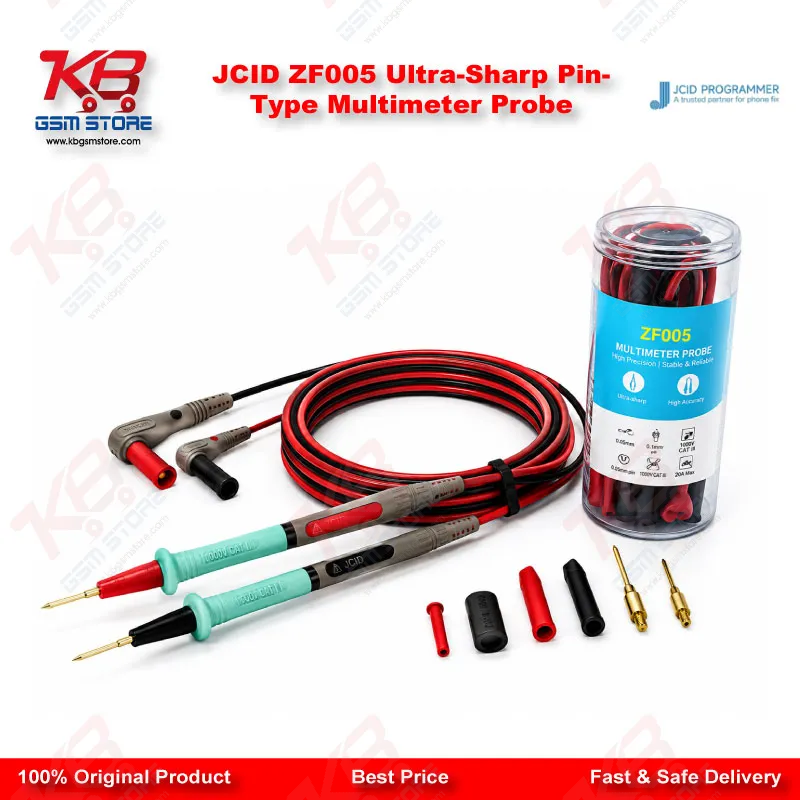

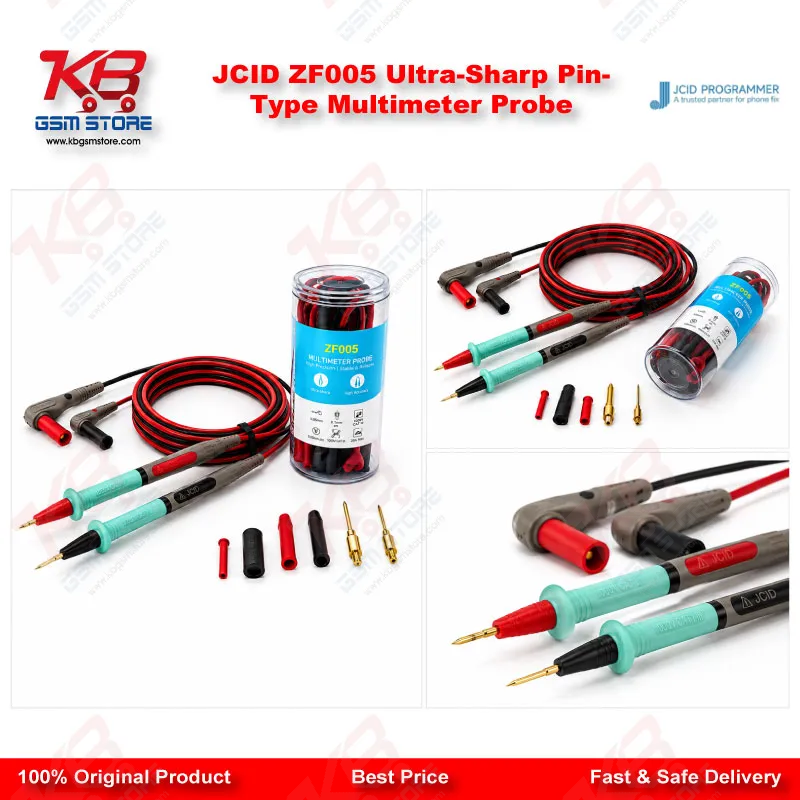

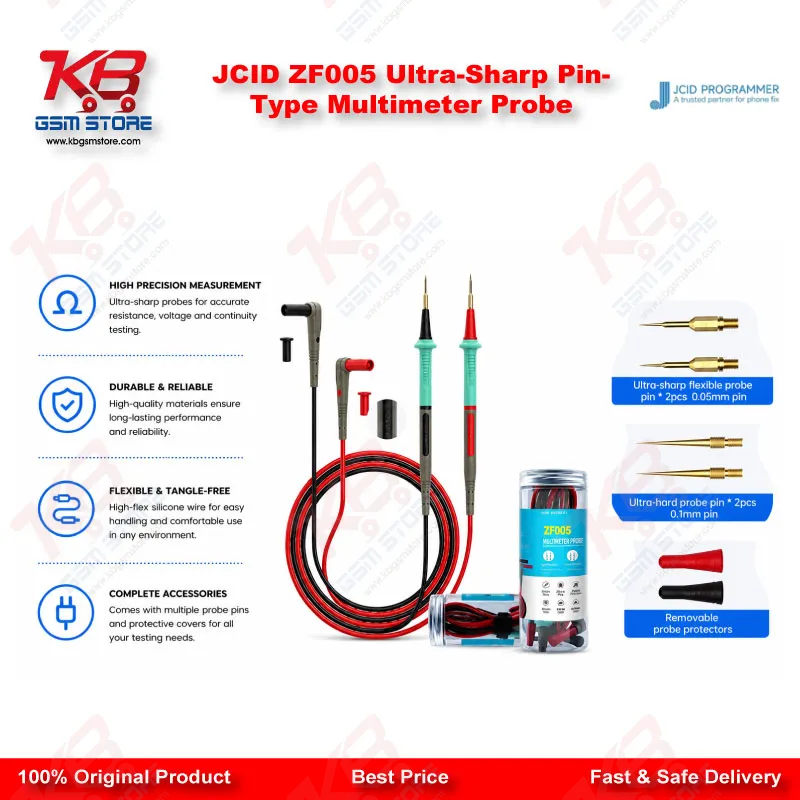

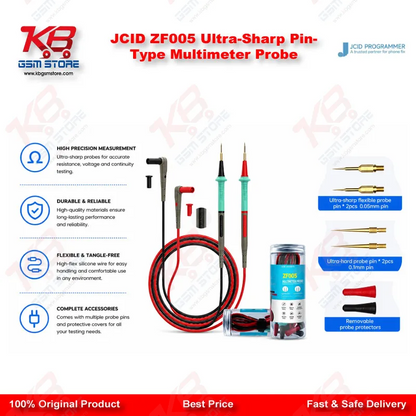

Chasing a short circuit or checking continuity on a dead phone board comes down to how accurate and how sharp your probe tip actually is, and the JCID ZF005 was built around that exact problem. Most stock multimeter probes that come bundled with cheap meters have thick, blunt tips that can't land precisely on tiny SMD pads, capacitor legs, or IC pins without slipping or bridging two points at once. The ZF005 solves this with a genuinely ultra-sharp needle design that lets you isolate a single test point on a crowded board, which matters a lot when you're tracing a short on a dead after flash board or hunting for a cold joint near a CPU. What makes this probe different from a fixed-tip pen is the replaceable pin system. Instead of throwing away the whole test lead the moment a tip bends or wears down, you just swap the pin itself, which keeps your running cost low if you're testing boards every day. The kit ships with two pin types built for different jobs on your repair bench. The 0.05mm ultra-sharp flexible pin is thin enough to land cleanly on the smallest SMD points and IC legs for delicate diagnostic work, while the 0.1mm ultra-hard pin holds up better for repeated continuity checks and general voltage or current measurement where you need a sturdier tip. Having both in one kit means you don't need a separate fine-point probe for IC-level work and a separate rugged one for everyday testing, you just change the pin depending on the fault you're chasing. The pin sits inside a friction ring that protects the needle from bending or snapping when you're moving between test points quickly, and the same ring makes it noticeably easier to pull out a worn pin and click in a fresh one without fiddling with tiny screws or connectors. A reinforced buckle design holds the pin firmly in the probe body, so it won't wobble or lose contact mid-test, which is exactly when you'd otherwise get a false reading and waste time re-checking a good component. The wire itself is a soft, high-temperature-resistant silicone cable rather than the stiff PVC wire found on basic probes, so it stays flexible even after sitting near a hot air station or hot board, and it won't crack or stiffen up in cold workshop conditions either. Dual insulation on the wire and pin body adds a layer of safety when you're probing live boards, and the whole probe wipes clean with water or a mild detergent if it picks up flux residue or grease during a repair. Two removable probe protectors are included in the box, so when the probe isn't clipped into your meter you can cap the tip and avoid accidental pokes or damage to the needle while it's sitting in your tool tray. JCID built the ZF005 to work with the vast majority of digital multimeters on the market, so you're not locked into a specific meter brand to use it, whether you're running board-level diagnostics, checking a charging issue, tracing a hardware fault after a drop, or confirming continuity before you commit to an IC change. For technicians doing high-volume dead phone and PCB repair work, this kind of probe upgrade is a small investment that pays off in fewer misreads, less time hunting for faults, and a tip that survives daily use instead of degrading after a few weeks on the bench.
