JTX A9 High-Precision Sampling, Digital Display

When you're sitting at your repair bench trying to trace a charging issue or pinpoint a hardware fault on a mobile PCB, a basic multimeter simply does not give you enough. Current spikes disappear before you register them. Diode readings lack context. Voltage fluctuations during boot sequences go completely untracked. The JTX A9 changes your entire diagnostic workflow by combining a high-precision waveform meter, analog pointer display, multimeter functions, and a Type-C USB tester into one well-built tool that earns its place on any serious repair bench.

What Makes the A9 Different from a Standard Multimeter

Most technicians in Pakistan run into the same bottleneck: they're using single-function tools when the real repair problem demands multi-signal analysis. A phone that goes dead after flash, hangs on logo, or keeps rebooting in a boot loop often has a power rail issue that only shows up as a transient spike lasting milliseconds. The JTX A9's curve waveform mode captures exactly these kinds of dynamic changes. You can watch current behavior over time, pause the waveform at any suspicious point, and review what the circuit was actually doing during the fault — not just what the meter reads in a frozen snapshot.

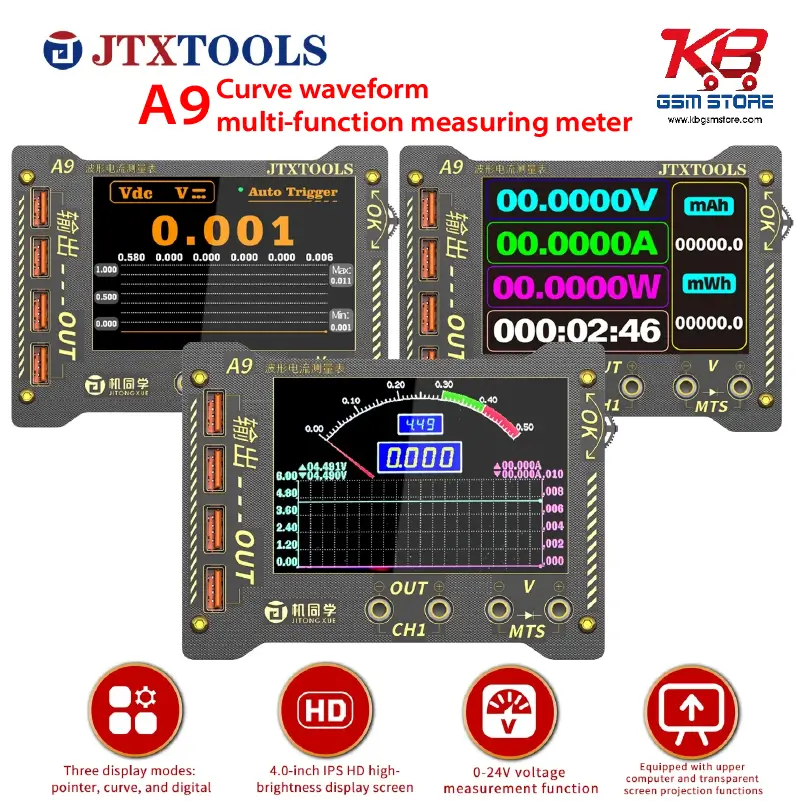

4.0-Inch Screen with 320×480 Resolution

The A9 runs a 4.0-inch color display with 320×480 pixel resolution, giving you a large, readable view of waveform curves, voltage levels, and current values without straining your eyes during long repair sessions. Large font display mode makes readings instantly visible from an angle, which matters when you are probing live circuits and cannot keep your eyes locked on the screen. Whether you're measuring diode forward voltage, checking a charging IC, or monitoring USB output, your readings stay sharp and clear.

Four Measurement Modes for Every Diagnostic Situation

The A9 gives you four distinct operating modes, each tuned to a different diagnostic task:

Pointer-curve mode displays a live analog-style pointer combined with a waveform trace. This lets you see both the current approximate range and its directional trend simultaneously. When you're checking a phone's current draw during startup or testing after a software flash, this mode gives you the fastest read on what is happening in the circuit.

Waveform mode records and renders dynamic current or voltage changes as a scrolling curve. If a dead phone is drawing abnormal current on power-up, or a charging issue is causing fluctuation, this mode makes the fault visible. You can pause the capture to study the waveform segment that corresponds to the problem moment.

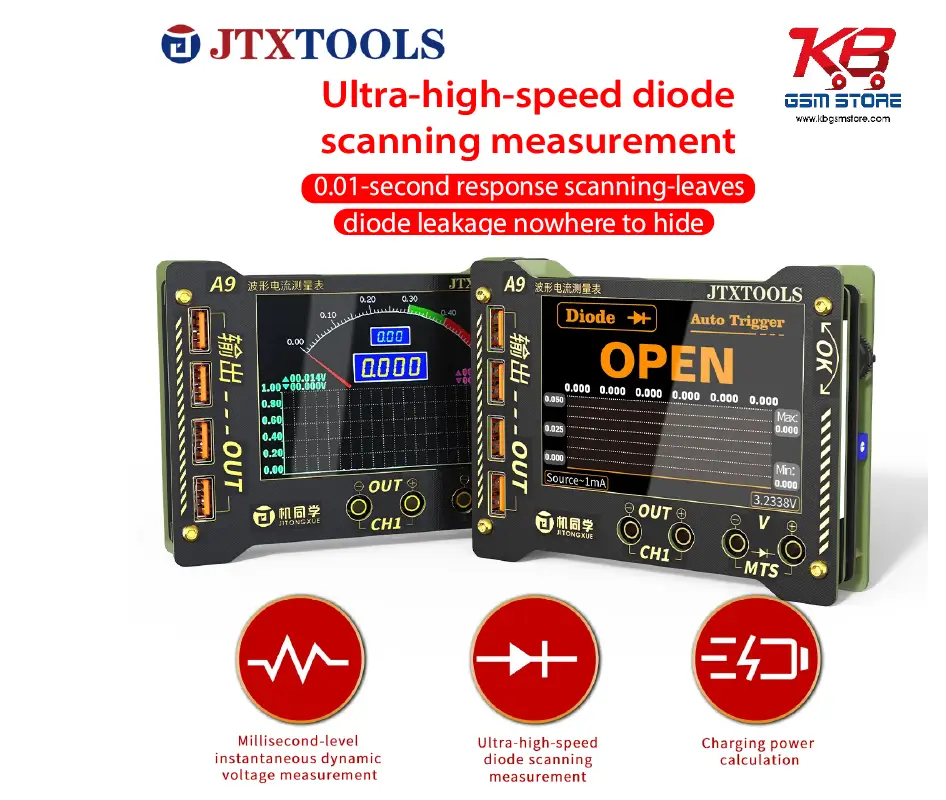

Diode mode delivers precise forward-voltage measurement for SMD diodes and protection components on mobile motherboards. It logs numerical values and supports PC screen projection for documentation or training purposes — a useful feature for repair shop owners who run technical training.

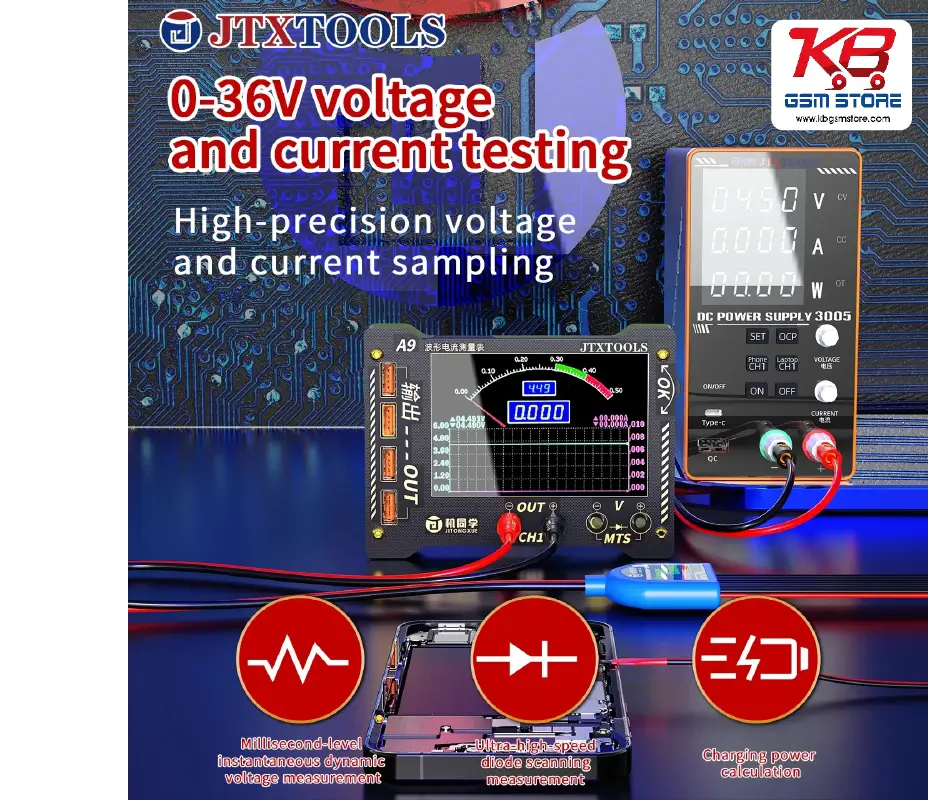

Voltage measurement mode provides rapid real-time voltage readings with 1mV resolution, a continuous voltage curve, and recording support for reviewing data on a connected computer via the upper computer function.

Built-in Short-Circuit Protection and Intelligent Alerts

The A9 includes short-circuit protection reminders and a high-voltage intelligent alert system. When you're probing an unknown circuit or testing a board where the fault hasn't been identified yet, these protections prevent damage to both the meter and the device under test. The protection voltage ceiling sits at under 60V and the protection current at under 15A, keeping the meter safe across all standard mobile repair scenarios including fast-charge testing.

Type-C USB Voltage and Current Testing

The integrated Type-C tester function makes the A9 directly useful for verifying charging adapters, power banks, USB cables, and charging boards. With banana plug ratings of 40V and 8A, you can test high-current fast-charge scenarios accurately. Current accuracy reaches 0.5mA with 0.1mA resolution, so even minor current discrepancies in a charging circuit become detectable — the kind of detail that separates a proper diagnosis from a guessed repair.

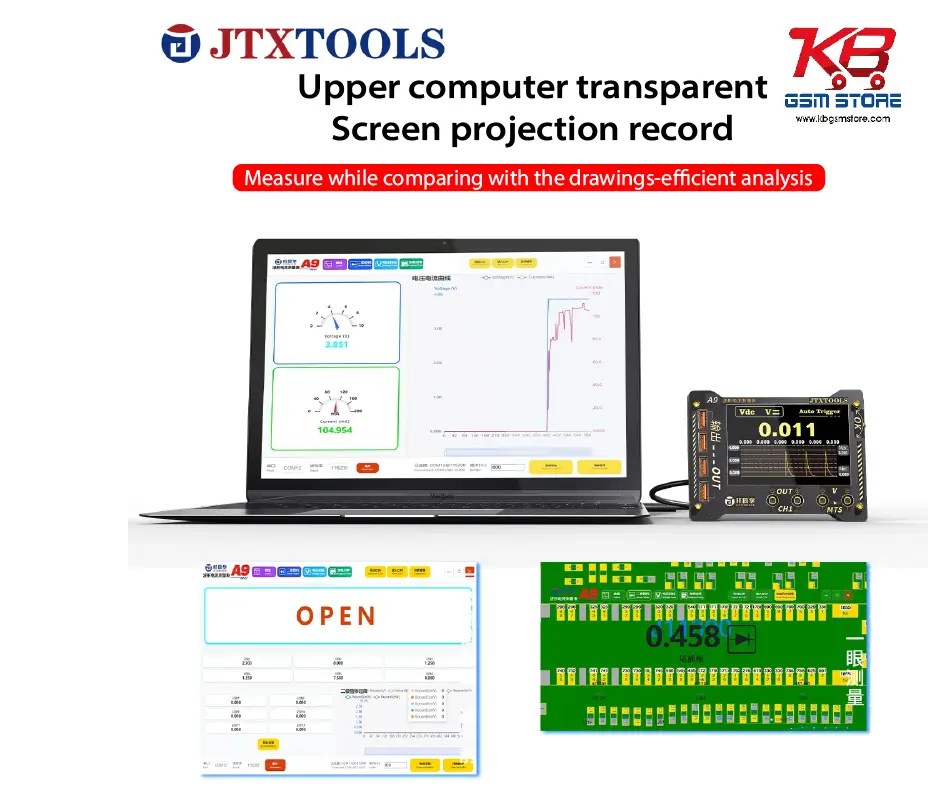

Upper Computer Function for PC Integration

The upper computer function lets you connect the A9 to a Windows PC and view live measurement data on a large screen. For repair shops that do training or want to record data for post-repair review, this feature adds a professional layer to your diagnostic process. Voltage curves and waveform data captured during a repair can be projected, saved, or reviewed without relying solely on the device screen.

Where the JTX A9 Fits in Your Repair Workflow

On your repair bench, the A9 slots in right after initial visual inspection and before any PCB-level rework begins. Use it to confirm a charging fault before you start checking the charging IC. Use it to test current draw before deciding whether the issue is a software problem or hardware fault. Pair it with your multimeter, ISP pinout tools, and PCB holder for a complete diagnostic station. It works naturally alongside soldering stations, hot air stations, and microscopes as part of a full professional repair setup.
