Motherboard trace damage sits at the root of countless hardware faults — charging issues, display problems, network issues, and dead phones that refuse to power on even after a flash. When a PCB trace breaks at a screw hole, a pad lifts during IC change karna, or a signal line tears during disassembly, restoring that connection with a reliable jumper wire is the only path to a complete repair. The JTX FX-252 is built for exactly these situations.

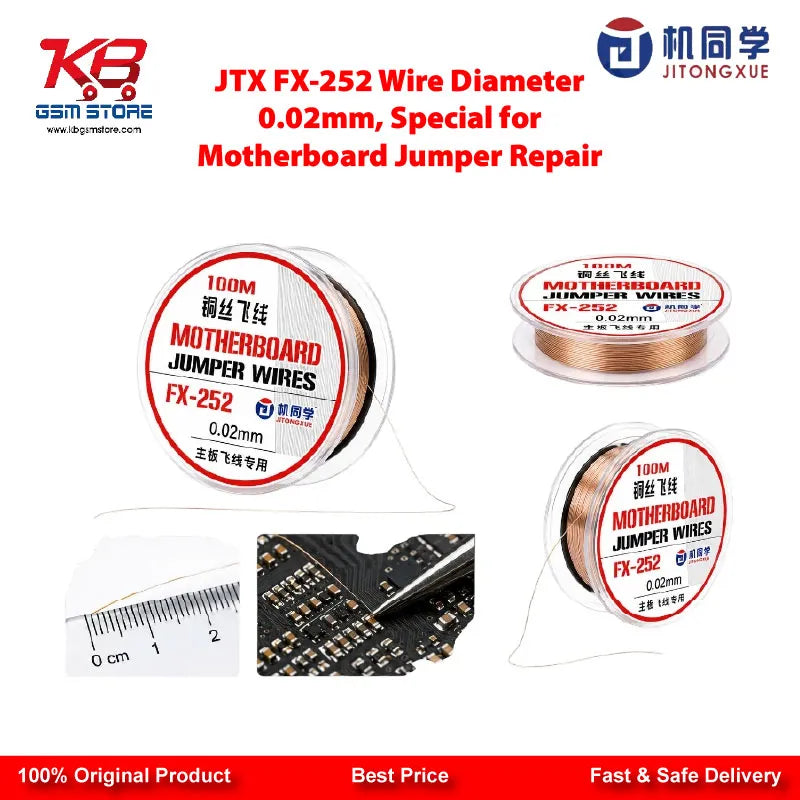

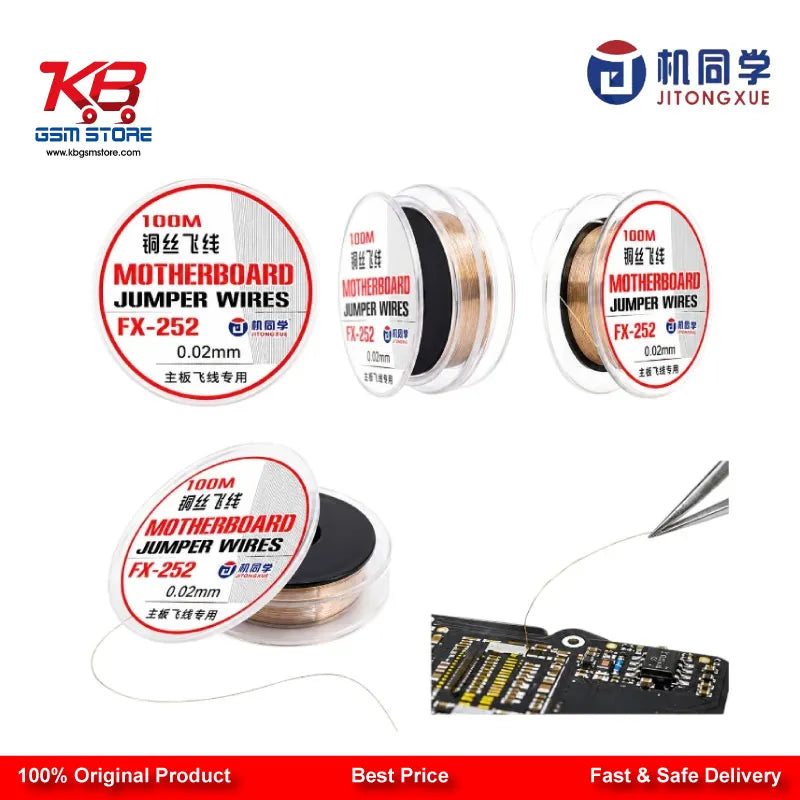

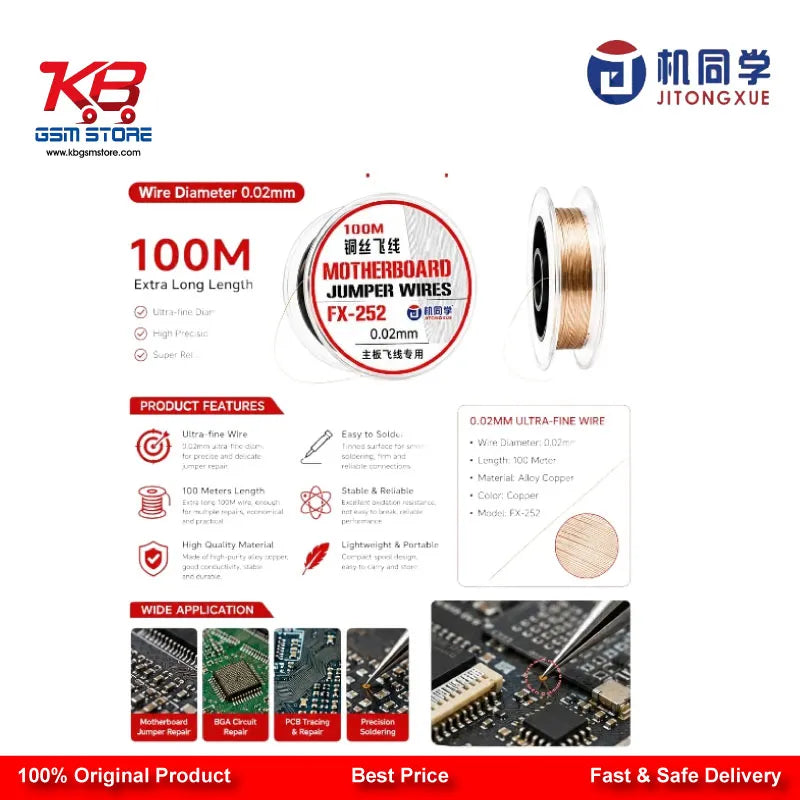

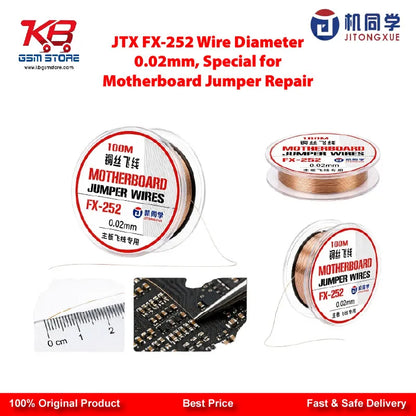

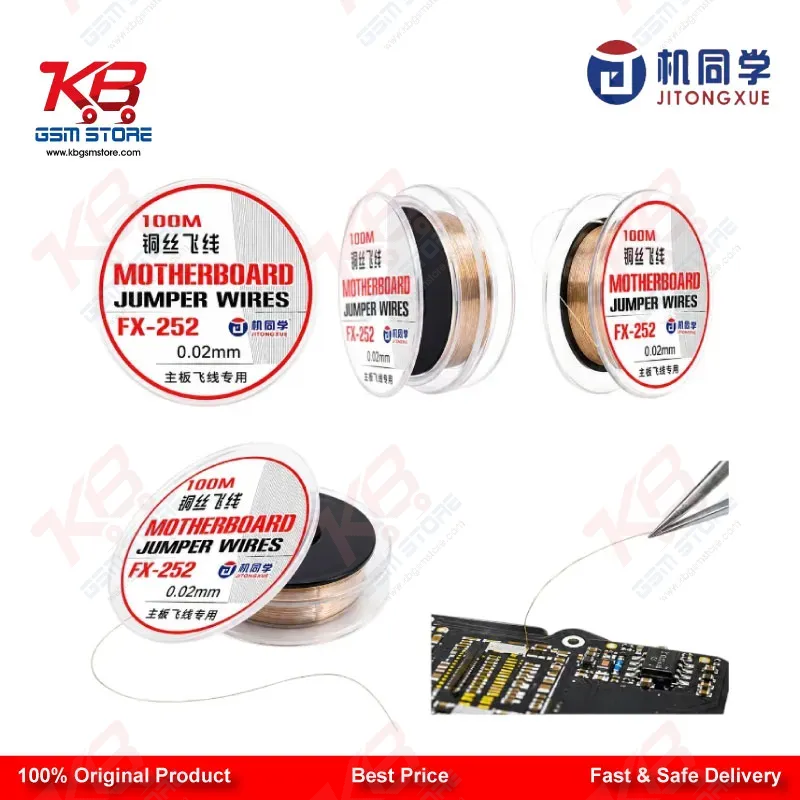

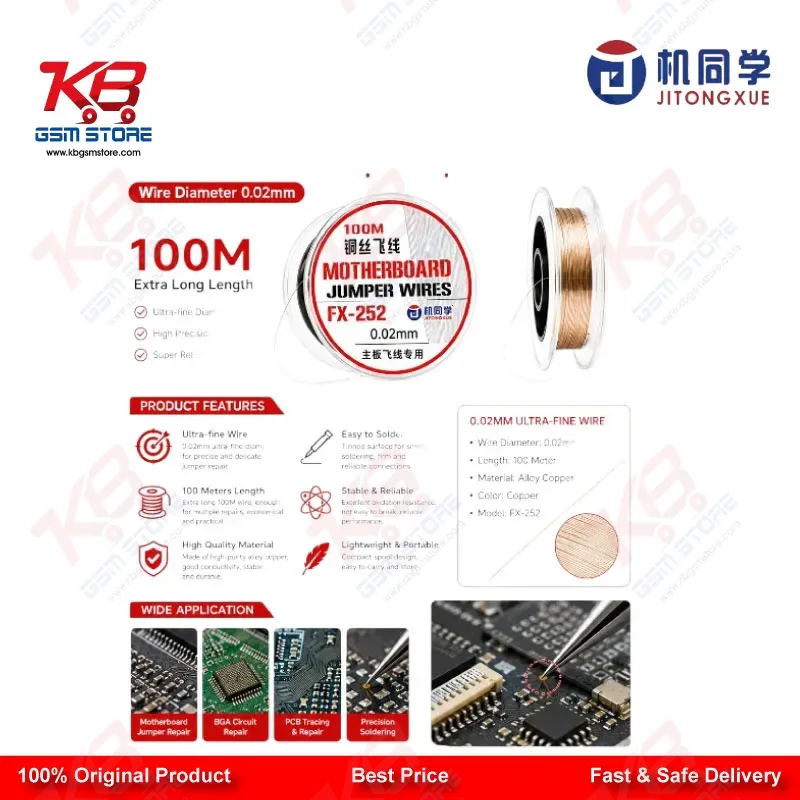

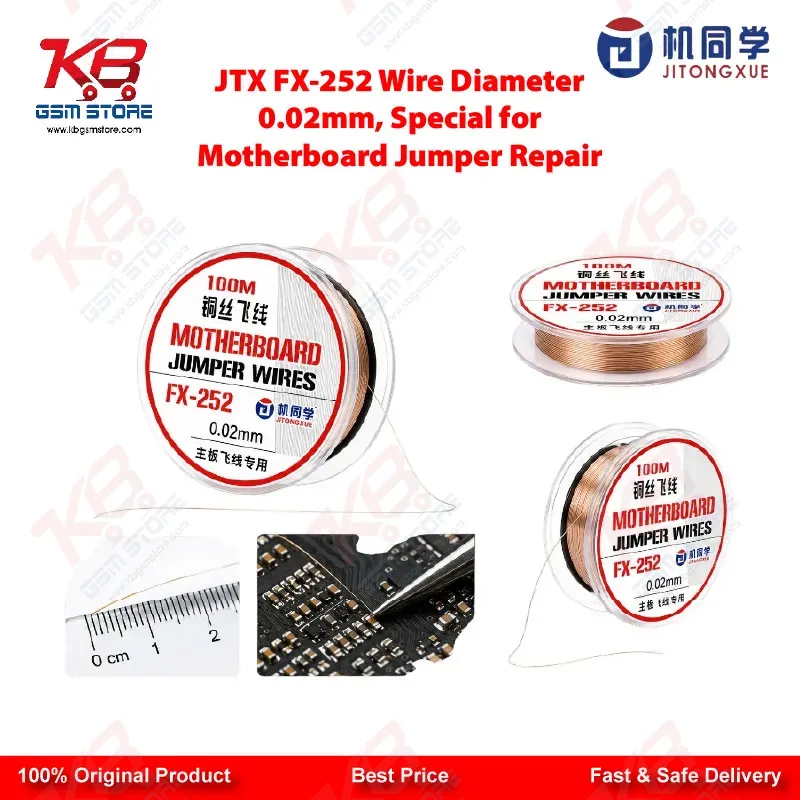

At 0.02mm in diameter, the FX-252 occupies the middle tier of the JTX FX series — thicker than the FX-251's 0.01mm pad-specific wire and narrower than standard repair wire, making it the right choice for general motherboard trace repair where moderate wire gauge handles routing without adding bulk. It fits cleanly into tight PCB areas, follows curved trace paths without resistance, and holds its position under the iron without slipping.
Why Wire Diameter Matters for Jumper Work
In PCB-level diagnostics, choosing the wrong wire gauge creates problems. Wire that is too thick adds mechanical stress to already-weakened pads, increases the risk of bridging adjacent traces, and struggles to route through component-dense areas. The FX-252's 0.02mm diameter threads through the tightest board sections with control — letting you run a clean jumper from source pad to destination without disturbing nearby BGA pads or SMD components.
When jumper lagana on a Qualcomm or MediaTek board, routing precision directly determines whether the repair holds long-term. The FX-252's high-ductility copper core bends and curves without work-hardening, so you can reposition the wire during placement without it snapping or losing shape.
Direct Soldering — No Paint Scraping
One of the most practical qualities of the FX-252 is its optimized surface treatment. Unlike standard enamelled wire that requires paint removal before tinning, the FX-252 takes solder directly under your iron. This eliminates the pre-treatment step that slows down workshop throughput and removes the risk of accidentally damaging the wire's core during scraping. On a busy repair bench handling multiple boards per day, this time saving accumulates quickly.
Low Inductance, Low Interference
Signal lines on modern smartphone motherboards carry high-frequency communication paths — USB, display interfaces, fingerprint sensors, touch layers, and RF antenna connections. Any jumper wire running alongside or across these paths needs to resist interference. The FX-252 uses a low-inductance wire structure that minimizes signal disturbance, keeping the repaired trace electrically stable. This matters especially when fixing network issues or display problems where signal integrity directly affects device performance post-repair.
Where the FX-252 Fits in Your Repair Workflow
Your multimeter points to a broken trace. Your microscope confirms the exact pad location. Now you need the right wire to bridge that gap cleanly. The FX-252 slots directly into the middle of this workflow — after diagnostics, before final testing. It pairs naturally with a precision soldering station, a PCB holder to secure the board during work, and a microscope for visual confirmation of joint quality. Once the jumper is in place and tested, the repair moves to final assembly and device verification.
For repair shops handling hardware fault diagnostics on a daily basis, the 100-metre spool provides enough stock for extended use across Qualcomm Snapdragon boards, MediaTek Dimensity devices, Apple iPhone logic boards, and Samsung PCBs without constant reordering.
Built for Scale Across the FX Series
The JTX FX series covers three distinct wire diameters for three distinct repair scenarios. The FX-251 at 0.01mm handles delicate IC pad repair. The FX-252 at 0.02mm handles motherboard-level trace and screw-hole jumper work. The FX-254 at 0.0044mm handles CPU wire breakage repair — the most demanding micro-soldering task in PCB-level repair. Stocking all three gives your workshop complete coverage across every jumper lagana scenario you encounter.
