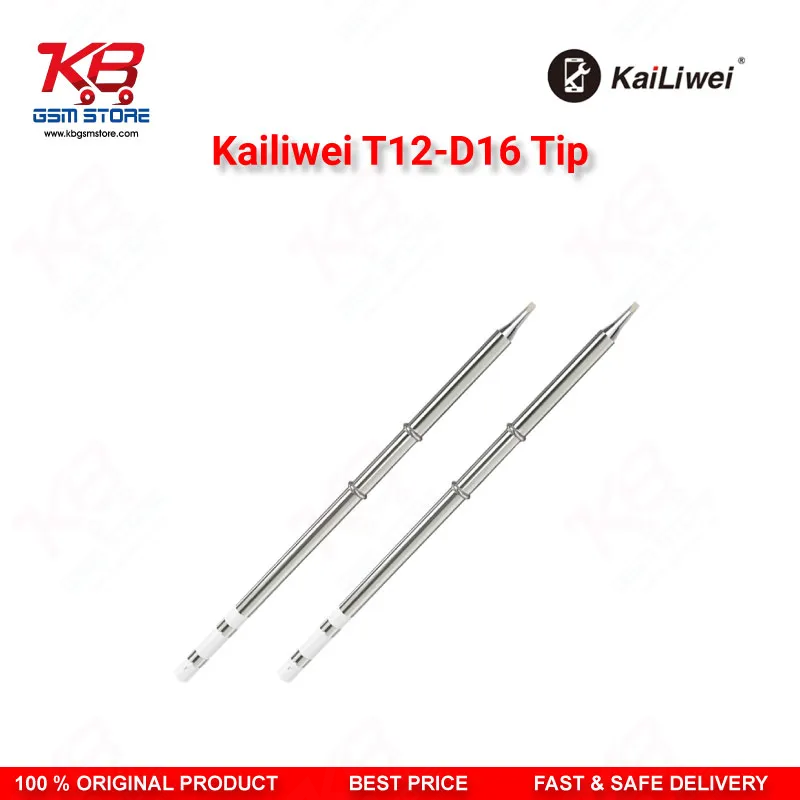

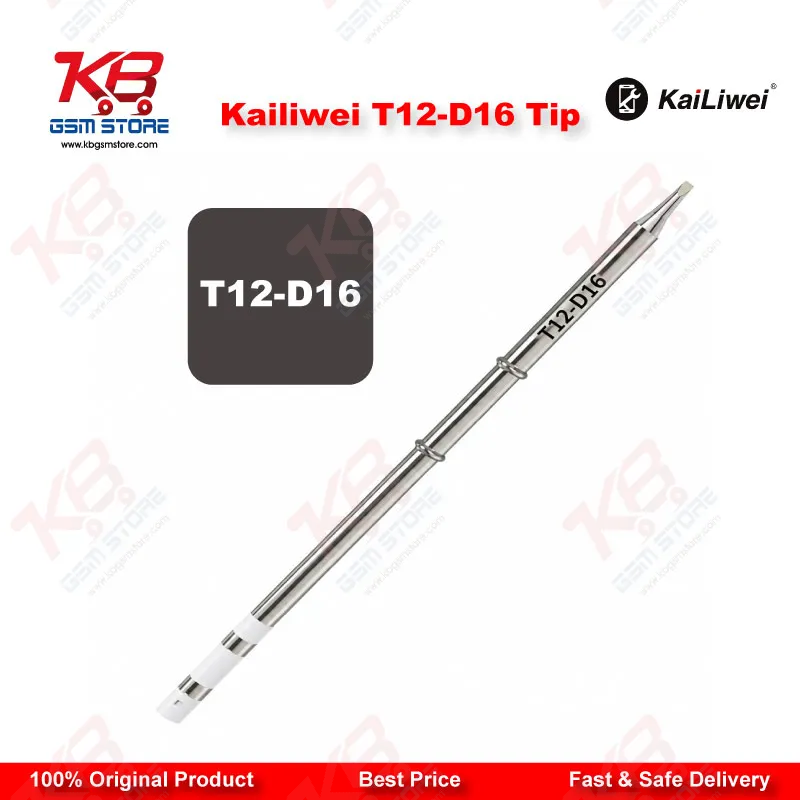

Every experienced technician on a mobile repair bench knows that the tip controls everything. Your station can have perfect temperature stability, fast heat recovery, and a comfortable handle — but if the tip geometry does not match the job, your solder joints suffer. The Kailiwei T12-D16 solves a specific and recurring problem in mobile PCB work: you need a flat, wide-enough tip that can transfer heat across component pads efficiently, without needing to switch tools mid-job.

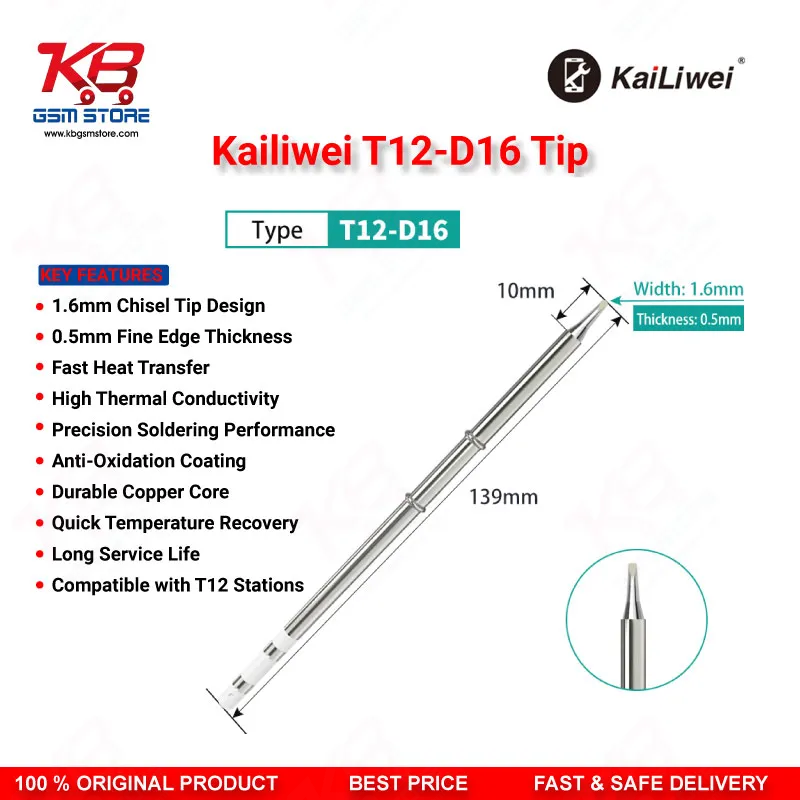

The D16 designation tells you exactly what you are getting. "D" means double-sided — a flat-blade shape similar to a screwdriver tip, machined so both the broad face and the narrow edge are usable soldering surfaces. "16" refers to the 1.6mm width of the tip face. This combination makes the T12-D16 one of the most versatile tips in the T12 series. You can press the flat face onto wide pads for full surface contact, or rotate the tip and use the edge for tighter spaces between components.
Where this tip fits in your workflow
In mobile phone repair, charging issue diagnostics often end with a charging port swap or a charging IC change karna on the motherboard. Both tasks require controlled heat delivery to flat, surface-mounted pads. The T12-D16's 1.6mm face covers a realistic pad width without bridging adjacent components, which makes it genuinely useful rather than just theoretically precise. For drag soldering across a row of FPC connector pins, the face angle lets solder flow evenly without cold joints.
When jumper lagana on a PCB trace is required — replacing a broken power or signal line — you need a tip that heats a small section of trace cleanly and releases. The D16's narrow edge delivers enough heat for flux-activated solder adhesion without blowing adjacent components off pads. Technicians dealing with dead phone cases caused by damaged charge paths or burned power rails will use this tip regularly in their repair process.
Build quality and station compatibility

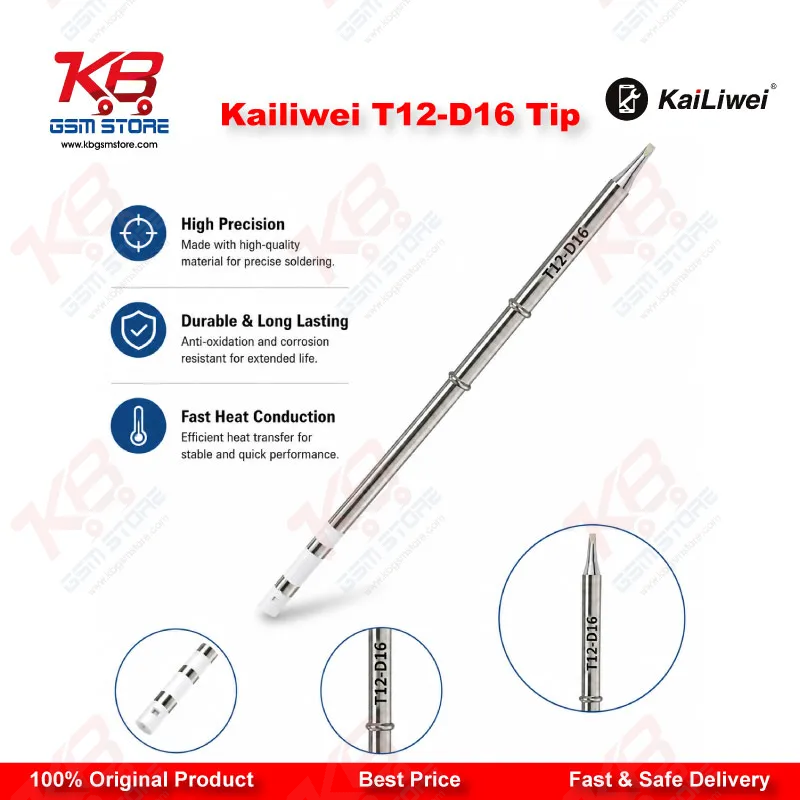

The Kailiwei T12-D16 is constructed from copper with an iron plating layer and lead-free solder coating. Copper is the correct base material for soldering tips because it conducts heat rapidly from the integrated heating element inside the T12 cartridge to the tip surface. The iron plating protects the copper from dissolving into the solder, which is the primary cause of tip failure in workshop conditions. The lead-free coating means the tip arrives pre-tinned and ready for use on your first heat cycle.
This tip fits directly into any T12-series handle. Whether you run a Kailiwei T12, T12A, T12X, or any other T12-compatible station on your bench, the D16 installs without adapters or modification. The integrated cartridge format — where the heating element and tip are one unit — means the tip reaches working temperature quickly and maintains it accurately. Your station's temperature display reflects the actual tip temperature, not a sensor reading from inside the handle.
Temperature range and lead-free compatibility
The T12-D16 operates across the full T12 temperature range of 0–480°C. For standard mobile PCB soldering work, the effective range sits between 300°C and 380°C. Below 300°C, lead-free solder does not flow reliably. Above 380°C, the iron plating on the tip begins to oxidize faster, shortening tip life. For most charging port work, FPC reconnection, and jumper wire soldering on mobile motherboards, 320–360°C gives you clean results with the D16 without burning the board.
The tip is compatible with both leaded and lead-free solder. If your workshop has moved to lead-free workflow for environmental compliance or client requirements, the D16 handles 227°C-melting-point lead-free alloys at the correct working temperatures. Keep the tip tinned between soldering tasks — this prevents oxidation and keeps heat transfer consistent across your entire repair session.
Daily use and tip maintenance
On a busy repair bench processing multiple phones per day, soldering tips are consumables. The T12-D16's copper and iron construction gives it a realistic service life when maintained correctly. Wipe the tip on a damp sponge or brass wire cleaner before each use. Re-tin the tip after every wipe. When you pause work for more than a few minutes, drop the station into standby mode — this prevents unnecessary oxidation and preserves the lead-free plating. At the end of the day, coat the tip heavily with solder before switching off. This protects the iron surface overnight and reduces the cleaning needed at the next startup.
The T12-D16 belongs alongside your other T12 tips as a standard toolkit item for mobile PCB repair. It works for soldering stations, reballing preparation, FPC connector work, and general through-hole and SMD component replacement. Keep a spare on your bench — a worn or oxidized tip mid-repair slows you down when the job cannot wait.
