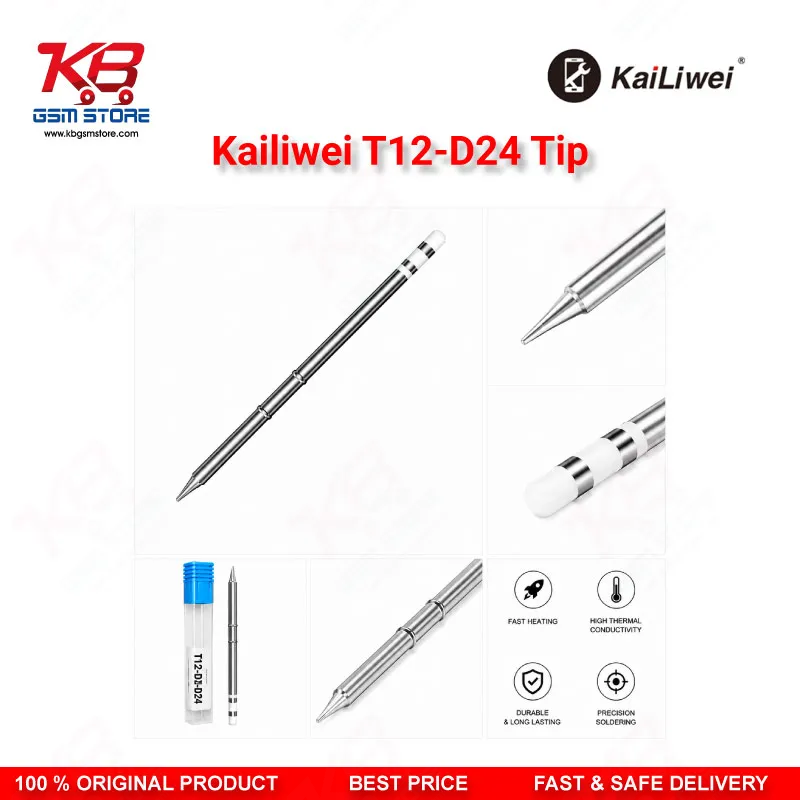

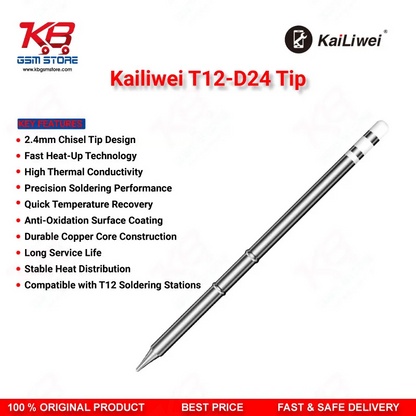

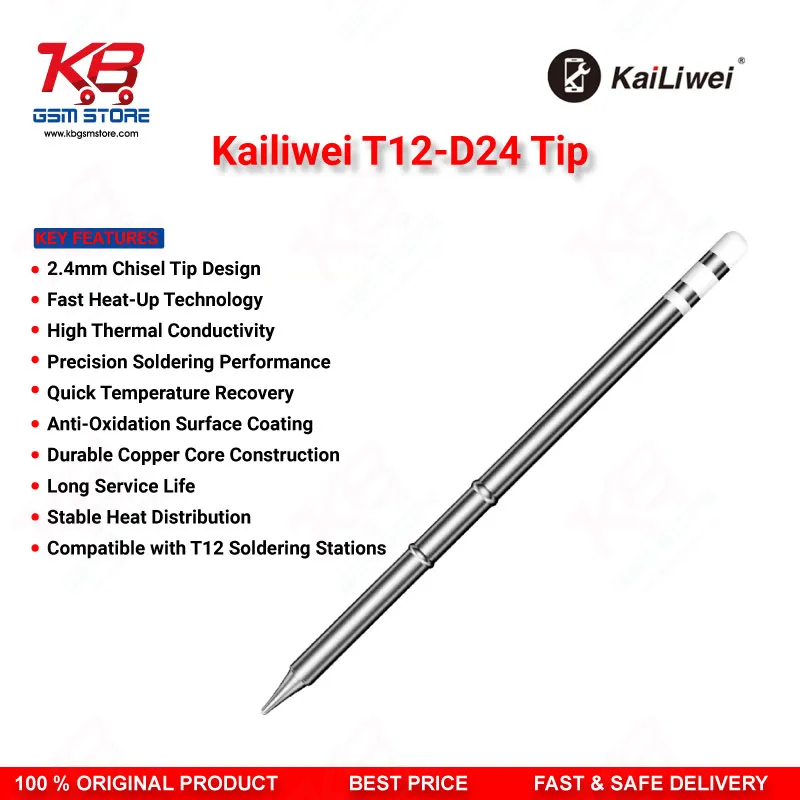

Kailiwei T12-D24 Soldering Tip – 2.4mm Chisel D-Shape Iron Tip for T12 Soldering Stations

Every professional repair technician knows that the quality of a solder joint starts with the tip. You can run the best T12 soldering station on your bench, but if the tip has poor heat transfer, slow tinning, or degrades after a few hundred joints, your workflow slows down and your rework quality drops. The Kailiwei T12-D24 soldering tip is built to solve exactly that.

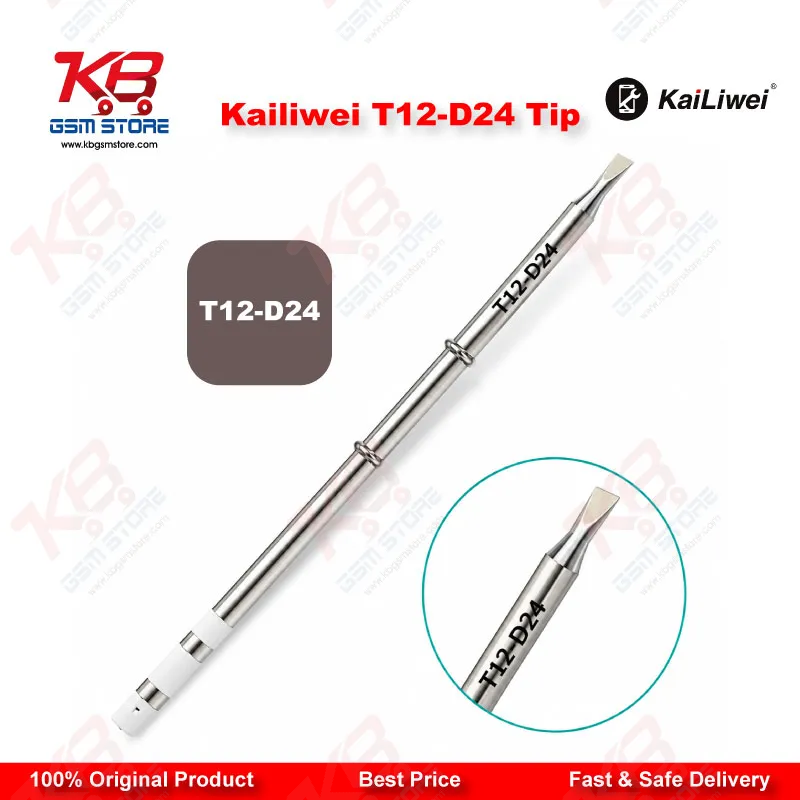

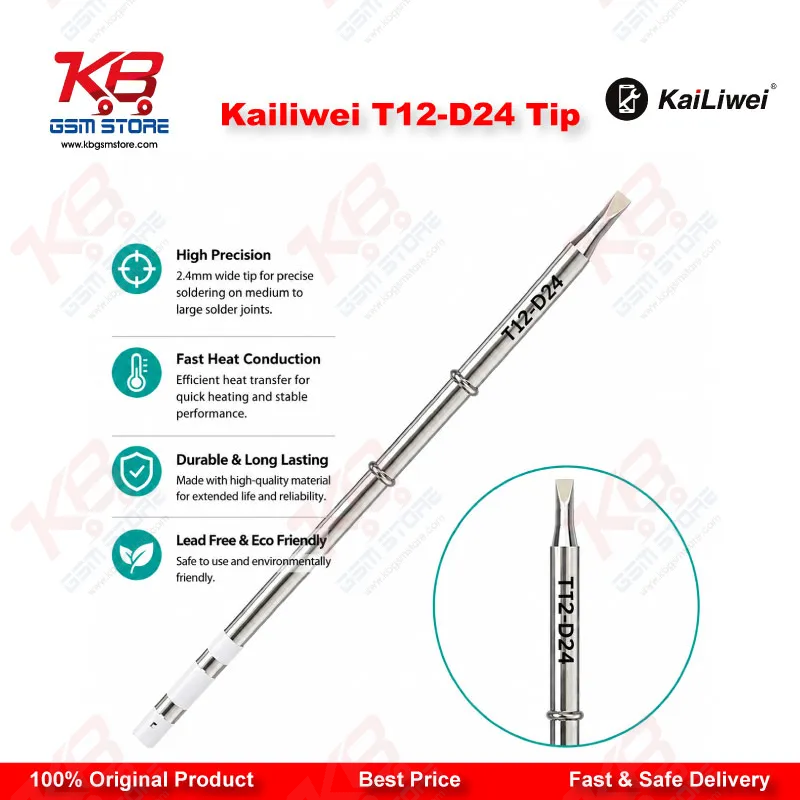

The D24 designation means this is a 2.4mm chisel-shaped tip — the "D" series in T12 nomenclature refers to the flat screwdriver-style geometry. This shape gives you two contact surfaces: edge contact for narrow pads and face contact for wider solder areas. That dual-mode contact makes the D24 one of the most versatile tips in the T12 system. Whether you're replacing a charging IC, doing jumper lagana on a power line, or reflowing pads on a display connector, the D24 shape gives you solid tip-to-pad contact without overheating surrounding components.

The tip is constructed from oxygen-free copper (OFC) as the core material, then plated with a lead-free alloy coating. That plating layer handles the actual soldering contact, and its fine crystal structure resists corrosion and oxidation even when working at temperatures between 350°C and 450°C. At those working temperatures, the D24 holds its shape without deformation or tip penetration — problems you often see with low-quality tips that start pitting or roughening after a few weeks of daily use.

Heat performance is where the integrated T12 heating core system stands out. The heating element and thermocouple sit inside the tip body itself, which means the station reads temperature directly at the tip — not at the handle. You get faster temperature recovery when the tip contacts a large ground pad or thermal mass, and the station corrects for heat loss almost instantly. For technicians doing hardware fault diagnosis and component replacement on dense PCBs, that temperature stability matters.

The T12-D24 operates at 24V DC input with a heating resistance of 8±0.5Ω. Ground leakage voltage stays at or below 2mV, which protects sensitive ICs and CMOS components from ESD damage during soldering. If you're working on display ICs, PMICs, or audio ICs where electrostatic sensitivity is a real concern, that low ground voltage is critical.

Tip life on the D24 reaches 40,000 to 50,000 solder joints under normal working conditions. At a typical repair shop volume, that translates to months of daily use before replacement becomes necessary. The lead-free plating holds up well in the 350°C–450°C range — push above that consistently and you'll accelerate oxidation on any tip, so keeping your station in the right temperature zone extends tip life significantly.

For Pakistani repair technicians running Kailiwei T12 stations or any other 616-board T12-compatible station, spare T12-D24 tips are a bench necessity. IC change karna, fine pad soldering, connector reflowing, and jumper work all go faster when your tip is fresh and properly tinned. Keep two or three D24 tips in rotation and you'll never lose work time to a degraded tip mid-job.

This tip is not compatible with non-T12 stations such as 907, 908, or JBC-style stations. It is designed exclusively for T12-system soldering stations that accept the standard T12 tip cartridge format.
