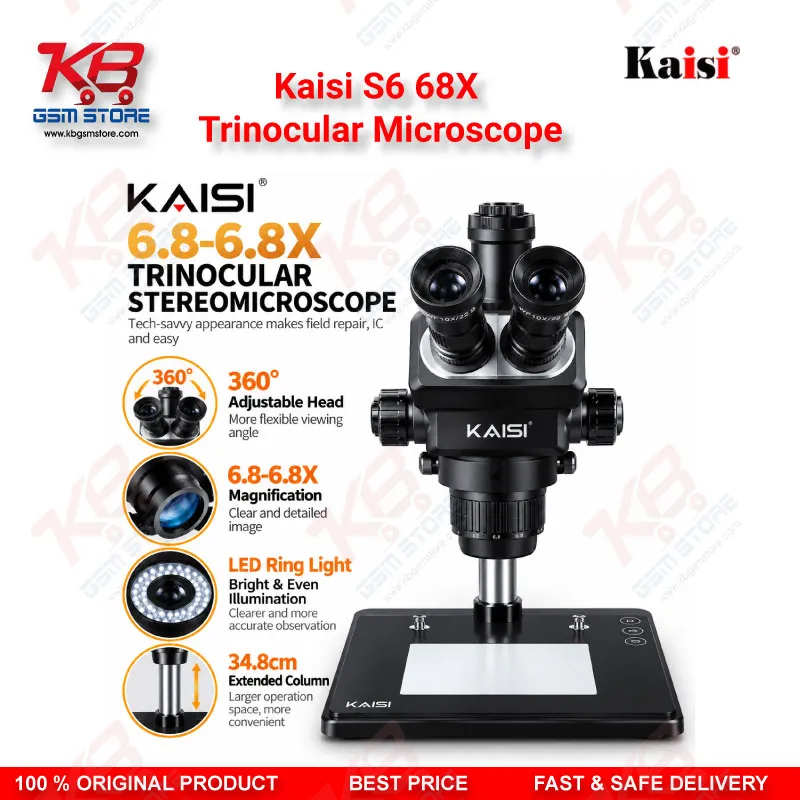

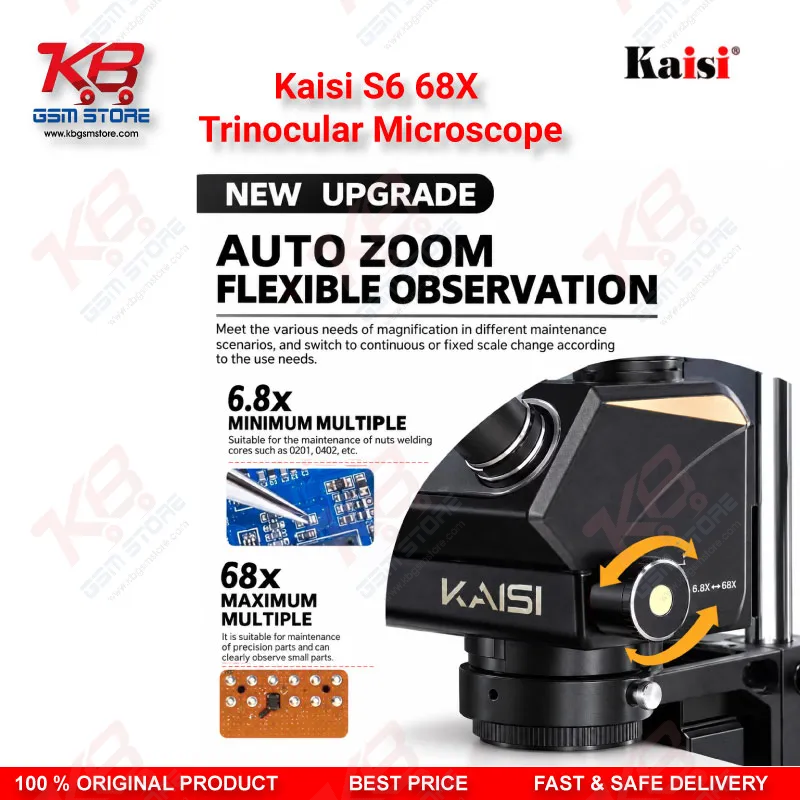

Every board-level fault that walks into a Pakistani repair shop, whether a dead phone after water damage, a charging issue traced to a cracked PMIC joint, or a network issue caused by a lifted RF pad, eventually lands under magnification, and the Kaisi S6 68X Trinocular Microscope turns that moment into a controlled, repeatable process instead of guesswork. Kaisi built the S6 around a 0.68X to 6.8X continuous zoom objective, and paired with its WF10x23 wide-field eyepieces it delivers a total magnification range of 6.8X to 68X, which means you can start at low power to scan an entire motherboard for burnt components, corrosion trails, or missing parts, then roll the zoom knob smoothly toward 68X to inspect a tiny capacitor, a hairline trace break, or the solder balls along a CPU edge without swapping lenses. The field of view spans 32.2mm at the lowest setting and narrows to 3.4mm at full zoom, so the low end shows you a large board section at once while the high end fills the eyepieces with a single IC footprint. That range matters in daily work because most technicians spend more time finding a fault than fixing it, and a wide low-power view shortens the hunt considerably. The WF10x23 eyepieces give a wider view than common WF10x20 eyepieces, and their high eye point lets technicians who wear glasses keep them on through a long reballing session. Adjustable interpupillary distance lets every technician on your team set the head to their own eye spacing, which cuts the eye and neck fatigue that builds up over a full day of board work. A 110mm working distance separates the objective lens from the board, and that gap gives your soldering iron tip, hot air nozzle, tweezers, and scalpel real room to move, so you can remove a shield, lift a charging IC, clean the pads with solder wick, and place a new chip while watching every step live rather than pulling the board out between steps. Kaisi mounts the head on a 34.8cm long column, and the extra height gives you a more comfortable viewing position along with clearance for thicker assemblies such as a board still sitting inside a PCB holder or a clamped fixture. The trinocular design is where the S6 separates itself from a standard binocular bench scope, because the third port carries a 0.5X CTV interface that lets you attach a compatible microscope camera and route the live image to a monitor or computer. For a service center, that camera path supports three practical jobs: recording a repair as proof of work for a customer who questions a bill, capturing before and after images of corrosion or damaged pads, and running live demonstrations for trainees at a technical institute or apprentices at your own counter. The camera does not come in the package, so you choose one that matches your budget and screen setup. Lighting decides how much detail you actually see, and Kaisi ships the S6 with a 144 LED ring light that surrounds the objective and throws even illumination across the board, cutting the harsh shadows that hide cracked solder joints under shields and around BGA edges. The package also includes a solder fume extractor that pulls flux smoke away from the lens path and from your face, which keeps the image clear while you work with flux and hot air and keeps the air around your bench cleaner during a long shift. A large insulated silicone base plate, measuring about 14.9 inches, doubles as a heat-resistant work mat, so you can rest a hot board or tools on it without scorching the stand. The kit also carries a limit block for the column, an EM3 eye mask set to block side glare, a light source interface, a 3-in-1 boost cable, and a DTV bracket, which means the S6 arrives as a complete bench station rather than a bare optical head. In a real workflow, the S6 sits at the center of your hardware bench and connects every other tool you own. A software technician who faces a dead after flash situation or a phone that hangs on logo and refuses to respond to a box often needs to open the board for ISP work, and the microscope lets you locate test points, scrape solder mask cleanly, and solder fine jumper wires to CMD, CLK, and data points before connecting ISP pinout tools, eMMC programmers, or UFS adapters to recover or reprogram the storage chip. When a phone arrives with a boot loop issue caused by a failing eMMC or UFS chip, you can remove the chip with a hot air station, clean the pads under the lens, reball it with a reballing kit and stencil, and then read or write it on your programmer, checking every ball for size and alignment under magnification before refitting. Charging port and PMIC faults follow the same pattern, where you trace the fault with a multimeter or test box, confirm the damaged component visually, and replace it with a soldering station while watching the joint form. Display problem cases often come down to a damaged FPC connector or a torn backlight line, and the 68X end of the zoom shows you bent connector pins and cracked filter components that the naked eye misses completely. Jumper work on broken traces, a routine fix for water-damaged boards during humid Pakistani summers, becomes far more reliable when you can see the enamel wire seat properly on the pad instead of guessing. The S6 also fits workshops that handle more than phones, since the same optics suit tablet boards, smartwatch boards, laptop motherboard component work, and fine connector repair, but its main strength remains high-density mobile logic boards with stacked or sandwich designs where components sit closer together than ever. If you currently work with a basic binocular microscope or a USB digital scope, the S6 represents a clear upgrade path, since you gain a wider zoom range, a larger field of view, true stereo depth for judging solder height, and a camera port for documentation, all on one stand. Stereo depth matters because a digital screen shows a flat image, while the optical head of the S6 gives each eye a separate view so you can judge how high a tweezer tip sits above a pad before you touch it, which prevents the accidental knocks that tear off neighbouring components. For repair shop owners in Lahore, Karachi, Islamabad, and across Pakistan who want to take on board-level jobs that other shops turn away, the Kaisi S6 gives you the visibility to accept CPU reballing, IC replacement, and complex trace repair with confidence, and it pairs naturally with the rest of your bench, including hot air stations, soldering stations, PCB holders, reballing kits, multimeters, and test boxes, to build a complete professional hardware repair setup.
