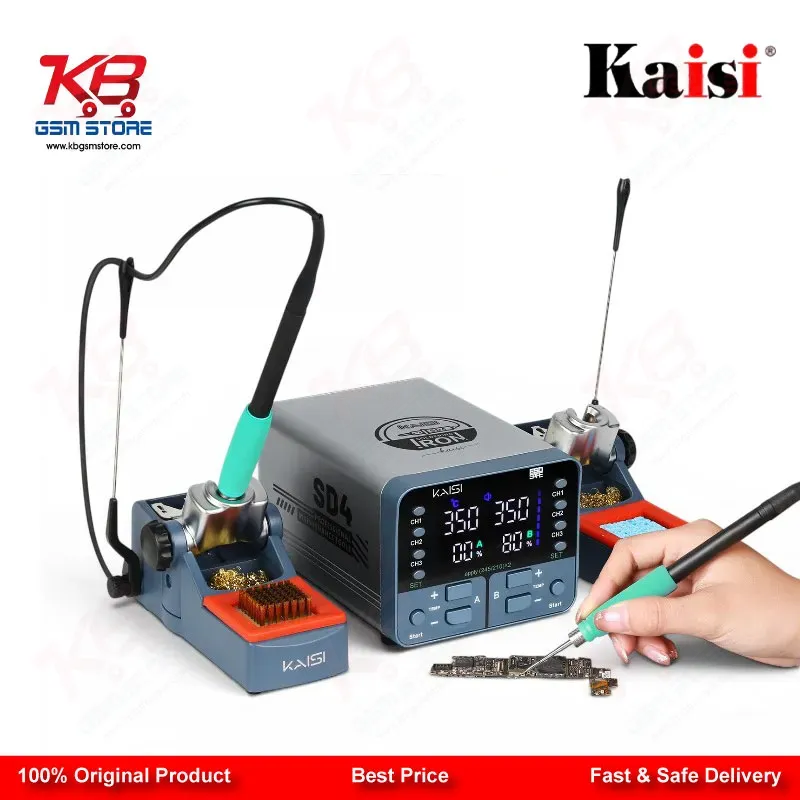

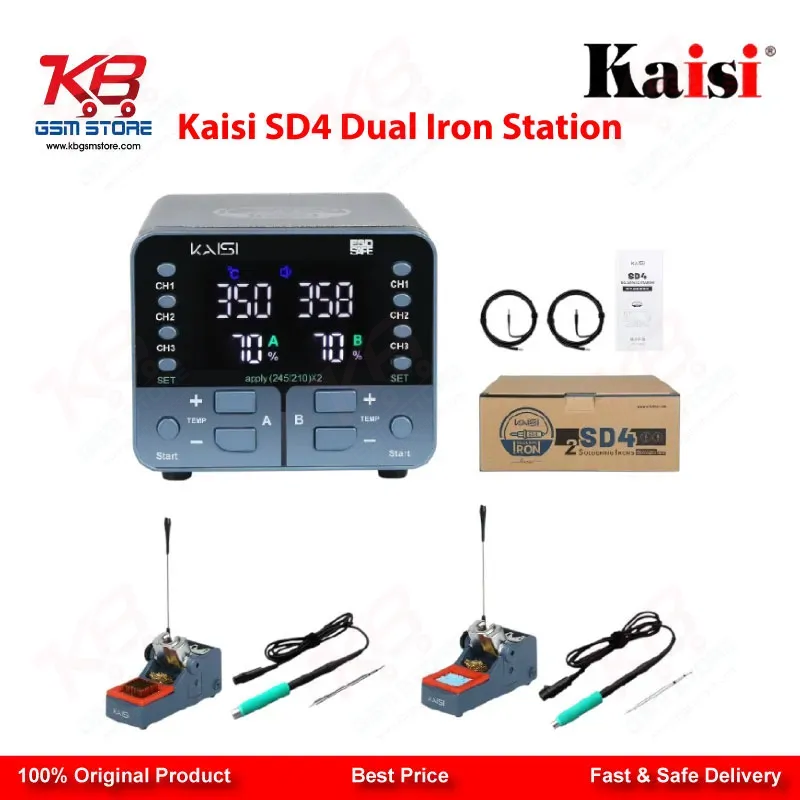

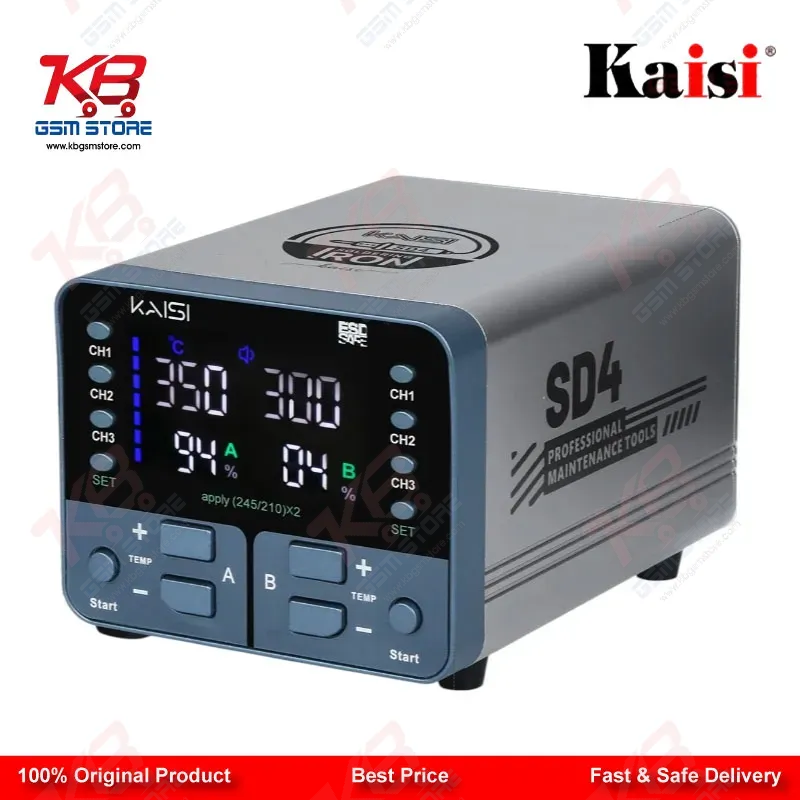

On a busy GSM repair bench, switching tools every time the job changes from a tiny IC leg to a stubborn connector wastes time and risks damaging the board. The Kaisi SD4 240W dual-channel soldering station solves this by giving you two working zones on a single unit. Zone A and Zone B run independently, each with its own switch and its own temperature setting, so you can keep one handle ready for fine motherboard soldering and the other set up for slightly heavier rework, without touching a single dial in between.
This dual-zone layout is what separates the SD4 from a basic single-iron station. Each zone supports three temperature storage slots, letting you preset the values you use most often for jumper wires, IC reballing pads, connector pins, or flex cable points. Instead of typing in numbers every time, you tap through your saved presets and get straight to soldering. For a workshop handling dead phone boards, charging port replacements, and display flex repairs back to back, this kind of preset workflow keeps the bench moving.
The station is built around a 240W heating core with closed-loop sensor monitoring. The iron's tip temperature is read in real time and the controller adjusts power output continuously to hold the set point, with a temperature recovery and compensation function that brings the tip back to target quickly after it touches a cold component or a large ground plane. This matters on phone motherboards, where a sudden temperature drop while soldering near a CPU or PMIC area can lead to a cold joint, and a cold joint on a board that already has a charging issue or hang on logo problem only adds another fault to chase. The SD4's recovery speed helps you keep a consistent joint quality across an entire reballing or jumper job.
Temperature range runs from 100°C to 450°C, wide enough to cover both lead and lead-free solder work. Lead-free solder needs higher tip temperatures to flow properly, and a station that struggles to hold those higher settings under load tends to leave dry joints on display connectors and battery FPC pads. The SD4's wide range and closed-loop control are built to handle that demand without forcing you to overheat the tip just to get the solder to wet properly.

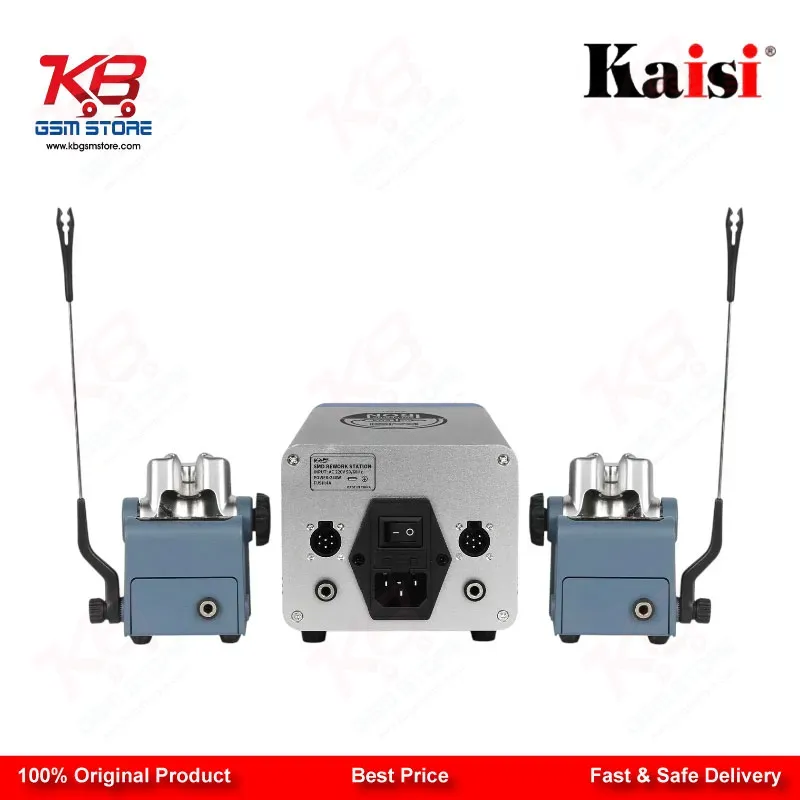

Handle compatibility is a key part of this station's value for a repair shop that already owns Kaisi or compatible tools. The SD4 works with T210 and T245 type handles, and the standard package comes with a T210 cradle, with the option to add a second cradle so both channels can be used as fully separate stations side by side. The tips are also compatible with JBC-style cartridges, matching JBC's temperature rise rate and control accuracy, so technicians moving from a JBC setup or mixing tip brands across the bench won't notice a difference in heating behavior or response time.
For PCB-level work on mobile motherboards, this station fits into several stages of the repair workflow. During diagnostics, after you've identified a shorted component or a cold solder joint with a multimeter or power supply current test, the SD4 lets you desolder the suspect part on one channel while keeping a second iron hot on the other channel for the replacement part. During IC and chip-level repair, the dual presets mean you can hold a lower temperature for delicate display IC pads on one zone and a higher temperature for power IC or charging IC rework on the other, cutting down the back-and-forth that slows down jumper lagana and IC change jobs.
Build quality on the SD4 focuses on bench safety as much as performance. AC pure isolation keeps the mains side electrically separated from the tip circuit, which reduces the risk of static discharge damaging sensitive components on a board that's already powered or connected to a power supply during live diagnostics. Anti-interference and anti-static design also matters when the station sits next to ESD-sensitive parts like NAND, eMMC, or UFS chips during reballing work, where even small static events can turn a simple software marna job into a hardware fault.
The unit also supports global software upgrades, so the control firmware can be updated over time rather than the station becoming outdated as new handle types or tip standards are introduced. For a workshop investing in equipment that needs to stay useful for years across thousands of repair jobs, this kind of upgrade path adds practical long-term value beyond the initial purchase.
Overall, the Kaisi SD4 fits technicians who handle a high volume of motherboard-level repairs and need two reliable, independently controlled heat sources on one bench. Whether the job is a dead phone with a suspected short, a board stuck on a boot loop issue needing IC reflow, or a display connector that needs careful desoldering without lifting pads, the SD4's dual-channel design, wide temperature range, and JBC-compatible tip system give a repair shop the flexibility to handle multiple soldering tasks in parallel, cutting down turnaround time on busy days.
