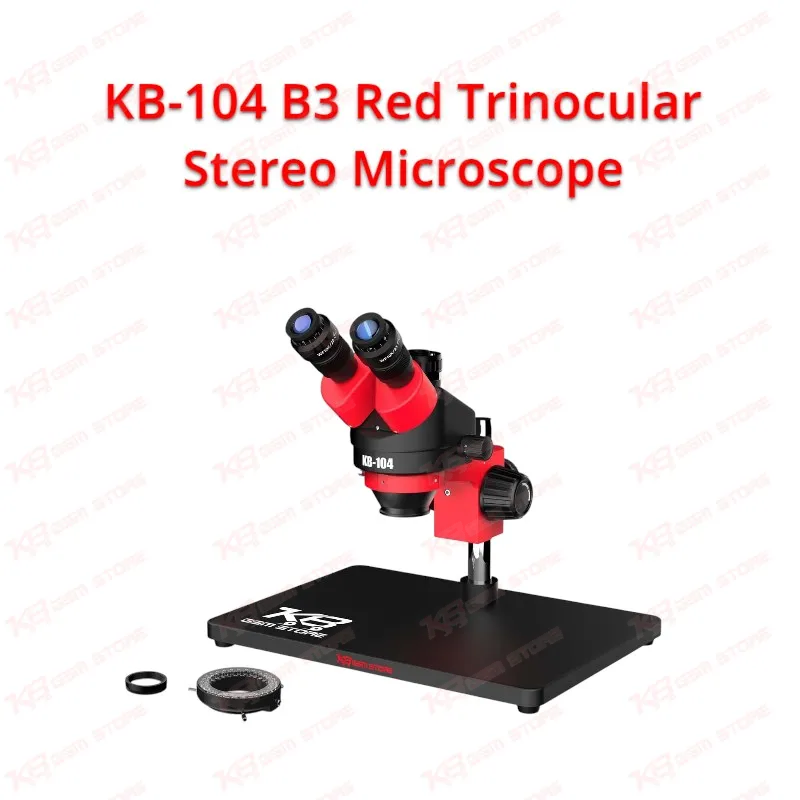

KB-104 B3 Red Trinocular Stereo Microscope

KB GSM KB-104 B3 Trinocular Stereo Microscope HD Display Industrial 7X45X Continuous Zoom for PCB Motherboard Inspection Repair

KB-104 B3 Red Trinocular Stereo Microscope Best Price in Pakistan

Product Specification :

• Item Name: Trinocular Stereo Microscope
• Brand: KBGSM
• Model: KB-104 B3
• Magnification: 7X-45X
• Eyepiece: High Eye Point Large Field Eyepiece WF10X/23mm (30mm)
• Zoom Objective: 0.7X-4.5x Zoom,The Objective zoom Ratio is 1:7:14,To Ensure The Parfocality Of the Image Plane
• Working Distance: 100mm (Effective Distance), Select Auxiliary Objective, Which Can Be Extended To 30mm-287mm
• Auxiliary Objective Lens: 0.5X/165mm
• Observation Head: 45* Tilt,360* Rotation,Interpupillary Distance 54-76mm,Bilateral Diopter Adjustment (+5)
• Focusing Bracket: Inner Diameter 76mm Column Aperture 32mm
• Base: B3 Base
• Lighting: Option Various LED Ring Lights
• Dimension: 200mm(W)X273mm(D)X240mm(H)
• Column Height: B3 Base Column Height-240MM

• Package includes:

• 1 x KB-104 B3 Red Trinocular Stereo Microscope
