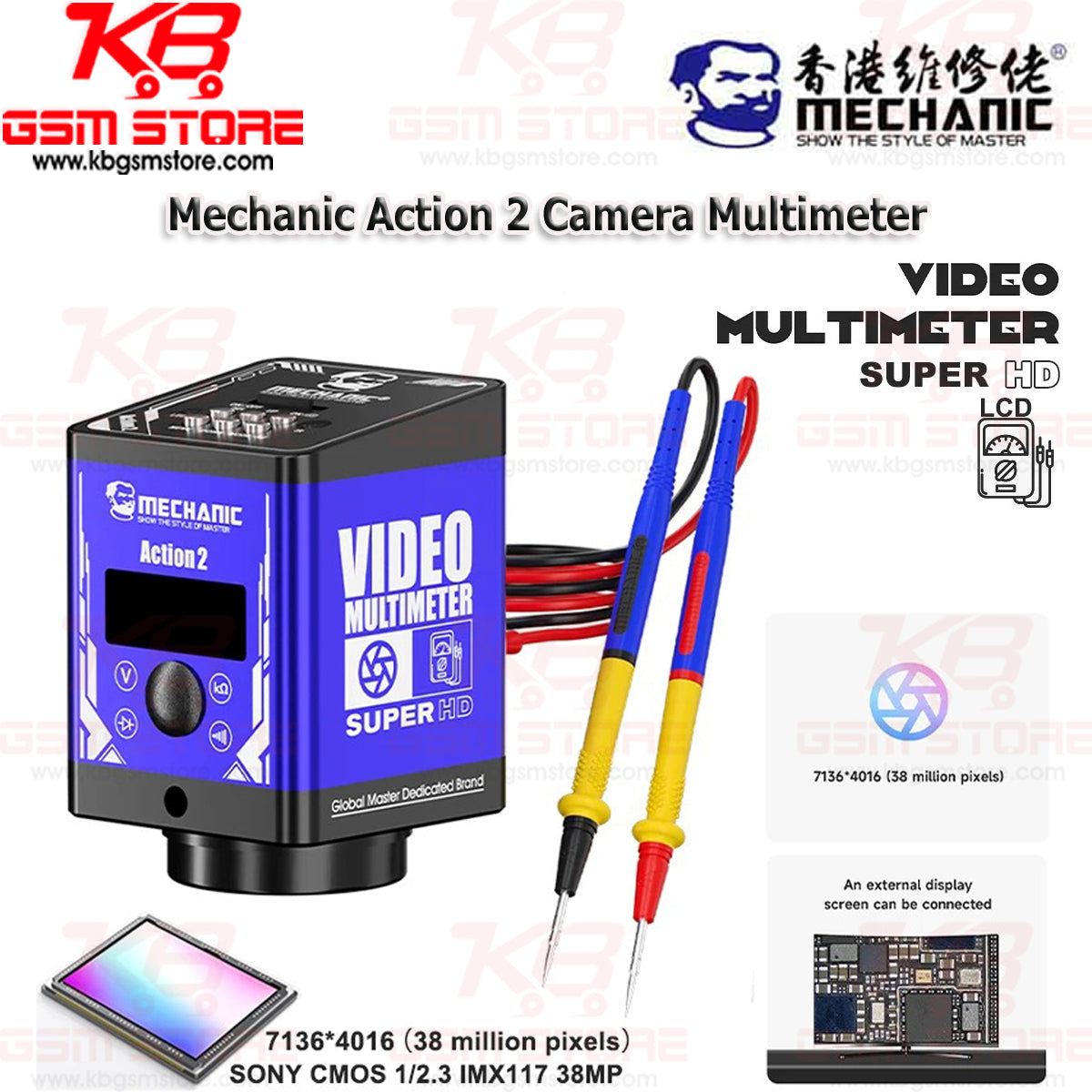

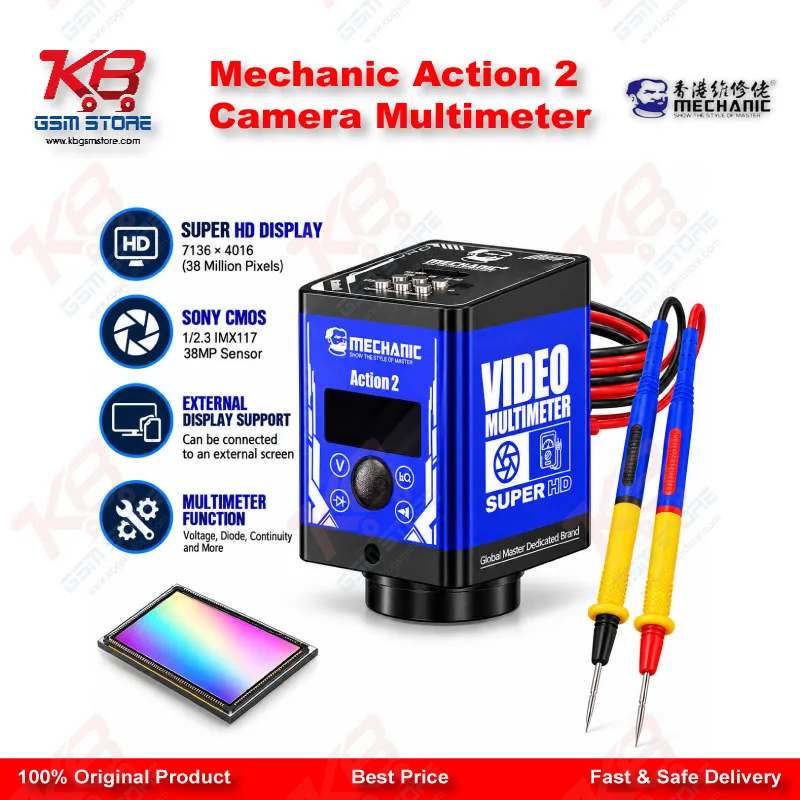

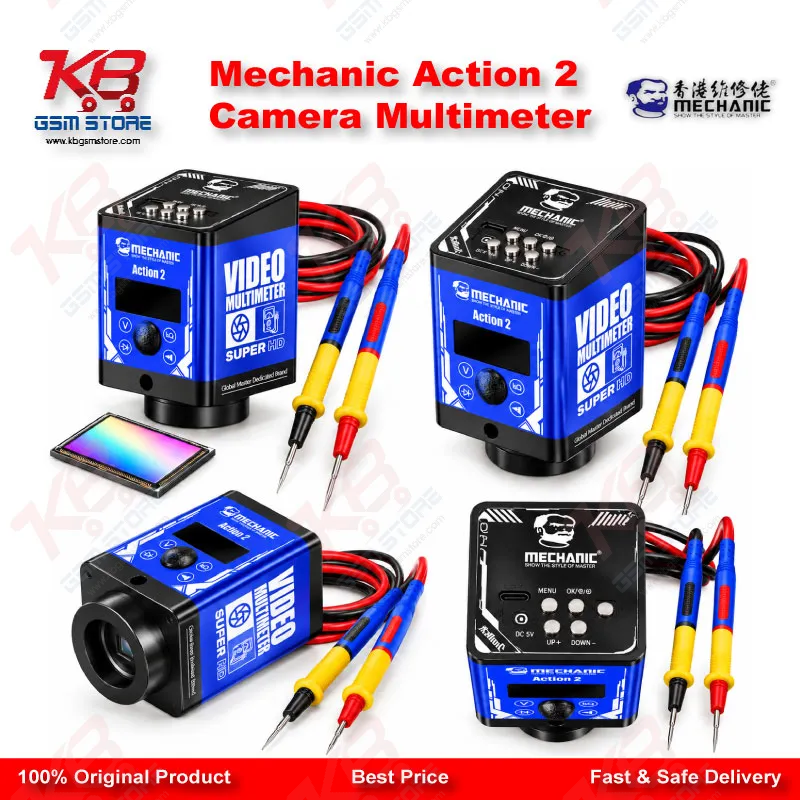

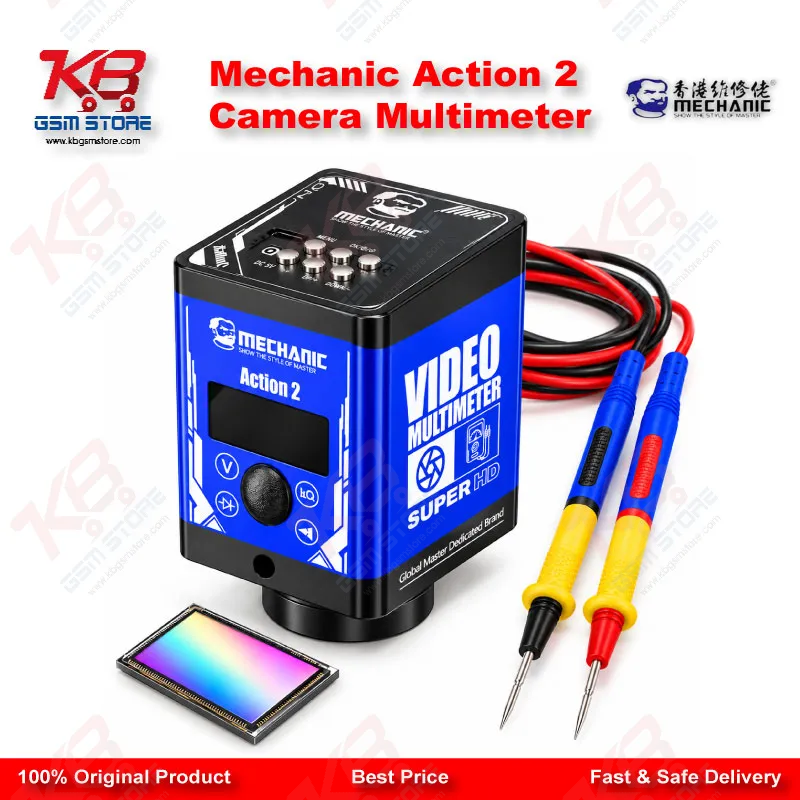

Mechanic Action 2 Camera Multimeter

Every technician knows the routine: the board sits under the microscope, the probe tip hunts for a tiny capacitor, and your eyes keep jumping between the eyepiece and a multimeter display at the side of the bench. The Mechanic Action 2 Camera Multimeter ends that back-and-forth by putting the live microscope image and the multimeter reading on the same screen, so you can probe a power line and read its value without lifting your head. Mechanic builds this unit around a Sony IMX117 1/2.3-inch CMOS sensor with 12.4 million native pixels. It saves still photos at 7136 x 4016 resolution, which is where the 38MP rating comes from. Through HDMI, the camera sends a 1080P signal at 60 frames per second to an external monitor, which keeps motion smooth while you move the board or guide tweezers across a crowded PMIC area. Video recording runs at 2560 x 1440 at 30fps, and the TF memory card slot accepts cards up to 512GB, which gives you room for long repair sessions. The camera body measures 50 x 50 x 80 mm and weighs around 380 grams. It mounts through a standard C/CS interface, so it fits the trinocular port of most stereo microscopes already running in repair markets from Hall Road in Lahore to Saddar in Karachi. The main reason shop owners ask for this unit, though, is the multimeter side. The Action 2 comes with a 20A multimeter pen line, and its readings appear in sync with the camera feed on both the monitor and the device display. Before testing, you zero the measurement error in one step, which removes the probe-lead offset that throws off low-resistance readings on power rails. The unit offers three measurement modes, with voltage and resistance covering the checks most board-level jobs depend on. It also keeps up to 20 sets of measurement data in real time, so you can compare readings across several test points without writing anything on paper. Think about a typical dead phone that lands on your counter: either no current draw on the DC power supply, or a short that drags the supply into protection the moment you connect. With a normal setup, you hold the probe on a capacitor under the microscope while someone else reads the meter, or you twist your neck between two displays. With the Mechanic Action 2 Camera Multimeter, you place the probe on the main power line, read the resistance on the same monitor that shows the magnified board, and save the value before you move to the next rail. That workflow speeds up short-hunting on Samsung, Oppo, Vivo, Infinix, Tecno, Xiaomi, and iPhone boards alike, because the tool does not depend on brand or chipset and works on whatever board sits under your lens. Charging issue jobs benefit too. When a phone refuses to charge, you trace the line from the charging port through the protection components to the charging IC and measure voltage at each stage while the camera shows exactly which pad your probe touches. On boards where a previous technician already added a jumper wire, the 38MP stills let you zoom into the old repair work and judge whether the joint holds or needs redoing. Boot loop and hang-on-logo cases that point to a hardware fault often come down to a missing voltage on a memory or CPU supply line. The on-screen reading lets you confirm that rail before you decide on reballing or a chip replacement. The 5.0X digital zoom adds magnification on top of your microscope optics when you need to read tiny component markings or check solder balls after IC reballing. Training institutes and senior technicians get extra value from the screen-sharing side. An HDMI monitor mounted above the bench lets two or three trainees watch the exact probe point and the reading at the same time, which makes teaching board-level diagnosis much easier than describing what you see through an eyepiece. Shops that deal with walk-in customers can also show the damaged area on a big screen, which builds trust when you quote a motherboard repair price. You can connect the camera to a PC or laptop through USB Type-C to view and capture images, but the PC connection does not record measurement data, so the reading overlay and the 20-set storage stay on the device side. The menu supports English among several languages, so setup stays simple for every technician on your team. In the wider repair workflow, the Action 2 sits between your microscope and your power diagnosis tools. Pair it with a stereo microscope and a sturdy PCB holder at the inspection stage, and keep a DC power supply and a standard multimeter nearby for current draw checks. Once the camera has shown you the faulty component, move on to your soldering station, hot air station, and reballing kit. For software-side work, it complements test boxes and ISP pinout tools, because a clear magnified view helps you locate ISP test points and solder fine wires to them without bridging nearby pads. Many technicians start with a basic microscope and a separate digital multimeter, then step up to this unit when their daily job count grows and every minute at the bench starts to matter. If you run a busy repair shop in Lahore, Karachi, Islamabad, or any other city and want a microscope camera that brings measurement and imaging into one bench tool at a sensible price in Pakistan, the Mechanic Action 2 Camera Multimeter gives you a practical upgrade for faster, cleaner board-level diagnosis.
