Mechanic Alien X 360° Universal Special-Shaped Motherboard Fixture Clamp for PCB IC Chip Repair

When you're working on a phone motherboard — IC change karna ho, chip reballing karni ho, ya CPU ke neeche se underfill nikalni ho — the fixture you use makes the difference between a clean repair and a damaged board. Most repair shops in Pakistan still run with basic two-point clamps that slip, block access, or fail to hold odd-shaped boards securely. The Mechanic Alien X was designed specifically to solve this problem.

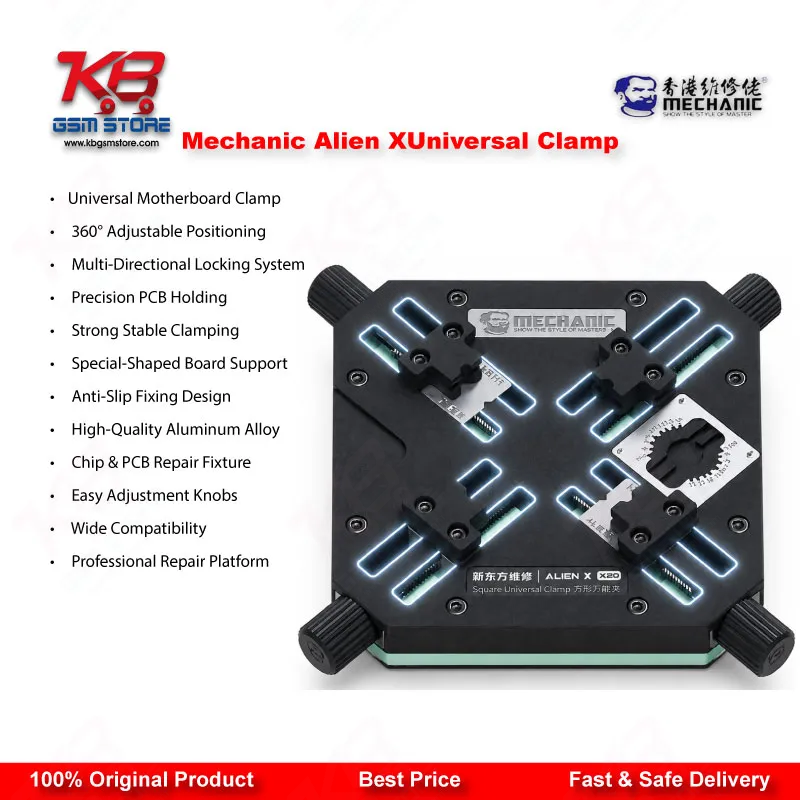

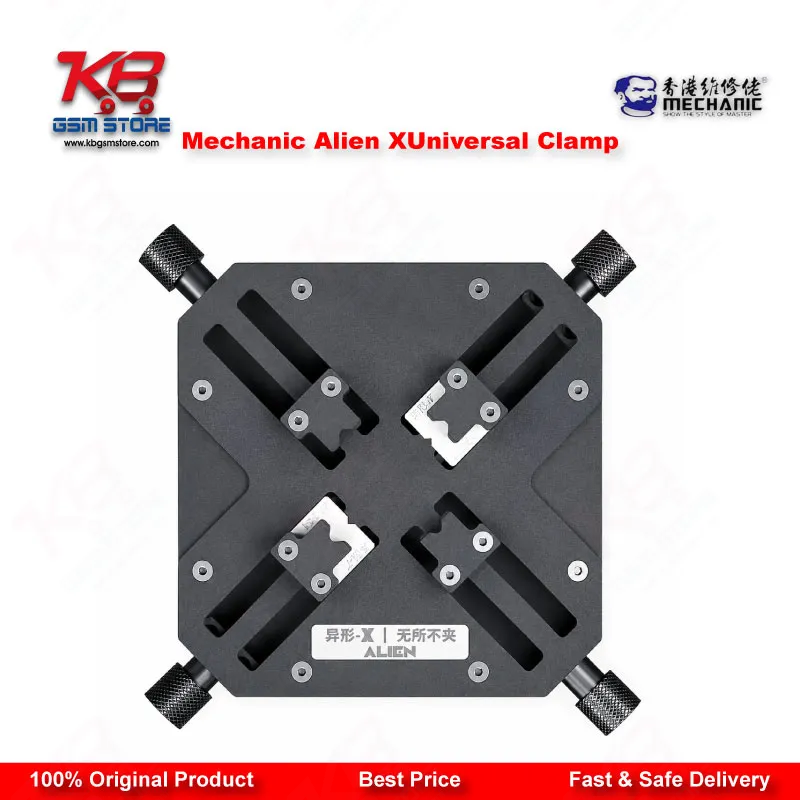

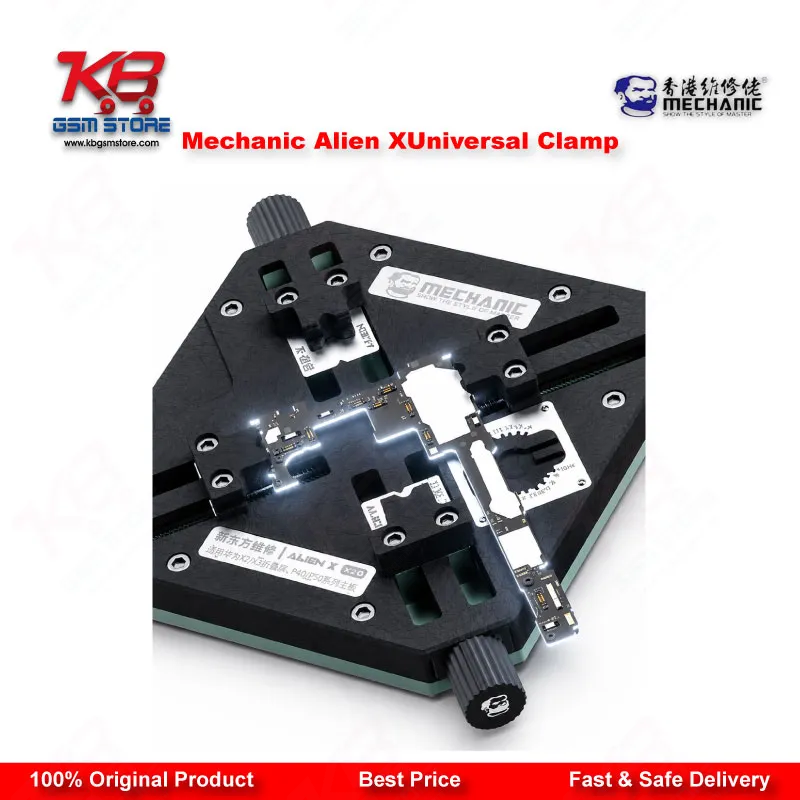

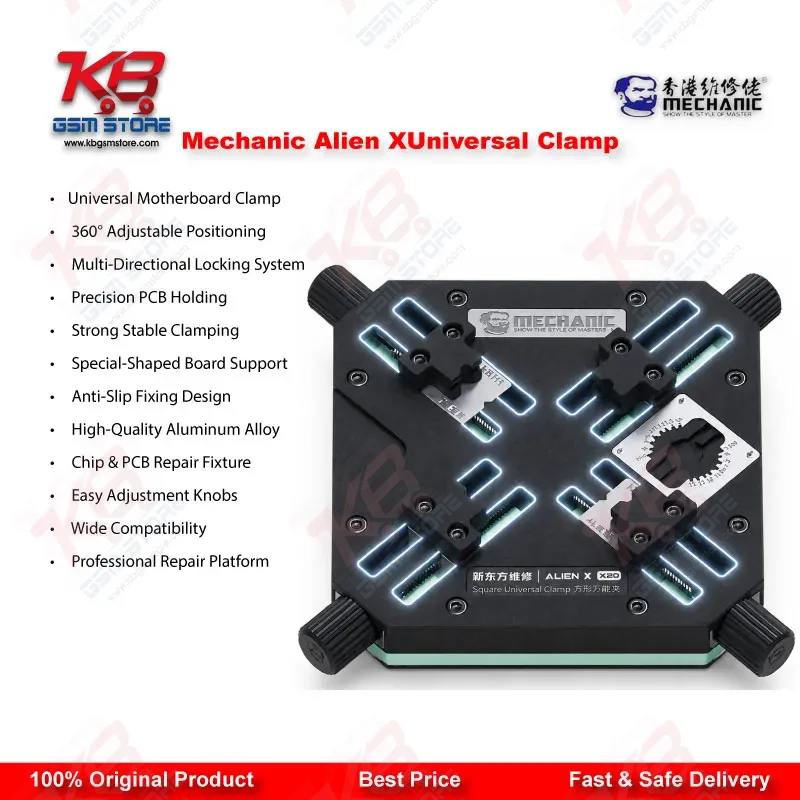

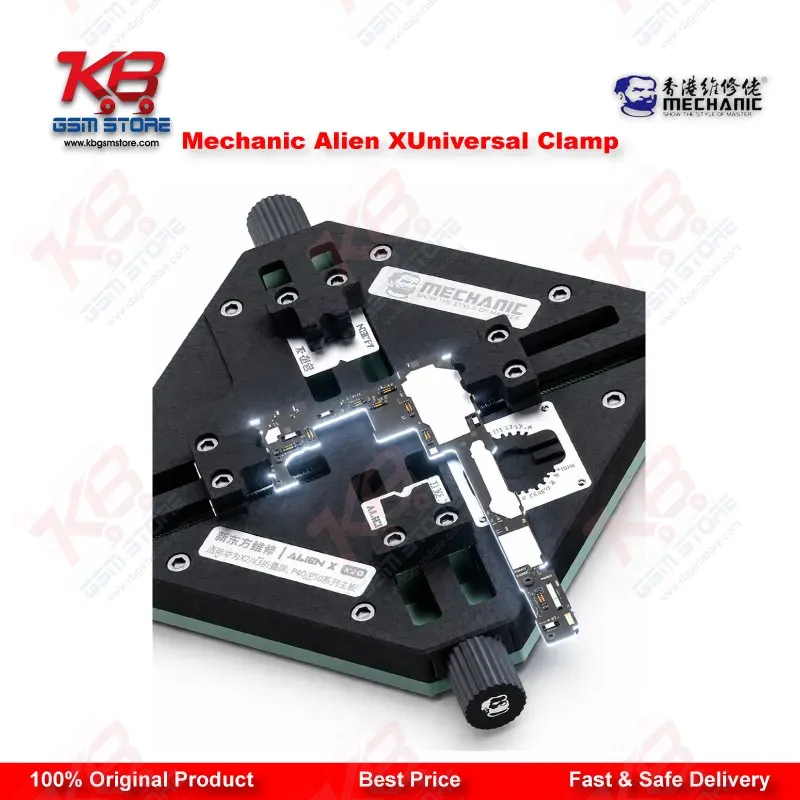

The Alien X uses a four-square distributed bayonet clamping system, which means you're not locking the board at just two opposite ends like older fixture designs. Instead, four independent adjustable clamping points spread around the board's perimeter, giving you stable 360-degree grip on any shape — rectangular, L-shaped, square, or irregular. For technicians dealing with Huawei X2 motherboards, Huawei P40 Pro mainboards, or any other special-shaped PCB, this fixture grips where others slip.

The 360-degree rotation axis is a genuine, full-range rotation system — not a limited swing or two-position lock. You can flip the board continuously to access both the front and rear layers without removing it from the fixture. During IC glue removal, this matters. During hot air rework on double-sided boards, this matters even more. The clamps are designed to avoid the working area intelligently, so your soldering iron, hot air nozzle, or scraper can reach every corner of the board without the fixture getting in the way.

The slot sections where the board rests are built from high-temperature resistant synthetic stone material rated to 500°C. This means you can run your hot air station directly at the board while it's clamped, with no risk of the fixture warping, melting, or transferring heat stress to your bench. Repair shops that do regular CPU underfill removal, IC degumming, or BGA reballing will notice the difference immediately — the fixture stays rigid and dimensionally stable even during extended heating cycles.

The clamping jaws are wrapped in silicone, which serves two purposes. First, the soft silicone surface grips the motherboard without scratching or cracking the PCB coating or any delicate components near the board edges. Second, silicone provides natural vibration damping, so any micro-movement from your hand or bench surface doesn't transfer to the board during precision soldering. The base of the fixture also uses silicone anti-slip foot pads that keep the entire unit from shifting on your repair bench, even when you're applying pressure at awkward angles.

A thickened steel plate reinforces the frame structure, giving the Alien X structural rigidity that lighter plastic-base fixtures cannot match. During operations that involve physical pressure — pressing, scraping, or prying components — the fixture absorbs the force without flexing or losing clamping grip.

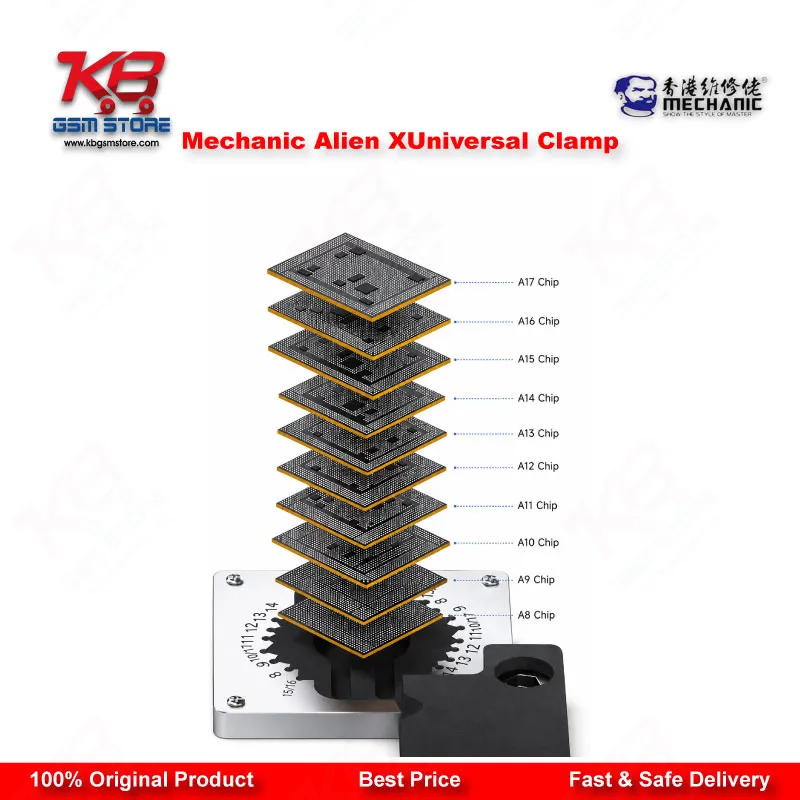

The Mechanic Alien X V2.0 version also features a dedicated chip positioning area designed for iPhone A8 through A17 series CPU and NAND chips. When you need to replant tin, reflow, or inspect a bare Apple chip outside the motherboard, this positioning zone locks the chip precisely in place, preventing movement during the entire operation. For shops that regularly do iPhone hardware fault diagnostics, hang on logo repairs, or dead after flash recovery involving CPU-level rework, this addition significantly reduces the chance of misalignment.

Across your repair bench, this fixture fits naturally alongside your hot air station, soldering station, microscope, and PCB holder workflow. It handles the clamping step — the part of the process where improvised solutions always fall short — so every other tool in your workflow can do its job properly.

Mechanic built this as a patented, original design product, and the engineering shows in the details. The bayonets are machined to consistent tolerances, the rotation axis is smooth and locks at any angle, and the overall build weight is balanced so the fixture doesn't tip during rotation. For professional repair centers, service workshops, and technicians who work on high-volume motherboard repairs daily, the Alien X removes one of the most frustrating bottlenecks in the process.
