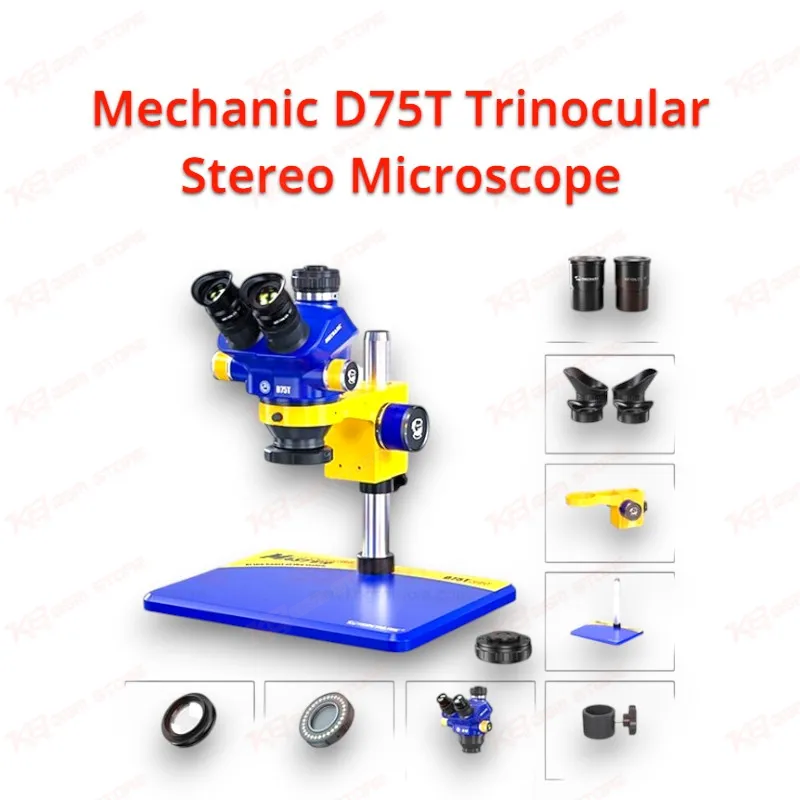

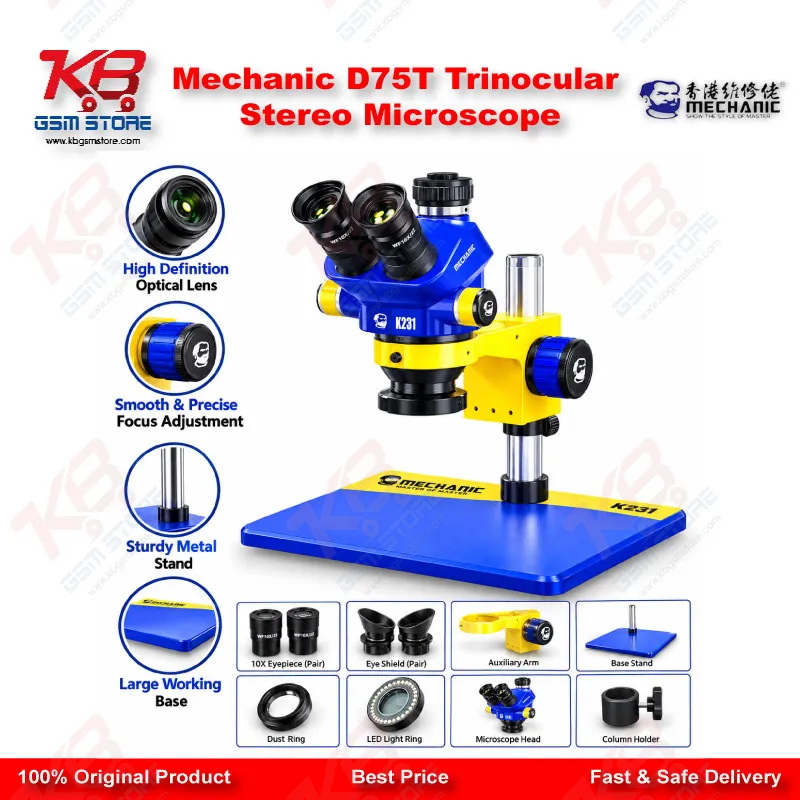

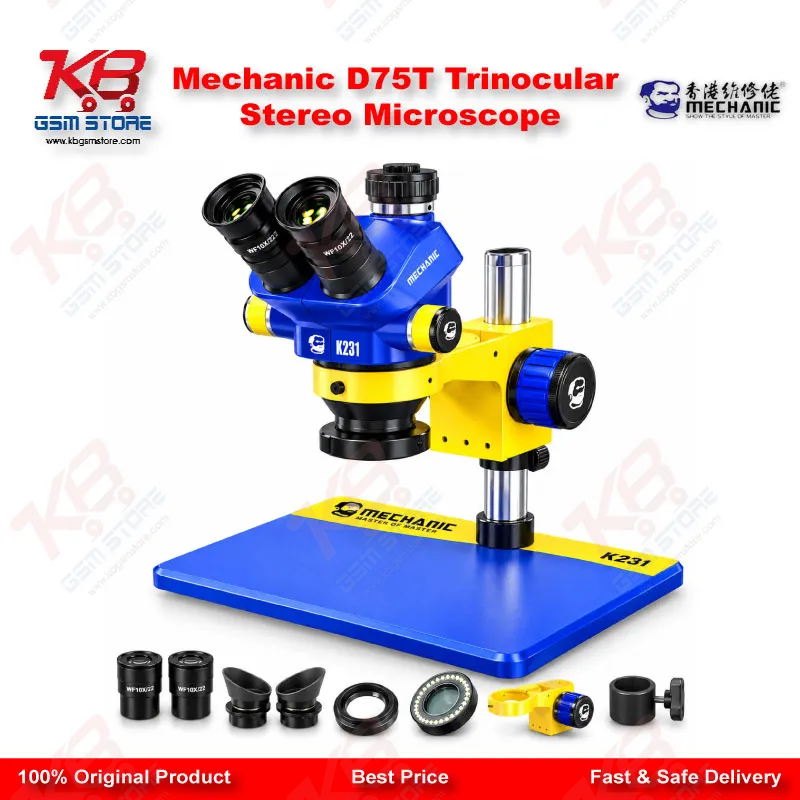

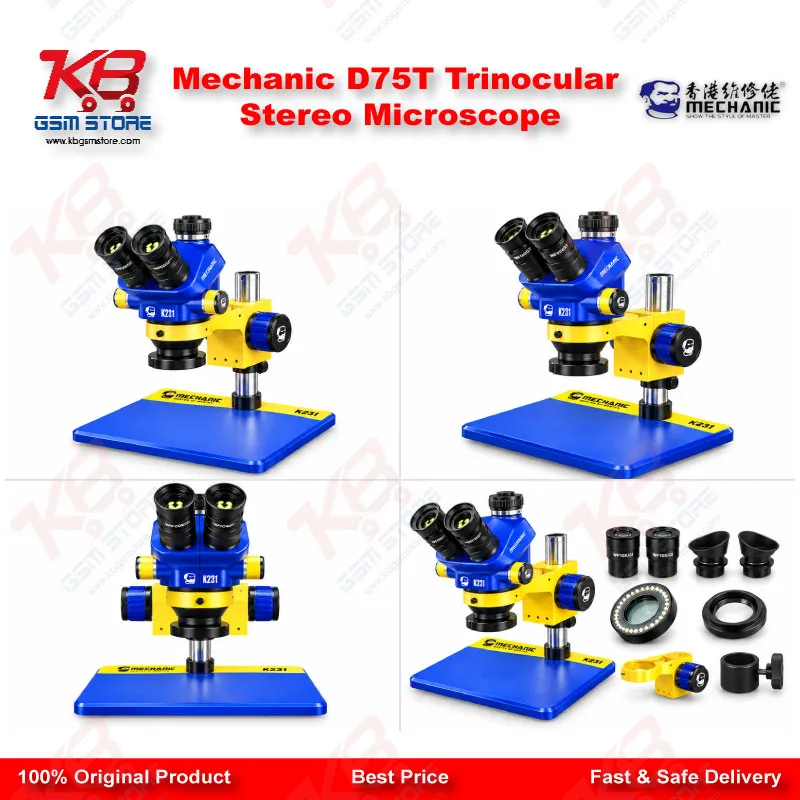

When a dead phone lands on your bench with a short hiding somewhere around the PMIC, your eyes give up long before the fault does, and the Mechanic D75T Trinocular Stereo Microscope closes that gap for technicians who do real board-level work in Pakistan. This trinocular stereo microscope from Mechanic gives you two-eyed, depth-correct viewing of the motherboard plus a third optical port for a camera, so you can work through the eyepieces and send the same image to a monitor for training juniors, showing a customer the burnt component, or resting your eyes during a long reballing session. The optical head pairs a 0.7X–5.0X continuous zoom objective with WF10X/22mm high-eyepoint wide-field eyepieces, which puts your working magnification anywhere between 7X and 50X with no click-stops, so one smooth turn of the zoom knob takes you from a full board overview down to the pads under a charging IC. Stereo optics matter on a phone board because components sit at different heights: shields, stacked sandwich boards, underfill around the CPU and tiny passives all share the same few millimetres of space, and a stereo head gives you a genuine three-dimensional, erect image so your tweezers move in the direction your eyes expect. That upright image means no mental flipping when you lift a PMIC, align a BGA chip on its pads, or route a jumper wire between two test points. The standard working distance sits around 100mm, which leaves space for a soldering iron tip, a hot air nozzle and tweezers under the lens together, and when you need more clearance for a large nozzle or a laptop board, the optional auxiliary objectives (0.3X, 0.5X, 0.7X, 1.5X and 2X) let you trade magnification for distance. A 0.5X auxiliary lens, for example, pushes working distance to roughly 165mm and brings the range down to about 3.5X–25X, which many hot air users prefer for chip removal and replacement. The 2X lens goes the other way, cutting distance to about 30mm and pushing magnification higher for inspecting cracked joints and micro-traces. The eyepieces use FMC anti-reflection coated glass with a 25.5mm lens diameter, and the full optical glass path keeps the image sharp and flat without the colour fringing you see on cheap plastic-lens scopes, so you can actually tell a corroded pad from a clean one after water damage. Accurate optical alignment between both eyepieces reduces eye strain across a full day of bench work, and you can adjust interpupillary distance and eyepiece focus to match your own eyes, which matters when two or three technicians share one microscope in the same shop. Mechanic builds the focusing rack from metal, so the focus stays precise and holds position instead of drifting down while you work, a common complaint with lighter stands. The head rotates a full 360 degrees on the stand, which lets you swing the microscope out of the way and free the bench for disassembly, screen separation or running a test box without unclamping anything. A built-in LED light gives you even, shadow-reducing illumination over the board, and you control the brightness to cut glare on shiny shields or to pick out fine scratches on a damaged trace. Now think about where the D75T actually earns its place in a Pakistani repair workflow. A customer brings a phone with a charging issue: you check current on your DC power supply, confirm a short with your multimeter, then put the board under the microscope and spot the swollen capacitor or the hot rail near the charging IC before you touch it with the iron. A phone with a hang on logo or boot loop issue after a drop often hides cracked solder joints under the CPU, the eMMC, or the UFS chip, and at 30X to 50X those fractures become visible instead of guesswork. A network issue on an Infinix or Tecno board usually leads you to the RF section, where tiny filters and power amplifier pads demand exactly the kind of steady, magnified view this head provides. A display problem traced to the backlight circuit takes you to coils, diodes and FPC connector pins that you simply cannot repair cleanly without magnification. Even on the software side, the D75T supports the hardware steps behind the flash: when a phone goes dead after flash and you need direct access, you solder fine wires to ISP points using the layouts from your ISP Pinout Tools, then read or write the chip with eMMC Programmers or UFS Adapters, and every one of those connections depends on clean, accurate soldering under the lens. The same goes for full chip-off work, where you lift the storage chip with your hot air station, clean the pads, reball using a reballing kit, and mount it on the adapter, all of which runs faster and safer when you can see every ball and pad in 3D. The trinocular port pays off beyond the bench work itself. Shop owners use the camera output to record repairs as proof for customers who claim the phone came in working, trainers at repair institutes use it to show a whole class one board at once, and YouTube repair channels use it to film close-up work without a separate camera rig. You fit an industrial camera through the CTV adapter, and the exact camera and CTV lens you get depend on the package you choose, so confirm the bundle with our team before ordering. Base options also vary, as Mechanic pairs the D75T head with different stands and platforms, including the B11 base, so check which base comes with the listing you buy. For a complete board-repair setup, technicians usually pair the D75T with hot air stations and soldering stations for rework, PCB holders to keep the board flat and steady under the lens, multimeters and test boxes for diagnosis, and other microscopes in our range if you need a second bench. If you currently work with a single-lens USB digital microscope, the D75T represents the natural upgrade path: you move from a flat 2D image on a laptop screen to real stereo depth, a much longer working distance, and the option to keep the camera view as well. That step up typically shows its value the first time you replace a CPU-adjacent component without disturbing its neighbours, or route a jumper wire across a damaged trace without bridging the next pad. KB GSM Store stocks the Mechanic D75T for repair shops, service centres and training institutes, whether your shop sits in Lahore, Karachi or Islamabad, and our team can help you choose the right base, auxiliary lens and camera combination for the kind of repairs your counter sees every day.
