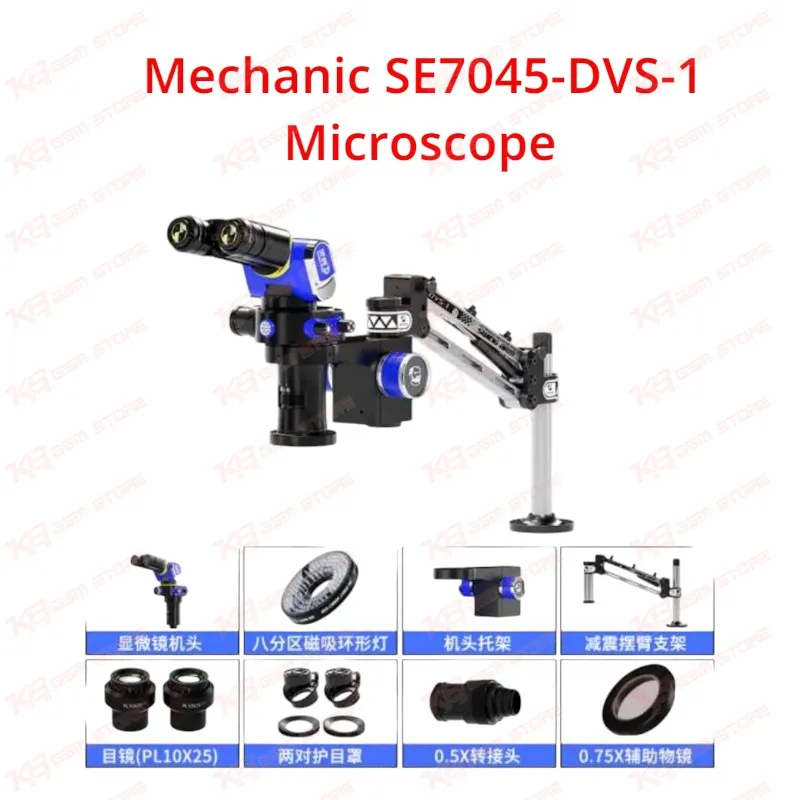

Mechanic SE7045-DVS-1 Smart Eye Parallel Light Microscope

Mechanic SE7045-DVS-1 Smart Eye Parallel Light Microscope

Rs.85,000.00 PKR
Rs.85,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

The Mechanic SE7045-DVS-1 Smart Eye Microscope is built for precision mobile phone repair, offering 0.7X–4.5X continuous zoom with a parallel optical system for crystal-clear imaging. Its 360° rotating head, ergonomic bracket, and real-time digital magnification display make it the ideal tool for BGA chip soldering, motherboard inspection, and delicate PCB work. Designed for repair shops and technical professionals, this microscope delivers accuracy, comfort, and efficiency in one compact unit.

MST-SOLDERING-TOOLS-1241

⚖️ Weight: 6.0 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

The Mechanic SE7045-DVS-1 Smart Eye Parallel Light Microscope is a professional-grade optical instrument engineered specifically for mobile phone repair technicians, electronics engineers, and PCB inspection specialists. Whether you are working on delicate BGA chip soldering or inspecting fine motherboard traces, this microscope provides the precision optical clarity your work demands.

At the heart of this microscope is an infinite parallel optical system with 0.7X to 4.5X continuous zoom magnification. Unlike traditional relay lens systems, the parallel light design significantly reduces optical distortion, delivering sharper imaging across the entire field of view. The PL10X25 wide-field eyepiece features advanced flat field technology that corrects edge distortion, so the image you see is accurate from center to corner — critical when examining micro-level soldering points or SMD components.

The Smart Eye design incorporates a 360° rotating head and a foldable bracket with up to 50° vertical adjustment, allowing technicians to position the viewing angle without disturbing the workpiece. An additional 15° left-right rotation provides even greater flexibility, reducing physical strain during extended repair sessions and improving workflow ergonomics significantly.

One of the standout innovations in the SE7045-DVS-1 is its real-time digital magnification display, visible in the upper right corner of the large viewing screen. This eliminates the need to manually check scale markings during work, allowing technicians to stay focused on the task without interruption. It also includes a fixed-gear magnification function, letting users lock in preferred zoom levels for repeatable results across multiple repair tasks.

The adjustable pupillary distance dial accommodates a range of 48mm to 75mm, making it comfortable for virtually any adult technician without requiring additional accessories. The LED ring light source integrates a magnetic mounting system — a built-in magnet allows the ring light to be attached or removed with a single motion, keeping the workspace tidy and minimizing cable clutter.

Built to handle the demands of a busy repair shop, the Mechanic SE7045-DVS-1 is the complete professional microscope solution. From BGA rework to component-level diagnostics, this tool combines optical precision with intelligent ergonomic design for a superior repair experience.

Key Features

  • 0.7X–4.5X continuous zoom with infinite parallel optical system for distortion-free imaging
  • PL10X25 flat field eyepiece eliminates edge distortion for accurate, full-frame clarity
  • Real-time digital magnification display on-screen, no need to check scale manually
  • 360° rotating head with 15° left-right rotation and 50° foldable vertical adjustment
  • Magnetic LED ring light attaches instantly with one-touch adsorption for a clean workspace
  • Adjustable pupillary distance dial (48–75mm) to match each technician's eye spacing
  • Fixed-gear magnification mode for consistent, repeatable zoom levels across tasks
  • Ergonomic bracket design specifically suited for mobile phone motherboard and BGA repair work

Specifications

Name Mechanic SE7045-DVS-1 Smart Eye Microscope
Brand Mechanic
Model SE7045-DVS-1
Zoom Range 0.7X – 4.5X Continuous
Optical System Infinite Parallel Optical
Eyepiece PL10X25 Wide-Field Flat Field
Pupil Distance 48mm – 75mm (Adjustable)
Head Rotation 360° Horizontal, ±15° Lateral, 50° Vertical Fold
Illumination Magnetic LED Ring Light
Display Real-Time Digital Magnification Readout
Application Mobile Phone Repair, BGA Soldering, PCB Inspection
Package Contents 1 x Mechanic SE7045-DVS-1 Microscope

FAQ

Q1: Is the Mechanic SE7045-DVS-1 suitable for mobile phone motherboard repair?
Yes, it is specifically designed for precision mobile phone repair including BGA chip soldering, SMD component inspection, and motherboard diagnostics.
Q2: What is the magnification range of this microscope?
It offers 0.7X to 4.5X continuous zoom through an infinite parallel optical system, with a fixed-gear function to lock preferred magnification levels.
Q3: Can the viewing angle be adjusted during repair work?
Yes, the head rotates 360° horizontally, tilts ±15° left or right, and the bracket folds up to 50° vertically for full ergonomic adjustment.
Q4: Does the microscope display the current magnification level in real time?
Yes, a digital magnification readout is shown on the large screen in real time so technicians can monitor zoom level without interrupting their work.
Q5: What is the pupillary distance adjustment range on this microscope?
The adjustable pupillary distance dial covers 48mm to 75mm, accommodating most adult users without any additional accessories required.
Q6: Is the Mechanic SE7045-DVS-1 available at the best price in Pakistan?
Yes, it is available in Pakistan at a competitive market price, making it a practical choice for both individual repair technicians and professional repair shops.
