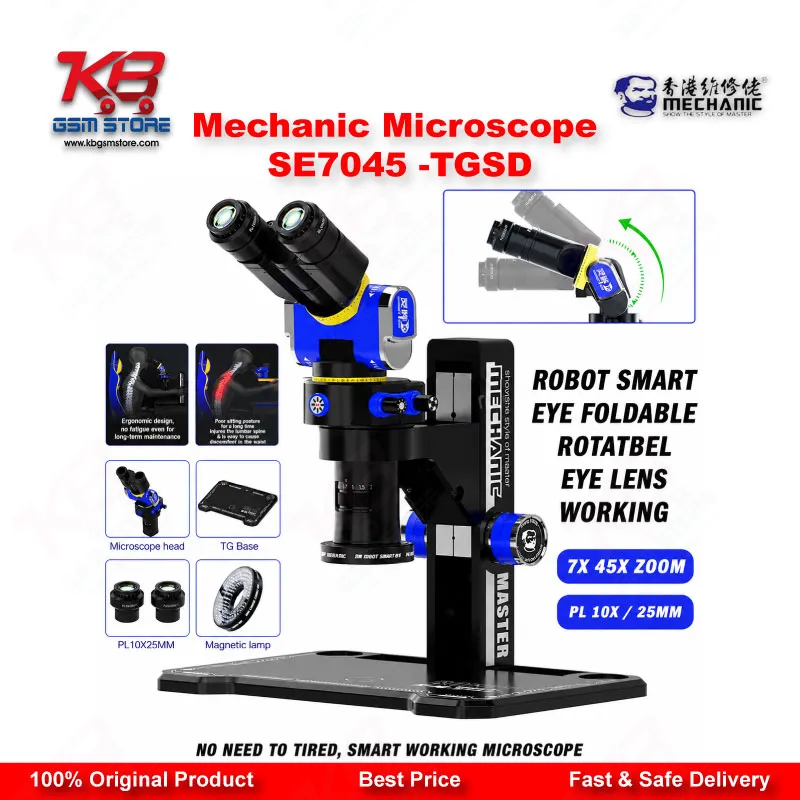

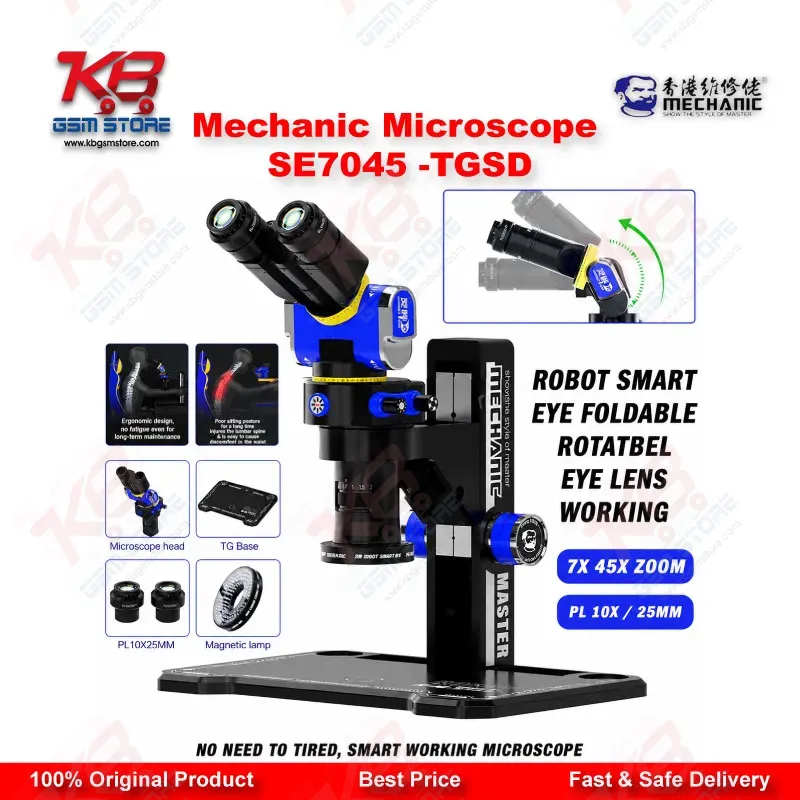

Mechanic SE7045-TGSD Robot Smart Eye Trinocular Microscope for PCB & Mobile Repair

Working on a motherboard under poor lighting and weak magnification is how technicians miss hairline cracks, lifted pads, and cold joints. The Mechanic SE7045-TGSD Robot Smart Eye microscope solves that bench-level visibility problem with a trinocular stereo design built specifically for PCB inspection, micro soldering, and BGA reballing work.

At the core of this unit sits a 0.7X to 4.5X continuous zoom range on the base configuration, with the option to extend magnification further using the included 0.75x auxiliary objective lens. A 125mm working distance gives your hands enough room to maneuver tweezers, soldering irons, and hot air nozzles underneath the lens without bumping the housing — something cramped microscopes make difficult when you're reballing a CPU or repositioning a tiny IC.

The PL10X25mm eyepieces use a flat-field design, which matters more than most technicians realize. Cheaper microscopes curve the image at the edges, so anything outside the center looks soft or distorted. On the SE7045-TGSD, the entire field stays uniformly sharp, which means you can track a solder joint from center to edge without losing focus. Pupil distance adjusts between 48mm and 75mm, so the same unit works comfortably whether you're a smaller-framed technician or someone with wider-set eyes — no fighting with a fixed eyepiece spacing during a long repair session.

Lighting is where this microscope separates itself from older designs. Instead of routing wires from a separate ring light, the SE7045-TGSD uses a magnetic mount — you place the LED ring directly onto the head and it locks in place instantly. The NEO optical lighting system runs across 144 LED zones, and you can switch between single-color, grouped, dual-color, or full-color illumination depending on what you're inspecting. A brightness memory function means you don't have to readjust your preferred setting every time you power the unit back on. For technicians doing color-sensitive work like checking burn marks, corrosion, or board discoloration, this level of lighting control changes how reliably you can judge what you're seeing.

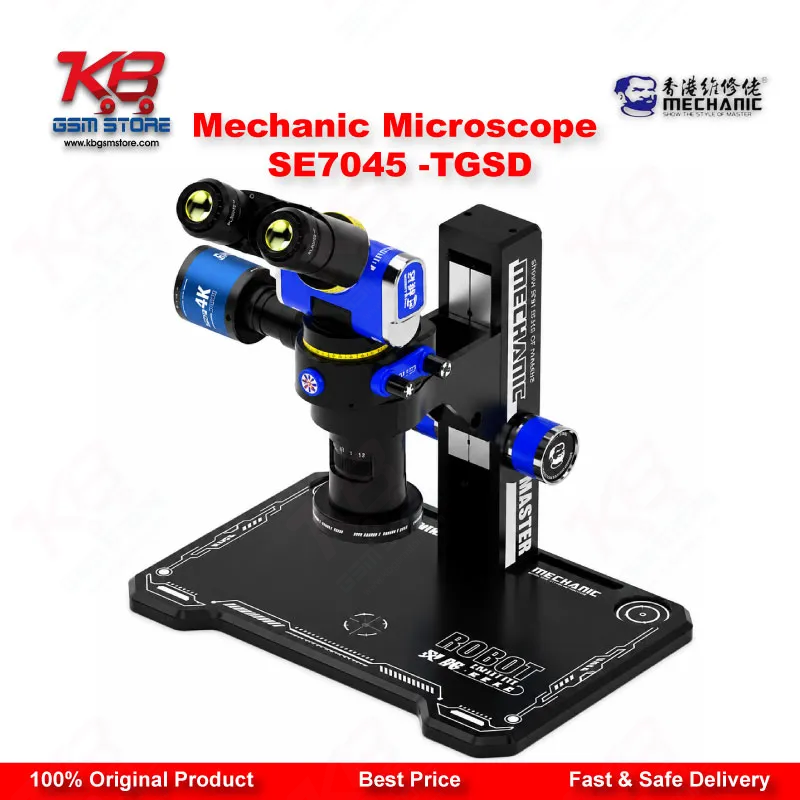

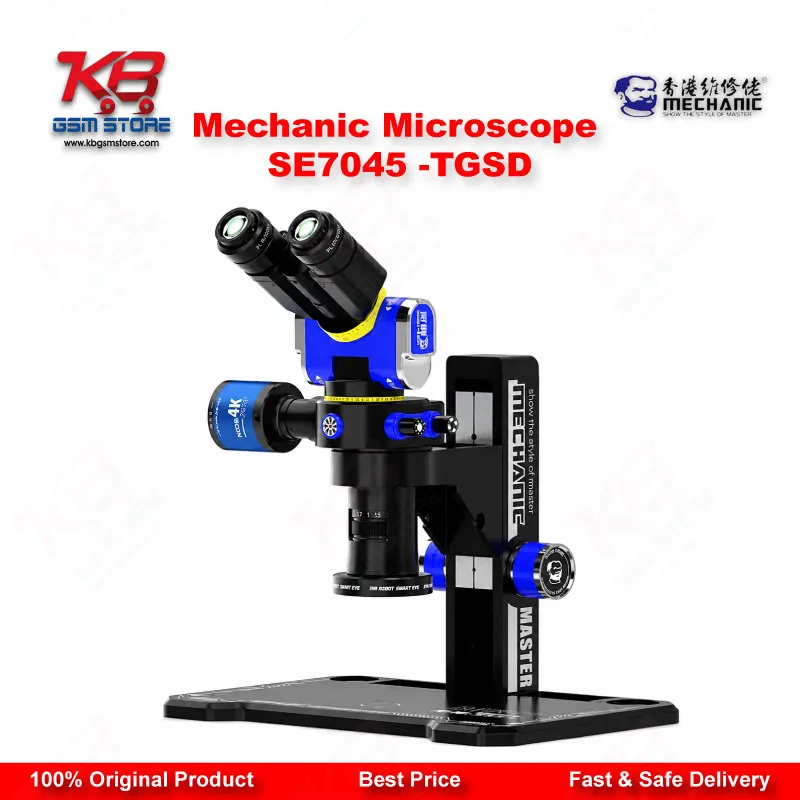

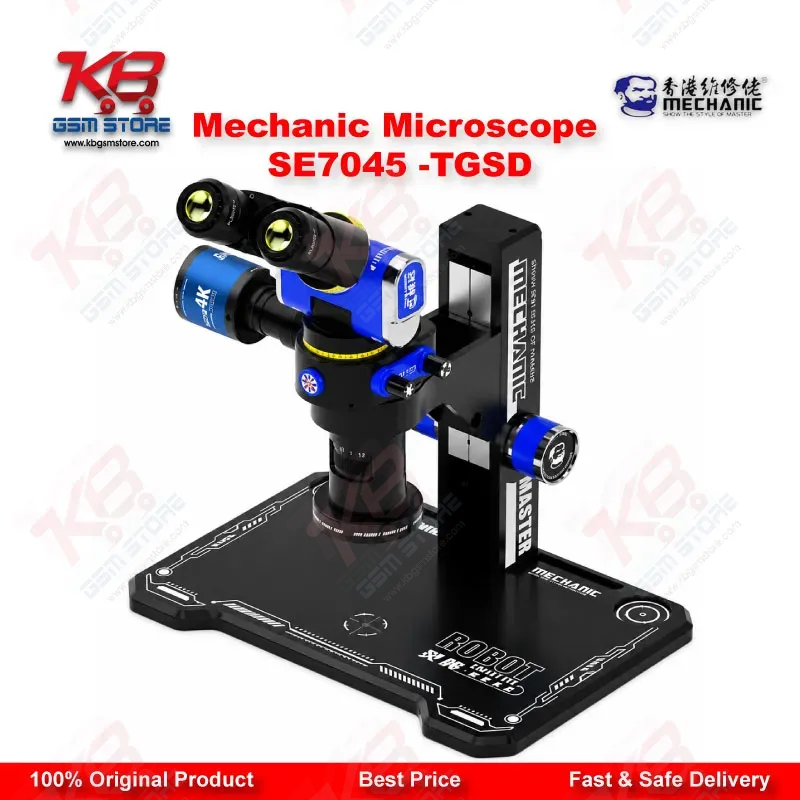

The trinocular head is the third advantage. Beyond the two eyepieces, the head supports an HDMI or USB camera mount, so you can project your work onto a monitor, record a repair for documentation, or train a junior technician by showing them exactly what you're seeing in real time. For repair shops handling warranty disputes or customer-facing diagnostics, having a recorded inspection of a board fault — a lifted IC, a shorted trace, a damaged pad — gives you proof that protects both you and the customer.

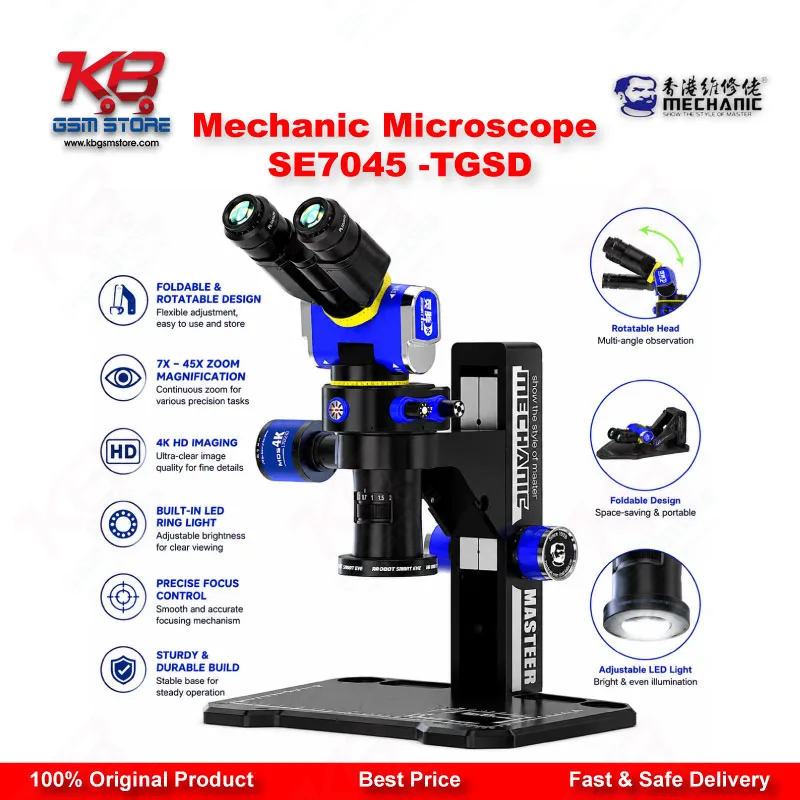

Ergonomics get real attention here too. The head rotates a full 360°, and the support arm adjusts for tilt and height much like a smartphone holder, so you're not locked into one fixed viewing angle. Technicians who spend hours hunched over a board every day know how that posture wears on the neck and shoulders. This design lets you set the viewing angle to match your natural sitting position instead of forcing your body to adapt to the microscope.

In a typical mobile repair workflow, this microscope sits between the diagnostic stage and the actual repair action. Once you've identified a board issue through testing — whether it's a dead phone after a failed flash, a board that hangs on logo, or a charging issue traced back to a damaged port — the SE7045-TGSD becomes the tool you switch to before touching a soldering iron or hot air station. It's where you confirm exactly which pad is lifted, which resistor is missing, or which IC needs reballing, before committing to any rework. Pairing it with a reballing kit, hot air station, and a stable PCB holder rounds out a proper board-level repair bench.

For shops standardizing their repair process, this microscope also fits well alongside ISP and eMMC tools — once chip-level work is done at the microscope, the board often moves on to programming or data recovery stages. Having consistent, sharp visual inspection at every handoff point reduces the chance of re-opening a board for a problem that should've been caught earlier.

The package includes the TG base, main unit, A1 bracket, 0.5x adapter lens, dust-proof masks, adjustable eyepiece masks, the 0.75x auxiliary objective lens, an 8-zone magnetic ring lamp, a pair of PL10X25mm eyepieces, and the TSD guide rail column for smooth focusing adjustment. Everything you need to start inspection work comes in the box without sourcing separate accessories.

If your current setup forces you to guess at solder joint quality or strain your eyes under a weak lamp, this microscope removes that guesswork from your daily repair work.
