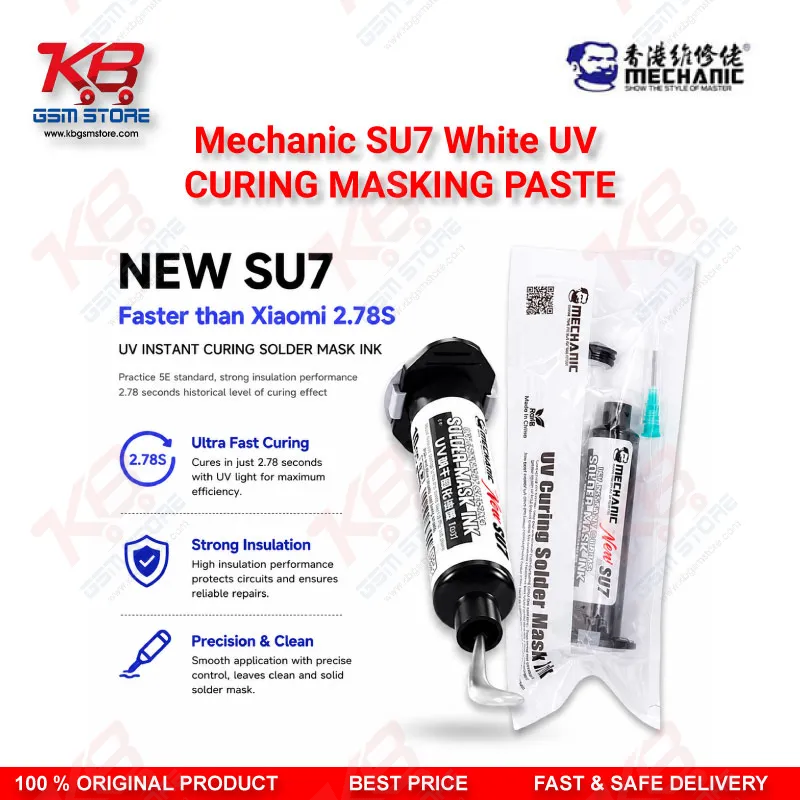

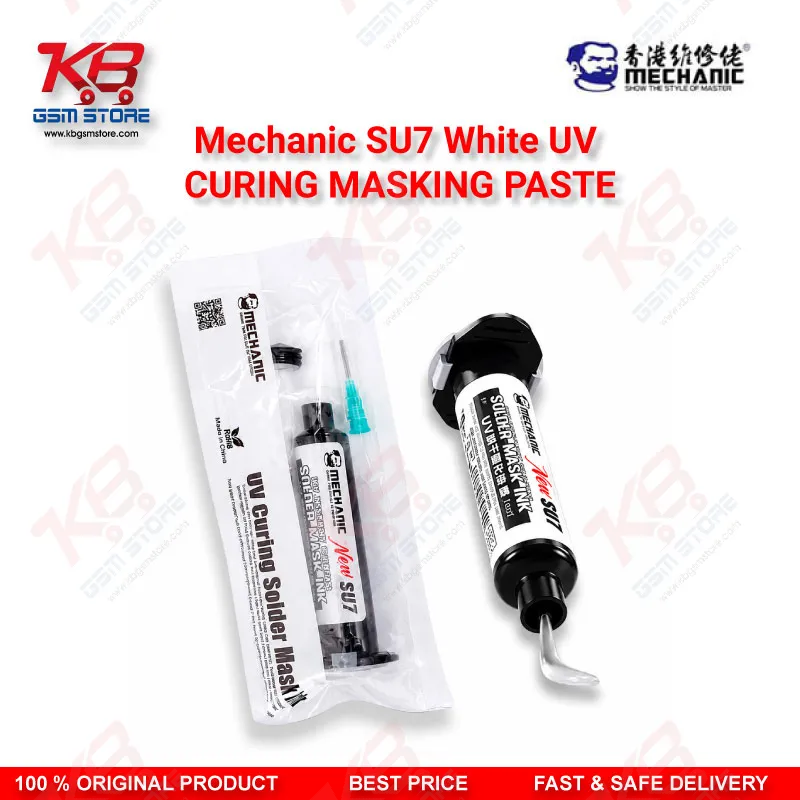

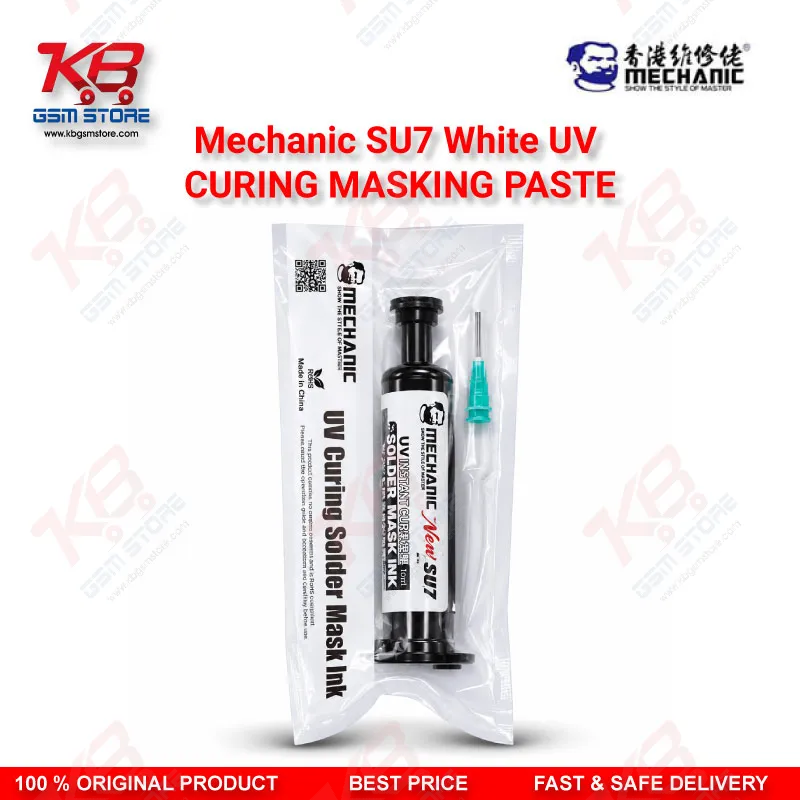

When you are doing board-level repair on a dead phone or a device with a boot loop issue, exposed copper traces are always a risk. One accidental touch with your soldering iron tip or a stray solder ball, and you get a short circuit that turns a simple repair into a burnt PCB. Mechanic SU7 White UV Curing Masking Paste solves this problem directly on your repair bench. You apply the paste over the traces you want to protect, hit it with a UV lamp or curing light, and within seconds it hardens into a solid white insulating layer that stays put through the rest of your rework process.
This masking paste is designed for exactly the kind of PCB repair work Pakistani technicians handle daily: jumper lagana on tight motherboard traces, protecting pads after an IC change, and covering areas where corrosion or moisture damage has already occurred. Because it cures on demand under UV light rather than air-drying over hours, you keep your workflow moving. There is no waiting around for a coating to set before you move to the next step of the repair, which matters when a customer is standing at your counter expecting a same-day fix.
The white color gives you a visible contrast against the green or black solder mask already present on most motherboards, so you can clearly see which areas you have already protected during a repair. This is particularly useful on boards where you have done multiple jumper repairs or IC reballing, since it helps you and any other technician working on the same board later identify which zones were already treated. On charging issue repairs and network issue diagnostics where you are probing multiple test points, having a clear visual boundary between original solder mask and your repair work reduces the chance of re-damaging a trace you already fixed.
Application is straightforward. Clean the board area first to remove flux residue, since the paste bonds best to a clean surface. Apply a thin, even layer directly over the trace or pad you want to insulate, using a fine tip applicator or a toothpick for precision work around dense components. Once positioned correctly, expose the area to your UV curing lamp. The paste sets fast, so avoid smudging it once you begin curing. For technicians doing hardware fault diagnosis where a board needs to go back into a dead phone for a software marna test immediately after protection, this fast cure cycle is a real time saver compared to older air-dry masking compounds.
Beyond short circuit prevention, this paste also functions as a moisture and dust barrier. Boards that have been exposed to liquid damage, or units coming in with a history of corrosion around the charging port or battery connector, benefit from a protective coat after cleaning and repair. It helps slow down future oxidation on repaired pads and traces, which is especially relevant in Pakistan's humid coastal cities like Karachi where board corrosion is a recurring complaint from service center customers.
Mechanic as a brand is widely used across Pakistani mobile repair shops for consumables like flux, solder paste, and now UV curing masking compounds, so technicians already familiar with Mechanic soldering tools will find this paste consistent in quality and ease of use. Whether you run a small mobile repair counter or a full service center handling PCB rework, hot air gun work, and IC-level repairs, keeping a bottle of SU7 White on your bench alongside your soldering station and microscope rounds out your board protection toolkit. It pairs naturally with your existing hot air rework station, fine-tip soldering iron, and flux paste for a complete trace-level repair and protection workflow.
