Working on a phone motherboard without a proper microscope is guesswork. You squint at a cracked CPU pad, you misjudge a lifted trace, and you end up reflowing a chip that didn't need it. The Mechanic Super XS-B3 trinocular stereo microscope fixes that problem by putting a stable, magnified, three-way optical view right at your repair bench.

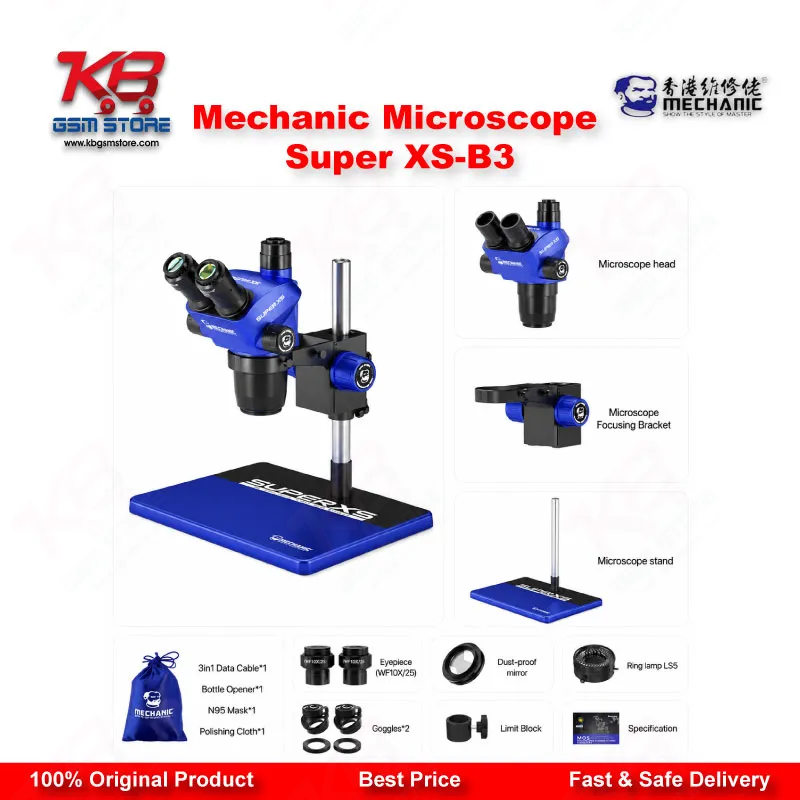

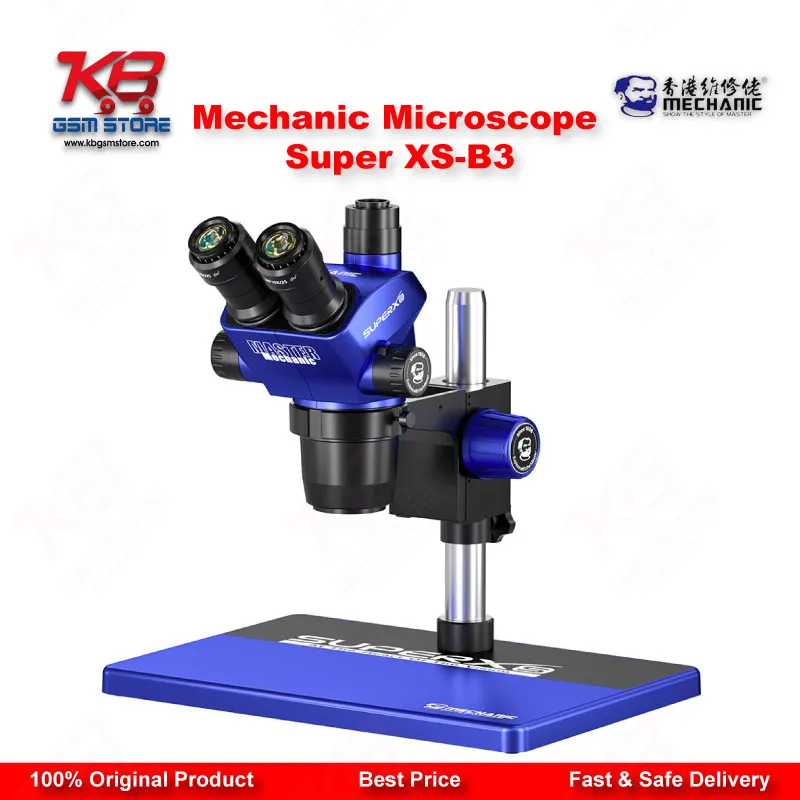

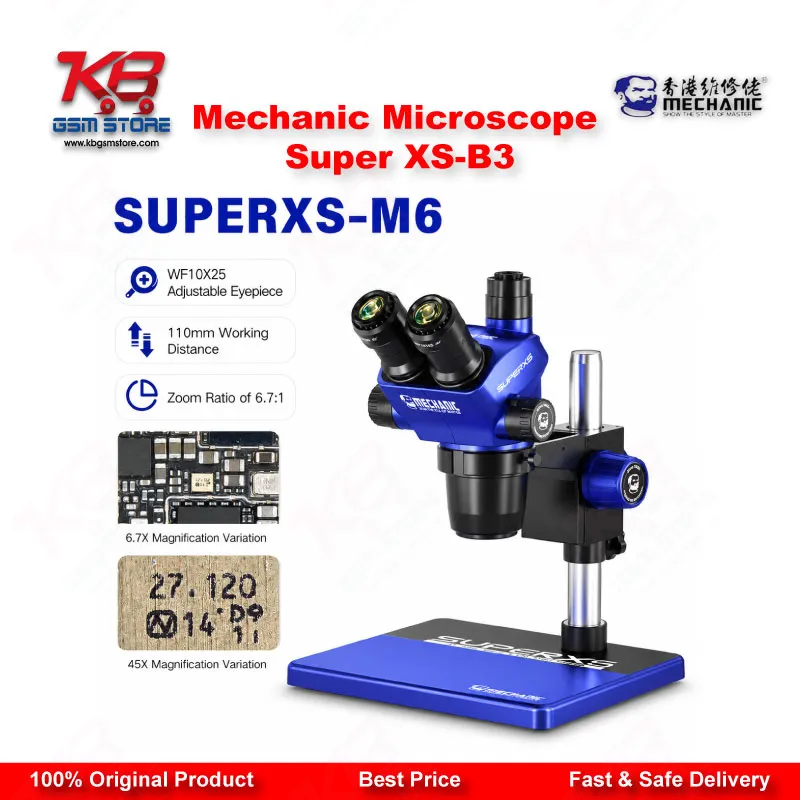

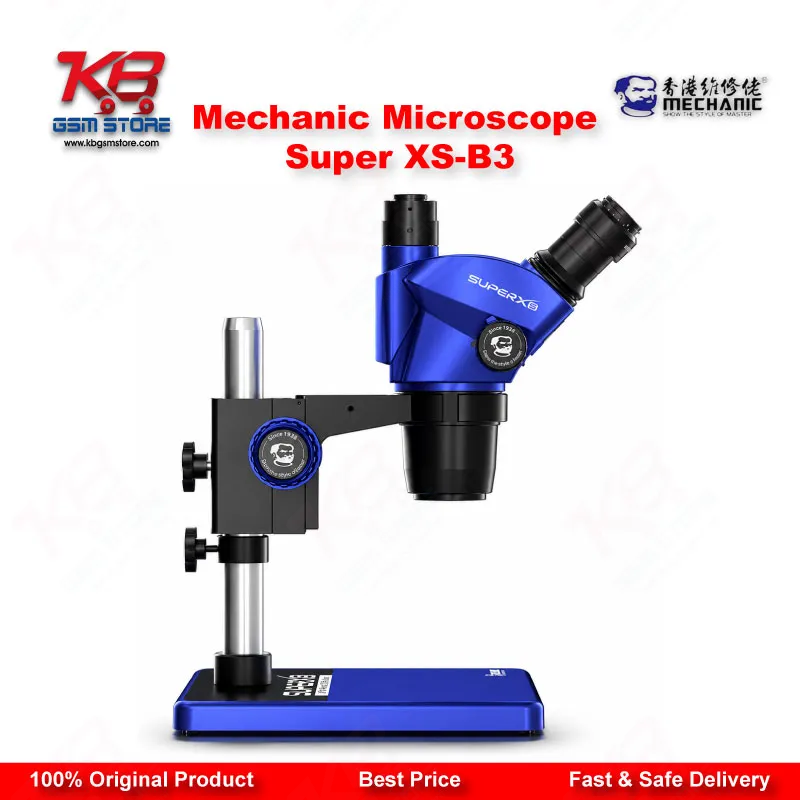

This is a Mechanic-branded trinocular stereo microscope built on the Super XS-B3 base configuration. The "trinocular" design means you get the standard binocular eyepieces for direct eye observation, plus a third port where you mount an HD industrial camera. That third port matters more than it sounds — once you connect a camera, you can record your wire-jumper work, document a board fault for warranty claims, or mirror your view to a monitor so a junior technician learns by watching the same image you're seeing.
The B3 base under this unit gives you a wide, heavy footprint. When you're doing reballing on a Snapdragon or MediaTek chipset, even small vibrations on the bench can throw off your alignment. A wobbly microscope stand ruins fine work fast. The B3-style base keeps the column rigid, so your focus doesn't drift while you're holding a soldering iron in one hand and tweezers in the other.
In terms of physical footprint, the single-unit packing for the Super XS-B3 measures 450×340×235mm with a gross weight around 5.7kg — substantial enough to sit solid on a workbench without sliding around during active use, but not so bulky that it eats your whole table space.
For Pakistani repair shops, this microscope earns its place on jobs where a magnifying lamp simply isn't enough. Think about a "dead after flash" board where you need to trace a blown fuse resistor near the PMIC. Or a "boot loop issue" caused by a hairline crack on a CPU ball that's invisible to the naked eye. Or FRP-related board-level work where you're checking continuity on tiny test points. In every one of these situations, your eyes need real magnification and a steady, glare-free view — not a phone flashlight and a 10x loupe.
The stereo optical path also gives you genuine depth perception, which matters a lot more than people realize until they try working under a flat 2D camera-only setup. When you're lifting a lifted pad back into place or running a flying wire from a CPU pin, you need to judge height and angle in real time. A trinocular stereo design lets you do that naturally through the eyepieces while still having the option to record or display through the camera port.
This microscope fits cleanly into a standard mobile repair workflow. After initial diagnosis on the test box, you bring the board under the Super XS-B3 to confirm the exact location of a hardware fault — a lifted IC leg, a corroded pad, a hairline PCB trace. During the actual repair stage, whether that's IC change karna, jumper lagana, or fine SMD component replacement, the microscope stays your primary visual reference. After the repair, you use it again for final quality inspection before you hand the phone back to the customer, checking solder joints for cold joints or bridging you can't catch with bare eyes.
Mechanic, as a brand, is widely recognized across mobile repair and PCB rework tooling — their stereomicroscope range sits in the same product family as their soldering equipment, BGA stencils, and repair light sources, which makes it straightforward to build a full optical repair station around compatible Mechanic accessories like swing arms and dedicated LED light sources.
If your workshop handles board-level repair regularly — chip-level diagnosis, CPU reballing, fine pad soldering, or camera/face ID flex repair — the Super XS-B3 gives you the visual foundation that workflow depends on. It's not a luxury add-on; for technicians doing real micro-soldering, it's closer to a basic requirement.
