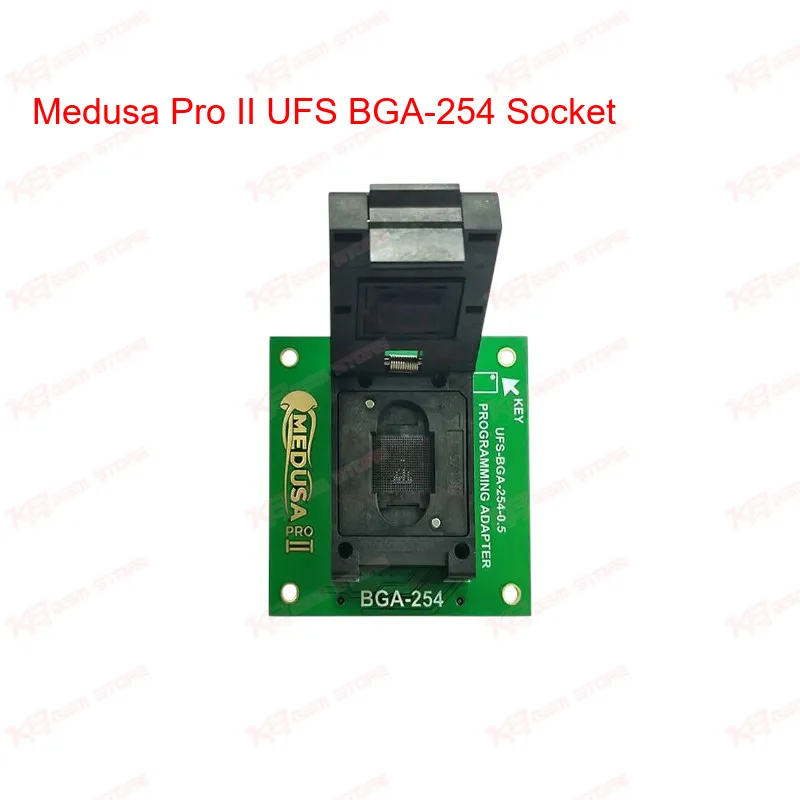

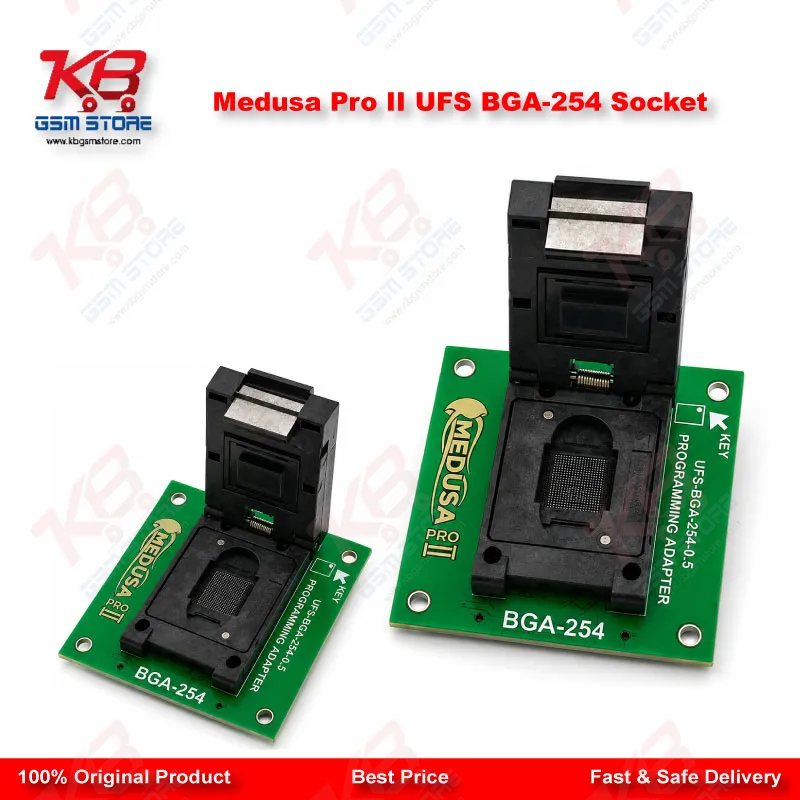

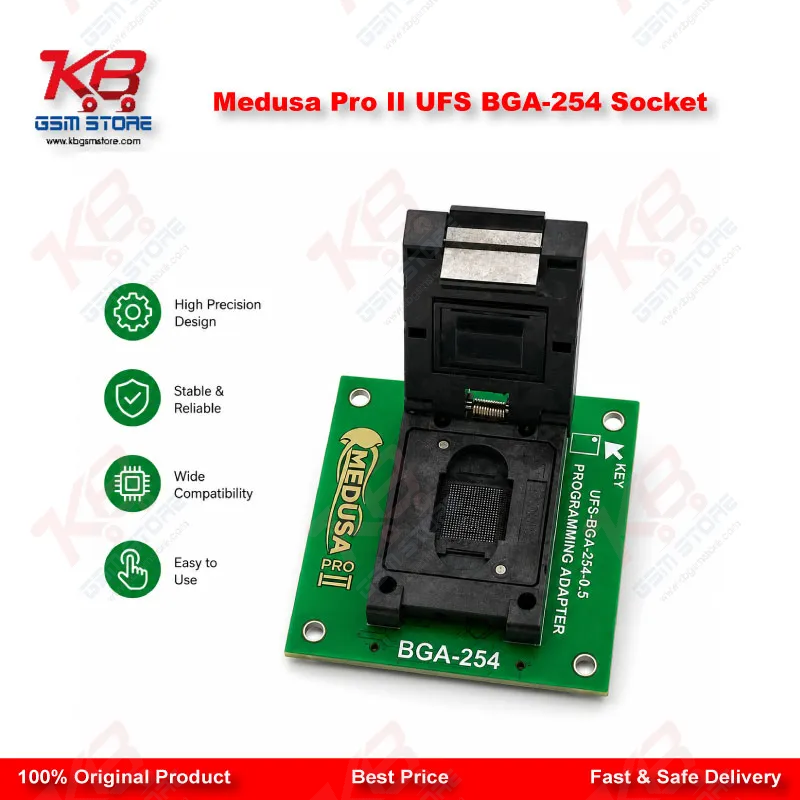

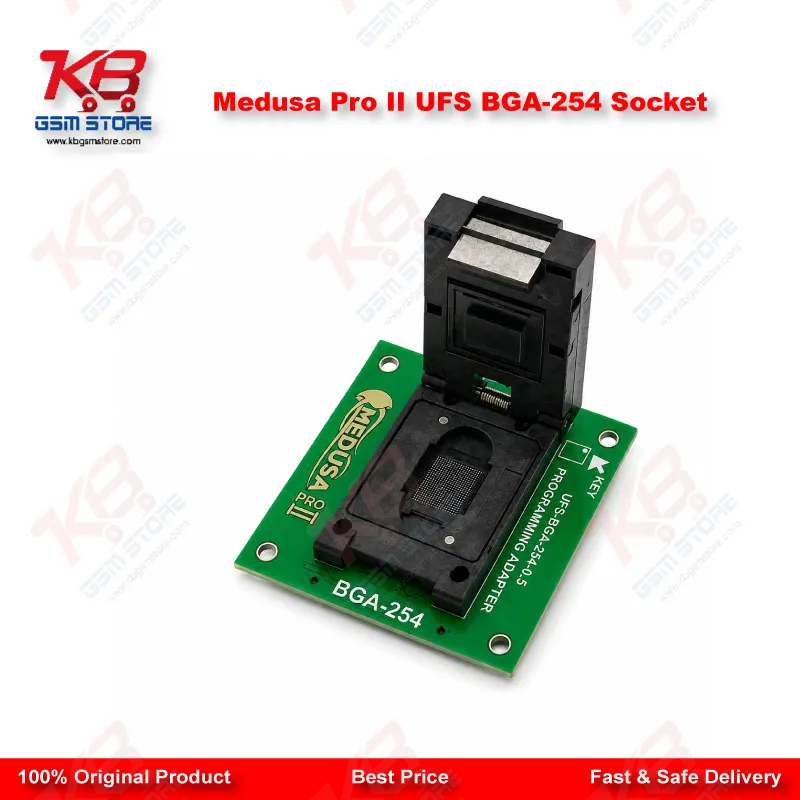

Every mobile repair bench that handles UFS chip-level work eventually runs into a BGA-254 package that needs direct access outside the board — a dead phone that won't boot, a UFS chip with corrupted firmware, or a board where the eMMC/UFS controller no longer responds to normal flashing. The Medusa Pro II UFS BGA-254 Socket Adapter exists for exactly that scenario. It is a dedicated socket accessory for the Medusa Pro II Box, built to accept BGA-254 packaged UFS memory chips and expose them to the box's read, write, and diagnostic functions. Because it is a socket-style adapter rather than a soldered board, the workflow stays simple: remove the UFS chip from the phone's PCB using your hot air station, clean the pads, seat the chip into the BGA-254 socket, and connect to the Medusa Pro II Box. This approach avoids repeated soldering cycles on the adapter itself, which matters when a technician is running through several boards in a single day. For shops dealing with dead-after-flash phones, hang-on-logo boards, or UFS chips that need a full backup before an attempted repair, this socket removes one of the more fragile steps in the process. The BGA-254 package covers a wide range of UFS storage chips used across current-generation smartphones, and the Medusa Pro II platform is built around servicing HTC, LG, Samsung, Motorola, Oppo, Vivo, ZTE, Sony, and Vodafone devices. That range makes the socket practical for general repair shops rather than single-brand specialists, since a typical Pakistani service center sees a mix of these brands coming through the door on any given week. When a board arrives with a dead UFS chip, corrupted partition table, or unresponsive storage after a failed OTA update, this adapter gives the technician a direct line to the chip instead of depending on the phone's own USB or test-point interface, which frequently fails to respond in these exact fault conditions. Build quality on socket adapters matters more than it looks. Pin alignment, contact pressure, and pad wear tolerance all affect whether a read attempt succeeds on the first try or damages an already-fragile chip. The Medusa Pro II UFS BGA-254 Socket is manufactured to match the box's expected pinout and voltage handling for BGA-254 UFS parts, keeping connection reliability consistent across repeated use. At 0.09 kg, it is light enough to keep on the bench permanently without adding clutter, and it slots into the same workflow as the Medusa Pro II BGA-153 and BGA-095 sockets for shops that need full package coverage. This adapter is a component-level tool, not a full box — it requires the Medusa Pro II Box to function and is not a standalone programmer. Shops already running Medusa Pro II hardware get an immediate benefit from adding this socket to their UFS coverage, since it extends chip-level access without needing a separate device or software license. For technicians moving into UFS chip-off repair as a regular service line, pairing this socket with a reliable hot air rework station and a decent microscope for pad inspection rounds out a dependable BGA-254 workflow. It is a focused, single-purpose accessory that does one job — hold and connect the chip — reliably enough to trust with paid repair work.
