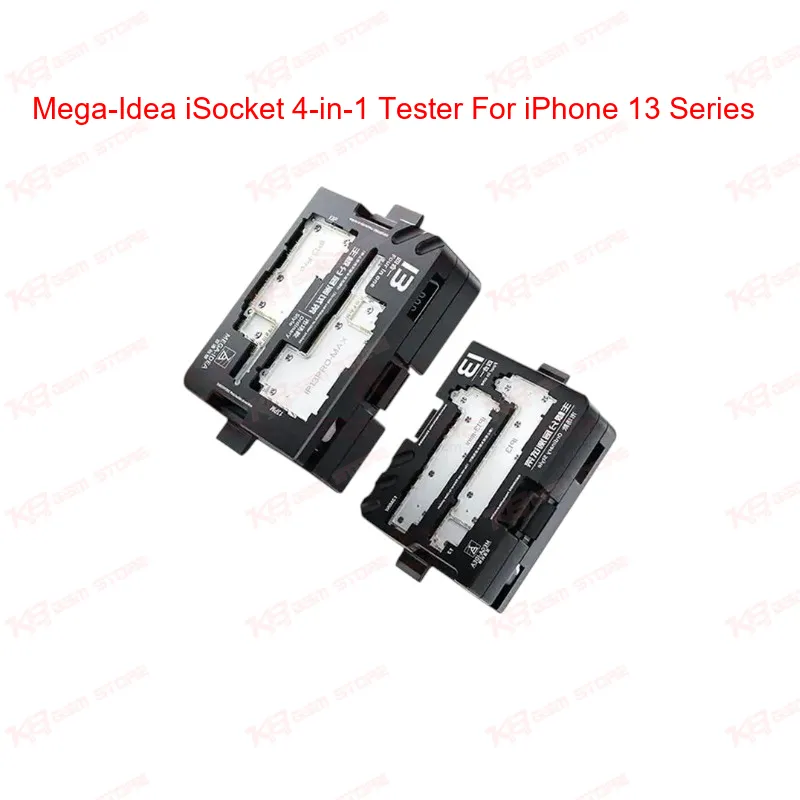

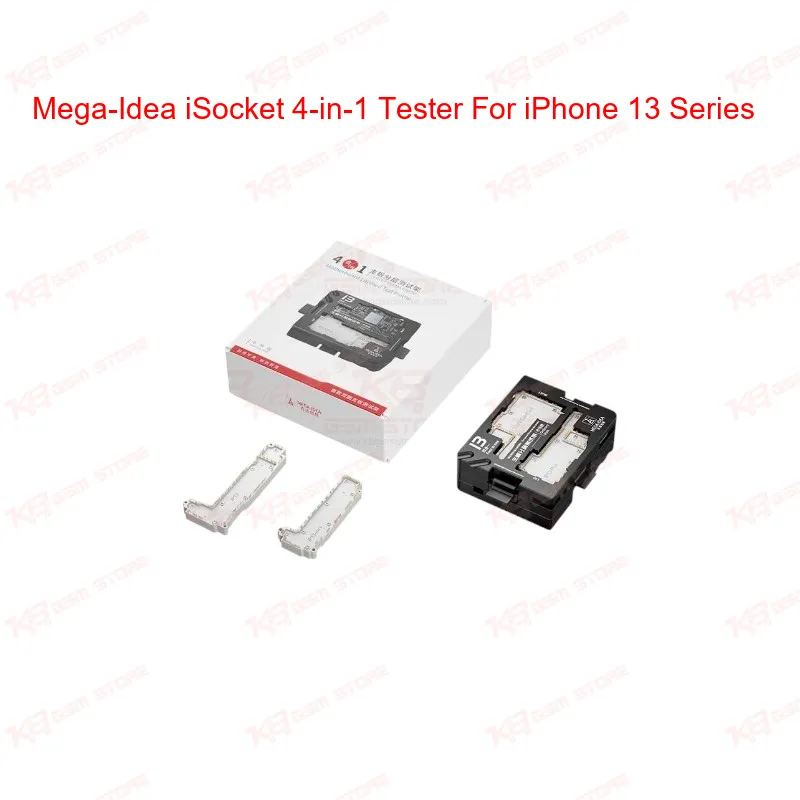

When a customer drops off a dead iPhone 13 with no clear fault, the biggest time sink on the bench is usually the back-and-forth: fit the board, power it up, see nothing, pull it apart again, check another component, refit it, test again. The Mega-Idea iSocket 4-in-1 Layered Test Frame removes most of that cycle by giving you a dedicated stand that holds the RF motherboard, pin board, and logic motherboard in exact alignment, stacked layer by layer, without needing to reinstall the board into its original chassis. The frame supports all four iPhone 13 series variants — 13 Mini, 13, 13 Pro, and 13 Pro Max — on a single tool, so you don't need a separate fixture for each model size. This matters on a busy repair bench where boards from different 13 series units come in the same day; you switch models without reaching for another tester. Two testing modes are built into the design. Without the gasket, you place the RF motherboard, pin board, and logic motherboard directly in alignment, stacking them on the frame base in sequence. With the gasket fitted onto the frame base first, the same three-layer stack sits on top of it, which changes the contact pressure and spacing for boards where the direct-stack method doesn't seat cleanly. Having both options on one frame means you can adjust to board condition — slightly warped boards, boards with damaged standoffs, or boards where connector wear affects contact — instead of forcing every board through a single fixed setup. The double-side design is where this frame earns its bench space. Rather than a single flat testing surface, the layered build increases usable application area within the same footprint, so more of the board's test points and connectors stay accessible while it's clamped in place. For someone doing IC-level diagnostics — checking a power IC, CPU, or baseband section under a microscope while the board sits powered — that accessibility directly affects how fast you can probe and confirm a fault. Reasonable use of a limited, purpose-built design is the core idea here: this isn't a generic universal frame stretched across models it wasn't built for. It's sized and shaped specifically around the 13 series board layout, which gives a more stable clamp and more accurate test data than adapting a loosely-fitting universal holder. The stability matters most when you're running repeated power-on tests — a board that shifts slightly between tests can give inconsistent results, sending you chasing a fault that isn't actually there. In a typical dead-phone or boot-loop workflow, the process looks like this: separate the board from the housing, identify which layer (RF, pin, or logic) needs isolation, seat the stack on the iSocket frame using the gasket or direct method depending on board condition, then apply power through your DC supply and read the board's response. If the board draws current but doesn't boot, you move to point-to-point testing on the exposed CPU or PMIC connections while the board stays clamped and stable. If there's no current draw at all, the frame lets you check RF and pin board continuity separately from the logic board, narrowing down which layer is actually failing. This kind of layered isolation is especially useful for boards affected by liquid damage, where corrosion can create intermittent faults that only show up under sustained power — having the board held securely for extended diagnostic time, rather than propped up with tape or clips, gives you more reliable readings. It also reduces physical stress on the board's connectors, since you're not repeatedly reseating it into the phone chassis for every test cycle, which lowers the risk of pin damage over a long diagnostic session. For a shop running high volumes of iPhone 13 series repairs — screen problems, charging issues, network issues, or hang-on-logo cases that trace back to the motherboard — this frame becomes one of the tools you reach for on nearly every dead-board job, sitting alongside your hot air station, DC power supply, and microscope as part of the standard diagnostic bench setup.
