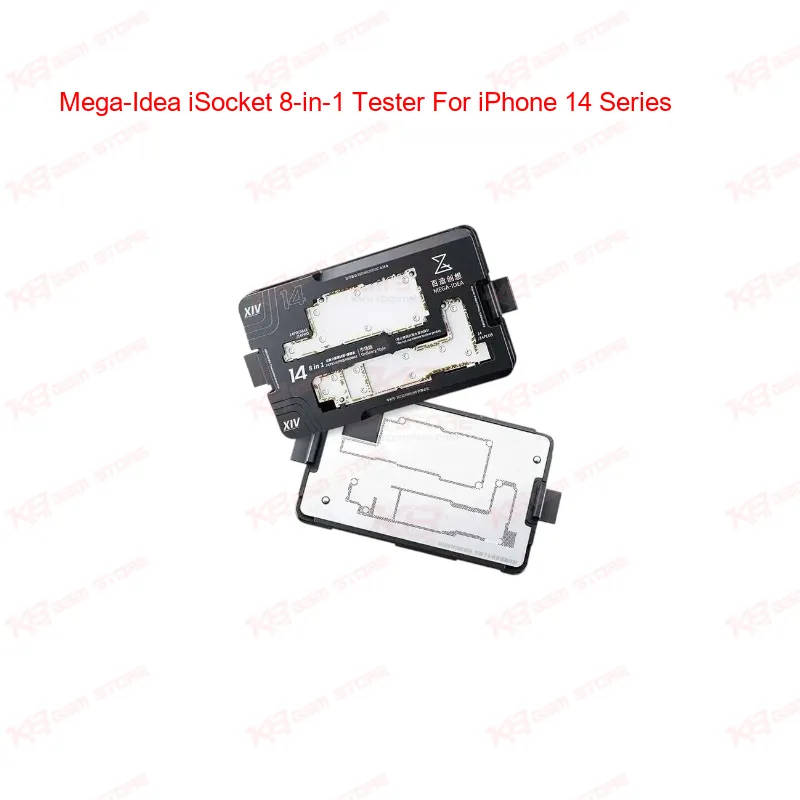

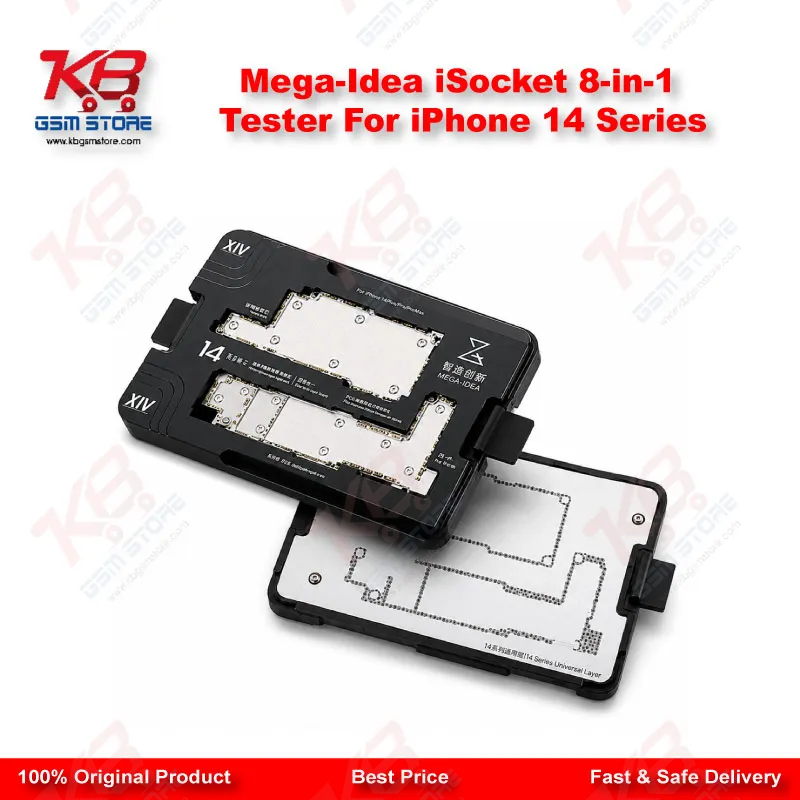

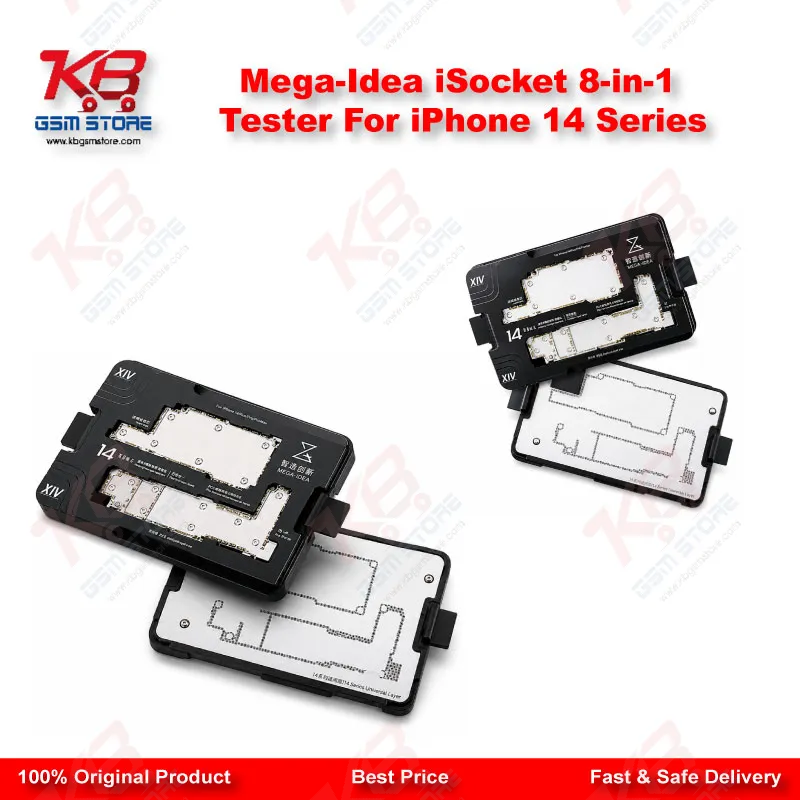

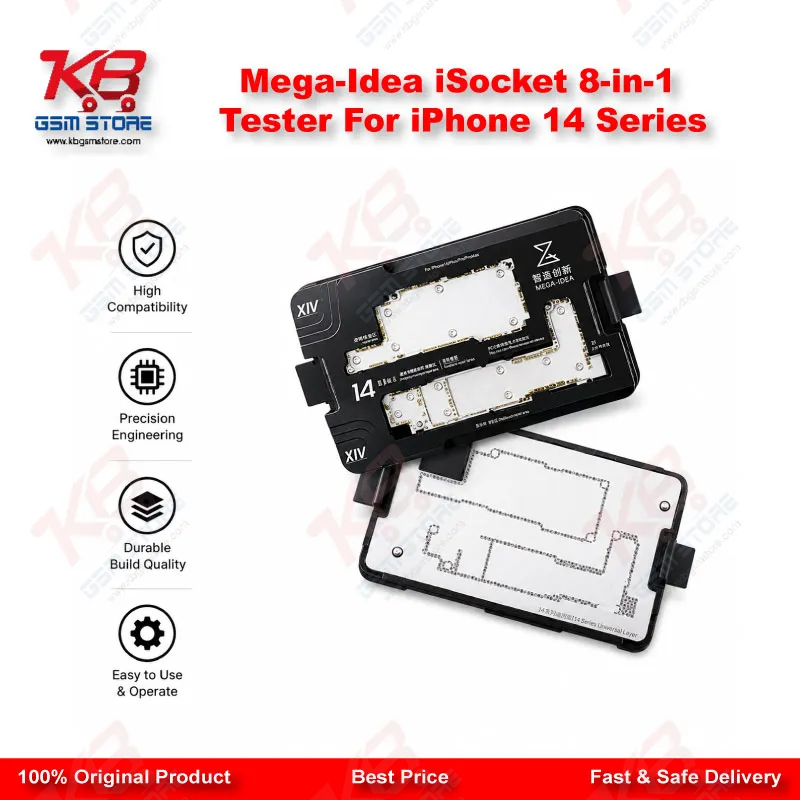

When an iPhone 14 series motherboard comes apart into its upper and lower layers, testing each half separately becomes a real headache. You end up soldering test wires to tiny pads, risking lifted pads and cold joints just to confirm whether the fault sits on the CPU layer or the small board side. The Mega-Idea iSocket 8-in-1 Motherboard Layered Test Platform removes that problem by giving your bench a dedicated fixture built specifically for iPhone 14, 14 Plus, 14 Pro, and 14 Pro Max logic boards. The platform runs on BeCu (beryllium copper) spring probes sourced from imported material, chosen because they hold conductivity and contact pressure over thousands of test cycles without losing accuracy. Each probe uses a conical, double-headed tip that seats precisely into the tiny holes on the pin board, so your test readings stay consistent instead of drifting from one session to the next. The tapered shape also resists picking up rosin and solder residue, which matters a lot when you are testing boards straight after reflow work. Repair shops running high volumes of iPhone 14 series jobs feel this difference immediately — less time chasing false negatives caused by dirty or worn probes. Using the fixture follows a straightforward layered process. You place the lower motherboard on the base of the test stand first, then fasten the pin board directly above it so the probes line up with the lower board's test points. Next, you position the upper motherboard on top of the pin board, aligning it carefully before locking it into place. The fixed buckles on both wings of the stand clamp the stacked assembly together, so the boards can't shift or warp mid-test — a common cause of inconsistent function results on other layered fixtures. Once everything is secured, you connect your power supply and screen the same way you would on an assembled phone, then run through the function checklist: display, touch, Face ID, charging, network, camera, and other core functions layer by layer. The 8-in-1 design covers all four models in the iPhone 14 series with one frame, which means you are not buying separate fixtures for the standard 14, the 14 Plus, the 14 Pro, and the 14 Pro Max. This matters for shops working mixed inventory, where a dead phone diagnostic queue on any given day could include any of these four models. The platform supports both gasket and gasket-free setups: for boards where extra clearance or protection is needed, you place the gasket on the frame base before stacking the lower motherboard, pin board, and upper motherboard; for standard cases, you skip the gasket and stack the layers directly on the base. Beyond function testing, this frame works as a stencil tinning and reballing platform. Once you have diagnosed a CPU, PMIC, or other BGA-mounted IC as the fault, the same base supports stencil alignment for tin planting and reballing work, so you are not moving the board to a separate fixture mid-repair. This keeps the board handling to a minimum, reducing the chance of pad damage between diagnosis and the actual IC change karna step. For technicians dealing with boot loop issues, hang on logo faults, or a board that shows dead after flash symptoms, isolating whether the fault sits on the upper or lower layer is usually the first real diagnostic step. Testing each layer independently on the iSocket platform gives you that answer directly, instead of guessing based on partial reassembly. It also helps confirm whether a jumper lagana fix or IC reflow actually solved the issue before you commit to full reassembly. Built from CNC-machined aluminum alloy, the frame holds its shape under repeated clamping and unclamping, so it stays reliable through daily bench use. The spring buckle mechanism gives quick rebound when releasing the board, which speeds up turnaround between test cycles when you're working through a queue of boards. For any Pakistani repair shop or service center handling iPhone 14 series motherboard faults on a regular basis, this platform turns board-level function testing into a repeatable, low-risk process instead of a soldering-heavy guessing game.
