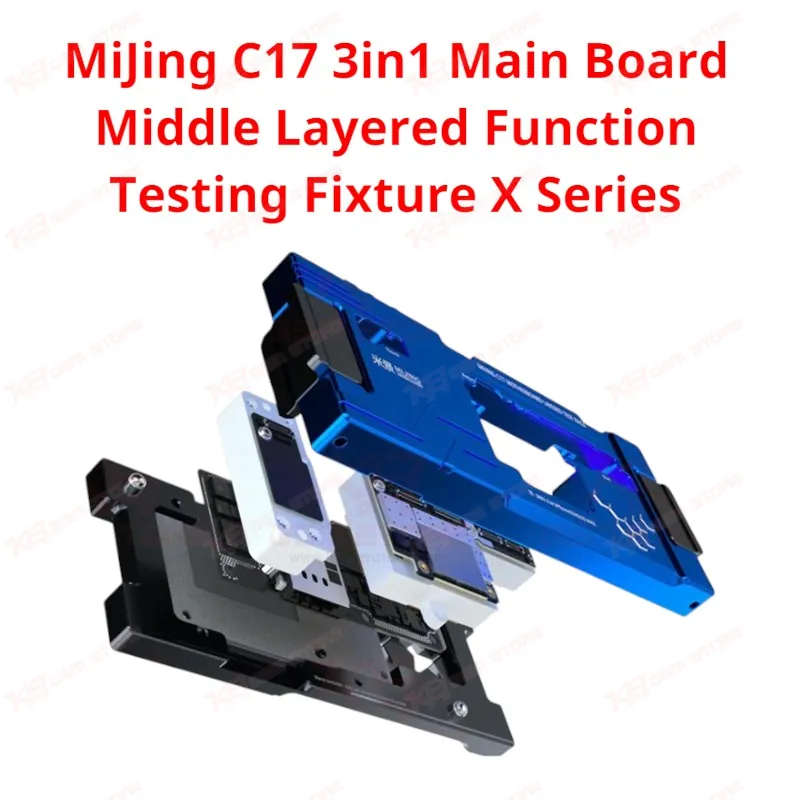

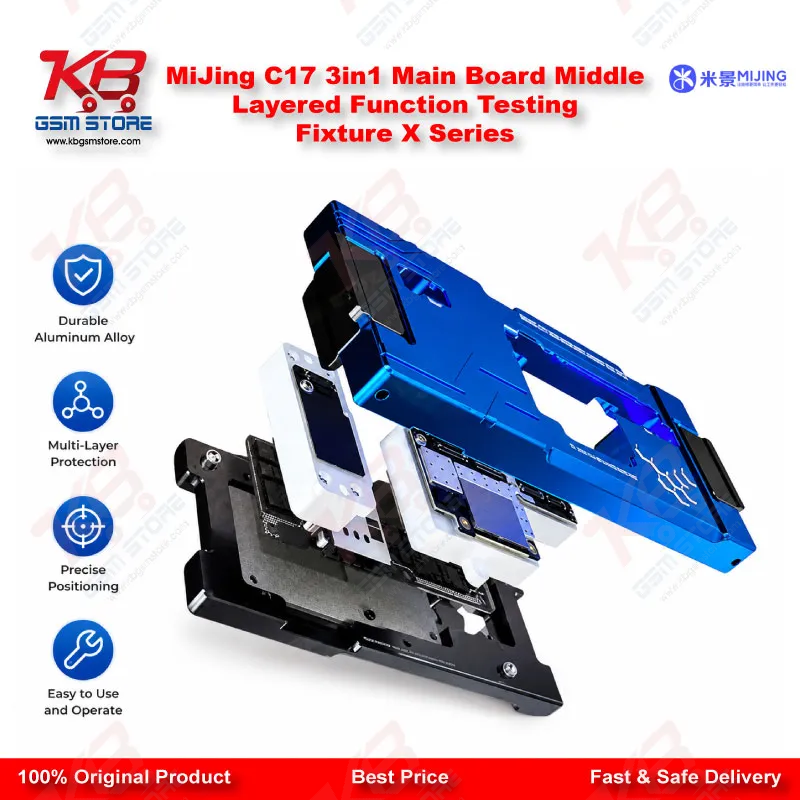

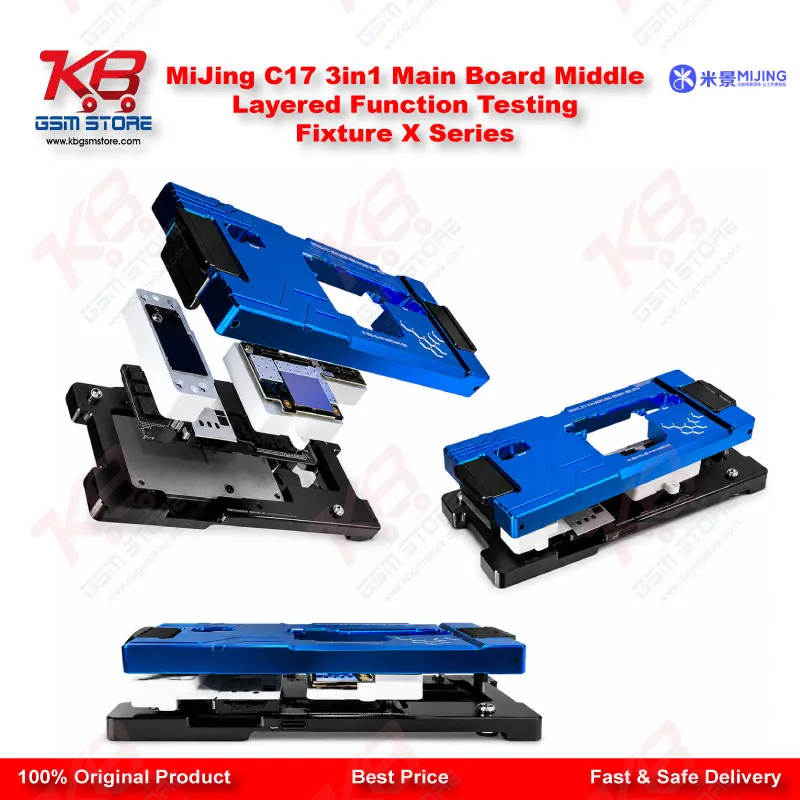

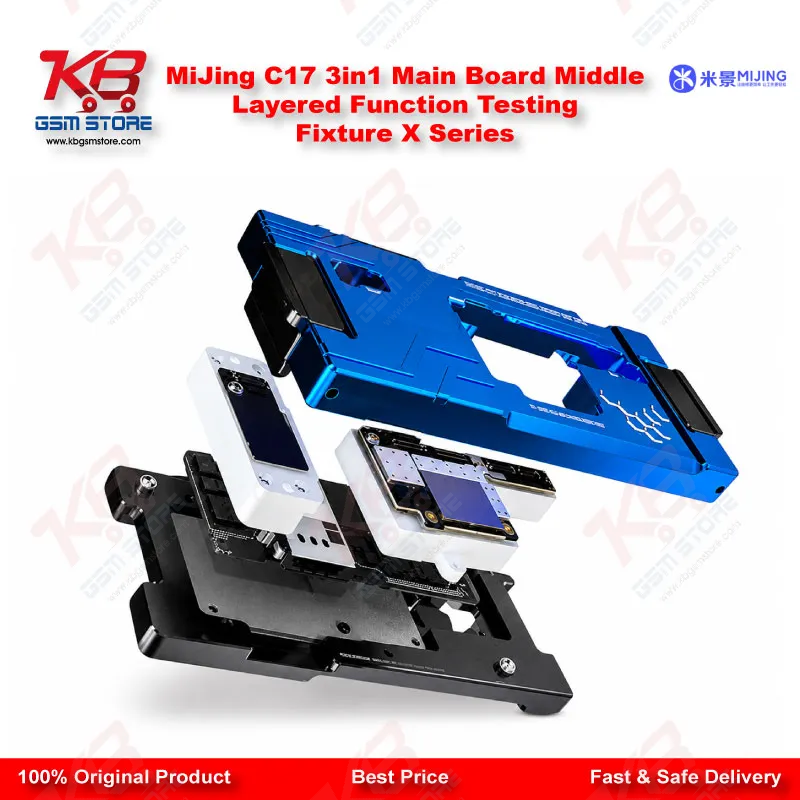

When you pull an iPhone X, XS, or XS Max motherboard apart for an IC change, a reballing job, or a jumper repair, the real test only comes when you power it back on — and normally that means reassembling the whole board stack first, screen and all, just to find out if the fault is still there. The MiJing C17 removes that wasted step. It works as a bench test rig that clips the upper board, middle layer, and lower board into a fixed frame exactly as they sit inside the phone, so you can run a genuine power-on and function test without closing up the case. You put the lower main board in first, seat the pin board on top of it, drop the upper board into place, then close the test rack over the stack. From there you connect the included power on/off cable, power line, and LCD test cable, attach a working screen, and boot the board directly on your bench. If the phone powers on, shows display, and responds normally, you know the repair held before you ever touch a screwdriver to close the housing. If it stays dead or hangs on logo, you catch that immediately and go back into the board instead of reassembling and disassembling a second time. This is the core value of the fixture: it turns a full reassembly-and-test cycle into a five-minute bench check. For a Pakistani repair shop running high volumes of X/XS/XS Max jobs, that difference adds up fast — fewer wasted screen assemblies, fewer stripped screws from repeated opening and closing, and a much shorter turnaround per unit. The C17 also protects you from a common workshop mistake: closing up a board that still has a hardware fault and only finding out after the customer walks in with the same dead phone or charging issue a second time. Testing on the fixture first means you confirm boot, power, and display behavior with certainty, not assumption. The frame itself uses an MS steel build, giving it enough rigidity to hold the board stack flat and aligned during testing, which matters when you're checking for a board that boots intermittently or drops connection under light pressure — a sign of a cold joint or a lifted IC that a rushed reassembly test would miss. Because the C17 exposes the middle layer directly, it also helps you visually inspect connector seating, flex cable alignment, and board flatness at the same time as the function test, so you're not running two separate checks. The kit includes everything needed to get a board running on the bench: a power on/off cable, a power line, and an LCD test cable, so you don't need to source separate test leads or improvise connections with clip probes. This matters for consistency — using the same tested cable set every time removes a variable when you're troubleshooting a board that fails intermittently, since a loose improvised connection can itself cause a false dead reading. In day-to-day repair work, the C17 fits naturally after any middle-layer operation: post-IC-change verification, post-reballing power tests, checking a board after network issue repair, or confirming a fix before you commit to closing the phone and handing it back. It also helps during initial diagnosis on a dead phone, since you can seat a suspect board and run a controlled power-on test before deciding whether the fault is software or hardware — a distinction that saves you from wasting time on a box flash session (software marna) when the real issue is a hardware fault on the board itself. Technicians running an ISP or UFS workflow on X/XS/XS Max boards also use the C17 as the final confirmation step after data or firmware work, since it lets you verify the board boots and holds function under real load before returning it to the customer. Small and portable, the fixture stores easily on a repair bench and doesn't demand the setup time of a full reassembly for every test cycle, which is exactly what makes it practical for shops handling several X-series boards a day rather than the occasional one-off repair.
