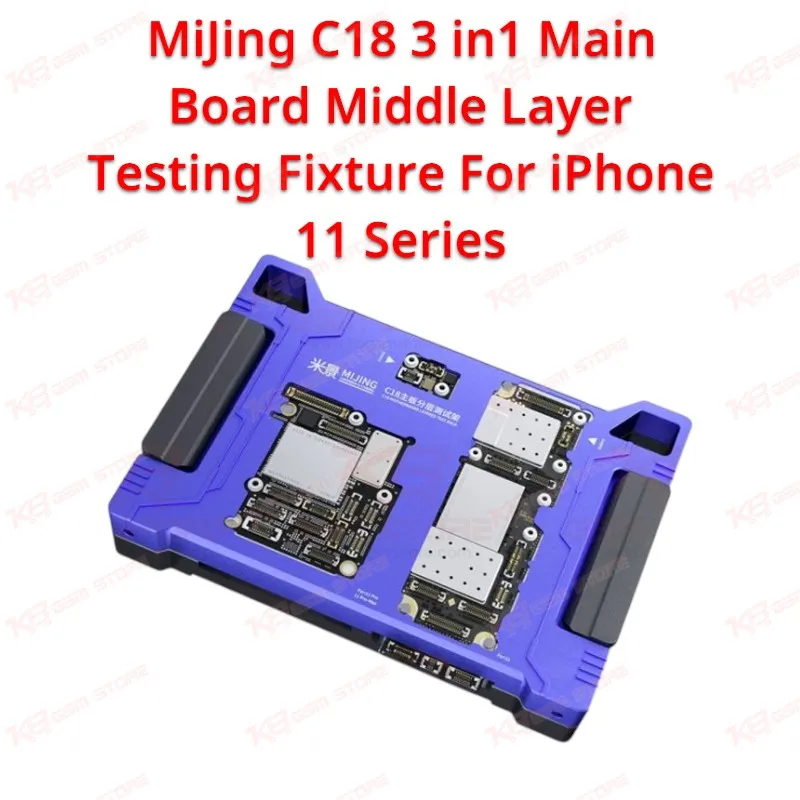

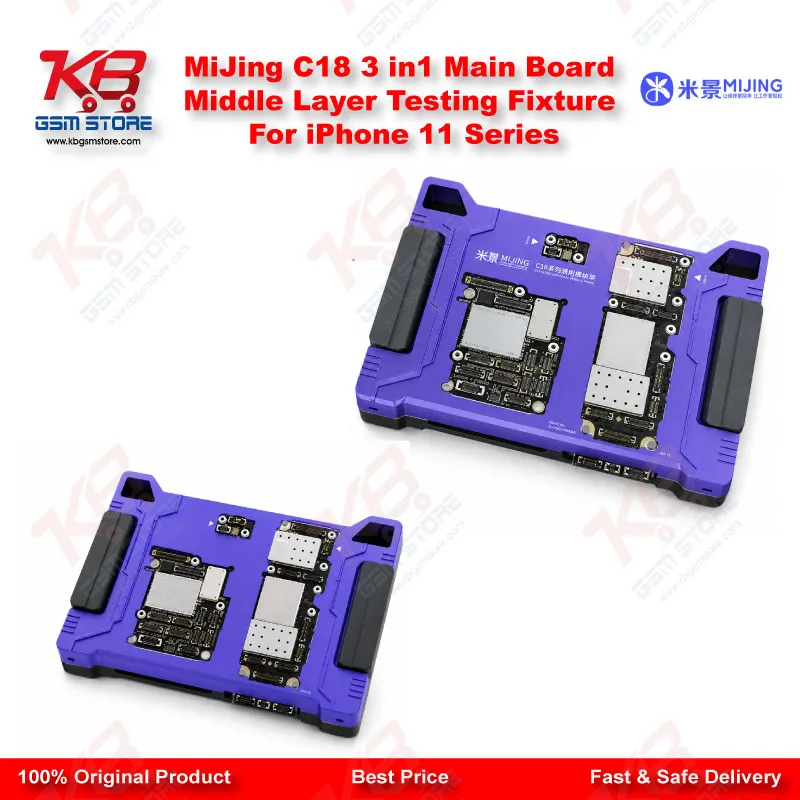

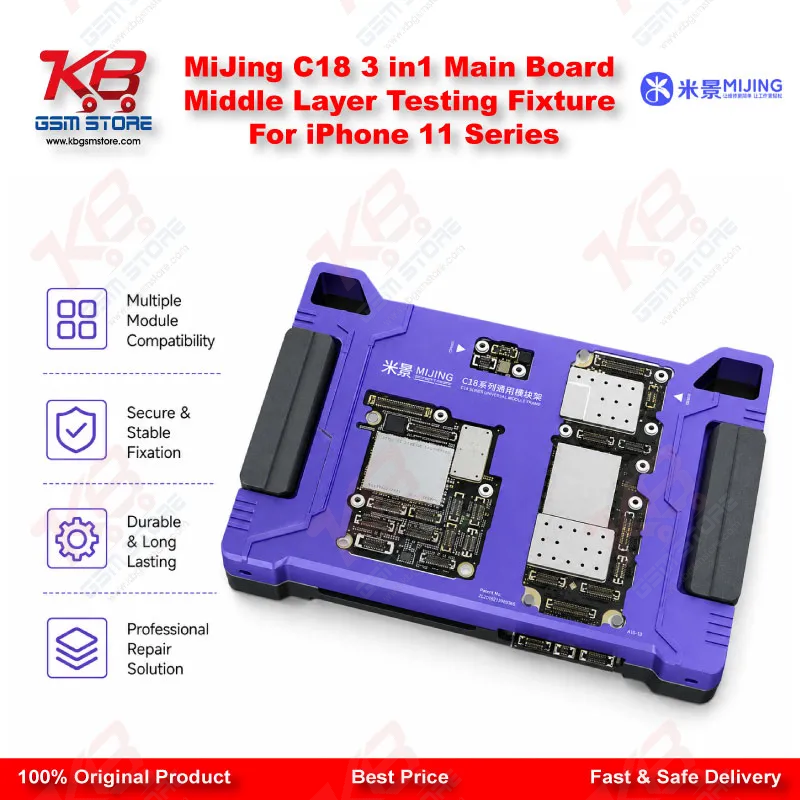

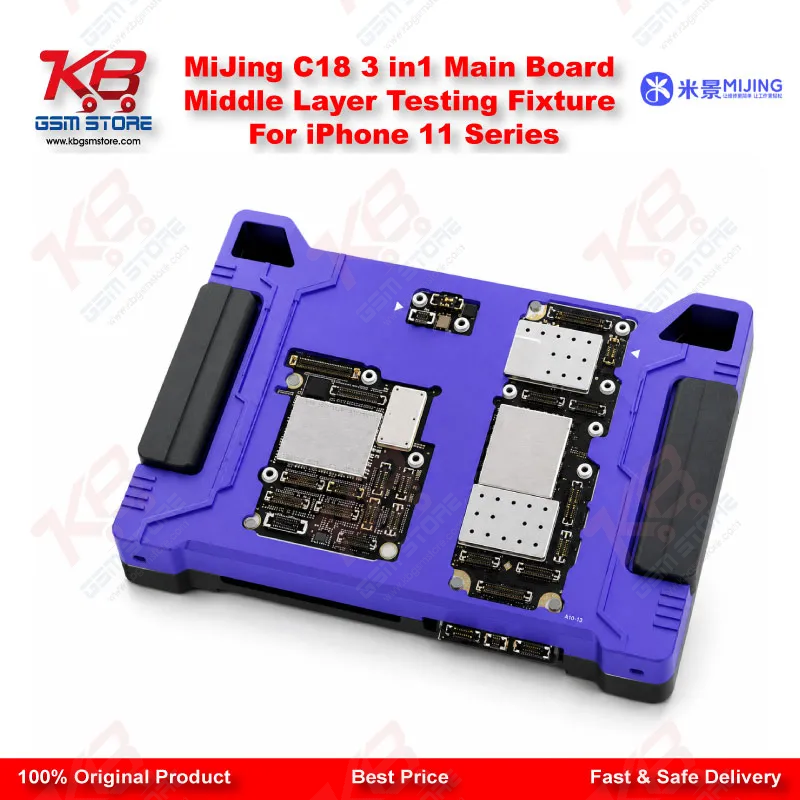

Every technician who works on the iPhone 11 series knows the frustration of testing a board mid-repair. You separate the layers to reach an IC, run a jumper, or check a short, and then you're stuck: reassemble the whole board just to see if the fix worked, or risk missing a fault and repeating the teardown later. The MiJing C18 solves this exact problem by giving you a layered test platform that holds the upper, middle, and lower board sections in their working position without any soldering.The setup follows a simple sequence. You put the lower main board in first, place the needle board pin layer on top, add the upper board, and close the test rack over the stack. The needle board makes the physical connections between layers that would normally require the board to be fully assembled, while the interposer mid-layer board carries signal continuity through to your test cables. Once the stack is closed, the board behaves electrically as if it were fully soldered, which means you get real functional feedback instead of guesswork.Two testing paths come built into the C18. The first is direct cable testing: connect your screen line, boot cable, power cord, or battery line straight to the fixture and check whether the board powers on, boots, displays, or charges. This is your go-to method for a quick pass/fail check after IC replacement, jumper work, or a suspected hardware fault. The second method uses the end plug on the fixture base, which routes through to flash box or programmer connections so you can run software operations — flashing, reading, or writing — on a board that's still in its separated layer state. This matters when a board goes dead after flash and you need to reflash without full reassembly, or when you're chasing a boot loop that only shows up under software load.For a Lahore or Karachi repair shop running high volumes of iPhone 11 series boards, this fixture cuts real time off every job that involves IC change karna or board-level diagnosis. Instead of assembling, testing, disassembling, and reassembling repeatedly, you test at each stage and only do the final soldering once you've confirmed the repair holds. That single change in workflow reduces the risk of damaging pads or connectors from repeated heat cycles, which is one of the more common ways technicians turn a fixable board into a scrap one.The C18 covers the iPhone 11, iPhone 11 Pro, and iPhone 11 Pro Max in one fixture, since these three models share a compatible board layout for this test method. That means one tool handles your entire iPhone 11 series workload instead of needing separate fixtures per model. The frame itself uses a toughened alloy build with nylon spacers between contact points, which protects the board's gold fingers and connector pads from scratching during repeated insertion and removal — something a lower-quality fixture won't manage after a few dozen cycles.In the box you get the layered testing fixture, the needle board, the interposer mid-layer board, two extension cables for reaching test points away from the rig, a user manual, and two after-sales service cards. That's a complete kit out of the box — no separate purchase needed to start testing.Where this fits in your actual repair process: after board-level diagnostics point to a dead phone or hang-on-logo fault, you separate the layers to inspect or rework the suspect IC. Before resoldering the board back together, you run it through the C18 to confirm the repair actually fixed the issue. If it hasn't, you catch it here instead of after final assembly — saving a second full disassembly. It's equally useful for pre-sale board testing, board harvesting, or verifying a purchased used board before you commit it to a customer repair.If your bench regularly sees iPhone 11 series boards for network issue, charging issue, display problem, or software marna cases, the C18 pays for itself in reduced rework and faster turnaround per job.
