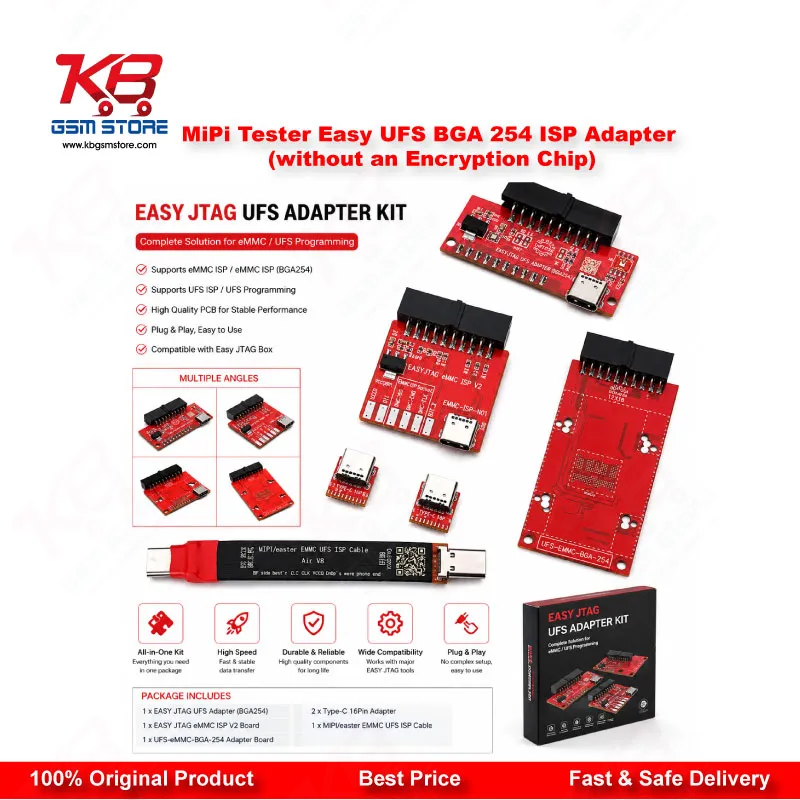

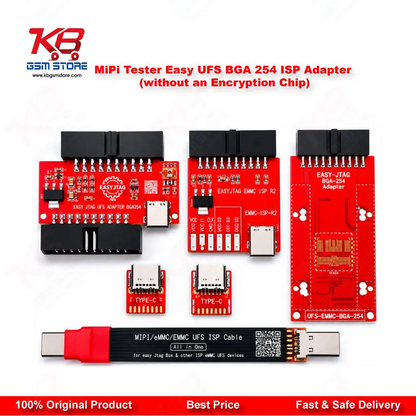

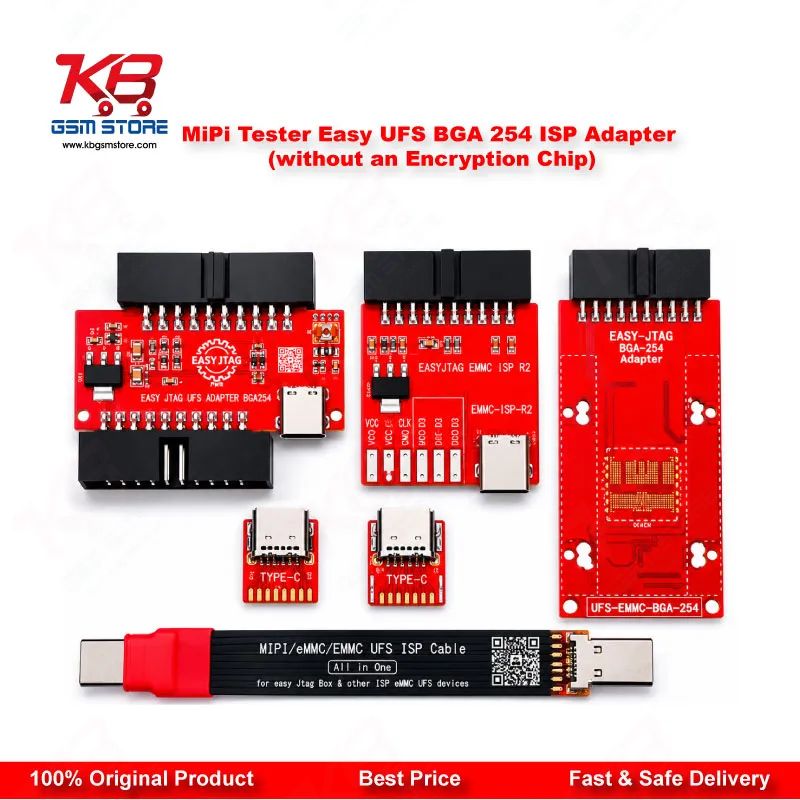

MiPi Tester Easy UFS BGA 254 ISP Adapter (Without Encryption Chip) – UFS ISP Repair Tool

 When
a phone comes in dead after flash, stuck on boot loop, or completely
unresponsive with a damaged eMMC controller, ISP access becomes your fastest
route to the data. The MiPi Tester Easy UFS BGA 254 ISP Adapter connects your
MiPi Tester box directly to the UFS chip's ISP test points on the PCB, so you
skip chip removal entirely and work straight on the board.

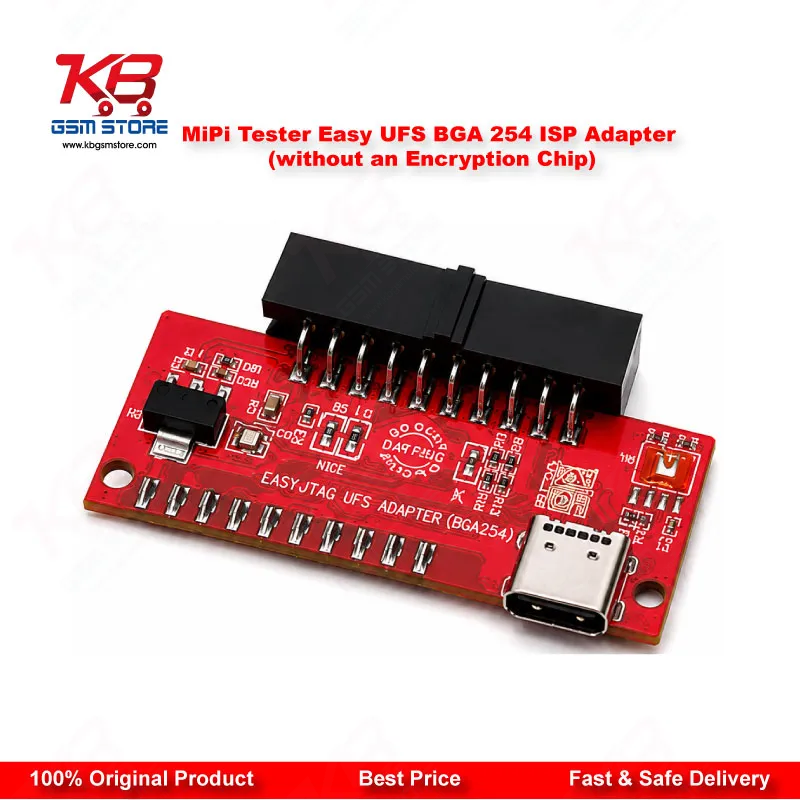

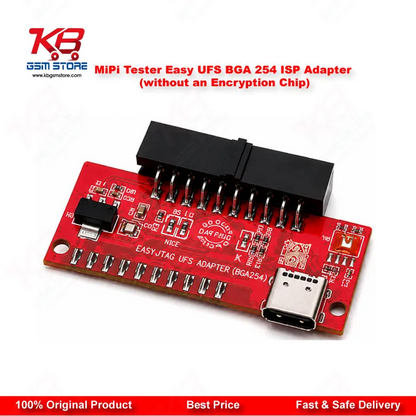

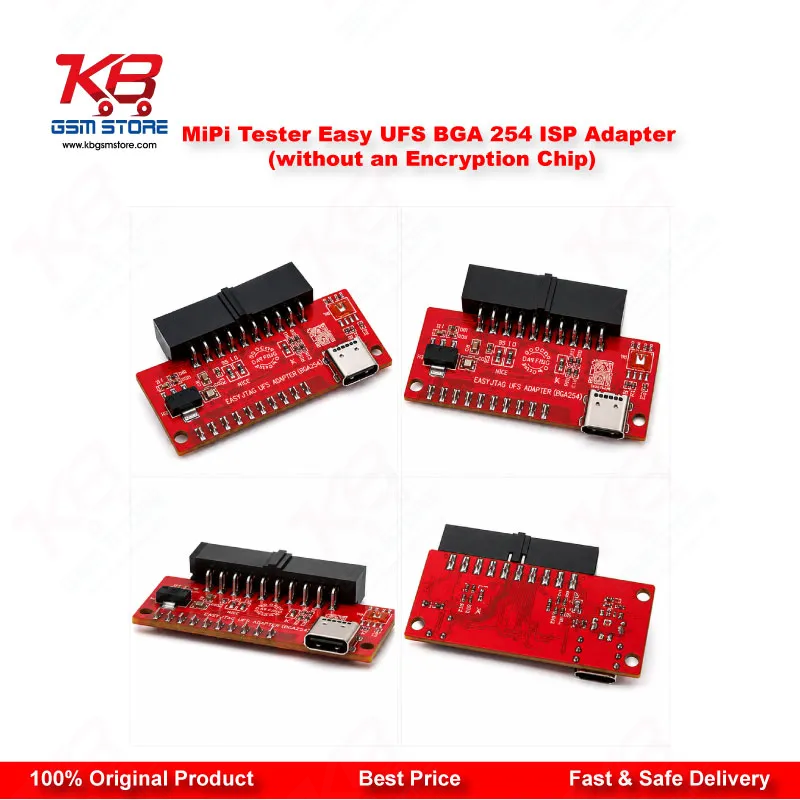

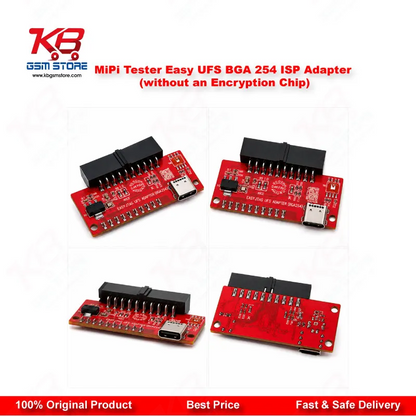

This adapter is built around the BGA254
package, the most common UFS chip footprint you run into on current Android
flagships and mid-range devices. Instead of reballing the chip and moving it to
a socket, you wire the ISP points directly and let the MiPi Tester box handle
the read/write operation. This saves bench time, reduces the risk of pad damage
during chip removal, and keeps the original chip in place on the board.

This particular version ships without an
encryption chip, which means it pairs with a MiPi Tester system that already
has its own active encryption or license module. Pakistani technicians running
Easy UFS kits or Z3X Easy JTAG Plus often build a multi-adapter toolkit over
time, and this version lets you add BGA254 ISP capability without paying for a
duplicate encryption chip you already own.

Wiring matters here, and getting it wrong
is the most common reason technicians report failed connections. For UFS 2.0,
2.1, and 2.2 chips, you wire VCC to 3.3V and VCCQ2 to 1.8V. For UFS 3.0, 3.1,
and 4.0 chips, you connect TX, RX, CLK, RST, and GND through jump wires
instead, since these versions can't rely on the socket-style power and USB
connection the older UFS generations use. Keep your GND, TX, and RX wiring
under 15mm wherever possible, and place the GND connection physically close to
TX and RX. Some CPUs also need an RST signal wired in before the chip responds.

Powering up correctly is the next
checkpoint. A regulated power supply works better than USB power for most
BGA254 ISP jobs. Press and hold the power button on your box, and watch the
current draw: 100-200mA tells you the UFS chip powered on successfully and
you're ready to start a read or write session. If you're running USB power with
battery device manager mode, you need an active CPU port present on the board,
or the UFS chip won't power on and won't connect at all.

Once you're connected, this adapter
supports full UFS read and write operations through your MiPi Tester software,
covering FRP lock removal, pattern unlock jobs, data backup before a board
repair, and recovery work on boards where the eMMC/UFS controller has a
software fault rather than physical damage. It's also useful for technical
training environments where students need to practice ISP-level UFS access
without committing to a full chip-off setup.

Build quality on the adapter focuses on
stable, repeatable ISP contact points rather than flashy extras, which is
exactly what you want from a tool you're going to be wiring into board-level
repairs every day. Pair it with a calibrated soldering iron, a stable bench
power supply, and steady hands on the jump wires, and this adapter becomes one
of the more reliable parts of your UFS repair workflow.

Note: this product carries no warranty
coverage and isn't eligible for return once purchased, which is standard across
MiPi Tester ISP adapters in this category.
