Every GSM workshop
eventually runs into a phone that software tools alone cannot save — a dead
phone after a failed flash, a board with a damaged eMMC connector, or a device

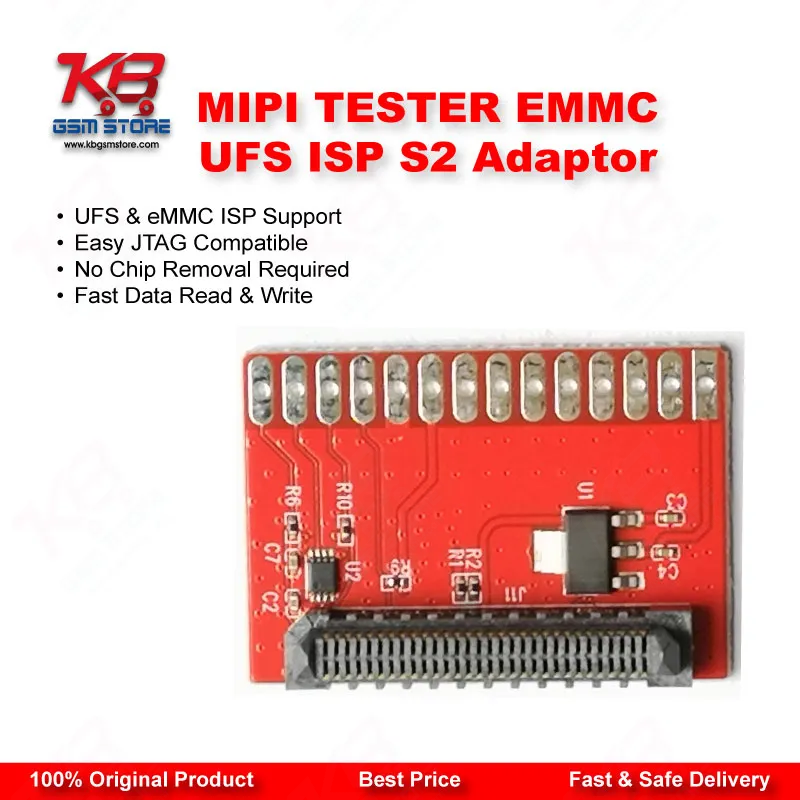

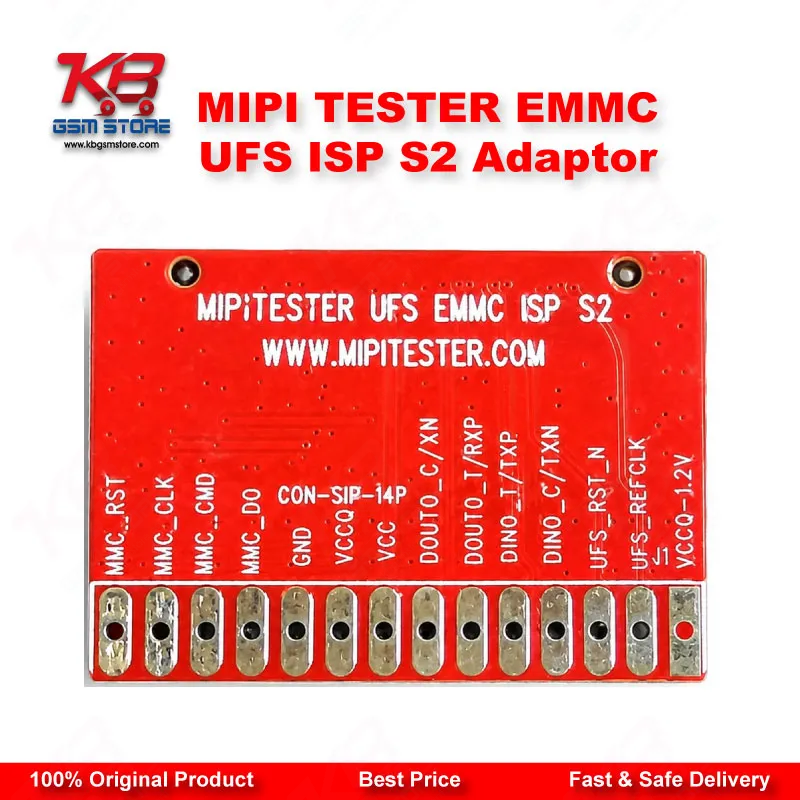

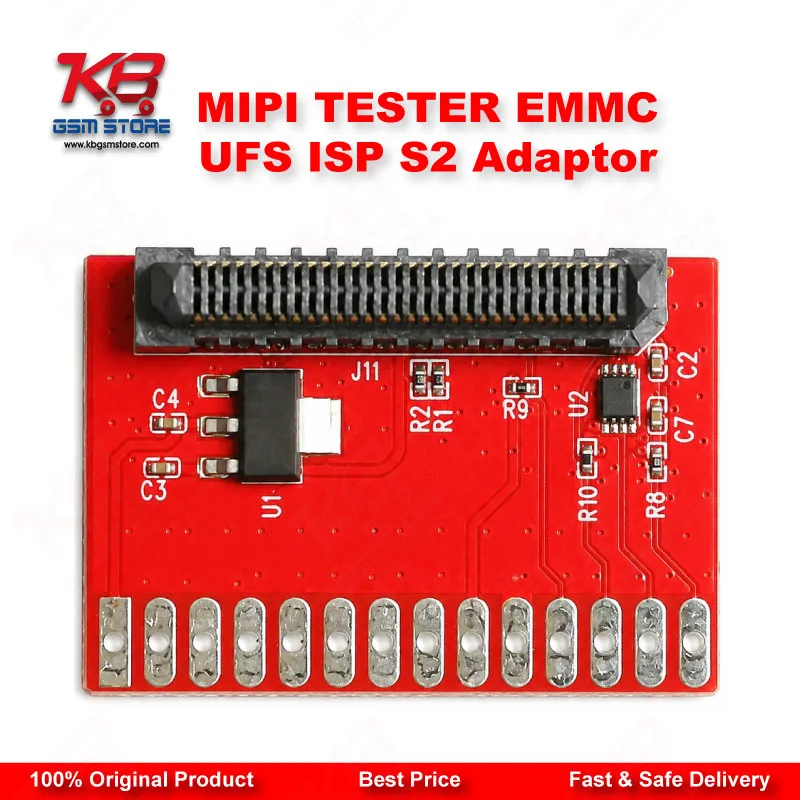

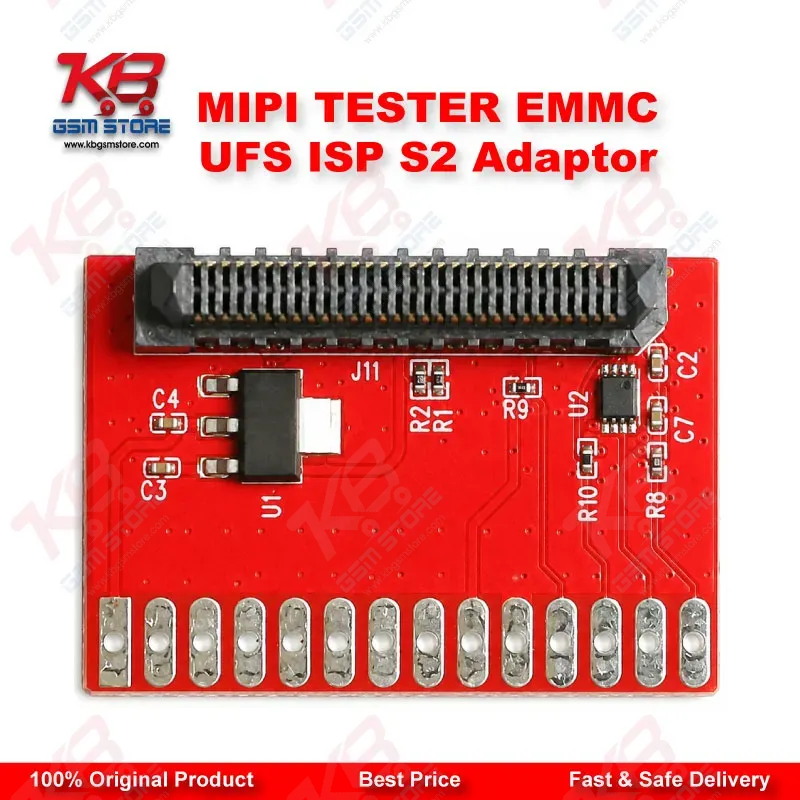

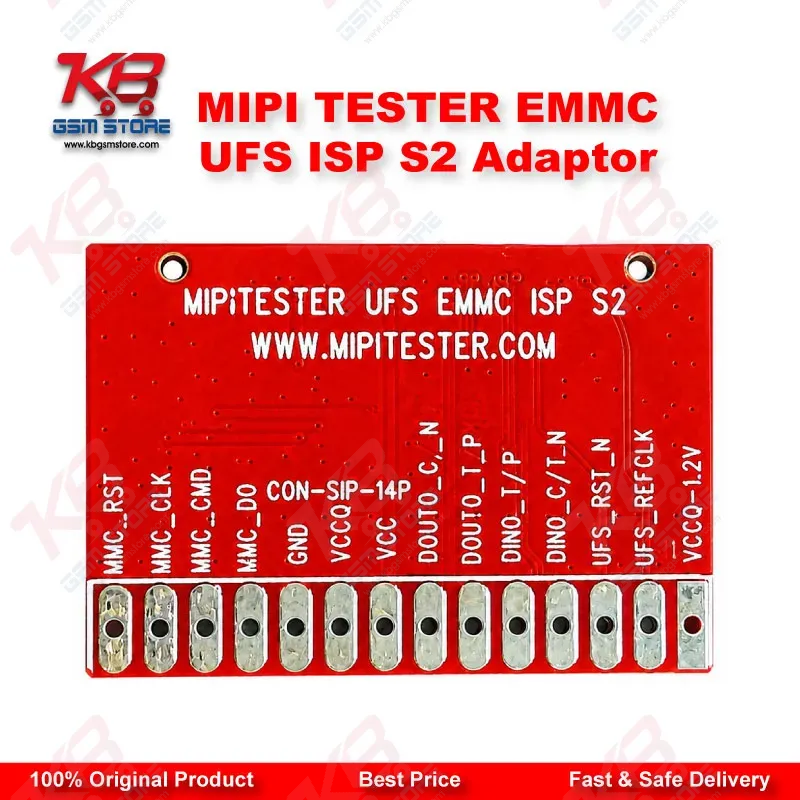

stuck on logo with no normal USB response. This is where ISP (In-System
Programming) work takes over from standard flashing, and the MiPi Tester
eMMC/UFS ISP S2 Adapter is the hardware link that makes it possible.
This adapter is built
to work with the MiPi Box, extending its capability to service any device that
exposes ISP pinouts on the PCB. Instead of relying on the phone's USB port or a
working bootloader, you connect directly to the memory chip's test points
through the UFS/eMMC interface. This approach is standard practice when a
device has hardware fault on its charging port, a burnt USB line, or firmware
so corrupted that the phone won't even power up for normal communication.
For technicians
handling Samsung repair work, the S2 adapter fits directly into your ISP
workflow. Samsung devices are some of the most common boards technicians bring
in for eMMC/UFS-level recovery — whether the issue is a boot loop after a bad
update, a security patch that bricked the storage partition, or a board that
needs raw data extraction before a component swap. The S2 adapter gives you the
physical connection point to run these operations through your MiPi Box without
needing to desolder the memory chip itself, which saves both time and risk on a
board that might already have other damage.
In a typical repair
scenario, the ISP route comes into play after you've ruled out simpler fixes.
If a device is hanging on logo and a normal flash attempt fails, or if a board
shows dead after flash symptoms with no UI response, ISP servicing through this
adapter lets you go straight to the storage chip. From there, depending on your
toolset and the box software, you can read out existing data, write a clean
firmware dump, or clear corrupted partitions that are blocking the boot process
— all without needing a working CPU-to-storage data path on the phone itself.
This adapter is a
single, focused accessory — it ships as one piece, intended to pair with your
existing MiPi Box setup rather than as a standalone kit. That makes it a
straightforward add-on for technicians who already run MiPi Box equipment and
need a dedicated ISP connection point for eMMC/UFS work, rather than a full
system purchase. It's a practical choice for repair shops that handle steady
Samsung traffic and want a dependable way to keep ISP recovery jobs moving
without sending boards out for chip-off service.
Because ISP
connections involve direct contact with sensitive test points, technicians
should always confirm pinout accuracy on the specific board before connecting,
and work on a clean, static-safe bench. Used correctly, the S2 adapter becomes
one of those small tools that quietly saves a board the rest of your toolkit
can't reach — turning what looks like a dead motherboard into a job you can
actually recover.
This product is sold
as an accessory only and is not covered under standard return or warranty
terms, so it's best suited for technicians who are already comfortable with
ISP-level repair procedures.
