MiPiTester eMMC/UFS ISP Adapter Kit for Gear 2 Plus – ISP Pinout Repair Tool

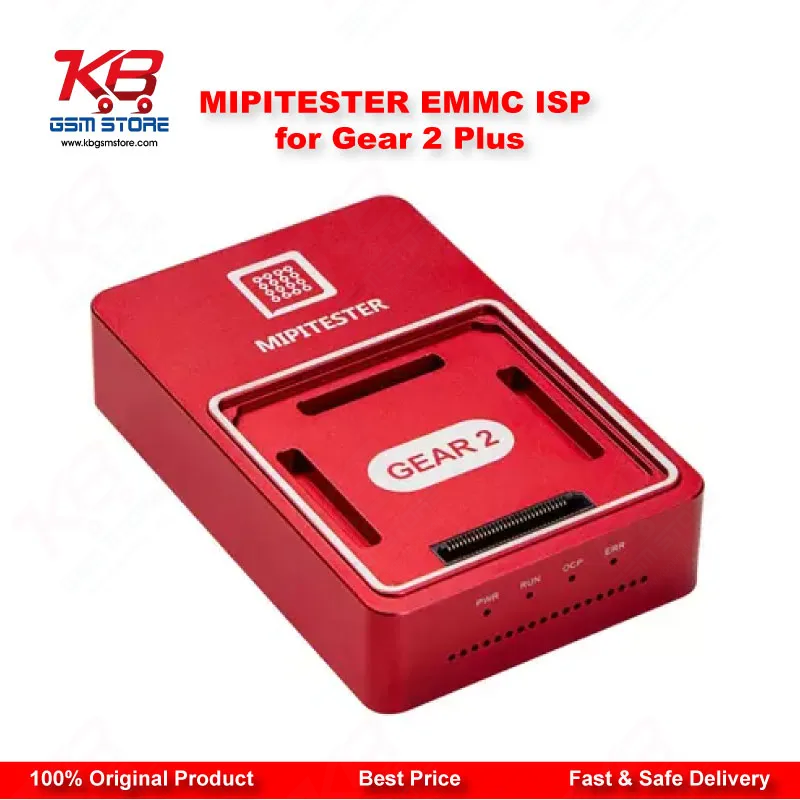

When a phone comes into your shop completely dead after a failed flash, or stuck on logo with no way to boot into EDL, pulling the eMMC or UFS chip is often the only option technicians know. The MiPiTester eMMC/UFS ISP Adapter changes that. It connects to your MiPi Tester Mini, Gear 2, or Gear 2 Plus box and gives you direct ISP access to the flash memory through the board's test points, so you read, write, and repair data without lifting the chip off the PCB.

This matters most on boards where chip-off carries real risk — multilayer PCBs, BGA pads that have already been reflowed once, or devices where customer data needs to stay intact. ISP access through this adapter keeps the chip in place while you pull a full dump, fix corrupted partitions, or clear an FRP lock that's blocking the device after a factory reset.

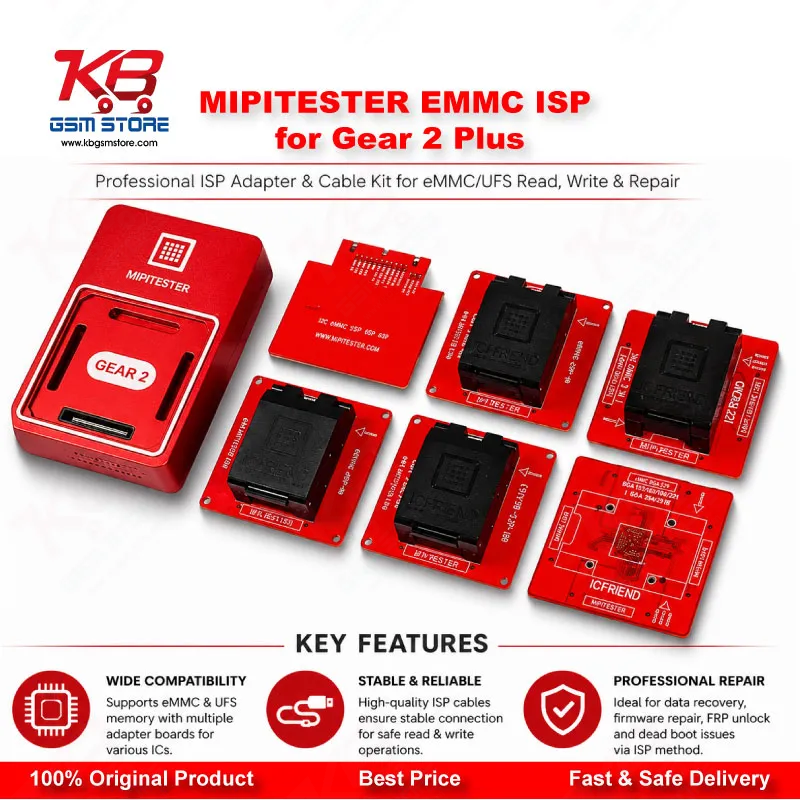

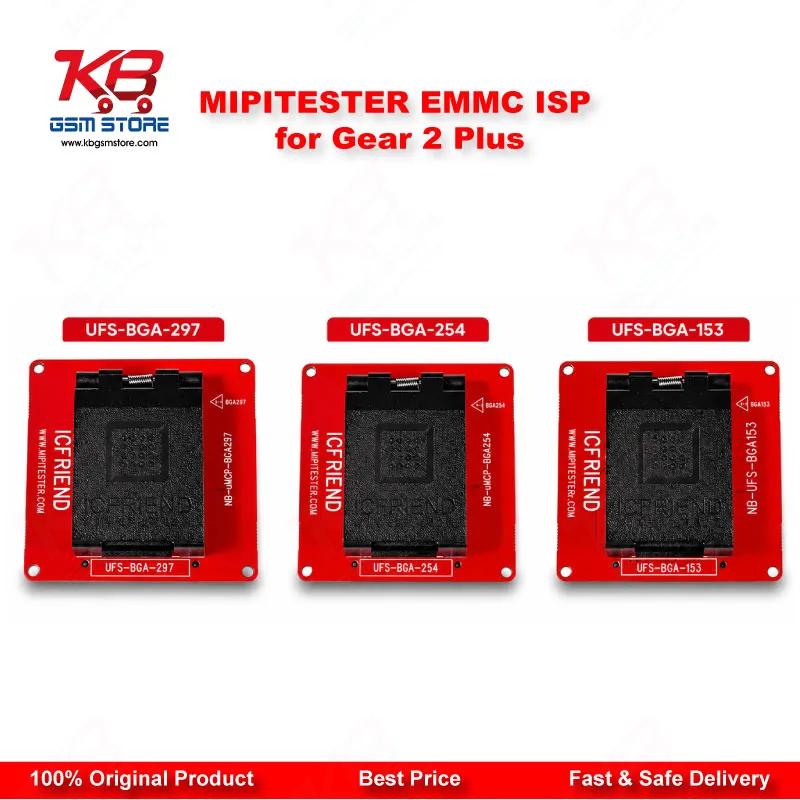

The adapter covers both eMMC and UFS chips, which is the combination most technicians run into across mid-range and flagship Android boards. The kit ships with two separate cables — one configured for eMMC ISP and one for UFS ISP — so you connect the correct interface for the chip you're working on instead of running one cable for everything and guessing at pin mapping.

Power handling is where most ISP failures happen on the bench, so get this part right before you start. MiPiTester recommends a regulated power supply rather than relying on USB power alone. Press and hold the power button on the adapter; if everything is wired correctly, current draw should sit around 100–200mA and the UFS chip powers up and goes online. If you're running through a USB supply and the device's battery management needs a CPU port to complete the power path, the UFS chip won't power up — this is the single most common reason technicians think the adapter is faulty when it's actually a wiring issue.

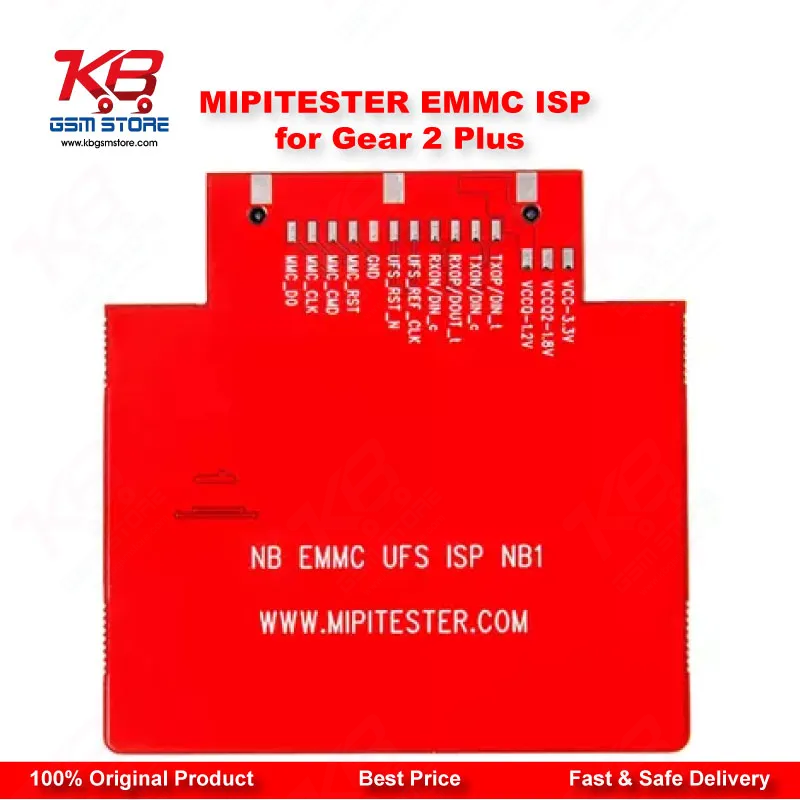

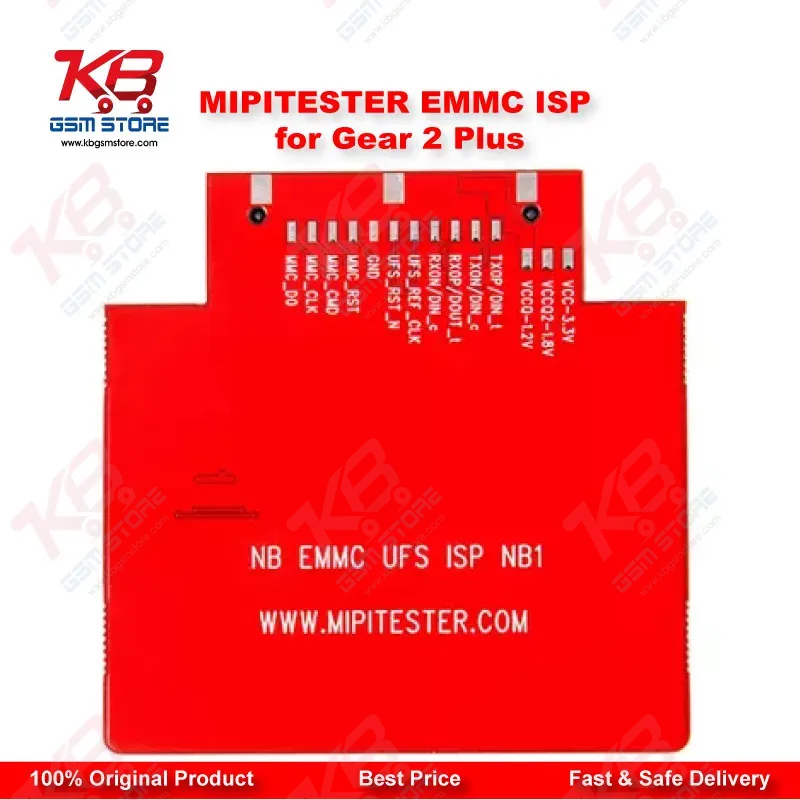

Voltage matters too, and it changes by UFS generation. UFS 2.0, 2.1, and 2.2 chips run on VCC 3.3V with VCCQ at 1.8V. UFS 3.0, 3.1, and 4.0 generations route TX, RX, CLK, RST, and GND through flywire connections instead, and at that point you can't rely on USB and power supply together — only host power supply works. Keep your GND, TX, and RX flywires under 15mm, with the GND junction sitting as close as possible to TX and RX so the lines stay equal length. Some CPUs also need an RST signal wired separately, so check the chipset's ISP pinout before you commit to a connection.

This adapter is built to work alongside the rest of an ISP-based repair workflow — pair it with a stable test box, a fine-tip soldering iron for flywire work, and a microscope if you're hand-soldering test points under 0.3mm pitch. Technicians running eMMC programmers or UFS adapters for chip-off work will find this a faster path for the cases that don't need chip removal at all.

Whether you're clearing FRP lock, fixing extcsd corruption, recovering a device stuck hang on logo, or pulling data before a board repair, this adapter gets you ISP-level access without the chip-off risk. For a shop running daily Android repairs, it cuts down the number of boards that need full desoldering just to get a read.
