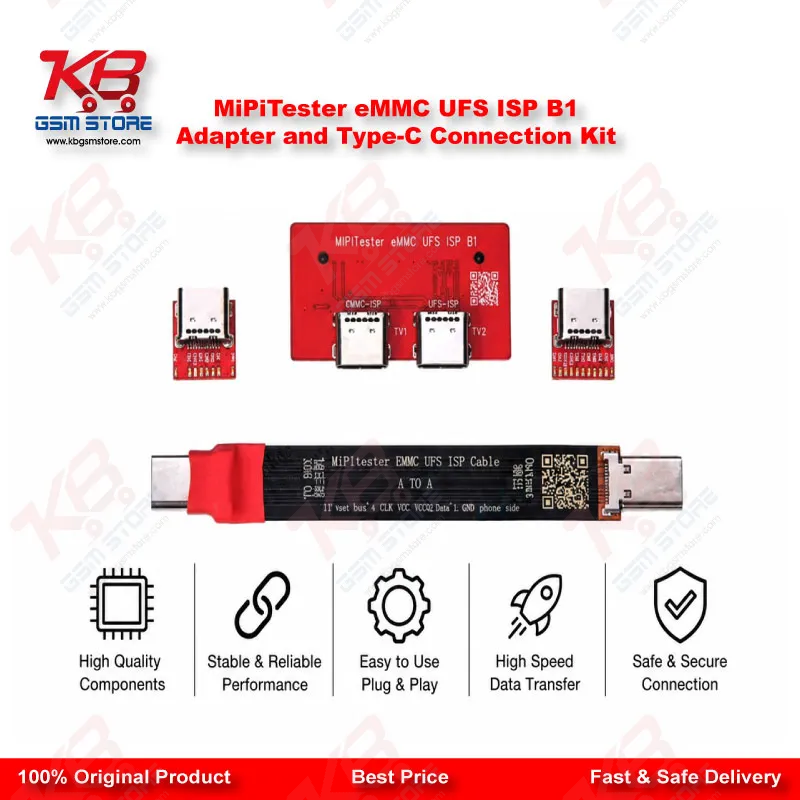

MiPiTester eMMC UFS ISP B1 Adapter and Type-C Connection Kit for MiPi Tester Box

When a phone comes in dead after flash, or a UFS chip won't boot no matter what software route you try, ISP access is often the only way in without pulling the chip. The MiPiTester eMMC UFS ISP B1 Adapter with Type-C Connection Kit exists for exactly that job. It connects your MiPi Tester Box directly to the eMMC or UFS test points on the board, giving you a stable in-system programming path for reading, writing, and repairing storage without desoldering.
Most technicians who work ISP daily know the frustration of unreliable wiring — a loose flywire connection ruins a read halfway through, or a power mismatch stops the chip from coming online at all. The B1 Adapter is built to cut that risk down. It works with a regulated power supply setup instead of relying purely on USB power, which matters more than it sounds. When you power the adapter and press and hold the on button, the current draws in the 100–200mA range, and that's your signal the UFS chip has powered up successfully. If you're running off USB power through a battery device manager, you need a proper CPU port connection — without it, the UFS power-up fails and the chip simply won't come online.
Voltage handling is built around the UFS generation you're working on. For UFS 2.0, 2.1, and 2.2 chips, the adapter runs VCC at 3.3V and VCCQ2 at 1.8V. For UFS 3.0, 3.1, and 4.0, the setup changes — TX, RX, CLK, RST, and GND all route through flywire connections instead of the seated interface, and the adapter switches to host power supply only, since USB and external power together aren't supported at that stage. This is where wiring discipline pays off: keep the GND, TX, and RX signal runs under 15mm, and keep the GND junction point as close to TX and RX as you can to maintain equal signal length. Some CPUs also need the RST line wired separately, so check the pinout for the board you're on before you commit to a connection.
The Type-C connection kit included with the adapter removes a lot of the setup friction that slows down repair shifts. Instead of juggling separate cables and connectors for every job, you get a plug-and-play path from the MiPi Tester Box straight to the ISP points on the board. That's a real difference on a busy bench where every extra minute of wiring is a minute not spent diagnosing the actual fault.
In terms of where this fits into your workflow, the B1 Adapter sits at the ISP stage of board-level repair — after you've ruled out simple software fixes and before you'd consider a full chip-off job. It's the tool you reach for on dead-after-flash boards, hang-on-logo cases that won't respond to normal flashing, FRP lock situations where the device won't boot into a state that allows a software bypass, and data recovery jobs where the client needs their files off a board that won't power on normally. Because it talks to the chip directly through ISP pinouts, you're not dependent on the phone's own CPU being functional enough to boot the OS — which is exactly the scenario where board-level access earns its keep.
For technicians running a mix of eMMC and UFS repair jobs, having a dedicated ISP adapter that handles both protocols on one kit cuts down the number of tools you need on the bench. You're not switching adapters between an eMMC job in the morning and a UFS job in the afternoon — the same B1 Adapter and Type-C kit cover both, provided you follow the correct voltage and wiring setup for the chip generation you're working with.
Reliability on the bench comes down to consistent connections and correct power sequencing, and this kit is built around both. If your shop handles dead boot, bootloader damage, FRP-locked units, or storage-level data recovery on a regular basis, this adapter earns a permanent spot in your ISP toolkit.
