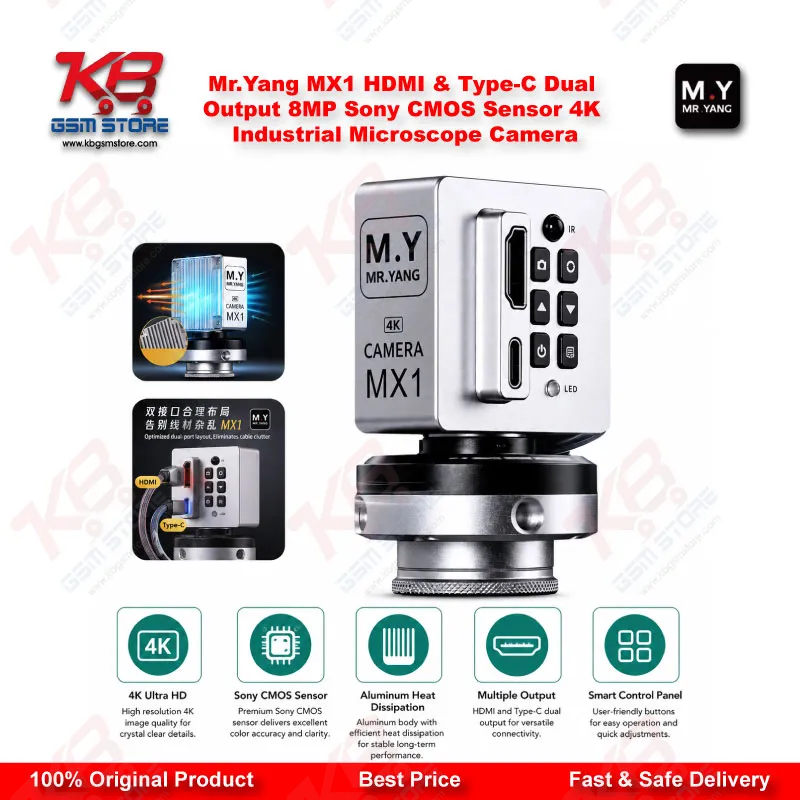

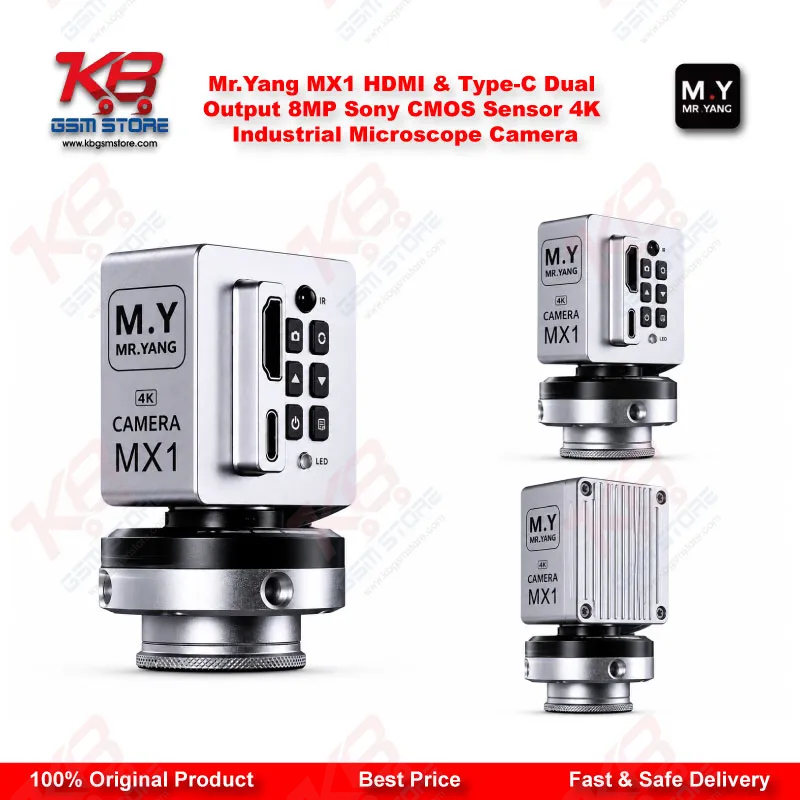

Working on dense mobile boards under a low-resolution eyepiece slows down every micro-soldering job, and the Mr.Yang MX1 solves that bottleneck by feeding a full 4K image straight to a monitor at your repair bench. Built around a Sony 1/1.8-inch 8MP CMOS sensor, the MX1 pushes Ultra HD video at 60fps, which matters more than most technicians expect when you are tracking a hot air nozzle or a tweezer tip moving across a board — a 30fps camera blurs and lags on fast motion, while the MX1 keeps CPU pads, RF shields, and 0201 passives sharp even while you work quickly. The camera outputs simultaneously through HDMI and Type-C, so you can connect it to a standard monitor for standalone viewing or route the feed into a capture setup without swapping cables between jobs. Repair benches get cluttered fast, and Mr.Yang addressed that directly with a side-mounted port layout that keeps HDMI and power cables tucked out of your working area instead of hanging off the back where they catch on your soldering iron or hot air gun. The body itself rotates between landscape and portrait orientation on demand, which is genuinely useful when you're inspecting a long connector row versus a square IC footprint — you get the right aspect ratio for the component in front of you without unscrewing the camera from the microscope stand. Prolonged 4K output generates real heat, and the MX1 handles this with a silver aluminum alloy chassis that acts as a passive heatsink, so the sensor stays stable through back-to-back BGA reballing sessions rather than throttling or dropping frames after twenty minutes. Control is handled through onboard physical buttons plus an IR remote, letting you freeze a frame, switch modes, or snap a reference photo of a burnt trace or lifted pad without touching the microscope itself — a small detail that prevents the slight vibration a manual button press can cause when you're mid-solder on a fine-pitch connector. The C-mount interface fits the stereo and trinocular microscopes already common on Pakistani repair benches, so shops running IC-level work — reballing PMICs, reworking charging ICs, re-soldering dead-after-flash boards, or chasing a hang-on-logo fault back to a specific component — get a direct upgrade path from a stock microscope eyepiece to a shared 4K screen the whole bench can view. That shared-screen setup also helps training environments and busy service centers where a senior technician needs to show a junior exactly where a jumper wire needs to land, or where a short is sitting on a board pulled in for a charging issue or network fault. Because the camera handles both diagnostics and fine soldering work through one lens, it fits naturally into ISP-level dead phone recovery, eMMC/UFS chip reballing, and general PCB cleaning and inspection workflows without needing a separate camera for each stage. The MX1 is not a bundled microscope — it is the camera module designed to sit on your existing stand — so confirm your microscope uses a standard C-mount or CS-mount adapter before ordering. For a repair shop running daily board-level work, moving from a fixed eyepiece to a 4K monitor feed reduces eye strain across long shifts and lets more than one technician look at the same fault at the same time, which speeds up diagnosis on tricky boards that would otherwise get passed around the bench one person at a time.
