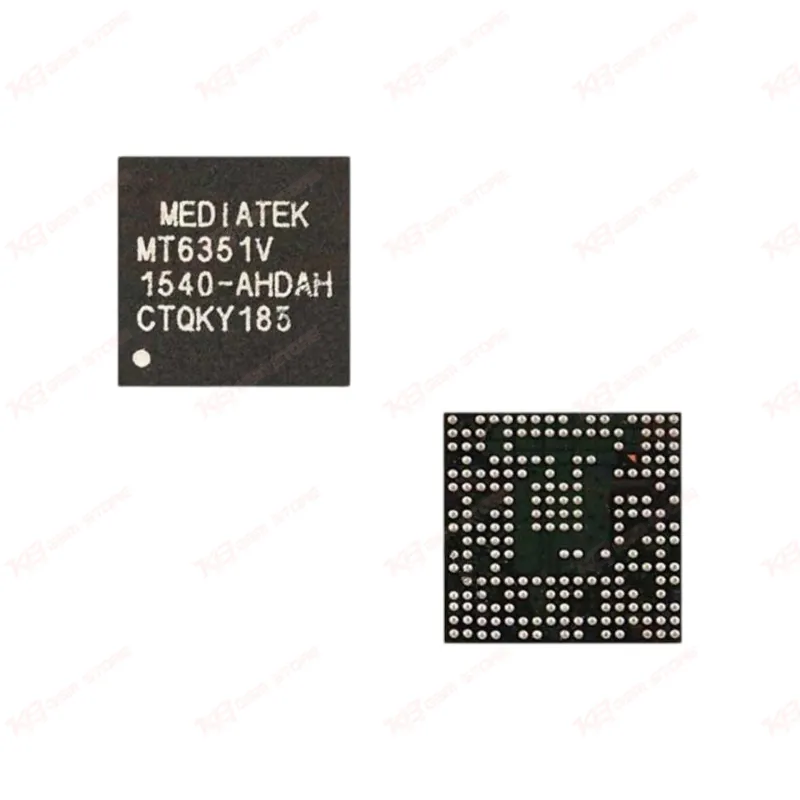

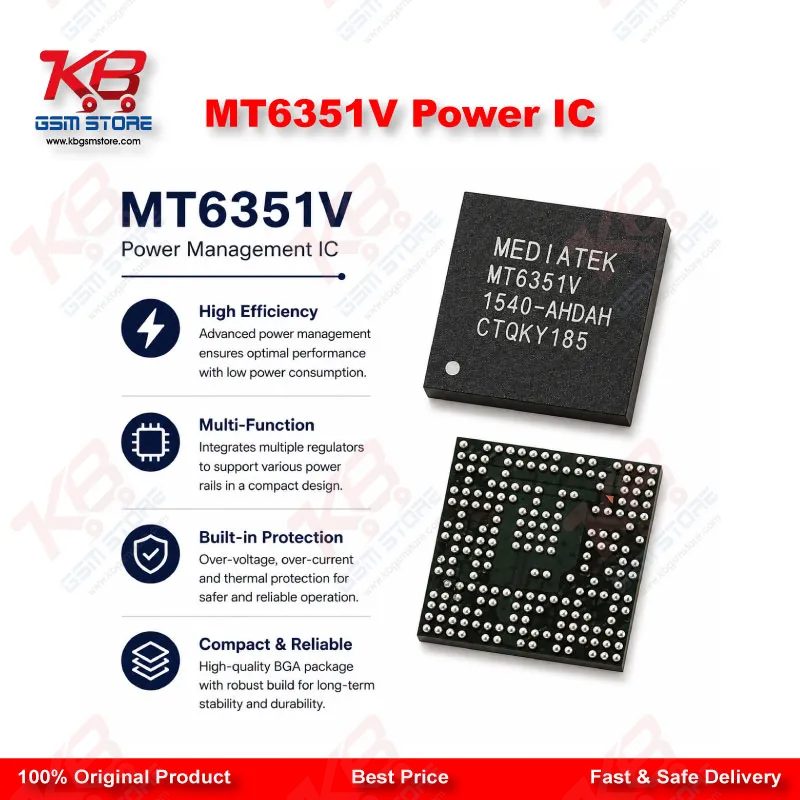

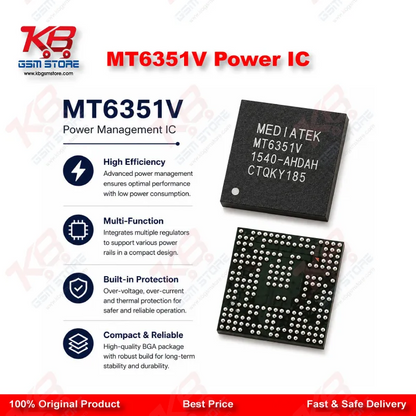

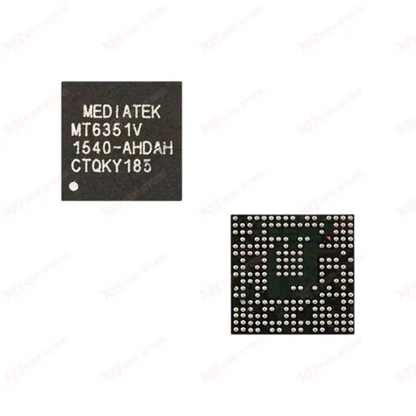

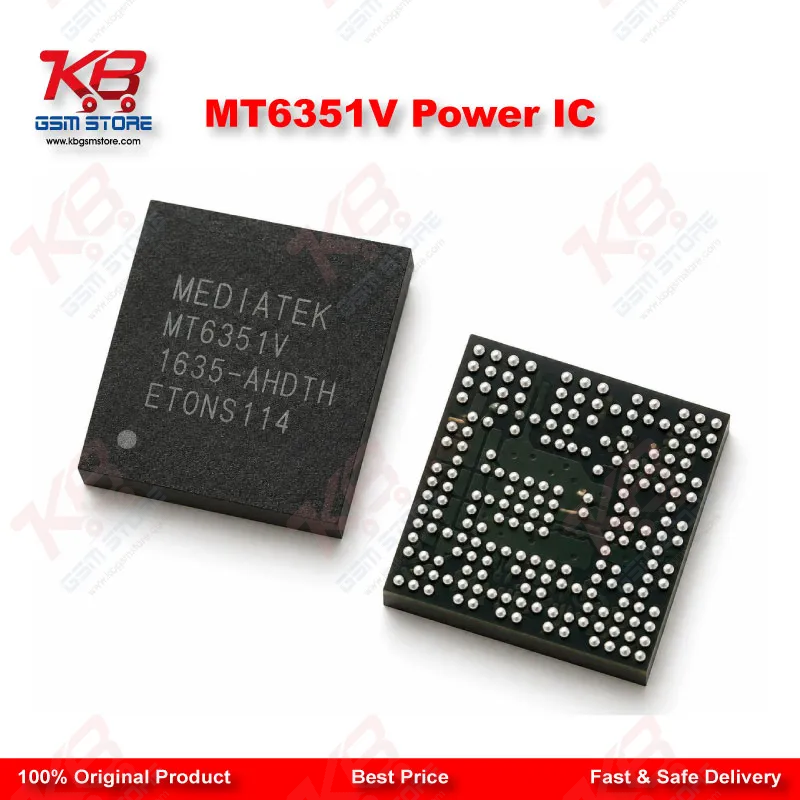

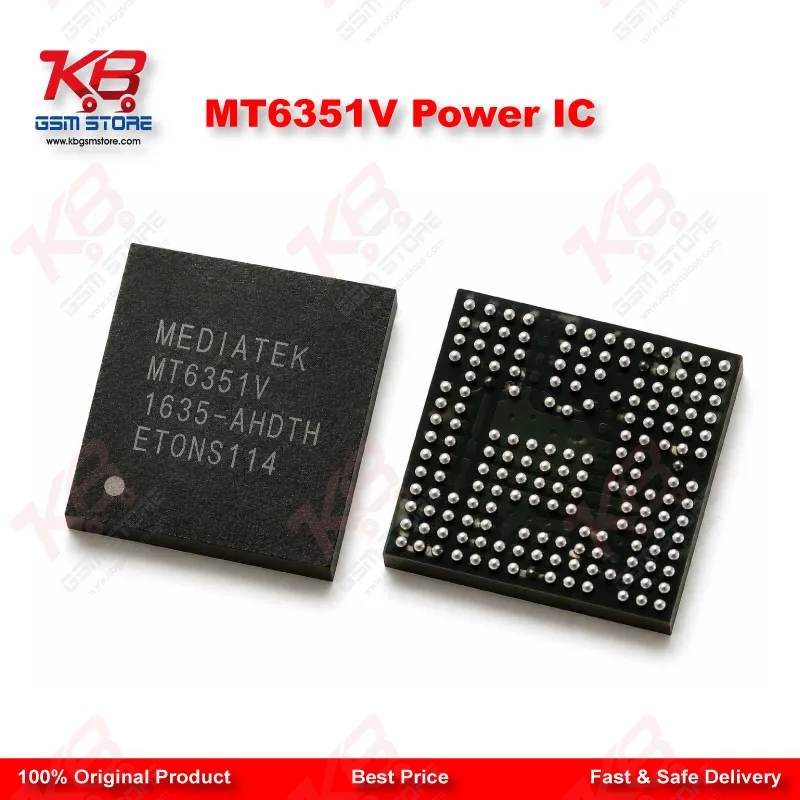

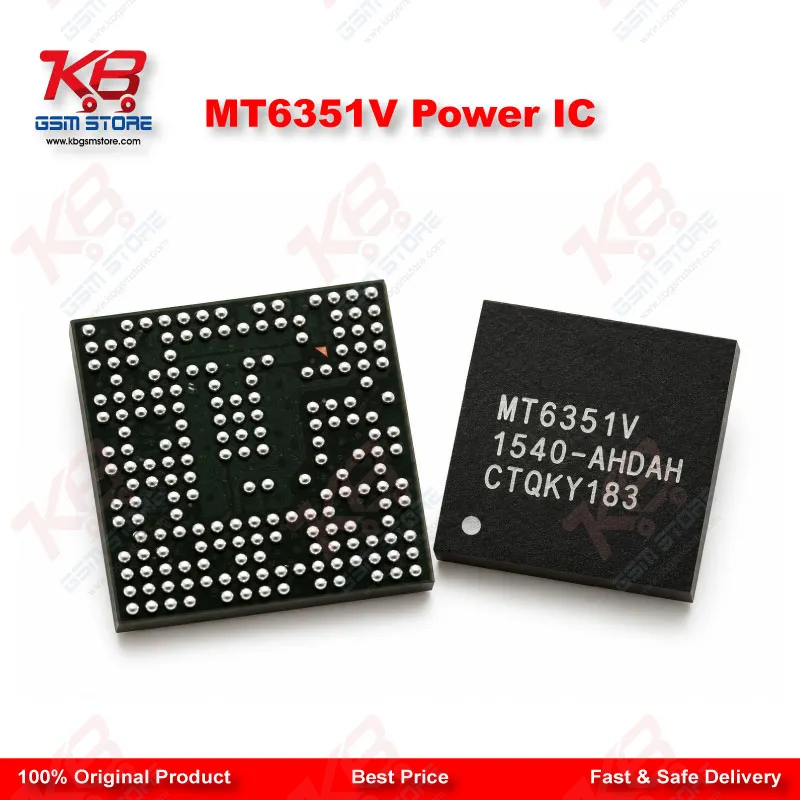

MT6351V Power IC

The MT6351V is a MediaTek power management IC you'll run into constantly once you start pulling boards from Meizu M3 Note, Meizu Pro 6, and Xiaomi Redmi Note 4X devices. This single VFBGA-199 chip carries the entire power distribution load for the board — buck converters that step voltage down for the CPU and memory, LDO regulators that keep smaller rails clean and stable, a built-in audio codec for speaker and earpiece output, and a battery fuel gauge that reports charge status back to the software. When one chip covers this much ground, a fault here rarely shows up as a single symptom. You'll see combinations instead: dead phone with zero response, charging issue where the battery percentage never climbs, hang on logo after the kernel loads but power sequencing fails, or complete audio loss with everything else working fine.Your diagnostic path on this chip should start before you ever touch a hot air station. Put the board on a bench power supply and watch the current draw. A short circuit on one of the rails this IC feeds usually pulls current high with no display response, and that points straight at the MT6351V or a component it's feeding. Check the board visually first — corrosion around the chip, signs of a previous repair, or heat damage from an earlier rework attempt all change your approach. If the board was in water, clean and dry it fully before you reflow anything, since trapped moisture under a VFBGA-199 package causes repeat failures even after a clean IC swap.Once you've ruled out a simple shorted component nearby and traced the fault back to the chip itself, you're looking at an IC change karna job. Reballing the MT6351V calls for a stencil matched to its VFBGA-199 ball pattern — don't eyeball this one, the pitch is tight enough that a mismatched stencil leaves you chasing bridge shorts after reflow. Preheat the board evenly before you lift the old chip, and keep your hot air temperature controlled rather than blasting it, since MediaTek PMICs in this package family are sensitive to thermal shock on removal. After placing the new chip, let the board cool naturally before you power it up — rushing this step is one of the more common reasons a fresh IC change doesn't fix the fault on the first try.Software marna alone won't resolve a genuine MT6351V hardware fault. If you've already reflashed the phone and the same power or charging issue persists, that's your signal to move to hardware diagnosis rather than repeating the flash. This chip's role sits early in the mobile repair workflow — before display work, before software work, because nothing downstream functions correctly if the power rails feeding it aren't stable.Stock a verified MT6351V from KBGSMSTORE when you're building out your bench inventory for Meizu and Xiaomi Redmi Note 4X generation repairs. Pair it with a matched reballing stencil and a temperature-controlled hot air station for a clean first-attempt swap, and keep a multimeter on hand to confirm rail behavior before and after the IC change.
