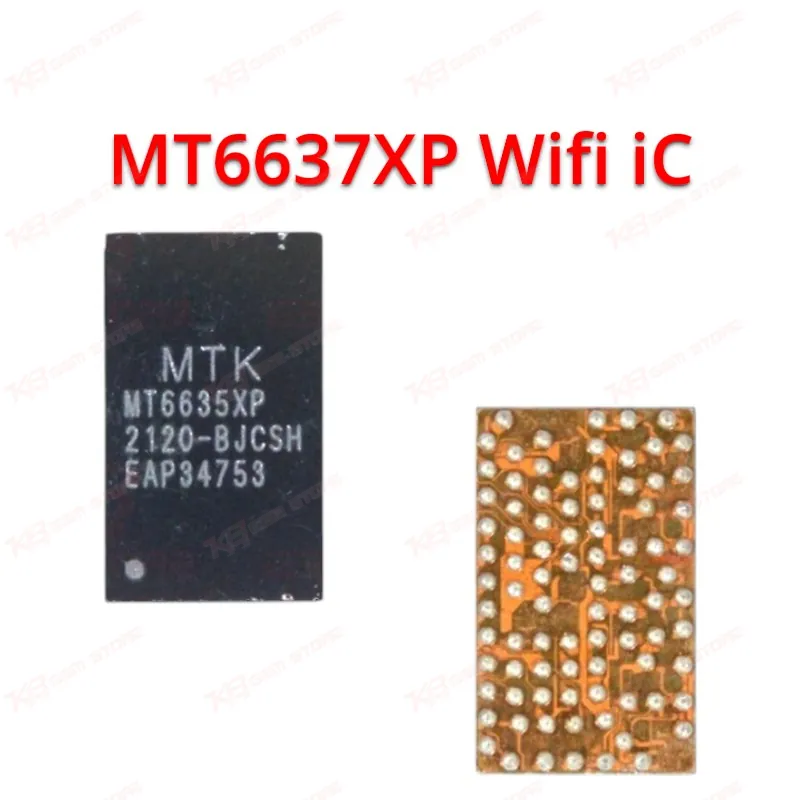

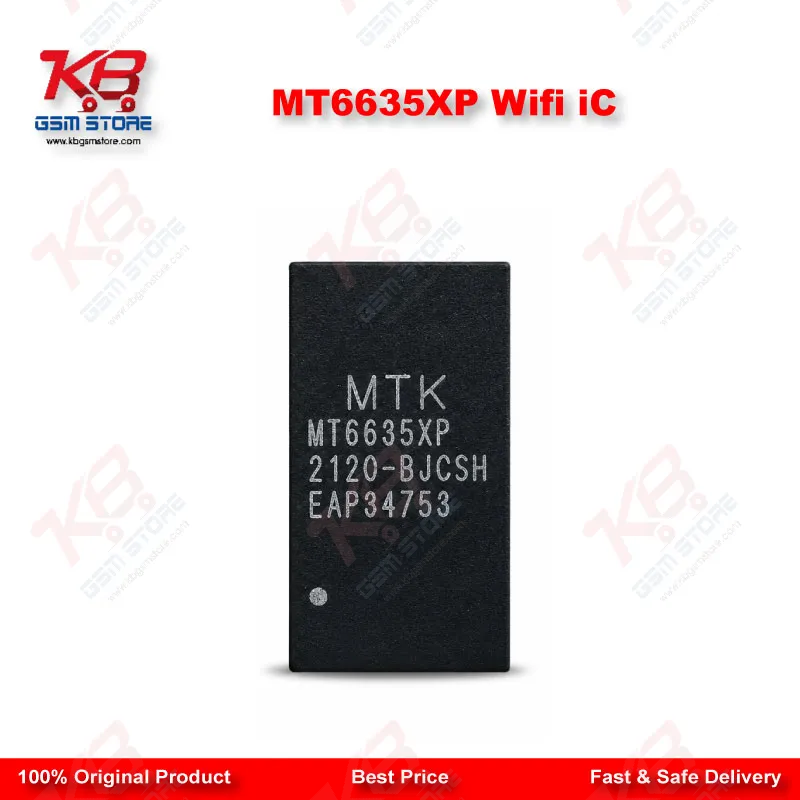

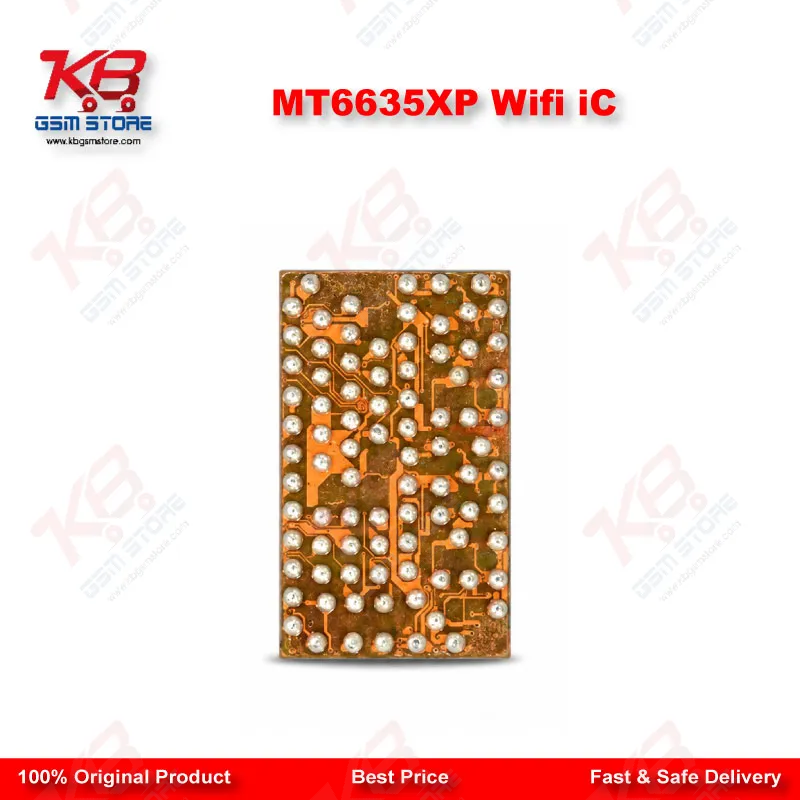

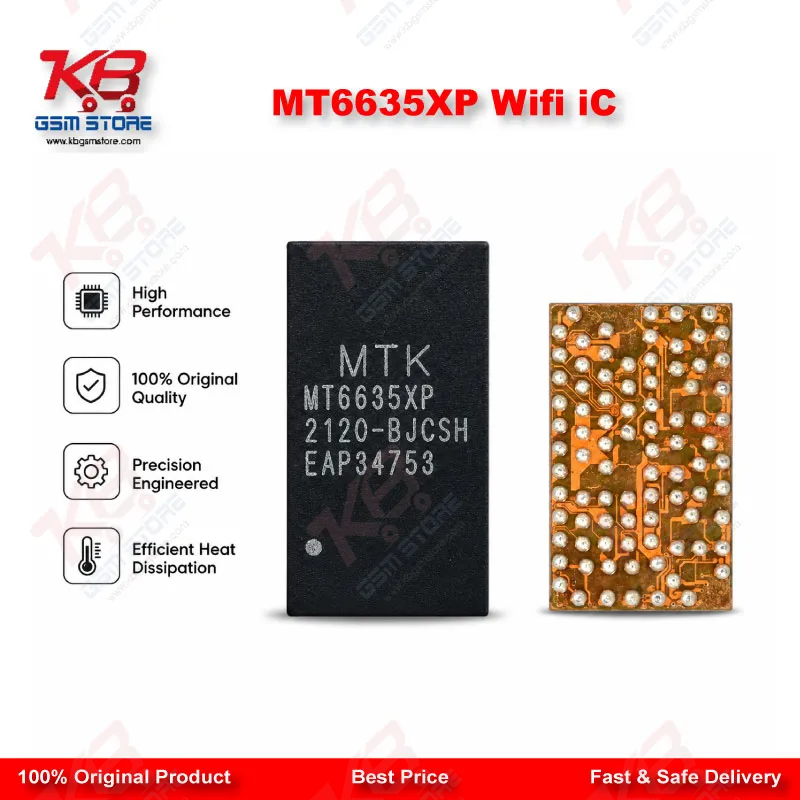

The MT6635XP sits on the motherboard as the dedicated wireless combo chip in phones running MediaTek's Dimensity 1200 platform. Instead of splitting WiFi, Bluetooth, and GPS across separate components, MediaTek packs all three radios into this one BGA package, keeping board space tight and connectivity centralized. This design choice is common across flagship and upper-midrange MediaTek boards from that generation, and it's exactly why one IC failure can wipe out three connectivity features at once on the repair bench. You'll usually meet this chip on boards where WiFi networks stop showing up, Bluetooth pairing fails outright, or GPS location refuses to lock even with a clear sky view. Since the MT6635XP handles all three functions, a single cracked ball or a moisture-damaged pad under this chip can knock out the whole wireless stack in one go — a pattern technicians recognize fast once they've reballed a few of these. Board-level connectivity faults trace back to a handful of causes: liquid damage that corrodes the BGA pads underneath the chip, physical shock from a drop that cracks a solder joint, or a firmware flash gone wrong that leaves the combo chip unresponsive to the baseband processor's commands. On your repair bench, the diagnostic path starts with isolating whether the fault is IC-level or software-level. If a factory firmware reflash doesn't bring WiFi or Bluetooth back, and continuity checks on the WiFi antenna connector and PCB traces come back clean, the MT6635XP itself becomes the prime suspect. Reballing this chip demands the same precision as any other BGA rework: hot air station set to the correct profile, flux applied evenly, and careful alignment before reflow since a shifted ball pattern will short adjacent pads and turn a WiFi fault into a dead board. Because this combo IC talks directly to the platform's baseband and RF front-end, a botched reball can also introduce new symptoms — intermittent WiFi drops or Bluetooth that connects but won't transfer data — so precision on the reflow step matters more here than on simpler power ICs. For technicians working boot loop issue or dead after flash cases where connectivity also failed, it's worth checking the MT6635XP early rather than last, since board-level WiFi and Bluetooth complaints often get misdiagnosed as software faults and sent through repeated flash cycles that don't fix anything. A quick continuity and voltage check around the chip before reaching for the flash box saves time on the repair bench. This IC fits into standard PCB repair workflow: diagnosis, IC removal with hot air, pad cleaning, new IC placement, reflow, and functional testing across WiFi, Bluetooth, and GPS individually to confirm the reball took. Stock this chip if your shop regularly handles Dimensity 1200-platform boards, since connectivity IC failures show up often enough in flagship MediaTek repair volume to justify keeping it on hand rather than sourcing on demand.
