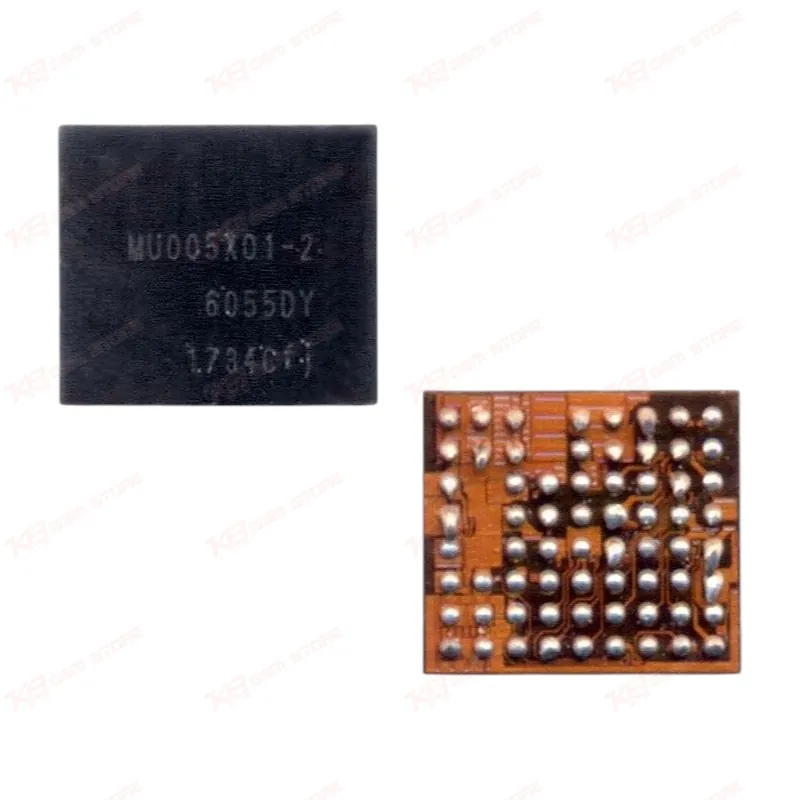

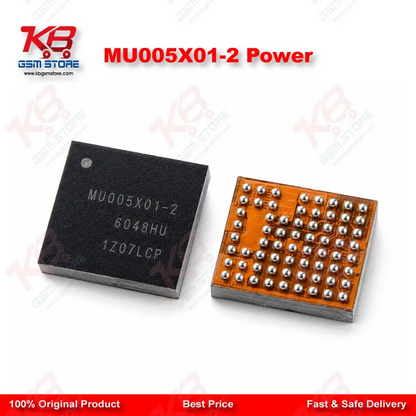

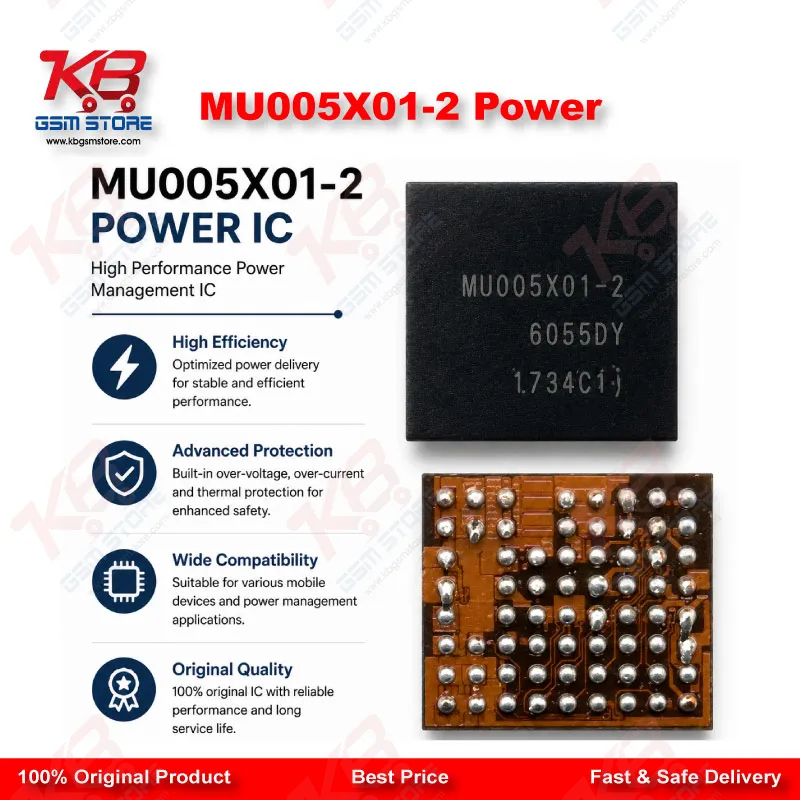

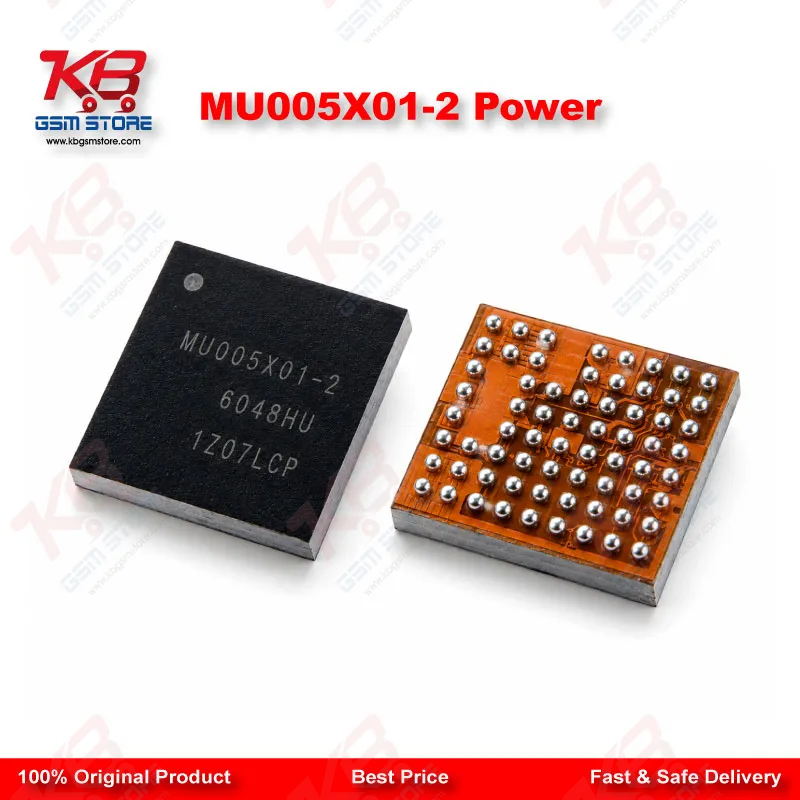

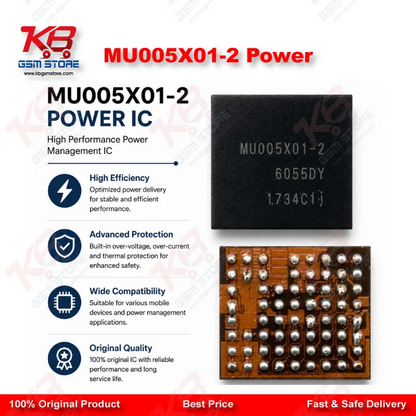

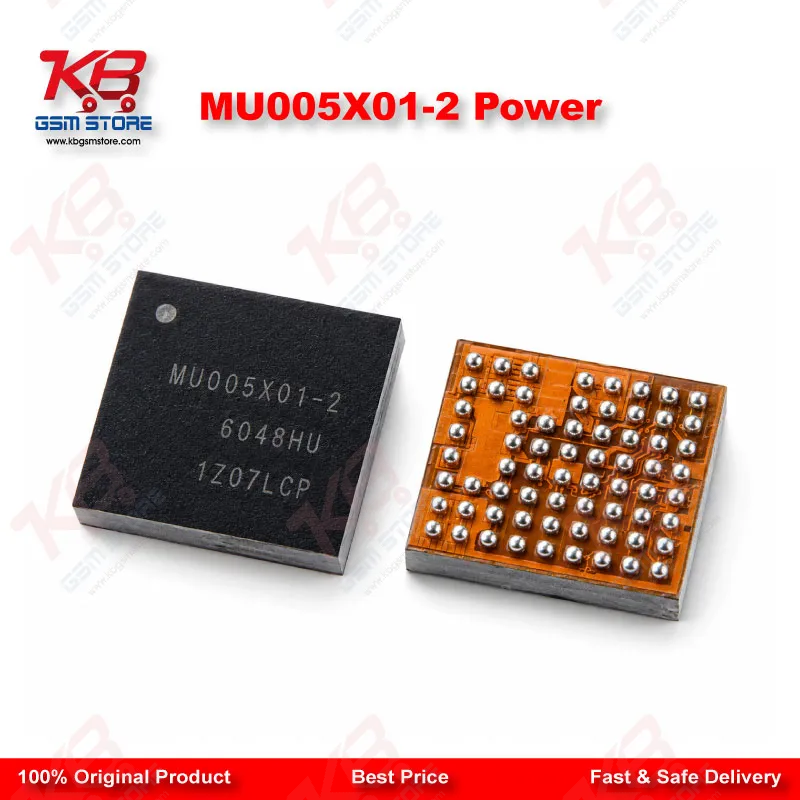

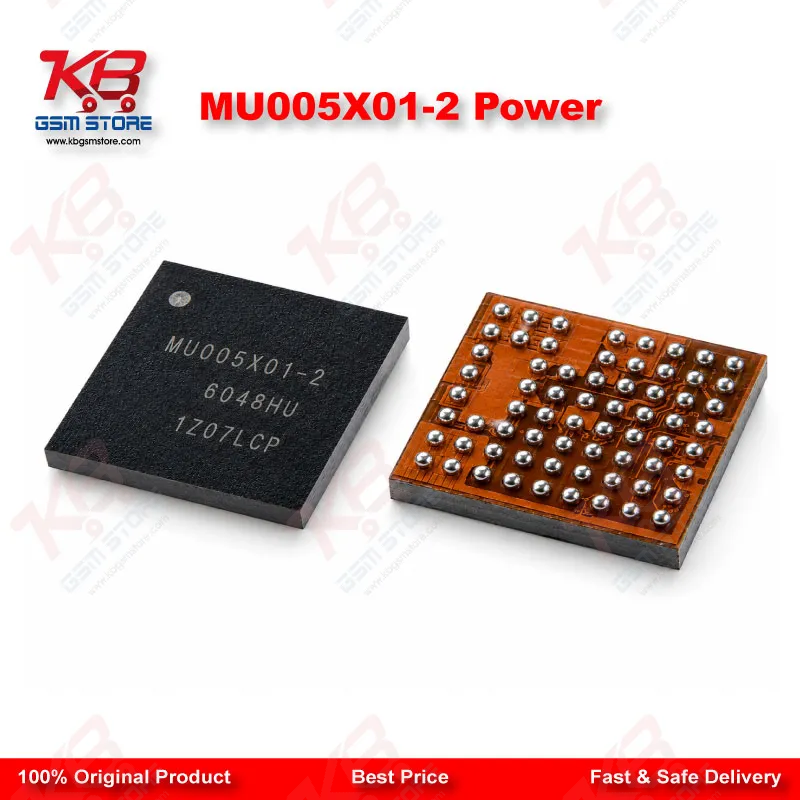

MU005X01-2 Power

When a Samsung J710F or J510F comes in dead after flash, most technicians don't jump straight to software. You check the power rail first, because on this board family, the MU005X01-2 sits right at the center of how power gets distributed from the battery to the CPU, memory, and charging circuit. If this IC degrades or shorts, the phone won't boot, won't charge properly, or hangs on logo no matter how many times you reflash the firmware.This part carries several part-number aliases in the field — MU005X02, S2MPU06, S2MU005X, S2MU04 — and you'll see all of them printed on donor boards or listed by parts suppliers. That's normal for Samsung's power IC lineup; the same silicon gets relabeled across production batches. Whether your board reads MU005X01-2 or one of its siblings, it's the same power management function, and cross-replacement between these codes is standard practice in Samsung motherboard repair.Where this IC actually gets used on your bench: after you've ruled out battery connector faults, dry joints, and obvious liquid damage, and the board still won't power on or draws abnormal current, the power IC becomes the next suspect. You'll pull it with hot air, clean the pads, reball if you're reusing the original, or drop in a fresh MU005X01-2 and reflow it back onto the board. Because it's a small BGA package, this is precision work — you need a stable preheater, the right nozzle size, and flux control so you don't lift neighboring pads on a densely populated board.Common failure signs that point here include: phone stuck at Samsung logo with no further boot progress, charging light not responding despite a good charger and cable, board pulling no current at all on a power supply test, or intermittent shutdown under load. None of these confirm a bad power IC by themselves — you still need to isolate the fault with a bench power supply and current draw pattern — but once you've narrowed it to the power rail, this chip is the fix.Sourcing matters here. Pulled ICs from working donor boards tend to be more reliable than unbranded aftermarket copies, since power management silicon is sensitive to counterfeit fabrication. If you're stocking this part for a repair shop, buying tested, verified-working units saves you the rework time of chasing a fault back to a bad replacement chip — a mistake that costs more bench time than the part itself.This IC fits into a standard workflow: diagnose with your test box or current-draw method, isolate to the power section, remove the suspect IC with hot air, clean and prep the pads, then reball or replace before reflow. It pairs naturally with your existing BGA rework station, hot air gun, and a decent microscope for pad inspection — tools you're already running for eMMC and CPU-level jobs on the same bench.For shops handling volume Samsung J-series repairs in Pakistan, keeping a few MU005X01-2 units in stock means you're not waiting on a supplier mid-job when a J5 or J7 (2016) comes in with a dead board. It's a low-cost part relative to the diagnostic time it saves once you know that's where the fault sits.
