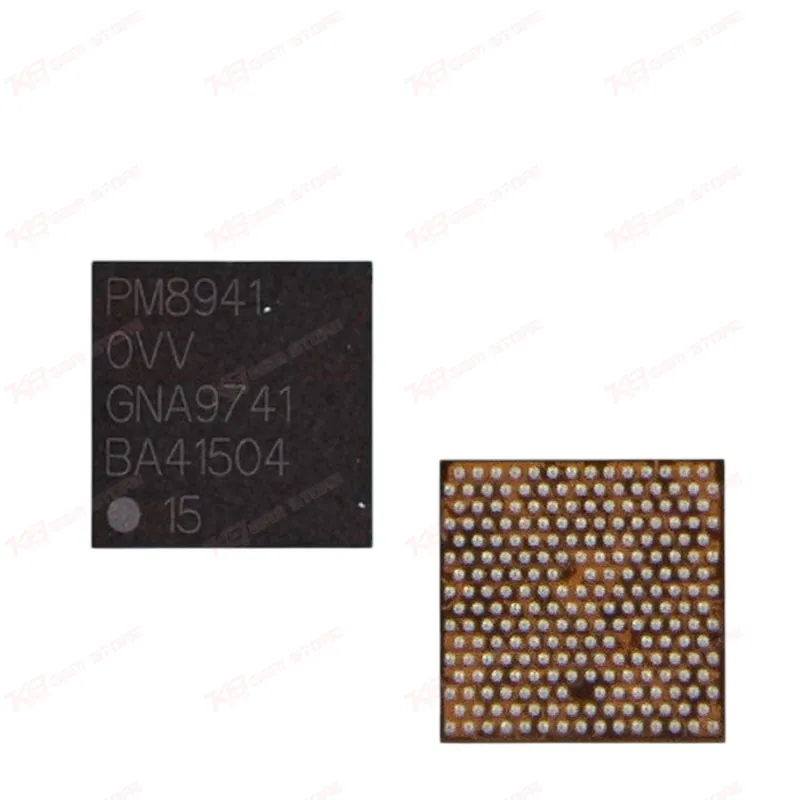

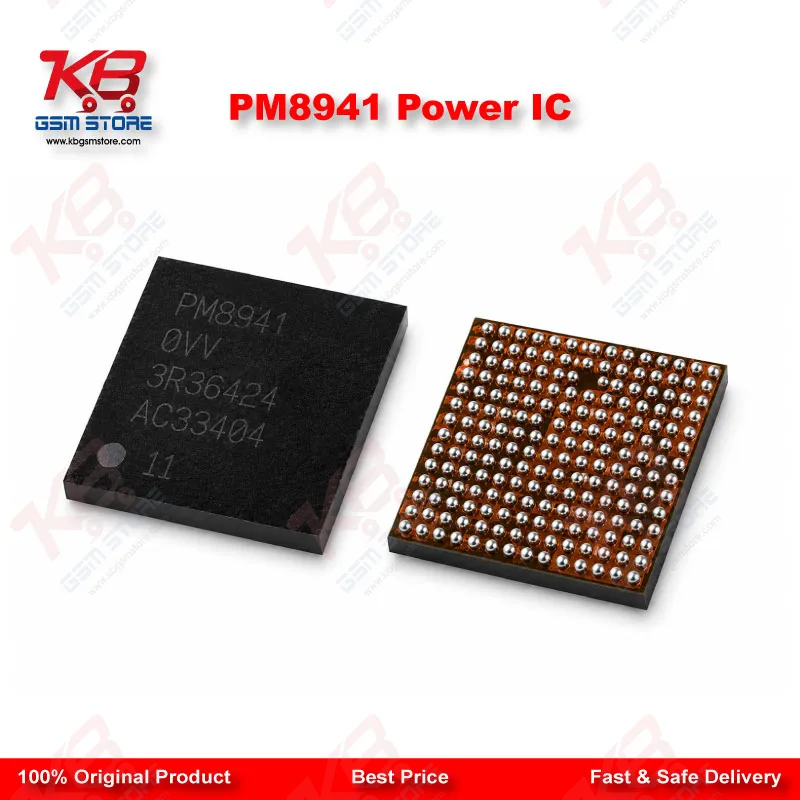

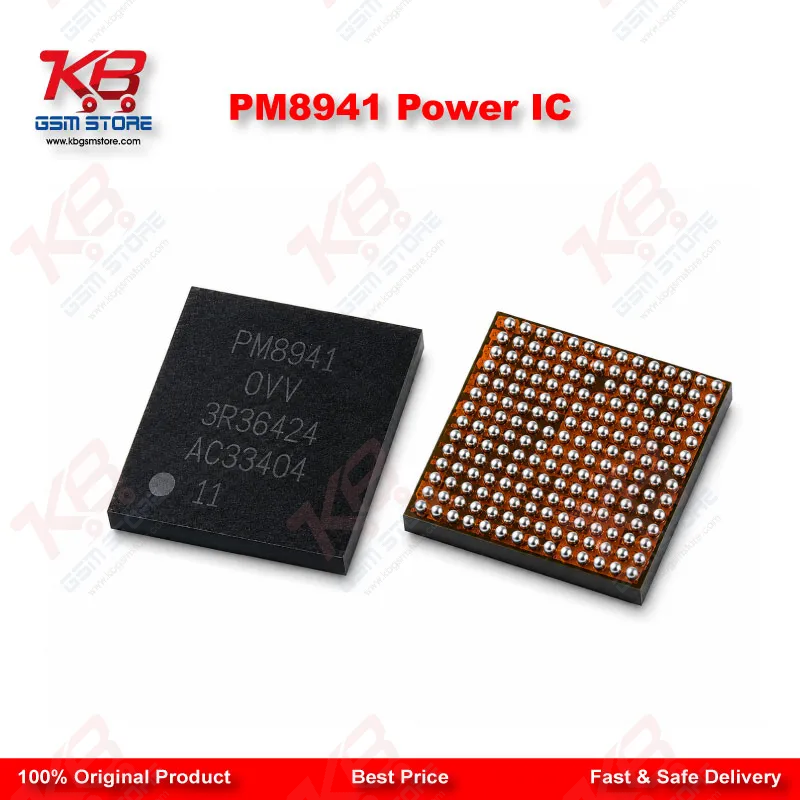

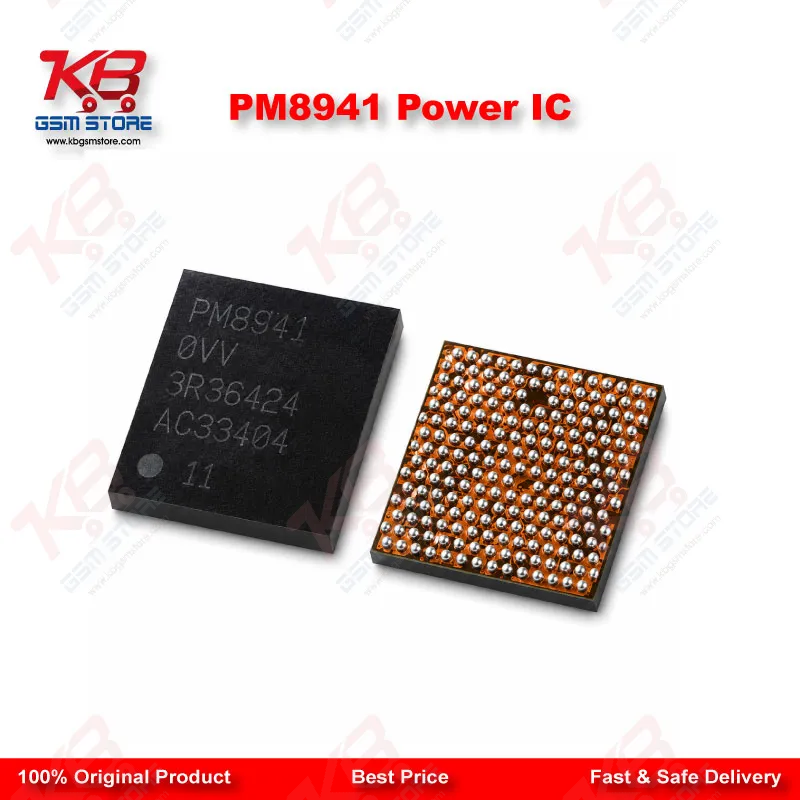

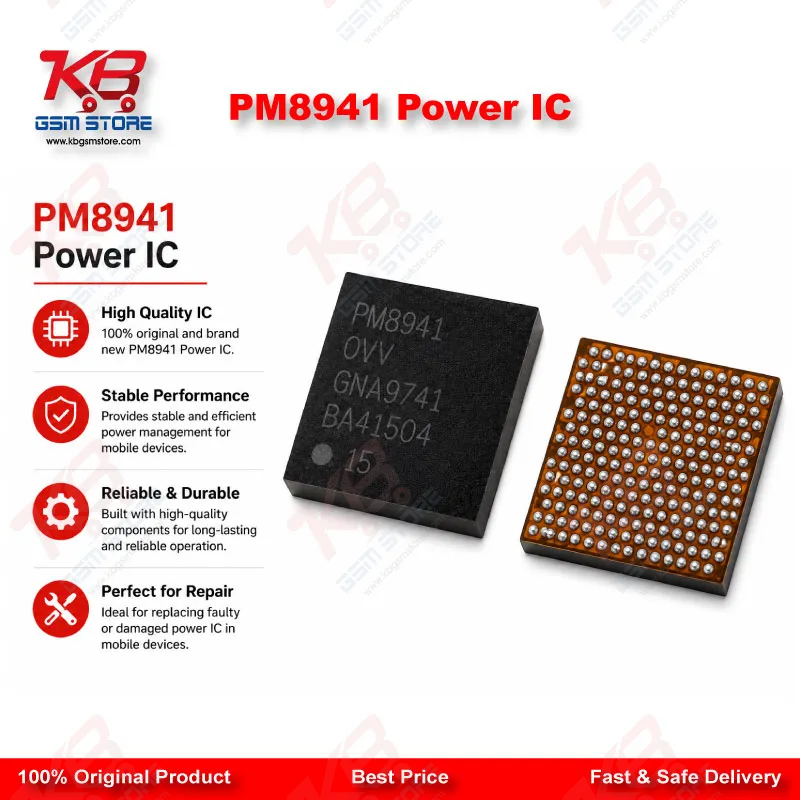

Every Snapdragon-powered phone needs one chip working quietly in the background before any other component turns on — the PM8941. This mixed-signal HV-CMOS PMIC sits at the center of the power tree, handling voltage regulation, battery charging and discharging, and the exact sequencing that tells the CPU, display, and RF sections when to wake up. When this chip develops a fault, you don't just get a charging issue — you get a dead phone that won't boot, a device stuck at hang on logo, or a board that draws current but never powers the display.Built on a 176-pad nanoscale package (NSP), the PM8941 packs general housekeeping and user interface support functions alongside its core power management circuits into a single component. That density is exactly why it fails the way it does: liquid damage, a short elsewhere on the board, or a bad charging cable can push voltage spikes straight into this IC, and the phone goes dead after flash or refuses to leave boot loop no matter how many times you reflash the firmware.On your bench, this is the chip you check once you've ruled out the battery connector, charging port, and obvious hardware fault on the board. If a Galaxy Note 3 or Galaxy S4 comes in dead with no charging current showing on your power supply, or a Sony Xperia Z2, Z3 Compact, or Z Ultra sits at a black screen after a failed update, PM8941 failure is a realistic suspect. Reflow first if you suspect a cold joint. If the symptom persists after reflow, IC change karna is the next step — desolder the faulty chip, clean the pads, and reball this replacement using a stencil matched to the 176-pad count.This PM8941 fits directly into the workflow you already run for PMIC-level board repair. Pair it with a hot air station rated for fine-pitch BGA work, a microscope for pad inspection, and a reballing kit sized for nanoscale packages. Once the new IC is seated and reflowed, check voltage output on the test points before reassembling the board — that single check saves you a second teardown if the joint didn't seat properly the first time.Compatibility runs across a specific set of Qualcomm Snapdragon devices: Samsung Galaxy Note 3 (N9000/N9005), Samsung Galaxy S4 (I9500), Sony Xperia Z Ultra (C6802/XL39h), Sony Xperia Z2 (D6502/D6503), and Sony Xperia Z3 Compact (D5803/D5833). Confirm your board's exact model code before ordering, since different revisions of the same phone series sometimes carry different PMIC part numbers.Each unit KB GSM Store ships is tested before it leaves the warehouse, so you're not gambling a repair job on an unverified chip. For a repair shop running through multiple dead-board jobs a week, keeping a few of these in stock means you're not waiting on a supplier when a PMIC failure walks through the door. Combine this IC with your existing ISP pinout tools and eMMC programmers for boards that need both power-stage repair and data recovery, since a dead PMIC often accompanies file system corruption when the board lost power mid-write.Order the PM8941 for your next power IC replacement and keep your bench workflow moving without a parts delay.
