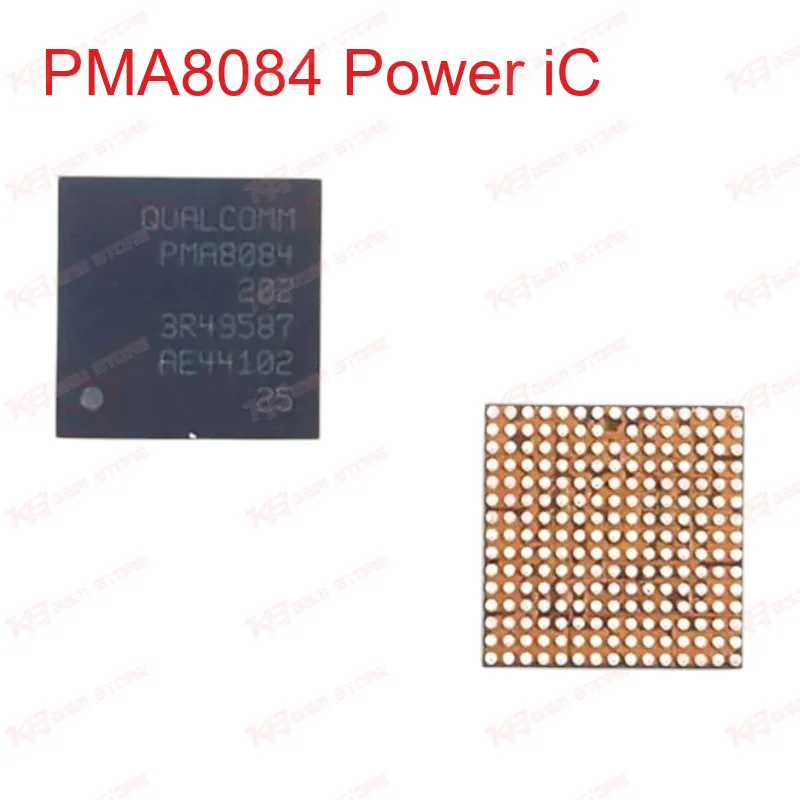

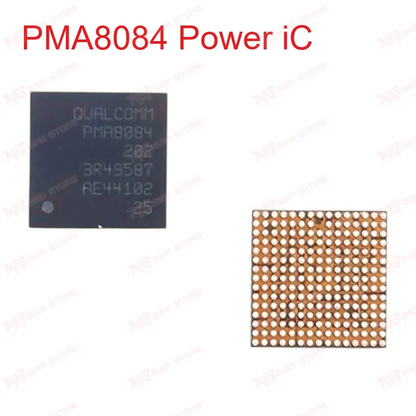

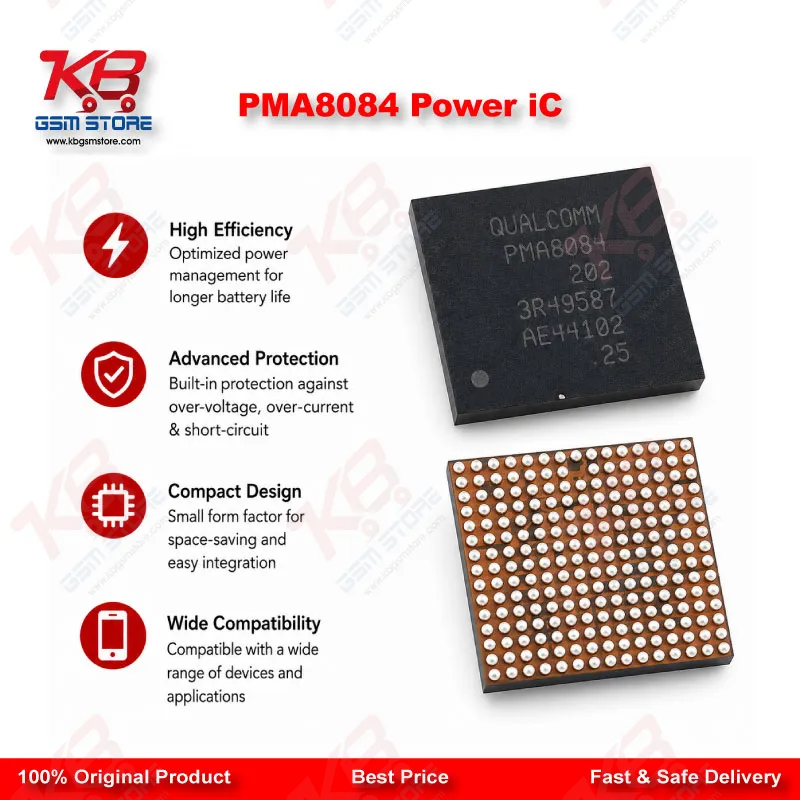

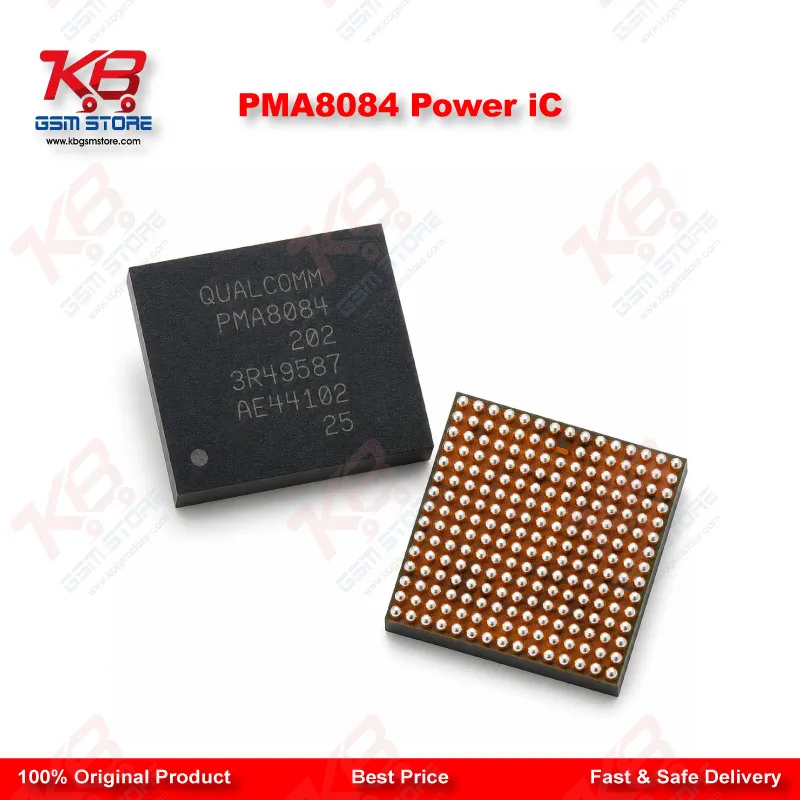

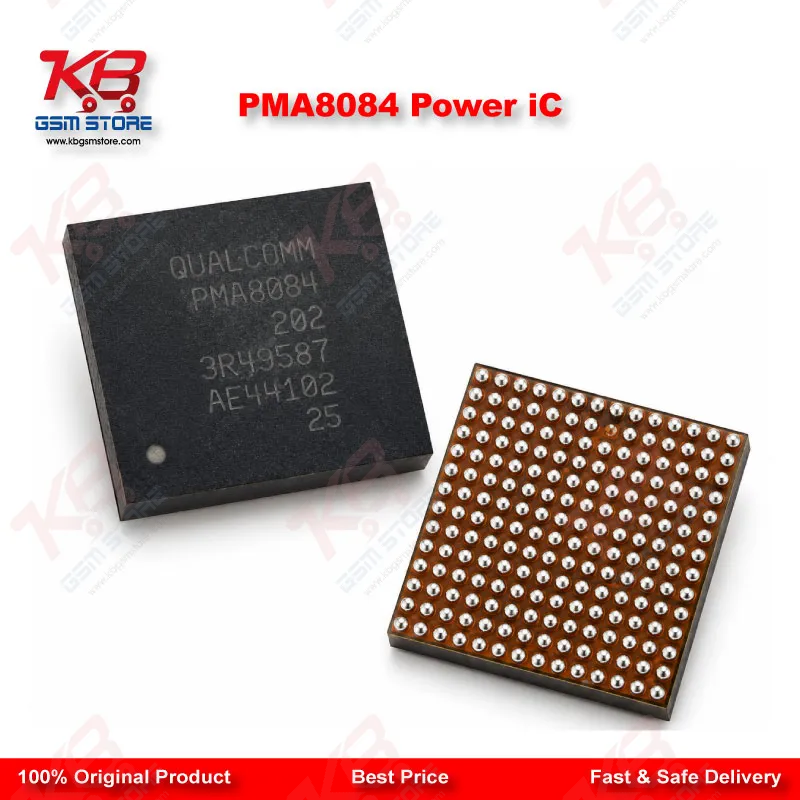

PMA8084 Power iC

PMA8084 Power iC

Rs.300.00 PKR
Rs.300.00 PKR
Sale Sold out
Shipping calculated at checkout.

The PMA8084 is a Qualcomm power management IC (PMIC) used as the main power supply chip on Samsung Galaxy Note 4 and Galaxy S5 series boards. Technicians use this IC to resolve dead phone, no charging, and no power-on faults where the board fails to boot after a short or ESD damage. Supplied as a genuine BGA chip ready for reballing and direct board-level replacement, it restores stable power distribution across the PCB. A reliable pick for GSM software and hardware technicians running daily board repair work on Samsung power circuits.

⚖️ Weight: 0.01 kg

MST-IC-361

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Har GSM technician ki bench par ek problem baar baar aati hai — phone dead hai, charging show nahi ho rahi, aur board par short bhi nahi mil raha. Yeh exactly wahi scenario hai jahan PMA8084 power IC kaam aati hai. Yeh Qualcomm ka manufactured power management IC hai jo Samsung Galaxy Note 4 (N910F, N910C, N910P) aur Galaxy S5 series ke boards par main power supply chip ke tor par install hoti hai.Board-level repair mein power IC ka role central hota hai. Yeh chip phone ke different components ko regulated voltage supply karti hai — processor, memory, aur charging circuit sab is IC ke through power lete hain. Jab yeh IC fail ho jati hai — chahe moisture ki wajah se, short circuit ki wajah se, ya normal wear se — phone dead ho jata hai ya phir charging issue show karta hai jahan battery percentage move nahi karta.Is IC ki replacement wahan zaroori hoti hai jab diagnostic testing (jumper method ya current draw check) confirm kare ke fault power rail par hai, na ke CPU ya other IC par. Reballing station aur hot air station ke through is chip ko remove aur reinstall kiya jata hai. Professional technicians ke liye yeh part unavoidable hai kyunke Samsung ke in specific models mein power fault ka ek bara percentage isi IC se related hota hai.Yeh product genuine Qualcomm chip hai, board se harvested ya factory-tested source se liya gaya, aur installation se pehle test kiya jata hai. Har unit ko visually inspect kiya jata hai taake balls intact hon aur chip physically damaged na ho — kyunke BGA chip mein ek bhi bent ball reballing process ko fail kar sakta hai.Workshop environment mein is IC ka use tab hota hai jab customer complain kare "phone charge nahi ho raha" ya "phone on hi nahi ho raha, koi light nahi aa rahi." Aise cases mein pehle board ko clean kiya jata hai, phir current draw measure hota hai power rail par. Agar short milta hai ya rail dead hai IC ki taraf se, to yeh confirm karta hai ke PMA8084 replace honi chahiye.Installation ke liye precision reballing kit, proper stencil, aur controlled hot air temperature zaroori hai — kyunke BGA package moisture-sensitive hoti hai. Baking process (chip ko controlled temperature par dry karna) reballing se pehle recommended hai taake chip ke andar trapped moisture reflow ke waqt damage na kare.Yeh IC un technicians ke liye especially useful hai jo Samsung service center ya independent repair shop chalate hain aur roz Note 4 / S5 series ke power-related cases handle karte hain. Ek verified, tested PMA8084 stock mein rakhna turnaround time kam karta hai aur customer ko same-day repair dene mein madad karta hai.Overall, PMA8084 power management IC ek core replacement part hai jo Samsung ke in devices ke power delivery system ko restore karta hai, aur professional board repair workflow ka zaroori hissa hai.

Key Features

  • Genuine Qualcomm-manufactured power management IC
  • Designed for Samsung Galaxy Note 4 and S5 series board repair
  • Tested unit before shipping for reliability
  • BGA package compatible with standard reballing kits
  • Restores power rail function after board-level failure
  • Suitable for dead phone and no-charging fault diagnosis
  • Compact chip footprint for precise hot air rework
  • Sourced for direct board-level replacement use

Specifications

Brand Entity Qualcomm
Product Entity PMA8084 Power Management IC
Technology Entity BGA Power Management IC (PMIC)
Compatible Device Entities Samsung Galaxy Note 4, Samsung Galaxy S5
Repair Process Entity Board-Level Repair, BGA Reballing, Power Rail Diagnostics
Industry Entity Mobile Repair Industry, GSM Hardware Repair

Compatible Devices

Samsung Galaxy Note 4 (N910F, N910C, N910P, N915F, N915G), Samsung Galaxy S5 series

Common Repair Uses

Dead phone repair, no power-on fault, no charging / charging not detected issue, board-level power rail restoration, reballing and BGA chip replacement on Samsung Note 4 / S5 boards

FAQ

What is the product name?
The product name is PMA8084 Power Management IC.
What is the brand of this product?
The brand of this product is Qualcomm.
What is the model of this product?
The model of this product is PMA8084.
What is this product used for?
This product is used to replace a faulty power management IC on Samsung Galaxy Note 4 and Galaxy S5 series boards to fix dead phone and no-charging faults.
Which devices are compatible with this product?
This product is compatible with Samsung Galaxy Note 4 (N910F, N910C, N910P, N915F, N915G) and Galaxy S5 series.
Who should use this product?
This product is suitable for mobile repair technicians, repair shops, service centers, and professional GSM hardware technicians.
Does this IC fix dead phone issues on Note 4?
Yes, PMA8084 is commonly replaced on Note 4 boards when the phone is dead due to power rail failure confirmed through current draw testing.
Is reballing required to install this IC?
Yes, PMA8084 is a BGA chip and requires reballing with a stencil and hot air station for proper board-level installation.
