Every mobile repair workshop reaches a
point where a regular soldering iron isn't enough — reballing a PMIC, reflowing
a charging IC, or fixing a hang-on-logo board caused by a cracked solder joint

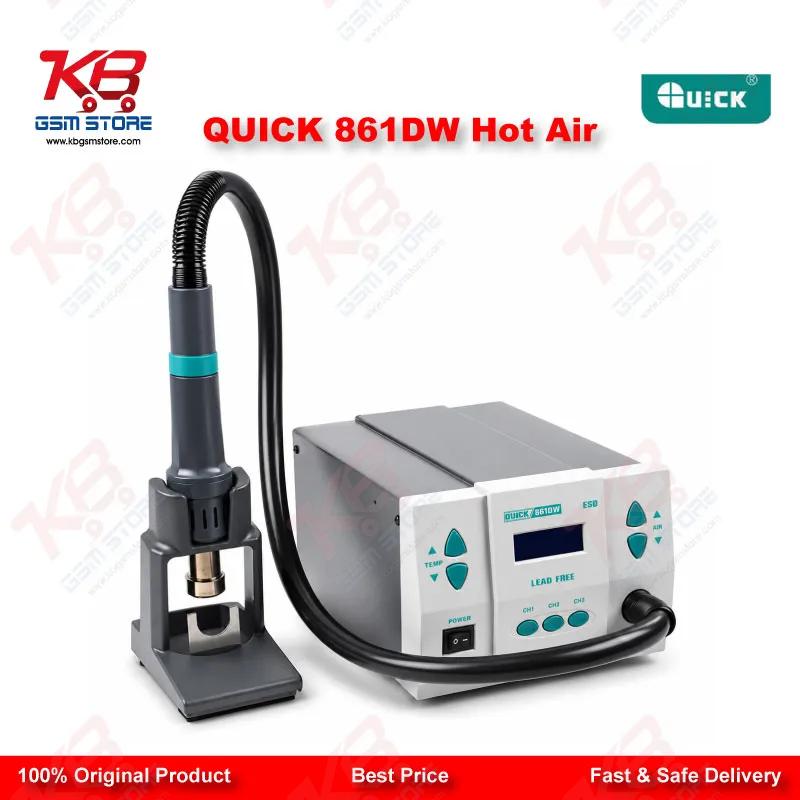

all need controlled, even heat across the component. The QUICK 861DW handles
that job. It's a microprocessor-controlled hot air rework station designed
specifically for SOIC, CHIP, QFP, PLCC, and BGA components, which covers most
of the ICs you'll deal with on a daily basis — power ICs, CPU, audio IC,
charging IC, and small RF components.
The core of the 861DW is its closed-loop
sensor system. Instead of the temperature drifting when airflow changes — a
common complaint with cheaper hot air guns — this station uses zero-voltage
triggering to keep the set temperature stable no matter how you adjust the air.
For a technician doing IC reballing or CPU reflow, that stability is the
difference between a clean job and a burnt board. You set 350°C for a PMIC
reflow, and it stays at 350°C, not swinging up and down as you move the nozzle.
Three operating channels give you real
flexibility on a busy bench. CH1 might be your profile for lead-free BGA
rework, CH2 for leaded solder on older boards, and CH3 for delicate small ICs
where you need lower airflow and lower heat. Each channel stores its own
temperature and airflow setting, so you're not resetting parameters every time
you switch between job types. That alone saves time when you're running
back-to-back repairs — dead phone here, charging issue there, board with a
hardware fault after that.
The brushless vortex fan motor is another
point worth explaining. Older rework stations use brushed motors that wear out
and lose airflow consistency over time. A brushless vortex design keeps airflow
steady over the life of the unit and gives you stepless adjustment — smooth
control from a whisper to full 120 L/min output, rather than a handful of fixed
stages. Temperature range runs from 100°C to 500°C, which covers everything
from gentle preheat to serious lead-free rework.

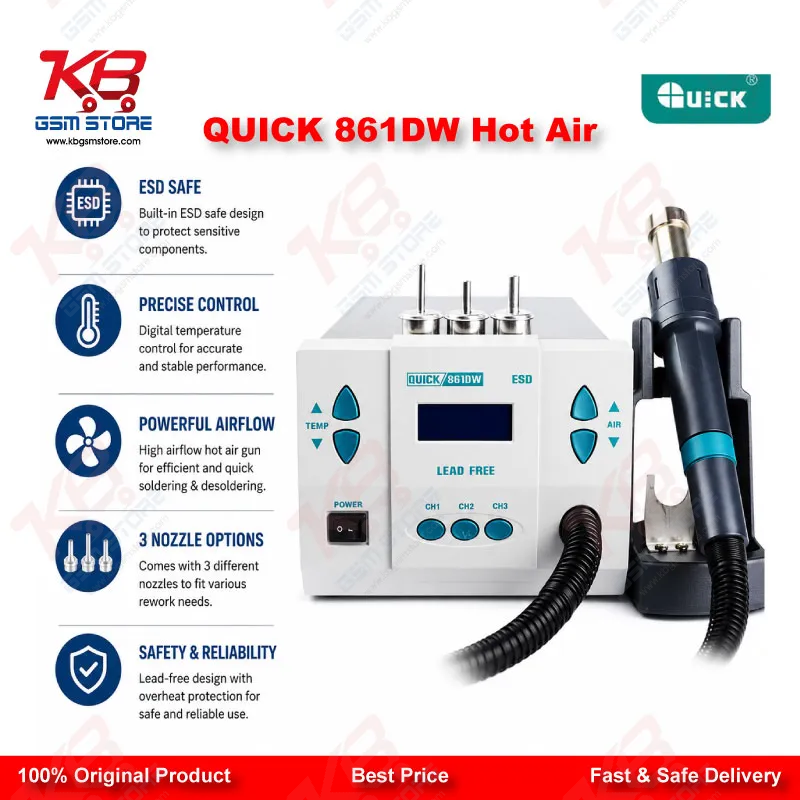

Safety and component protection are built
into daily use, not left to the technician to manage manually. A magnetic
switch on the handle holder puts the unit into sleep mode automatically the
second you set the gun down — no separate button to remember. Auto-sleep
parameters are also adjustable, so you can decide how the station behaves when
idle. Once you pick the handle back up, an automatic cooling function runs the
fan until the heating element drops below a safe temperature before fully
powering down, which extends the life of the heating coil — the part that
usually fails first on hot air stations that get heavy daily use in a repair
shop.
Password protection and key-lock functions
matter more than they sound. In a shared workshop where multiple technicians
use the same bench, locking your channel settings stops someone else from

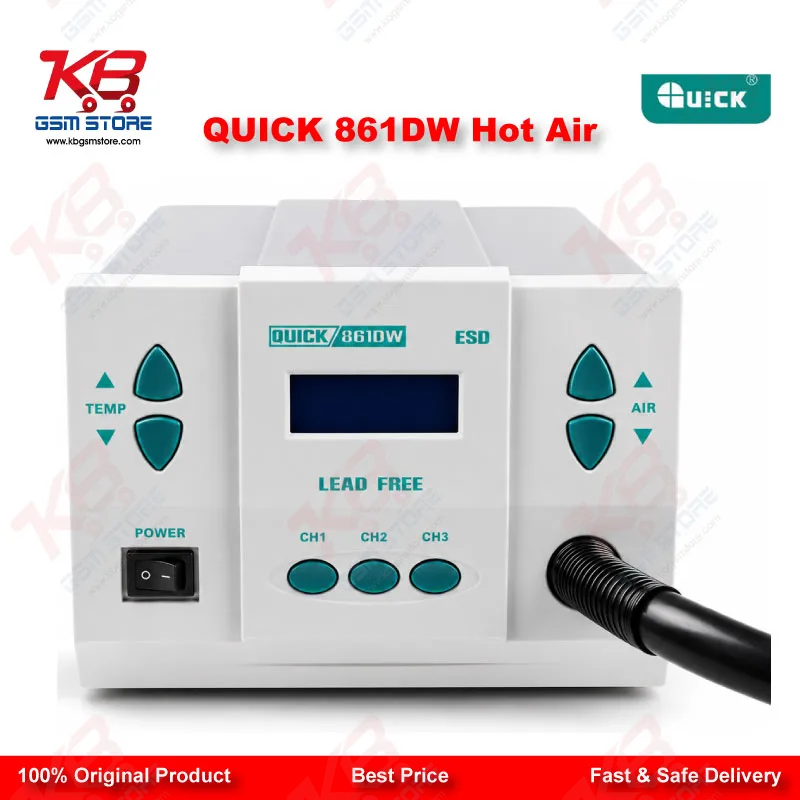

accidentally changing your saved profiles mid-job. The digital LCD display
shows real-time temperature and airflow, so you're not guessing whether the
unit has reached your target heat before you start work on a sensitive board.
In terms of where this fits into your
actual repair workflow: the 861DW sits at the rework and soldering stage, after
diagnostics has identified a hardware fault and before you move to testing or
reflashing. It's the tool you reach for after a multimeter or test box has
pointed you to a specific IC or joint, and before you power the board back up
to check if the "dead after flash" or "hang on logo" issue
is resolved. Pair it with a good PCB holder and microscope for reballing work,
and a soldering station for the finer point-to-point jumper jobs the hot air
gun isn't built for.

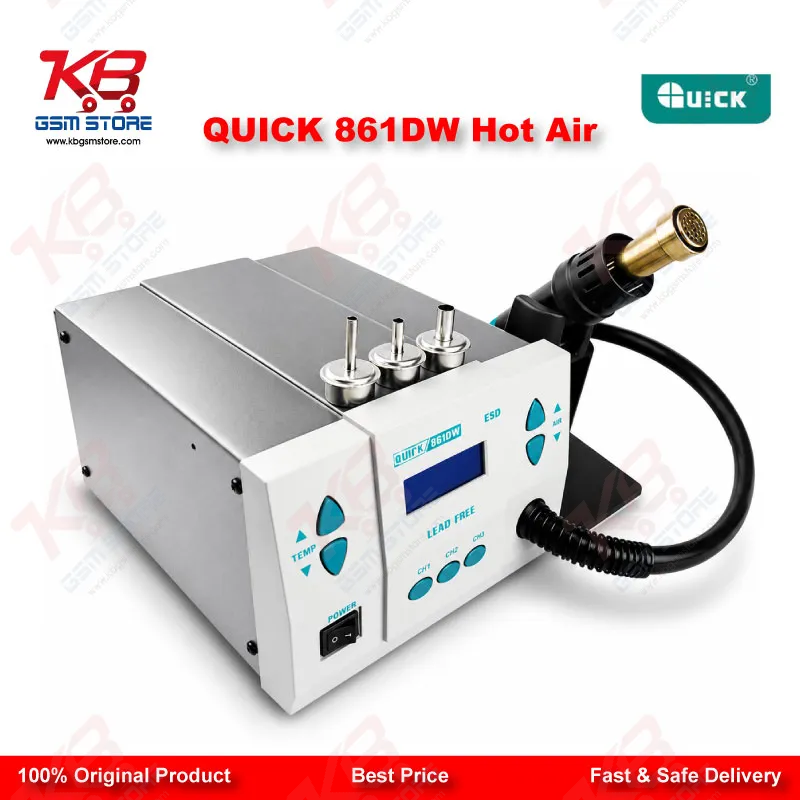

The unit ships with an air gun stand,
ground wire, printed manual, and three nozzles sized for different component
footprints, so it's ready to use on your bench without hunting down extra
accessories on day one. For a shop doing steady BGA and SMD rework — IC change,
PMIC reflow, reballing, or general SMD component replacement — the 861DW gives
you commercial-grade temperature accuracy at a price point accessible to most
repair businesses in Pakistan, without the higher cost of industrial rework
systems.
