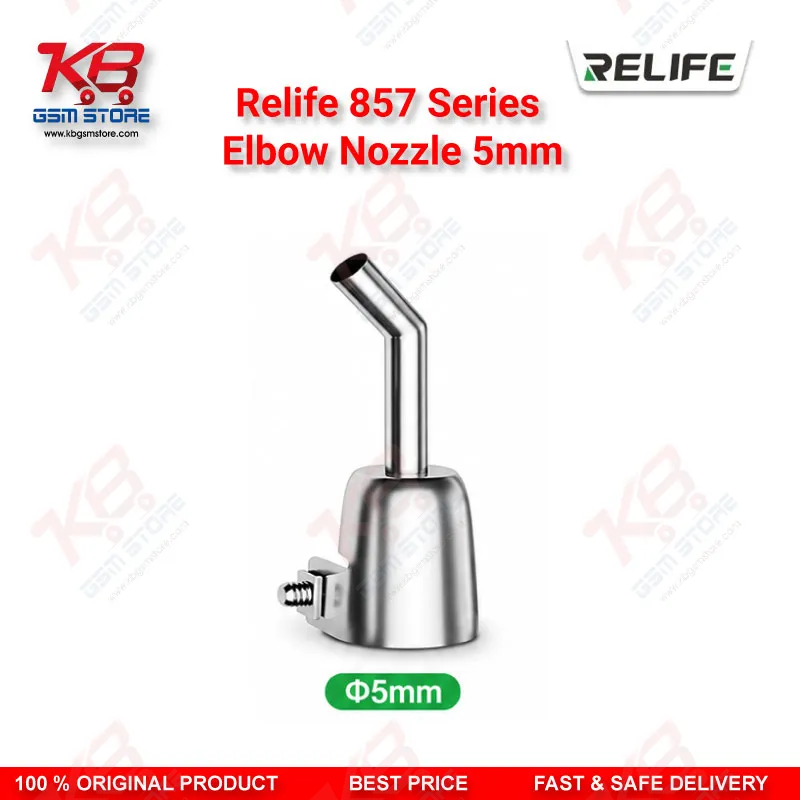

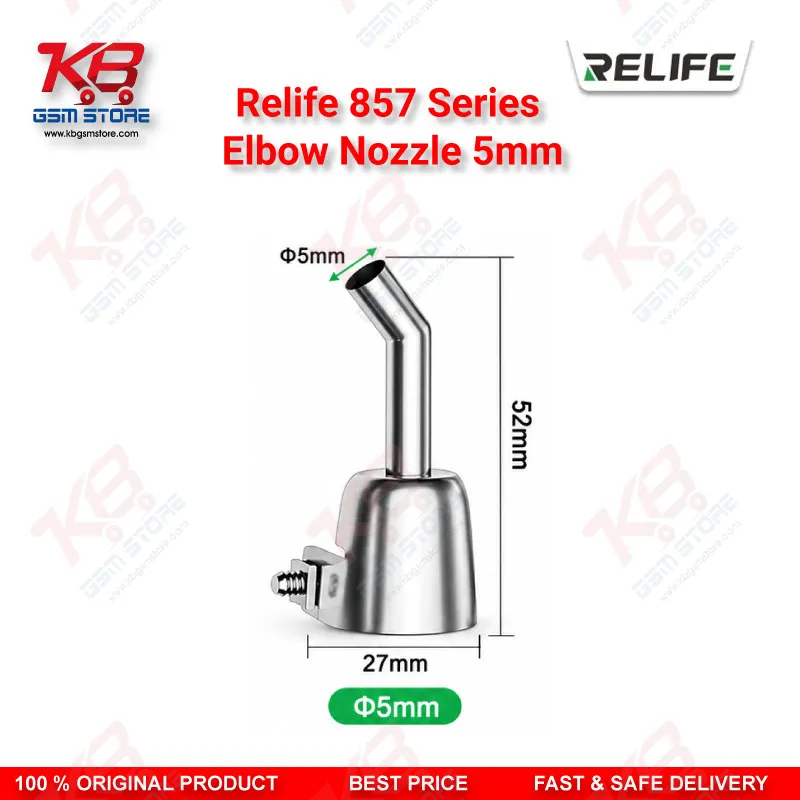

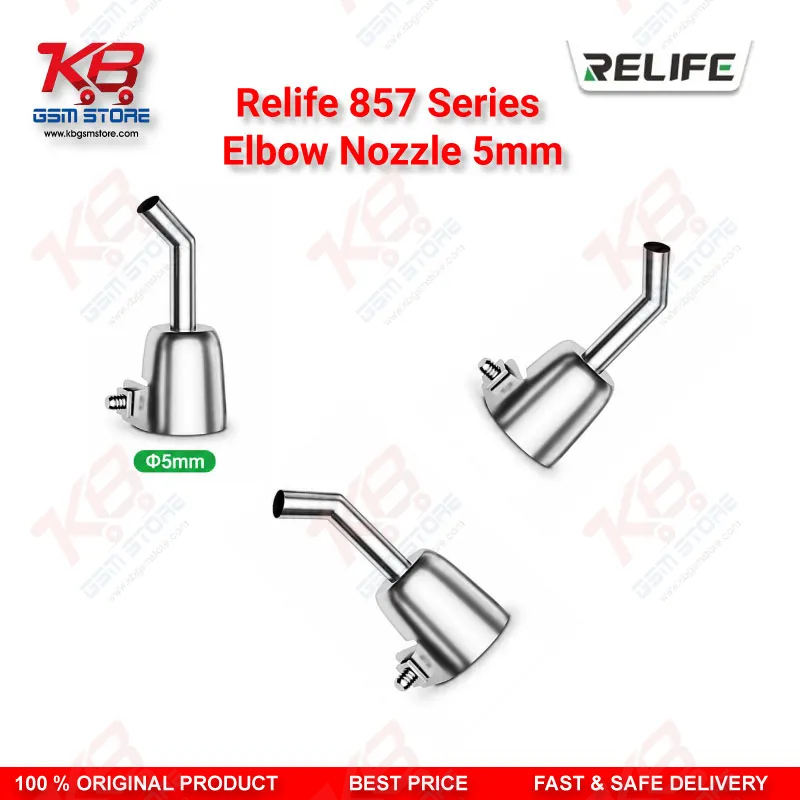

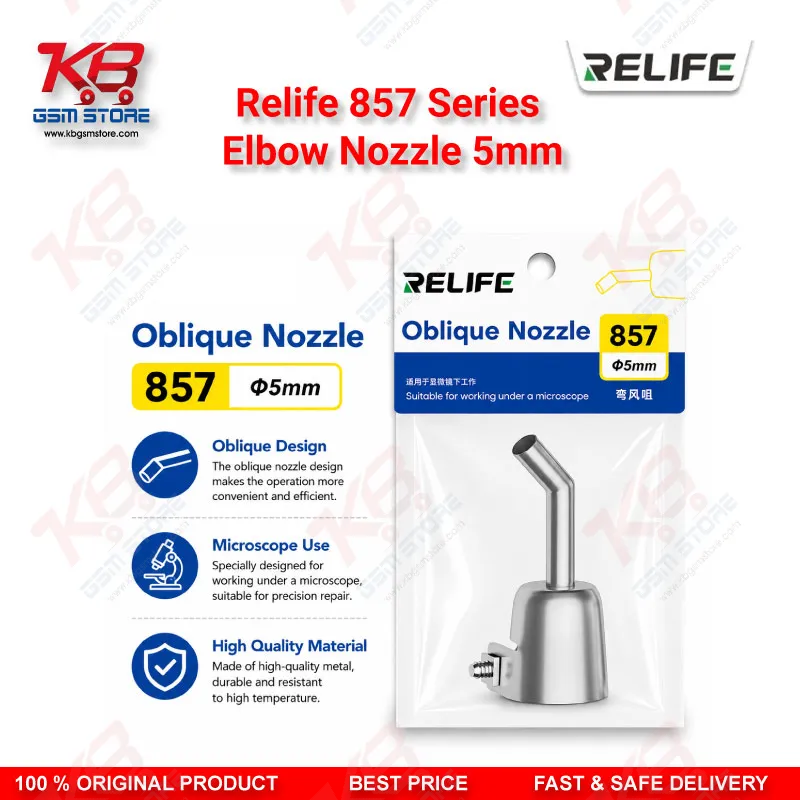

RELIFE 857 Series Elbow Nozzle 5mm – 45° Bent Hot Air Nozzle for BGA Rework

When you're working under a microscope on a dense board, a straight nozzle blocks your line of sight to the exact spot you need to heat. The RELIFE 857 Series Elbow Nozzle 5mm solves that with a 45° oblique bend that redirects hot air away from your eye line while still concentrating heat right where the chip sits. You get a clear view of the pad, the flux, and the component the entire time you work, instead of guessing what's happening under the barrel. This nozzle is machined from 304 stainless steel, the same grade used across most RELIFE and Quick-compatible nozzle sets because it takes repeated heating and cooling cycles without warping or corroding. On a busy repair bench where a nozzle might get mounted and dismounted a dozen times a day, that durability matters more than it sounds like it would. You're not replacing nozzles every few months because the tip cracked or the threading wore out. The 5mm opening puts this nozzle in the mid-range of the 857 series lineup, which runs from 4mm up to 12mm. At this diameter, you get a focused airflow that suits single ICs, small BGA packages, and SMD components where you don't want heat spreading to neighboring parts. If you're pulling a power IC or reflowing a compact chip near other sensitive components, the tighter airflow of the 5mm size gives you more control than a wider nozzle would. Fitting is plug-and-play. You push the nozzle onto the hot air gun barrel and it seals directly, no adapter ring and no separate locking piece to fumble with mid-repair. The sealing design keeps air leakage out of the equation, so airflow stays consistent instead of drifting as you work. Swapping between the 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm sizes takes seconds, which matters when a single repair might call for two or three different nozzle sizes back to back — say, heating a wider chip first, then narrowing down to lift a smaller adjacent IC. Compatibility covers the 857 series line of hot air stations directly, including 857DW+, 706W+, 8786D+, K8, 859D+, 850A, 850A+, and 850D, along with 859 and 857 Pro units. If your station falls in this family, this nozzle mounts without modification.
On the bench, this is the nozzle you reach for on IC change jobs, BGA reballing, board-level chip removal, and general SMD rework where precision and visibility both matter. It's not built for bulk desoldering across a wide area — for that you'd want a larger, straighter nozzle. This one is built for the close, careful work: lifting a dead-after-flash IC, reworking a charging IC board-side, or reflowing a component you can barely see without the 45° angle keeping your view open. A worn or leaking nozzle is one of the more overlooked reasons a hot air station starts giving inconsistent results — techs blame the gun or the solder before checking the nozzle seal. Keeping a few sizes of this elbow nozzle on hand means you're never stuck improvising with the wrong airflow shape mid-repair.
