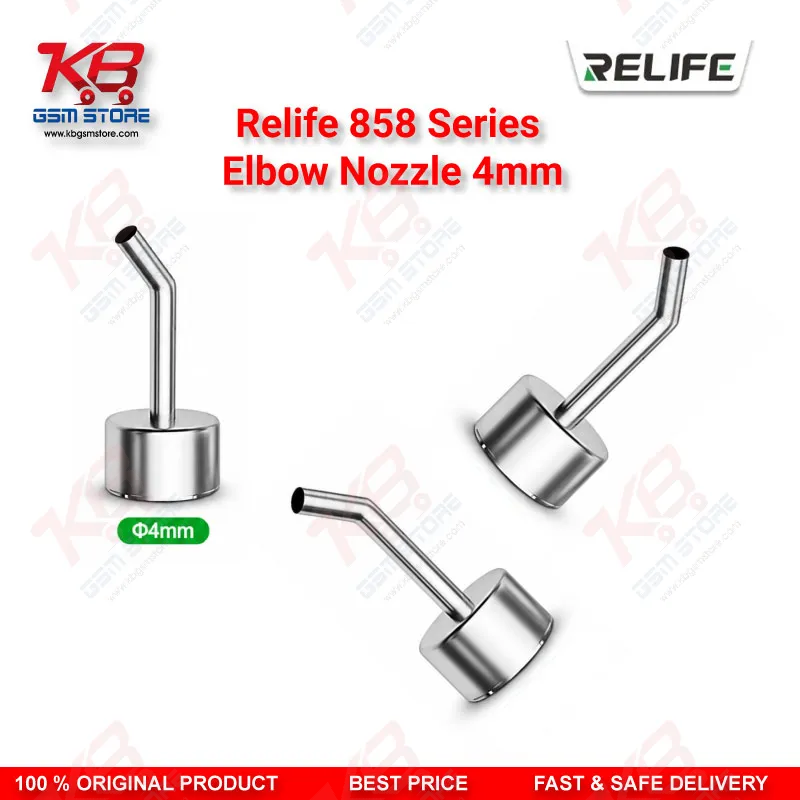

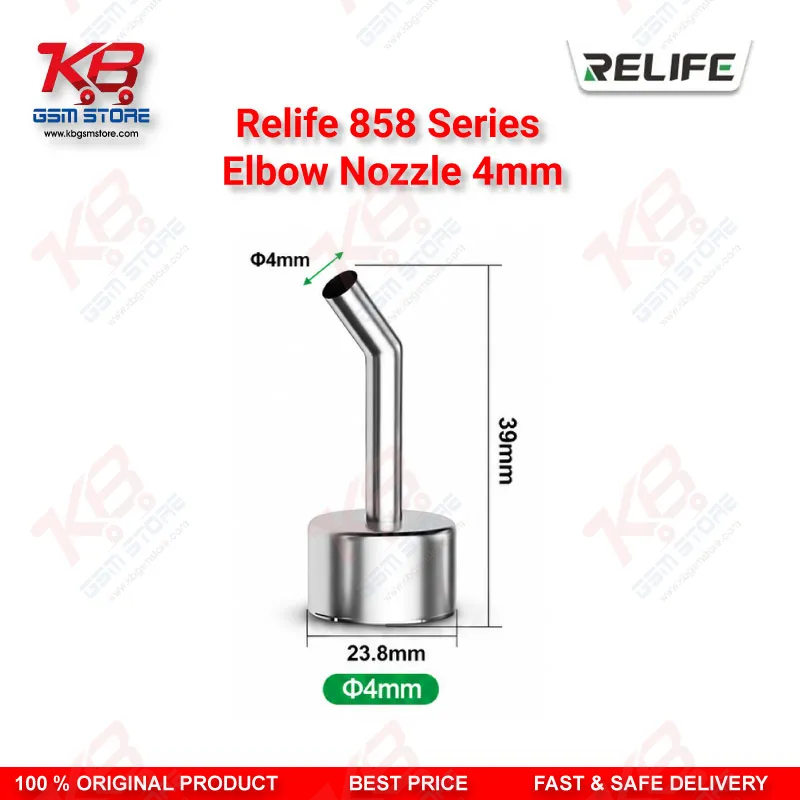

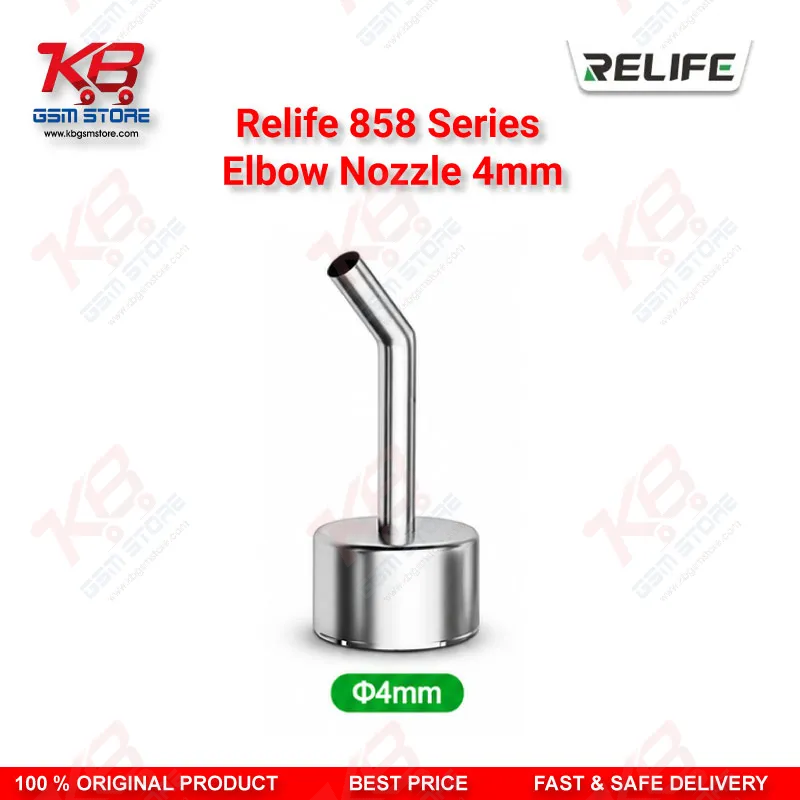

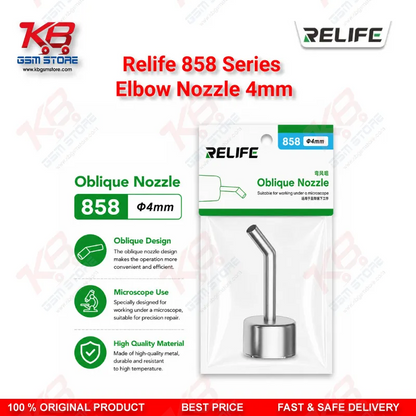

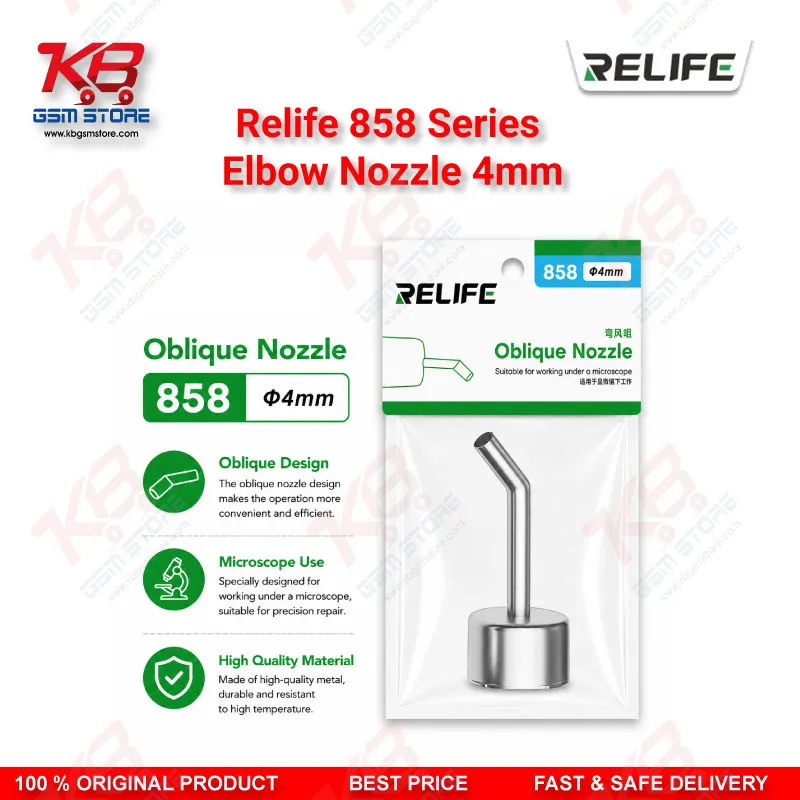

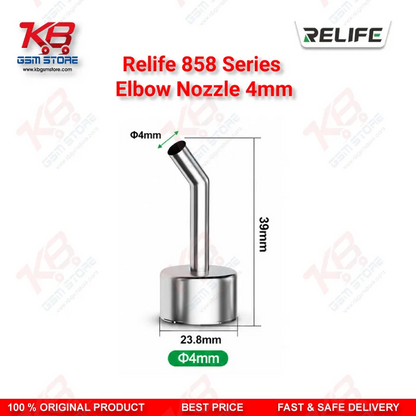

RELIFE 858 Series 4mm Elbow Nozzle – 45° Angled Hot Air Rework Nozzle

Working under a microscope changes how you position your hot air gun. Once the barrel sits at an angle to clear the microscope head, a standard straight nozzle stops aiming heat where you actually need it — usually right on the CPU side pads or a component crammed next to a shield can. The RELIFE 858 Series 4mm Elbow Nozzle solves that specific problem with a 45° bend built into the nozzle body, so your airflow lands on target even when your handpiece can't sit straight over the board. This nozzle threads onto the 850, 852, 858, and 878 series hot air rework stations that make up most GSM repair benches in Pakistan today. If your setup already runs a 858D hot air gun, this elbow tip drops straight in without any adapter or modification. The 4mm outlet size keeps the airflow narrow and concentrated, which matters when you're heating a single IC or a small SMD component and don't want to disturb neighboring parts on a dense board. Stainless steel construction is what makes this nozzle worth keeping in your kit long-term. Cheaper alloy nozzles discolor, warp, or crack after a few hundred heat cycles at rework temperatures. Stainless steel holds its shape and resists the oxidation that builds up from constant exposure to flux fumes and high heat, so the 45° bend stays true instead of drooping over time. At 110g, it's light enough that it doesn't throw off the balance of your handpiece during long sessions. The real value of this nozzle shows up in specific repair scenarios. When you're doing an IC change karna job on a board where the target chip sits under a connector or next to a heat sink, tilting your gun to clear the obstruction usually means your heat drifts off-target. With the 45° elbow, you keep the gun in a natural, comfortable position while the nozzle itself redirects airflow onto the pads. The same logic applies to CPU reballing prep, where you need consistent, focused heat on one side of the board without cooking components on the opposite edge. Technicians handling dead phone and hang on logo cases that trace back to a cracked BGA joint or a shifted CPU also rely on angled nozzles like this one. Reflowing or removing a chip cleanly depends on even heat distribution, and an elbow nozzle lets you keep that consistency even when the phone's board design forces an awkward gun angle. The same goes for boards where a jumper lagana repair sits close to a component you don't want reheated — the narrower 4mm opening and angled path give you more control over exactly where the hot air goes. This nozzle isn't a universal fit for every hot air gun on the market. It's built specifically around the RELIFE 858 series mounting design, so before ordering, confirm your station uses the same nozzle base as the 850/852/858/878 family. Mixing nozzle series between brands usually results in a loose fit or airflow leakage around the base, which drops your working temperature at the tip and makes precision work harder. For a repair shop running multiple hot air stations across different technicians, stocking a few sizes in the elbow series — 3mm, 4mm, 5mm — covers most single-IC and small-component jobs without needing to swap in the bulkier straight nozzles for every task. The 4mm size specifically covers small-to-mid ICs, power management chips, and similar components where you need tighter heat control than a general-purpose 8mm or 10mm nozzle allows. Keep the nozzle base clean and free of flux residue after each use. Buildup at the mounting point is the most common reason technicians report a "loose" or wobbly nozzle fit over time, not a defect in the nozzle itself. A quick wipe with isopropyl alcohol after each session keeps the seal tight and the airflow consistent for the next job.
