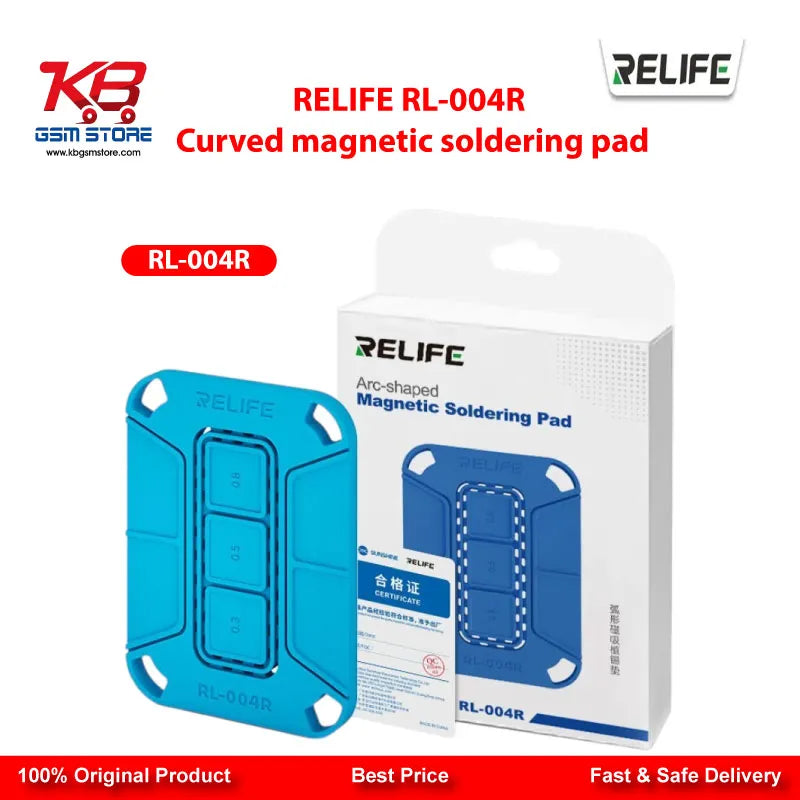

Chip soldering on mobile phone motherboards demands precision at every stage. When you are reballing a CPU or reflowing a hard drive IC, the chip must stay locked exactly where you place it — even a slight shift ruins your solder joint alignment and forces the entire rework process to restart. That is the real problem the RELIFE RL-004R Curved Magnetic Soldering Pad solves directly at your repair bench.
The RL-004R uses a curved fitting design combined with built-in strong magnets to hold CPU chips and hard drive ICs with firm, stable fixation during the full duration of your soldering operation. Whether you are applying solder paste through a BGA stencil, running a hot air station for reflow, or finishing a soldering iron touch-up, the chip stays exactly positioned. No more manually holding the chip with tweezers while managing your soldering iron — your hands are free to focus on the work.

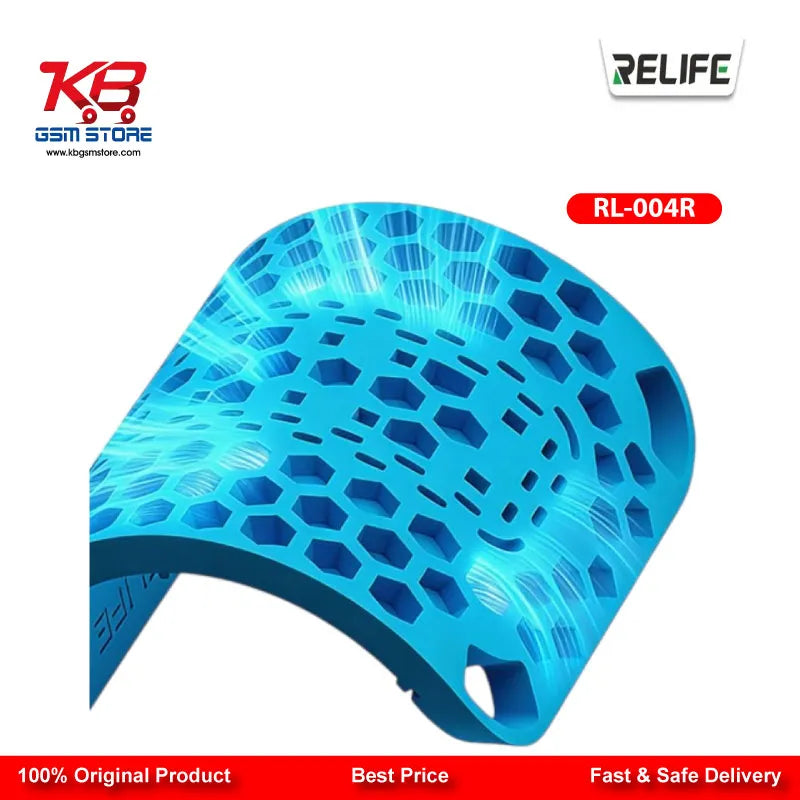

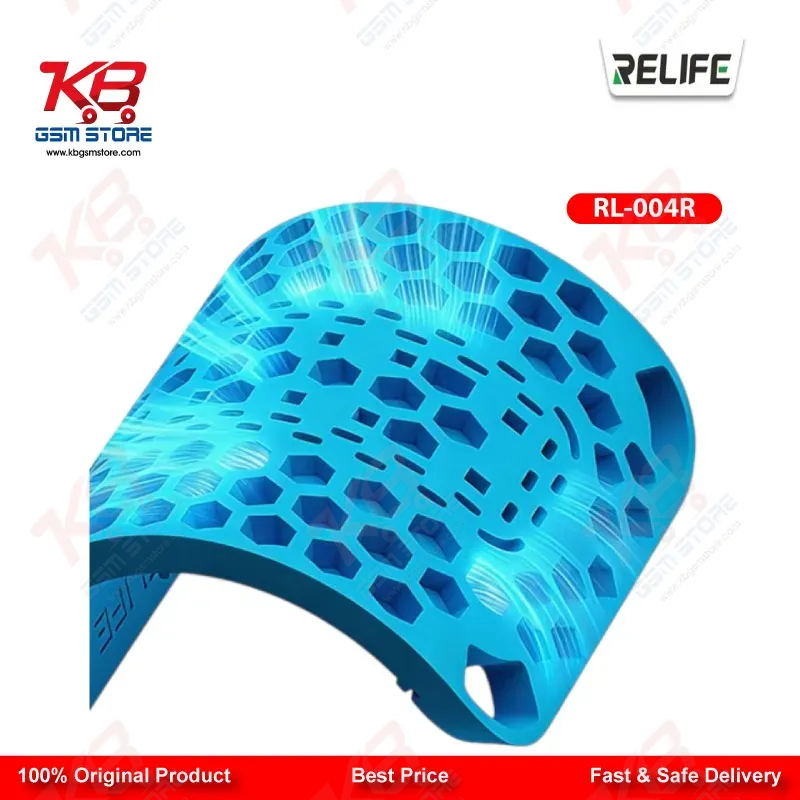

One of the most frustrating issues during chip soldering is solder paste bulging. When heat distributes unevenly, paste builds up under the chip edges and creates bridging faults or cold joints that fail diagnostics immediately. The RL-004R addresses this with unique rear heat dissipation holes engineered into the pad body. Heat distributes evenly across the chip contact surface, solder paste flows correctly without pooling, and you get cleaner BGA joints consistently.

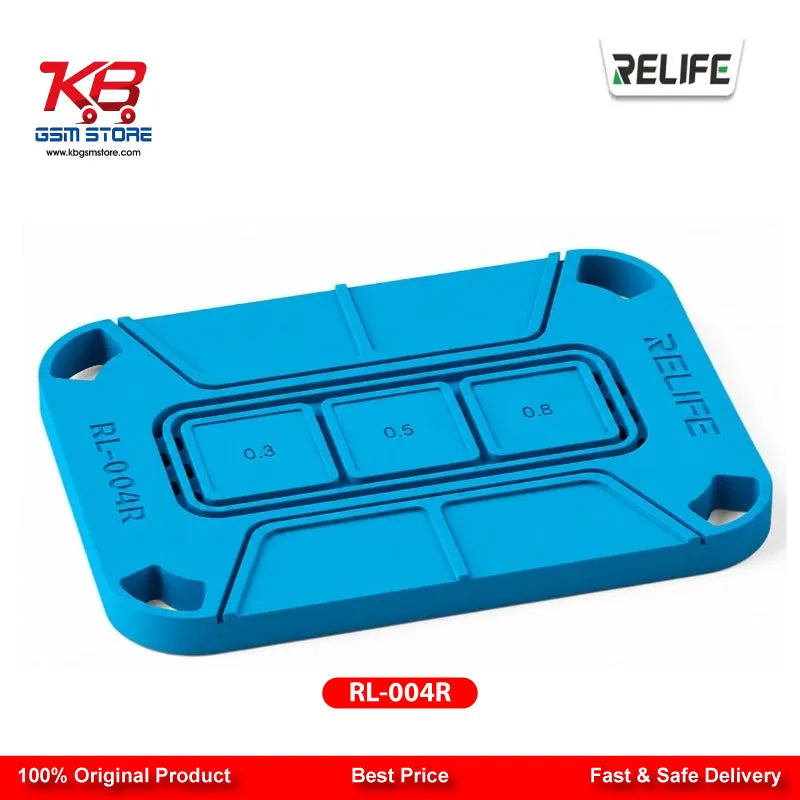

Different CPUs and hard drive ICs vary in thickness — Qualcomm Snapdragon chipsets, MediaTek processors, and eMMC storage chips all have slightly different profiles. The RL-004R solves this with multiple built-in slots of varying depths that accommodate different chip thicknesses without requiring you to swap pads or improvise positioning. You place the chip, it fits, the magnets hold it, and you get to work.

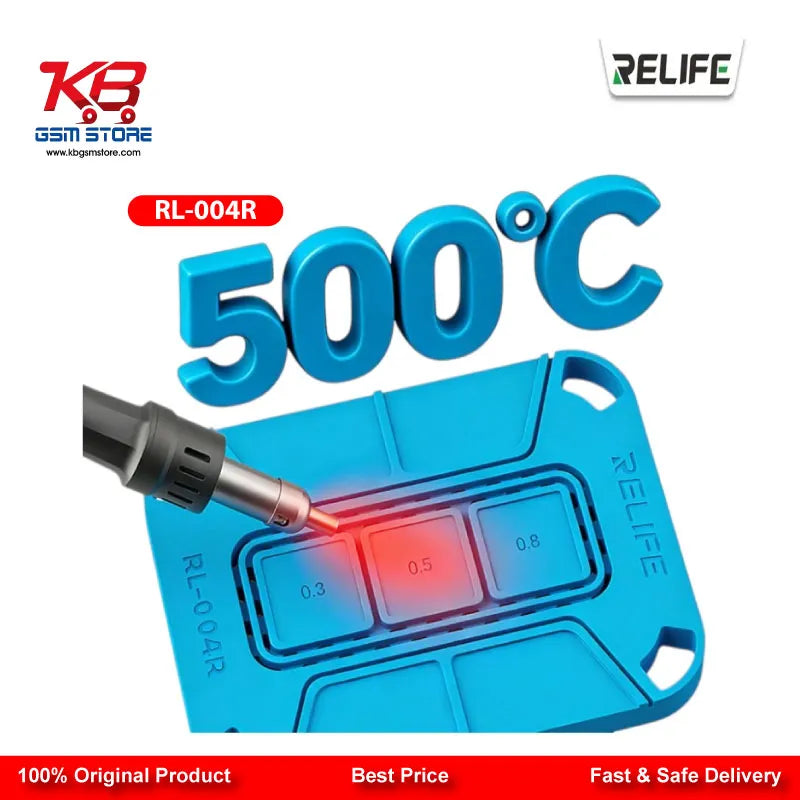

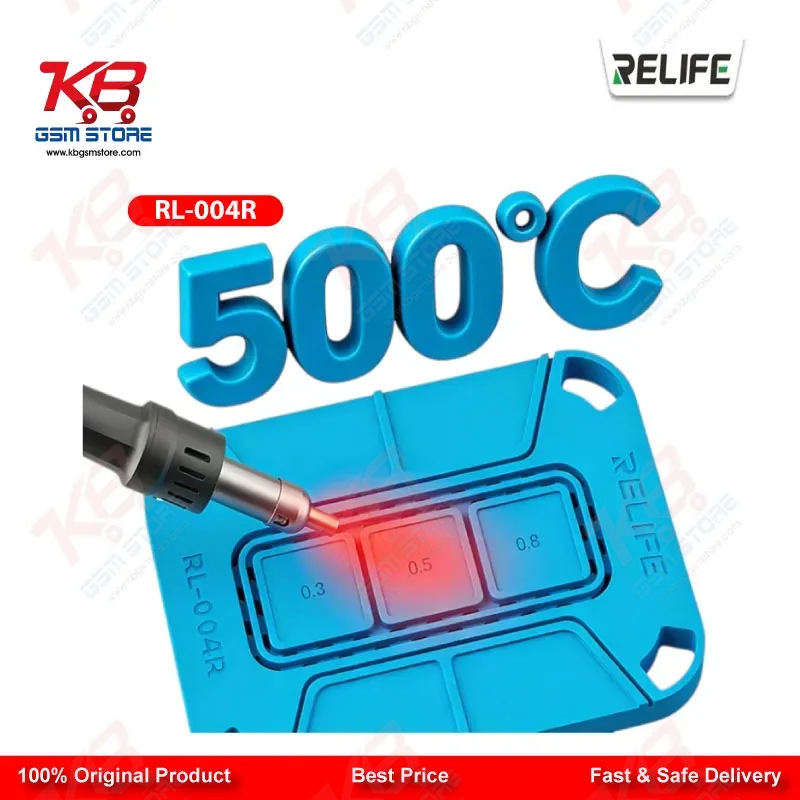

The pad itself is constructed from high-quality silicone that carries an ultra-soft surface texture while maintaining full heat resistance under repeated soldering conditions. It does not deform from hot air gun exposure and keeps its shape across extended workshop use. For technicians doing high-volume IC change karna across multiple jobs per day, this durability directly protects your investment.

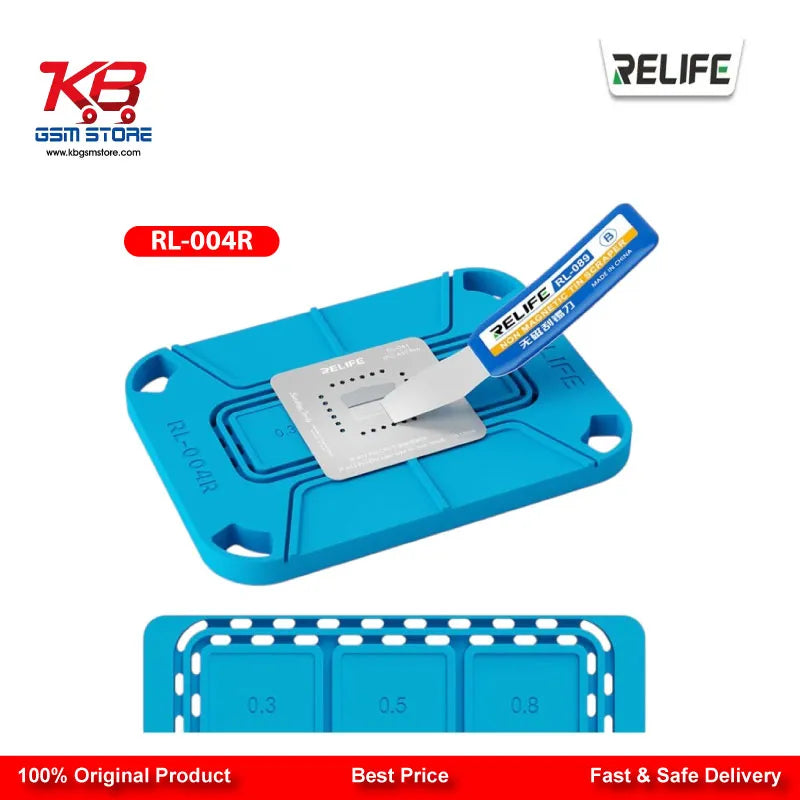

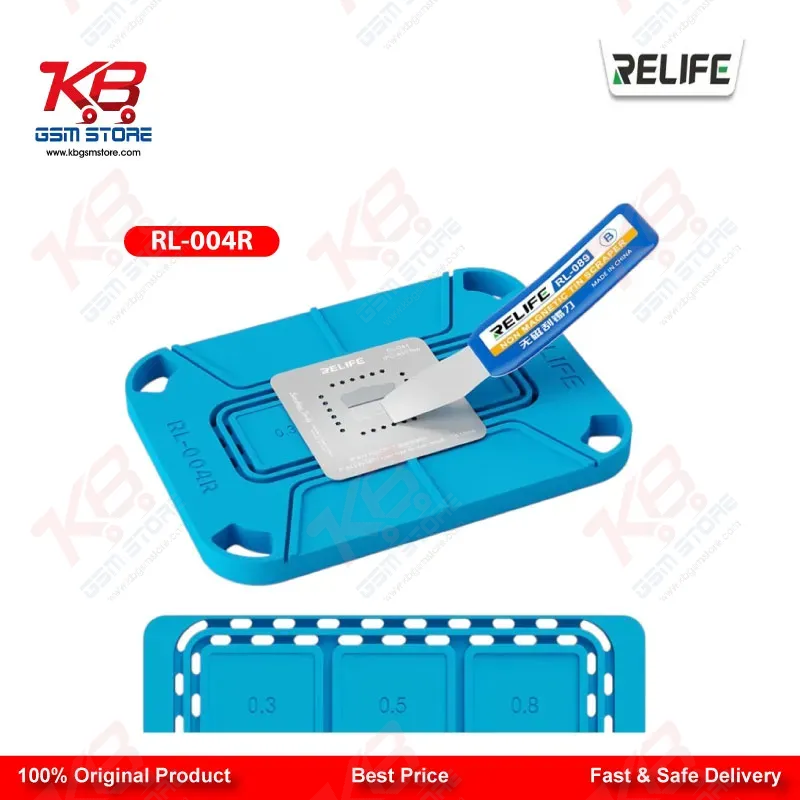

At the PCB repair level, this pad fits cleanly into your motherboard rework workflow. After you remove a faulty CPU or storage IC from the board, the RL-004R holds the replacement chip stable during pre-tinning, stencil-based solder paste application, and final reflow. You can use it alongside your microscope, hot air station, and soldering station without any workflow interruption. Pair it with your reballing kits, PCB holders, and BGA flux for a complete rework setup.
For repair shop owners running a service center in Pakistan, this tool reduces rework time and chip handling errors. Dead phone cases involving CPU hardware faults, hang on logo after flash attempts, and hardware fault diagnoses that require storage IC replacement all involve chip-level soldering — the RL-004R gives you the stable platform to execute that work cleanly every time.
