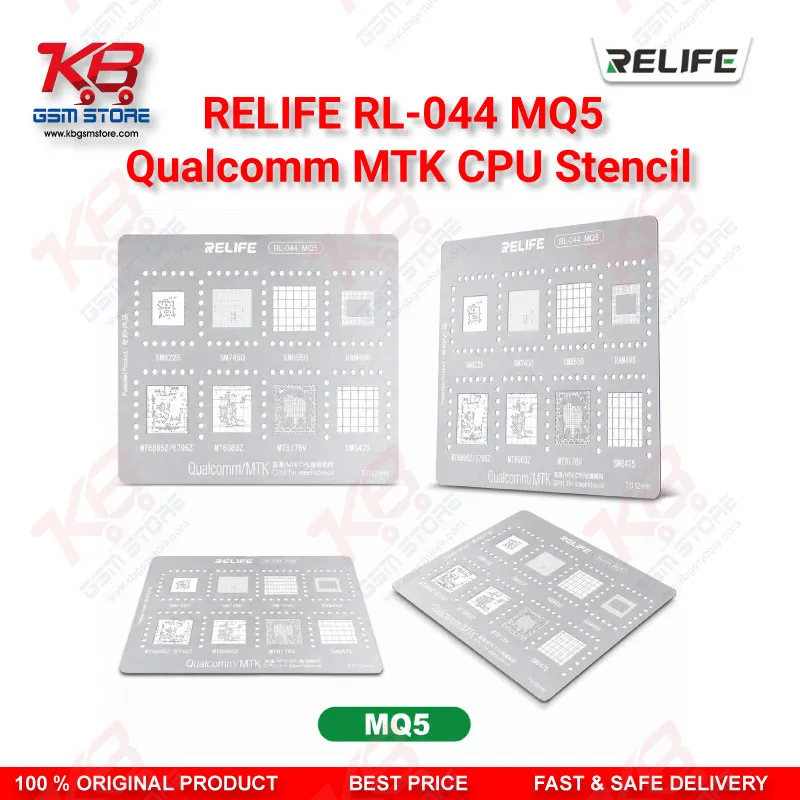

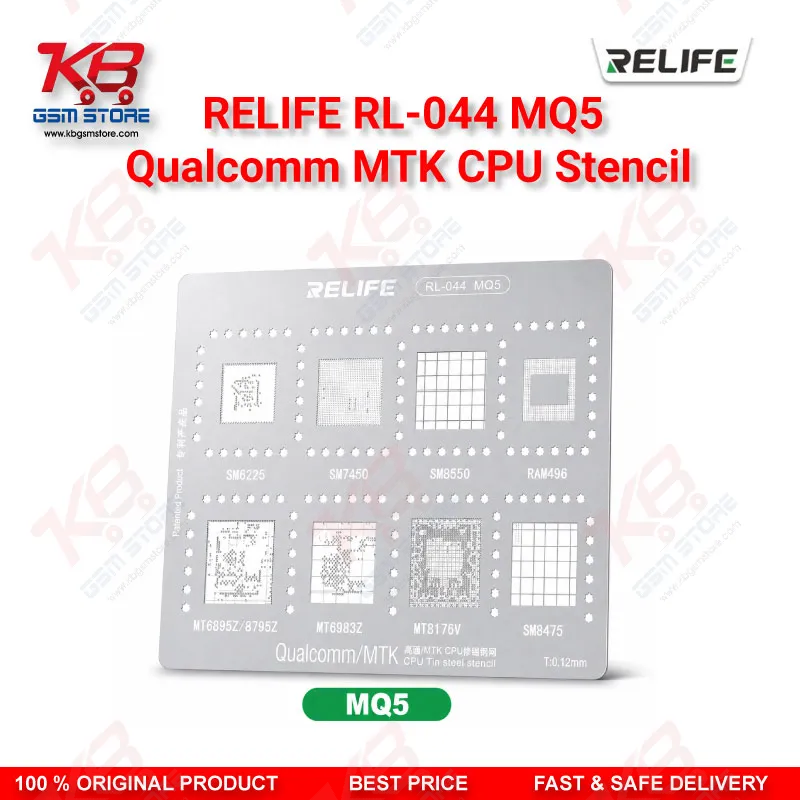

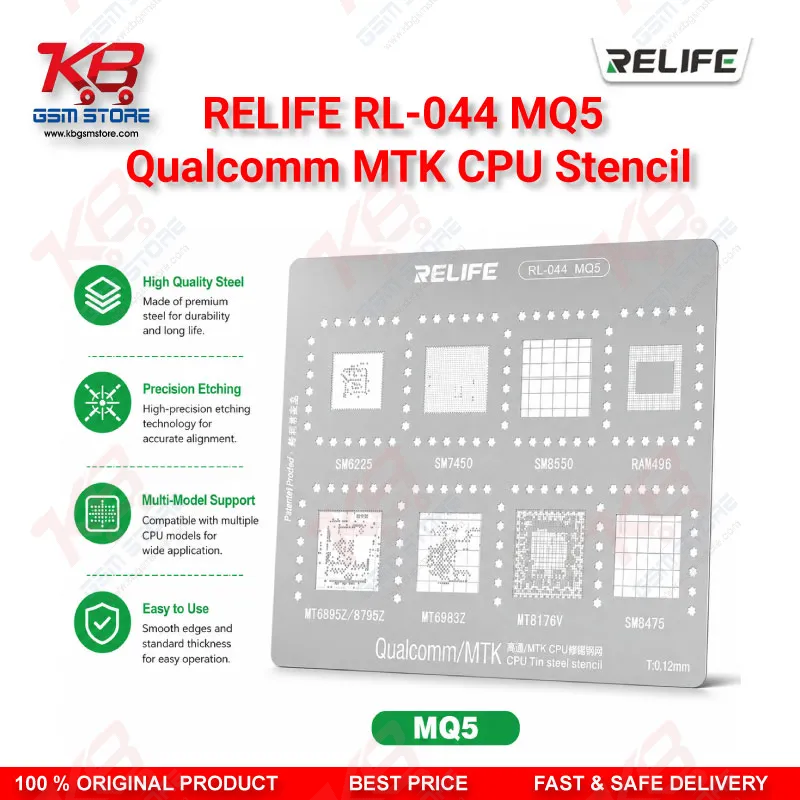

The Relife RL-044 MQ5 stencil solves a specific problem on the repair bench: getting uniform, correctly sized solder balls onto a CPU package without guessing hole spacing or improvising with a mismatched mesh. Board-level technicians working on dead-after-flash boards, no-power faults, or CPU replacement jobs need a stencil that matches the exact ball grid of the chip they are reballing, and generic or worn stencils are a common cause of shorted pads and no-boot boards after reflow. This stencil targets the MQ5 chip group specifically — MT6895Z/8795Z, MT6983Z, MT8176V, SM8475, SM6225, SM7450, and SM8550, plus RAM496 packages — so you get correctly scaled apertures for each of these Qualcomm and MediaTek parts rather than a compromise fit. The stencil is cut from 0.12mm stainless steel, thin enough to keep solder deposits low-profile and consistent while remaining rigid enough to survive repeated placement cycles without warping. Round and square hole geometry follows the original ball layout of each supported chip, which keeps solder ball size and shape consistent pad to pad; that consistency is what determines whether a reballed CPU passes a continuity check on the first try or needs a second attempt. Every mesh in the RL-044 series is checked against factory ball-map data, so solder joints line up with pad positions rather than approximate spacing, cutting down on the micro-bridges that show up under a microscope after reflow. On the bench, the stencil works into a standard BGA reballing sequence: strip the old solder from the CPU, clean the pads flat, mount the correct MQ5 aperture over the chip, apply solder paste or solder balls, reflow with a hot air station or BGA rework machine set to the chip's profile, then clean and inspect under magnification before reattaching to the board. Technicians handling dead phone repairs, boot loop issues, or CPU-related power faults on devices built around these chipsets get a repeatable reballing result instead of trial-and-error tinning. The stencil also fits naturally into a technician's broader toolkit — it pairs with reballing fixtures, PCB holders, flux, and low-temperature solder paste already on the bench, and slots into workflows that move from diagnostics through desoldering, reballing, and reflow. Because it targets current-generation Snapdragon and Dimensity/Helio silicon rather than older chip families, it's relevant for shops handling recent mid-range and flagship Android boards where CPU-related dead-board and hardware fault cases are still common. Durability matters here too: the steel resists deformation across repeated use, so the hole geometry stays accurate instead of stretching out of tolerance after a few reballing sessions, which is where cheaper stencils tend to fail. For a repair shop running multiple CPU reballing jobs a week, having a stencil scoped to the exact chip set in front of you — rather than a universal mesh that's close enough — is what keeps first-pass yield high and comeback repairs low. The RL-044 MQ5 stencil is built for that exact use case: chip-specific, dimensionally accurate, and durable enough for daily bench work across Qualcomm and MediaTek CPU reballing on modern Android devices.
