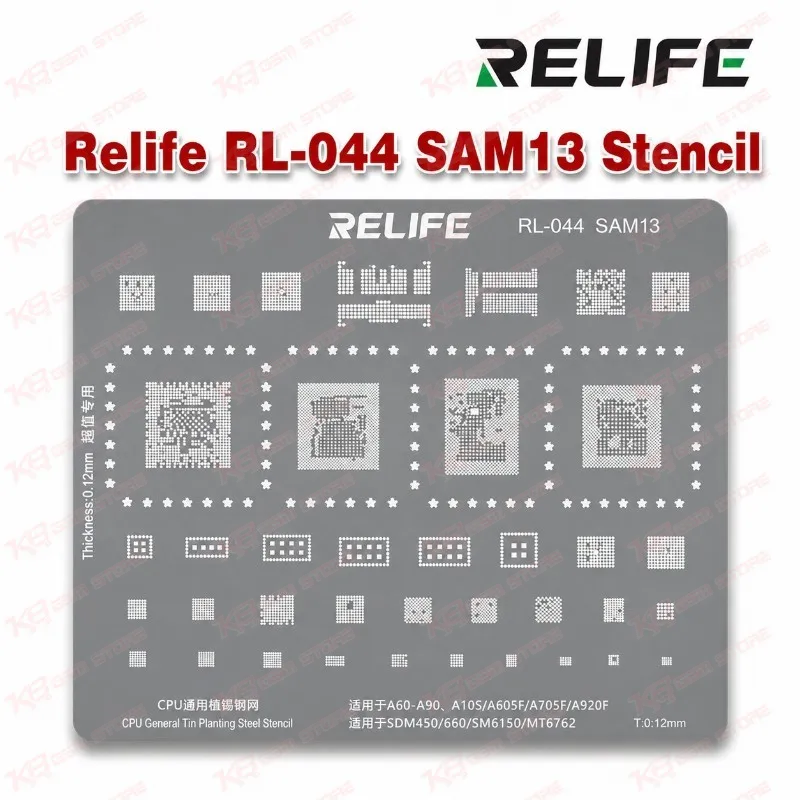

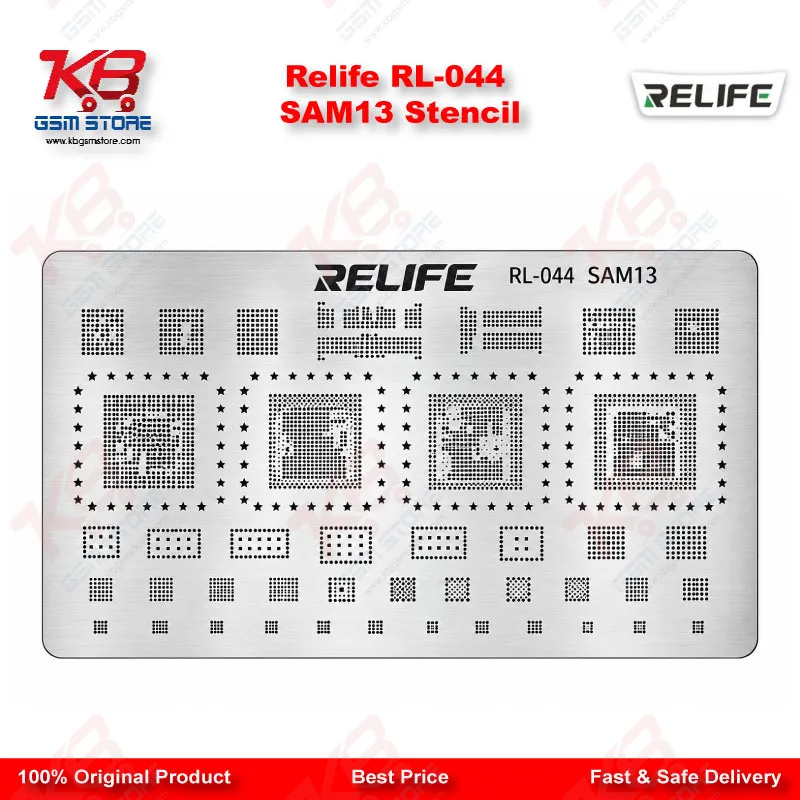

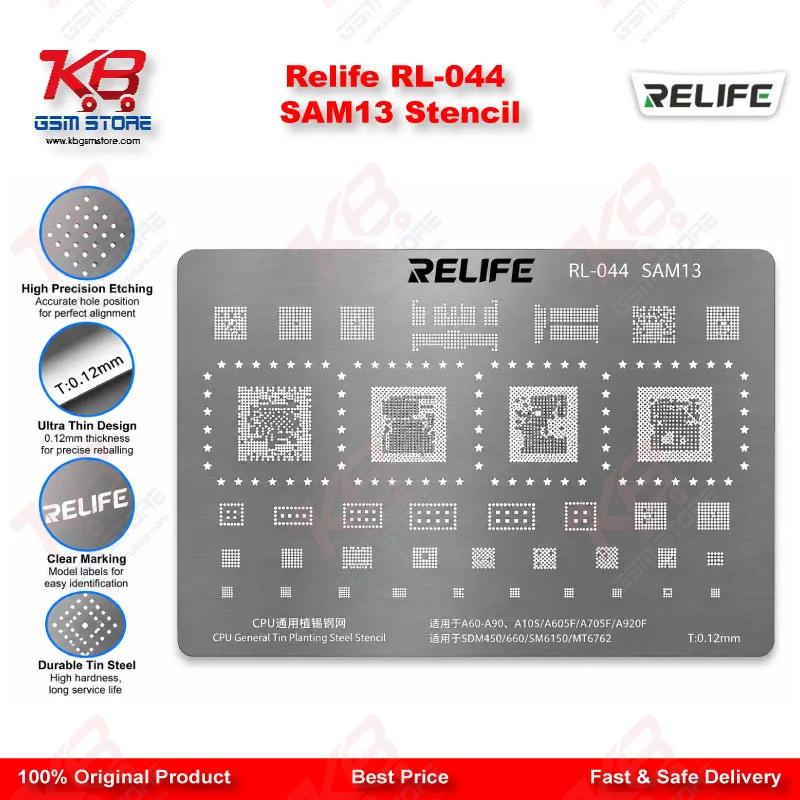

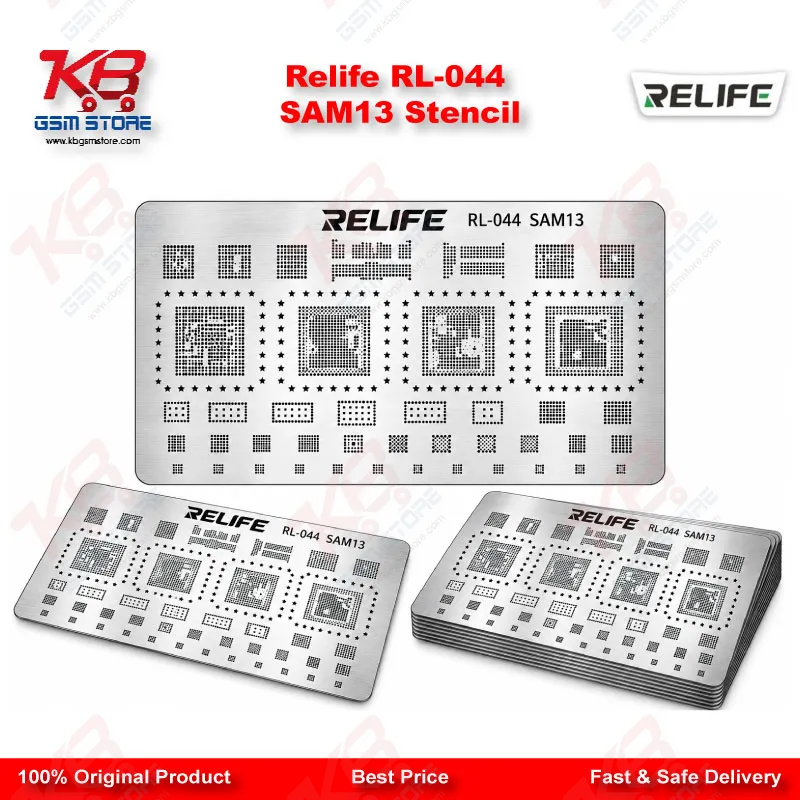

Relife RL-044 SAM13 Stencil

The Relife RL-044 SAM13 is a purpose-built BGA reballing stencil from RELIFE's dedicated Samsung series, designed for technicians who work on Samsung motherboard repairs day in and day out on a busy repair bench. Build and Material The stencil is made from precision laser-cut steel, ultra-thin yet stable enough to resist warping when exposed to hot air stations and reflow heat, a common failure point with cheaper generic mesh sheets that buckle after a few uses and throw off your ball placement. The hole pattern is cut with tight tolerances so solder balls sit exactly where the BGA pads need them, cutting down the trial-and-error that usually eats into repair time when a stencil doesn't seat cleanly on the first try. Why the SAM Series Matters RELIFE built the RL-044 Samsung lineup as a full SAM1 to SAM15 set precisely because Samsung boards don't share a single universal footprint the way some other brands do — different Exynos and Snapdragon variants across Galaxy series boards need their own matched stencil sheet, and SAM13 covers one of those specific footprints within that certified set. This means you're not forcing a mismatched hole pattern onto a chip and hoping for the best; you're using a sheet engineered against the actual pad layout, which is the difference between a clean reball and a board that comes back with a dead after flash complaint two days later. On the Bench Using the Relife RL-044 SAM13 fits naturally into a standard reballing workflow: after IC removal and pad cleaning, you seat the stencil flush over the chip footprint, apply solder paste or drop balls through the mesh, then reflow under a hot air gun or BGA rework station. The round-square hole geometry common to the RL-044 series is designed to release paste cleanly without smearing across adjacent holes, which matters when you're working close to other components on a crowded Samsung logic board and can't afford solder bridges between pads. Technicians handling Samsung network issue, charging issue, and boot loop cases that trace back to a faulty power IC or CPU joint will find this stencil speeds up the reballing step considerably compared to freehand ball placement or a worn-out universal plate. Fit in Your Toolkit The Relife RL-044 SAM13 pairs naturally with a hot air rework station, a reballing preheater, flux, solder paste or solder balls, and a microscope for pad inspection before and after reflow — the same core toolkit any GSM hardware bench already runs. Because it's part of a numbered series rather than a one-off stencil, picking up the full SAM1–SAM15 set (or the specific SAM numbers matching the boards you service most) builds toward full Samsung reballing coverage without duplicate spend on stencils you'll never use. For a repair shop or service center doing volume Samsung board work, having the correct matched sheet on hand instead of reaching for a generic multi-brand plate is what keeps reballing jobs consistent and repeatable, job after job, instead of depending on guesswork every time a new board comes in.
