Relife RL-068C Smart Grinding Pen – 3-Speed Rechargeable IC & PCB Tool

Every repair bench reaches a point where a screwdriver and hot air station aren't enough — you need something small enough to reach a cracked IC pad or a rusted screw without damaging the board around it. The Relife RL-068C fills that gap in your workflow. It's a handheld, battery-powered grinding pen that replaces bulky rotary tools for close-quarters motherboard work, and it's built specifically for the kind of daily tasks a GSM technician runs into: IC removal prep, bracket cutting, screw extraction, and general board cleanup before reballing or soldering.

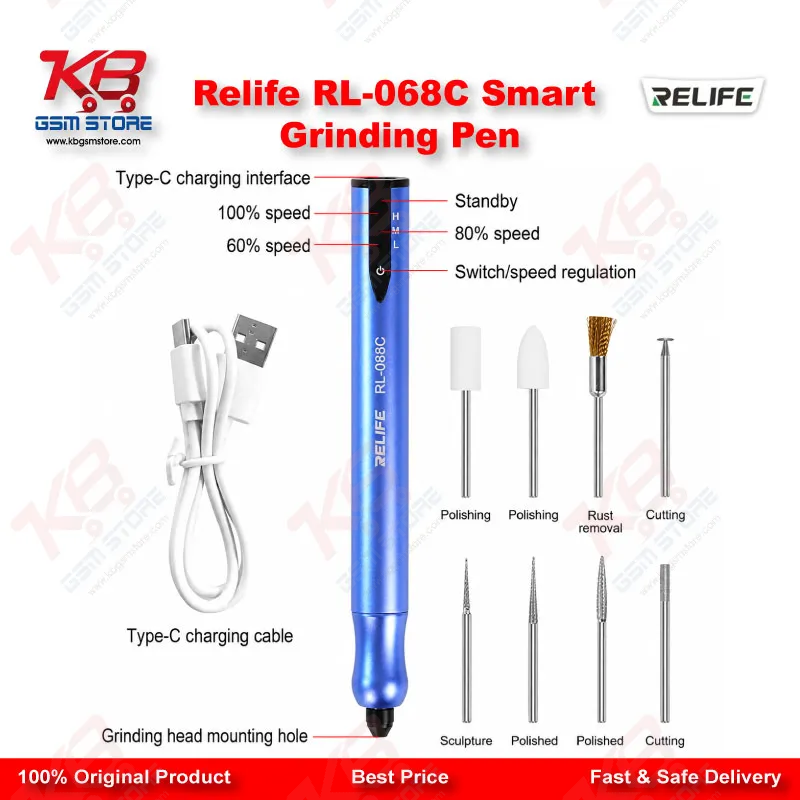

The pen runs on a 3.7V, 650mAh (2.4Wh) lithium battery housed inside a 13450 cell, charged through a Type-C port at DC 5V ±0.3V with a 0.5A ±0.1A charging current. That means you're not tied to a proprietary charger or a specific power brick — any standard Type-C cable does the job, and a full charge holds up through extended bench sessions. Three adjustable speed gears let you match rotation speed to the material in front of you. Lower speed suits delicate IC pad work where control matters more than cutting power; higher speed handles rusted screws or stubborn motherboard brackets that need more torque to shift.
Precision matters most when you're grinding this close to live components, and that's where the collet design earns its place. It clamps grinding heads firmly with no wobble or skew, and the spindle connection keeps high concentricity throughout the cut. On a board where a millimeter of drift can wreck a pad, that stability is the difference between a clean IC removal and a board you now need to jump.

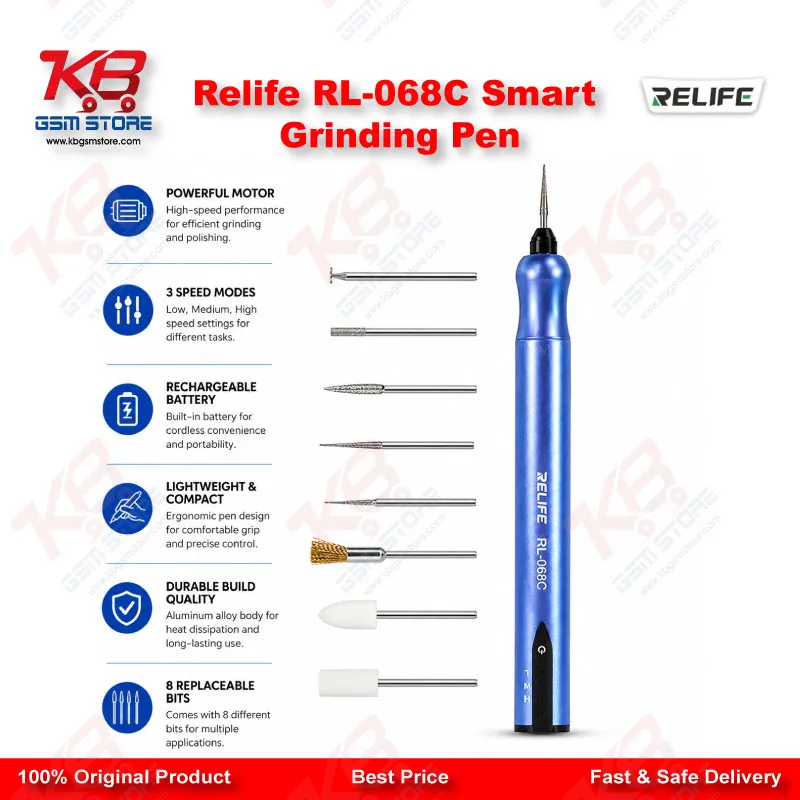

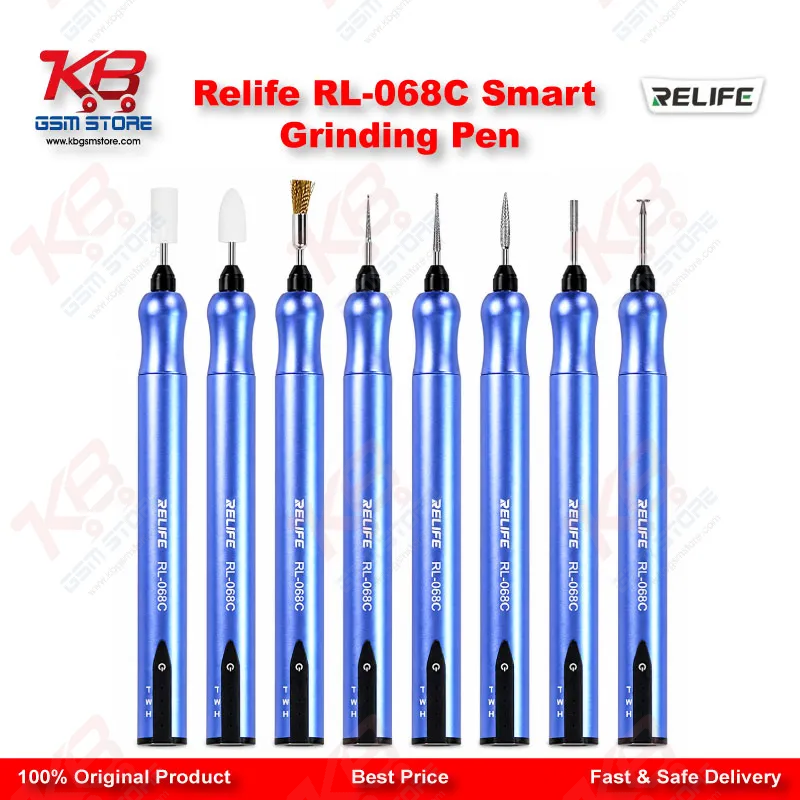

The RL-068C ships with 8 grinding heads covering different repair scenarios — engraving, cutting, drilling, cleaning, and polishing — so you swap heads based on the job instead of switching tools entirely. Head replacement uses a plug-in mounting hole: insert the new head, pull firmly to release the old one. No screws, no separate collet key, no downtime between tasks on a busy bench.

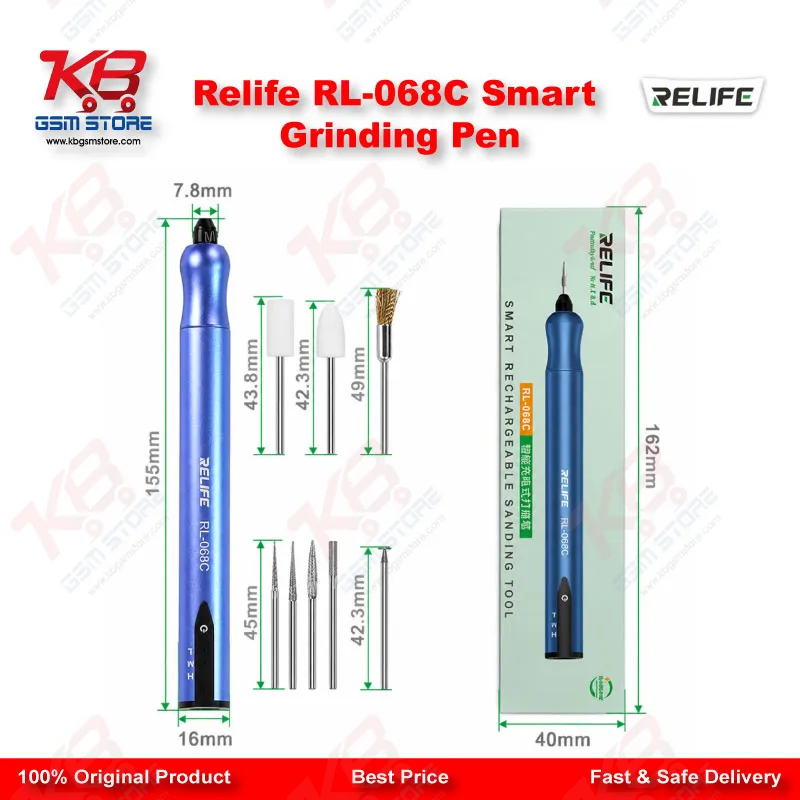

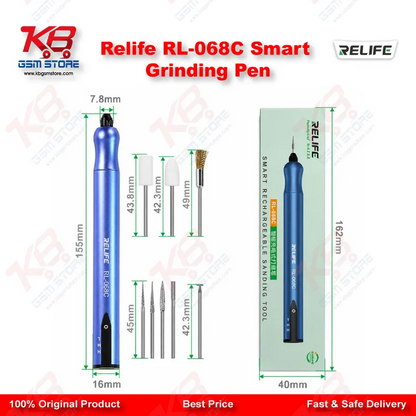

At roughly 52.8g and 155×16×17.8mm, the pen sits light enough in hand that hours of detail work don't tire your grip the way a full-size rotary tool would. The gourd-style body is shaped for one-hand control, which matters when your other hand is holding the board steady or guiding a probe.
Where this fits in your repair process: after diagnostics identify a dead IC or a hardware fault tied to a specific chip, the RL-068C handles the physical grinding step before reflow or replacement — cutting through excess solder, easing a stuck bracket, or cleaning corrosion off pads before you jump or reball. It's equally useful outside IC work: cutting a bent motherboard bracket, removing a rounded screw head that won't budge with a driver, or polishing a housing edge after a repair. For technicians running FRP lock jobs, dead-after-flash boards, or hang-on-logo cases that trace back to a hardware fault, having a reliable grinding tool on the bench shortens the path from diagnosis to fix.
Wireless operation is worth calling out specifically — you're not managing a power cord while maneuvering around a board full of components, which reduces the risk of snagging something mid-cut. Combined with the Type-C charging and compact battery, the RL-068C works as a genuinely portable tool you can move between workstations or take to a client site without extra setup.
For a repair shop running multiple boards a day, a dedicated grinding pen like this reduces reliance on shared bench equipment and keeps a precision tool at each technician's station. It won't replace a full rework station for heavy PCB repair, but for the grinding, cutting, and polishing steps that come up constantly in mobile repair work, it covers the job cleanly.
