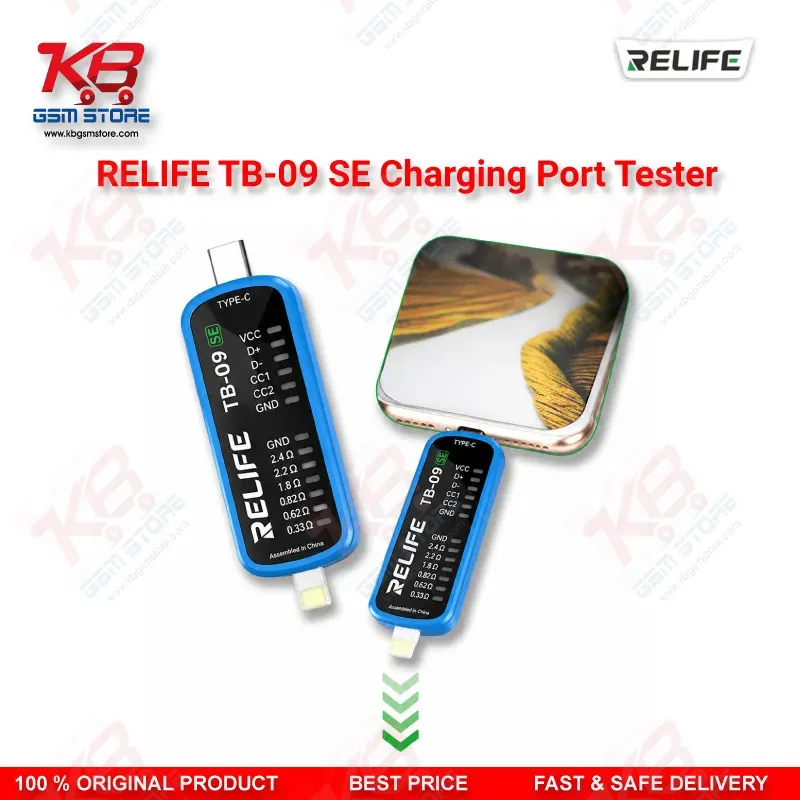

When a phone comes in with a charging issue, your first job is figuring out whether the fault is sitting right there at the port or buried deeper in the power circuit. Pulling the board apart before you know that wastes time on your bench. The RELIFE TB-09 SE Charging Port Tester exists to answer that question in seconds, before you pick up a screwdriver.

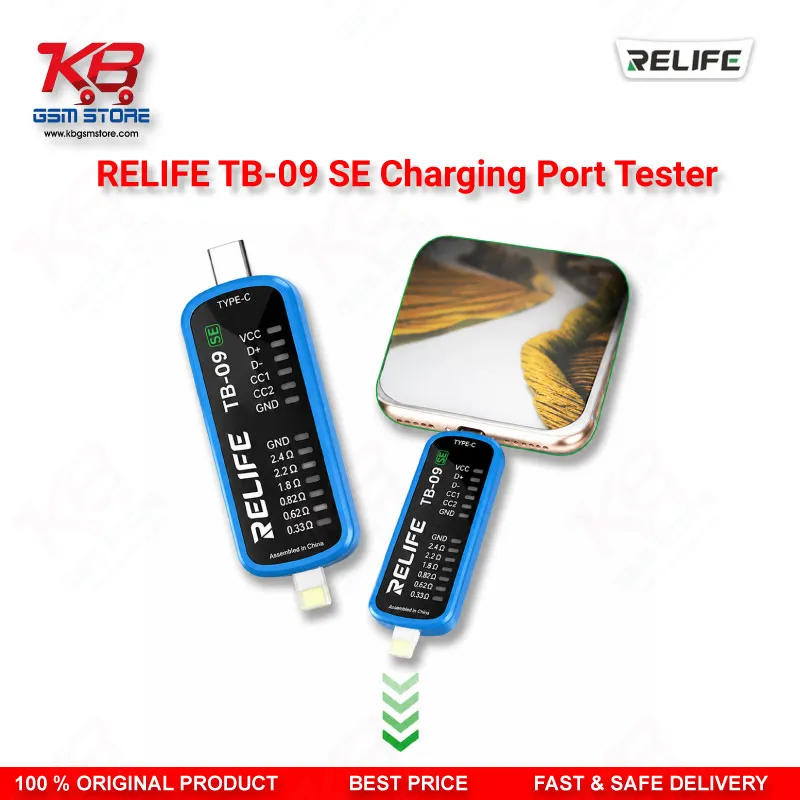

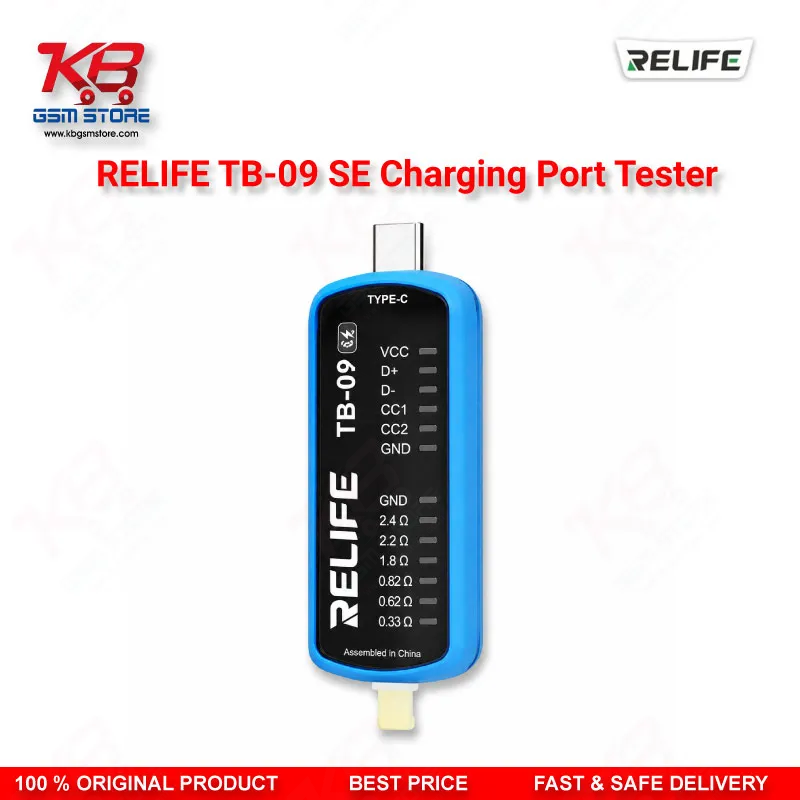

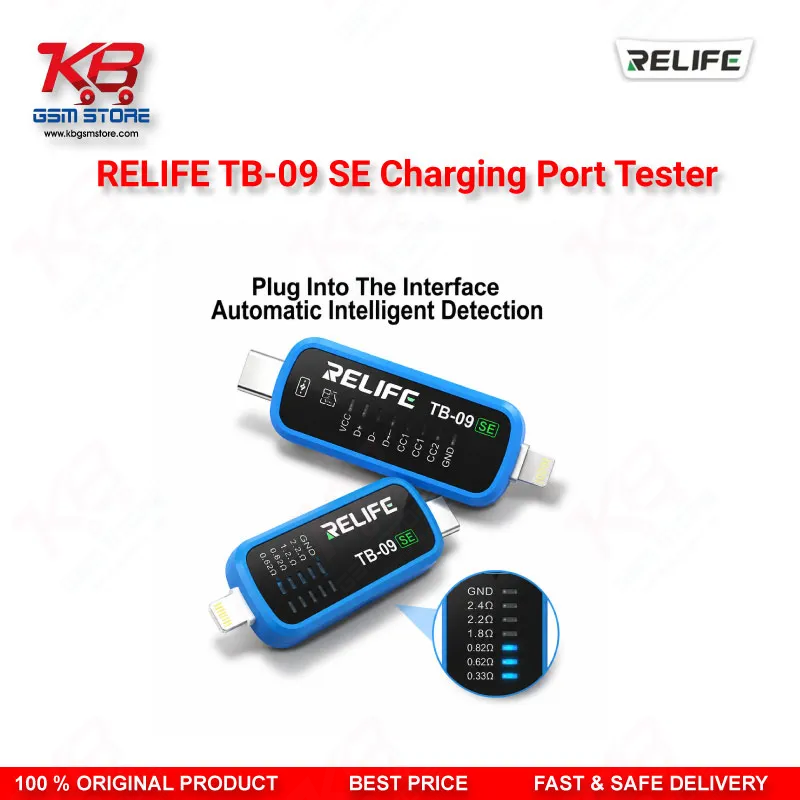

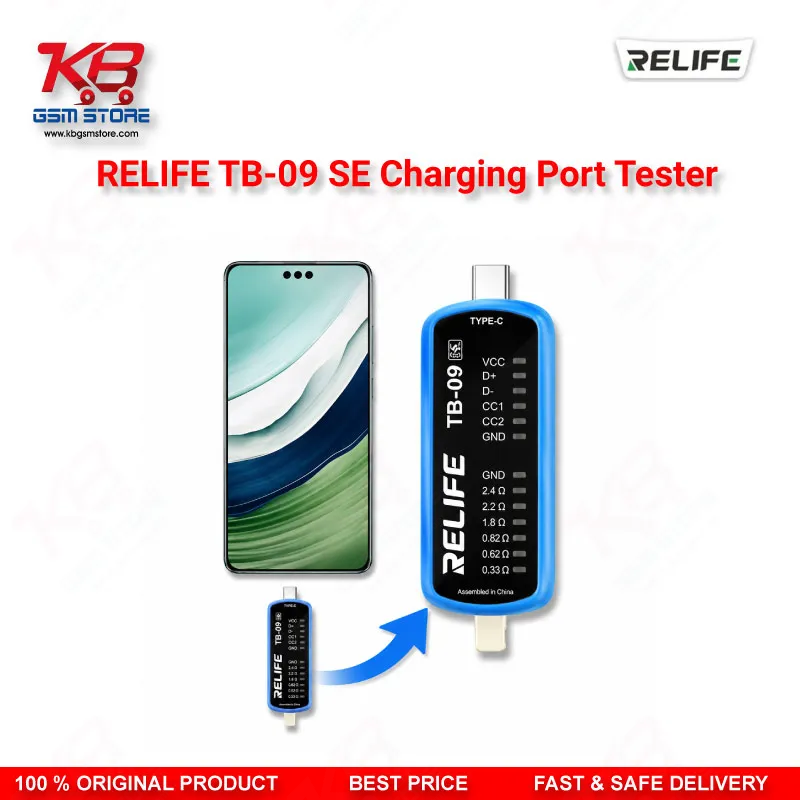

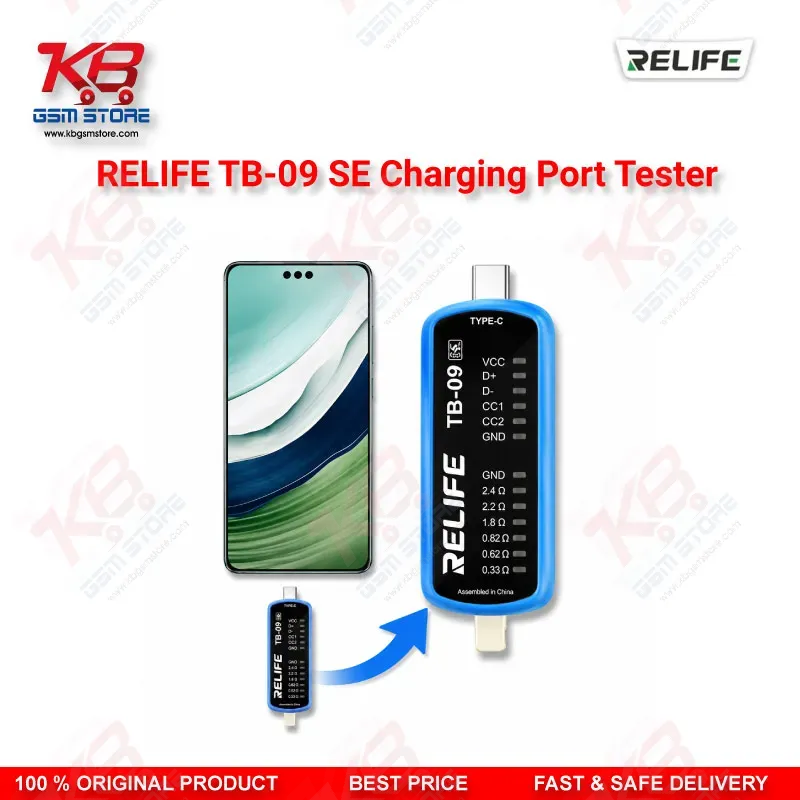

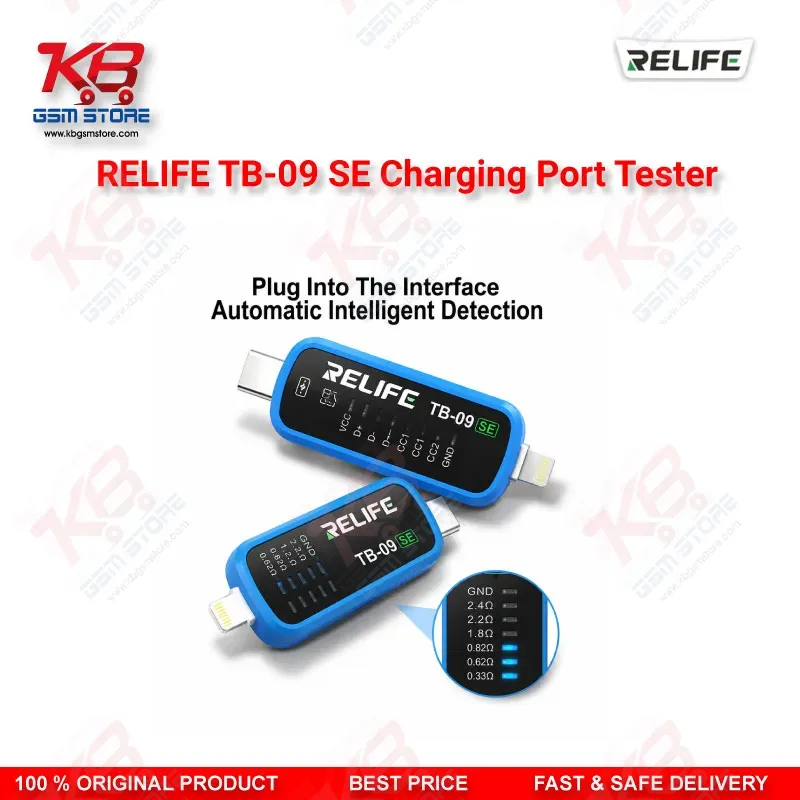

This tester carries dual Lightning (8-Pin) and Type-C plugs in one compact body, so you cover iPhone and Android repairs with a single tool. Plug it into the suspect port, and it automatically reads the diode characteristic value across the USB connection. That value tells you whether the port's PN junction is behaving normally, shorted, or open — and the small HD display shows you exactly that. A 0.00 reading means you're looking at a short circuit. OL on the screen tells you it's an open circuit. If the number shows up in red, the PN value is outside normal range, pointing to a partial fault that needs closer inspection.
This is the kind of fast pre-check that saves a dead phone from an unnecessary teardown. If the test comes back clean, you know the charging issue is downstream — maybe a battery fault, a software issue, or a connector elsewhere on the board — and you don't waste a jumper or risk damaging a healthy port chasing a ghost. If the test flags a short or open circuit right at the port, you've confirmed where to start your repair before you touch the iron.
For a workshop running through multiple charging issue cases a day, that kind of upfront clarity changes how you triage. You're not guessing whether it's hardware fault or charging issue, and you're not repeating "software marna" attempts on a phone that actually has a damaged port diode. The TB-09 SE gives you a hardware answer first, which is exactly where charging diagnostics should start.

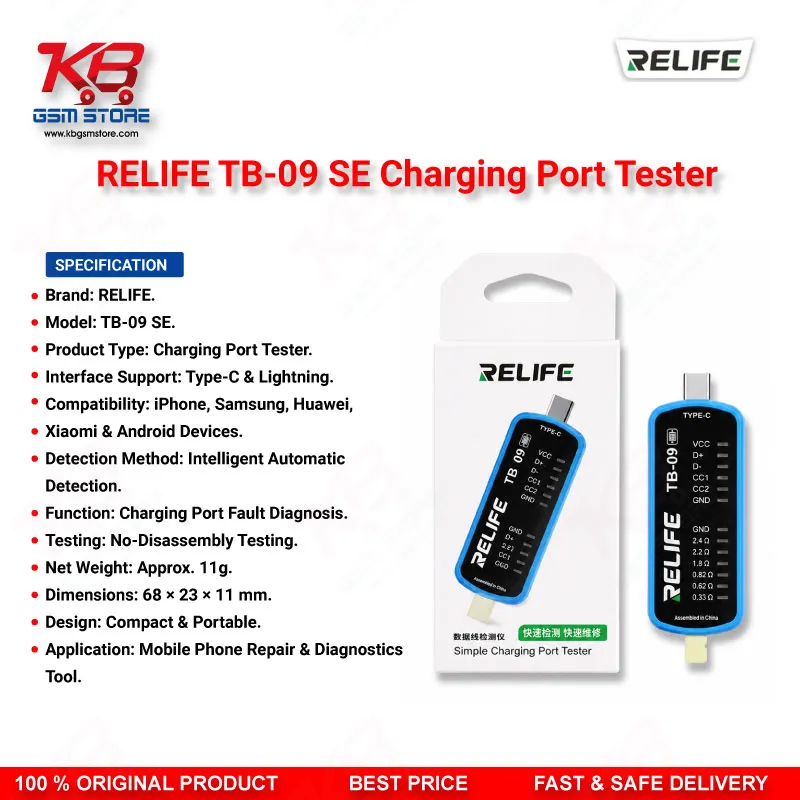

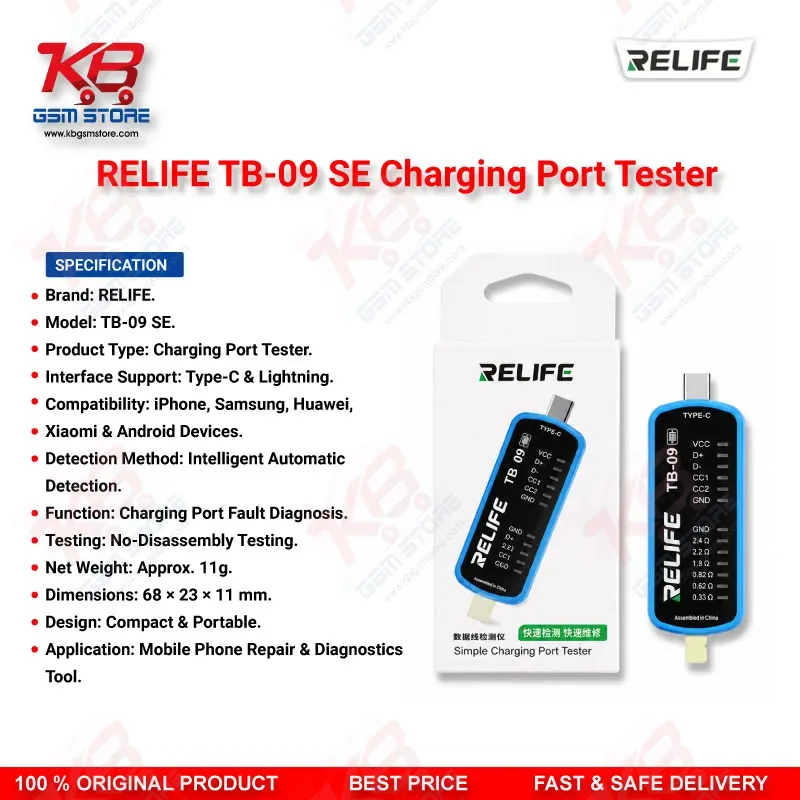

The tester is compact — at roughly 68x23x11mm and around 11g, it sits easily in a tool pouch or alongside your multimeter and test box on the bench. It's a no-disassembly check: connect the plug, read the result, decide your next step. No firmware, no software install, no calibration routine. That simplicity matters when you're handling volume — every minute saved on diagnosis is a minute back on actual repair work.
In terms of where this sits in your overall repair workflow, the TB-09 SE fits right at the diagnostics stage, ahead of soldering, reballing, or board-level rework. It pairs naturally with a multimeter for voltage confirmation, a test box for board-level power checks, and a microscope if the diode reading points you toward a damaged port pin or PCB trace that needs visual inspection. Many shops keep one of these next to the charging station specifically because it removes the back-and-forth of plugging a phone in, watching for a charging icon, unplugging, and guessing again.
If your bench handles a steady flow of charging port complaints — bent pins, corroded contacts, intermittent connection, or a port that simply won't pull current — this tester gives you a repeatable, objective check instead of relying on feel or a borrowed charging cable. It won't replace board-level diagnostic tools for deeper IC faults, but as a first-line charging port check, it tells you in seconds whether the problem is sitting right at the connector or somewhere else in the device.
For technicians working high device volume — service centers, repair shops, training labs — having a dedicated port tester like the TB-09 SE means less time spent on trial-and-error charging tests and more confidence in what you tell the customer about the actual fault.
