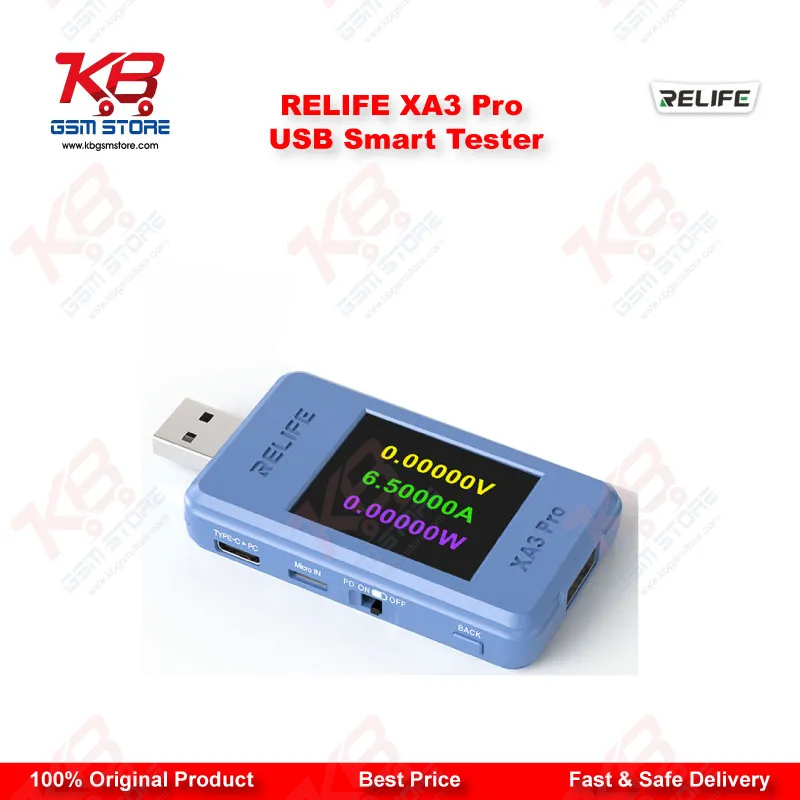

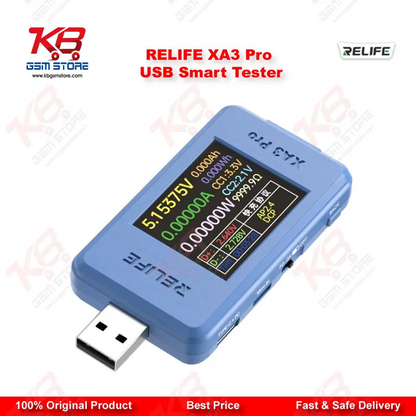

RELIFE XA3 Pro USB Smart Tester - PD QC Fast Charging Protocol Detector

Every GSM workshop deals with the same recurring complaint: "phone charging nahi ho raha" or "charging slow hai." Before you open the phone and start hunting for a faulty charging IC, you need to rule out the simple stuff first, and that is exactly where the RELIFE XA3 Pro earns its place on your bench.
This USB smart tester sits inline between the charger, cable, and device, capturing real electrical data instead of guesswork. It measures voltage across a 4V to 24V range and current up to 6.5A, with power readings up to 156W, covering everything from a basic 5V charger to modern high-wattage PD adapters. The measurement resolution goes down to 0.00001 on voltage, current, and power, sampled at 3.2Msps, which means you catch fluctuations a cheap multimeter would never show you. If a customer's charger is dropping voltage under load or a cable has excess internal resistance, the XA3 Pro exposes it in seconds rather than after a wasted IC replacement.
Fast charging protocol identification is where this tool saves the most bench time. It auto-detects PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP protocols, so when a customer says their Samsung, Oppo, Vivo, Infinix, or Tecno device isn't fast charging anymore, you can check within seconds whether the phone is actually requesting the correct protocol or if the negotiation is failing on the hardware side. This matters daily in Lahore, Karachi, and Islamabad markets where fast-charging complaints have become one of the most common walk-in issues, especially on mid-range and flagship Android devices running QC or PD-based charging.
Beyond basic voltage and current, the XA3 Pro also reads D+/D- voltage in the 0 to 3.3V range, which is critical when diagnosing charging identification faults. A lot of "charging IC change karna" cases actually turn out to be D+/D- line issues rather than a dead IC, and having a tool that reads this line directly stops you from swapping a good IC unnecessarily. The tester also tracks capacity up to 9999.99Ah and power consumption up to 9999.99Wh, useful when you're validating a customer's claim about battery drain or checking whether a power bank or adapter is actually delivering rated output over time.
Cable internal resistance testing, up to 9999.99Ω, is another practical addition. Bad cables are one of the most under-diagnosed causes of "charging slow" and "dead after flash" symptoms that technicians blame on hardware. Running a quick resistance check on the customer's own cable, before you touch the board, can save you an entire repair cycle.

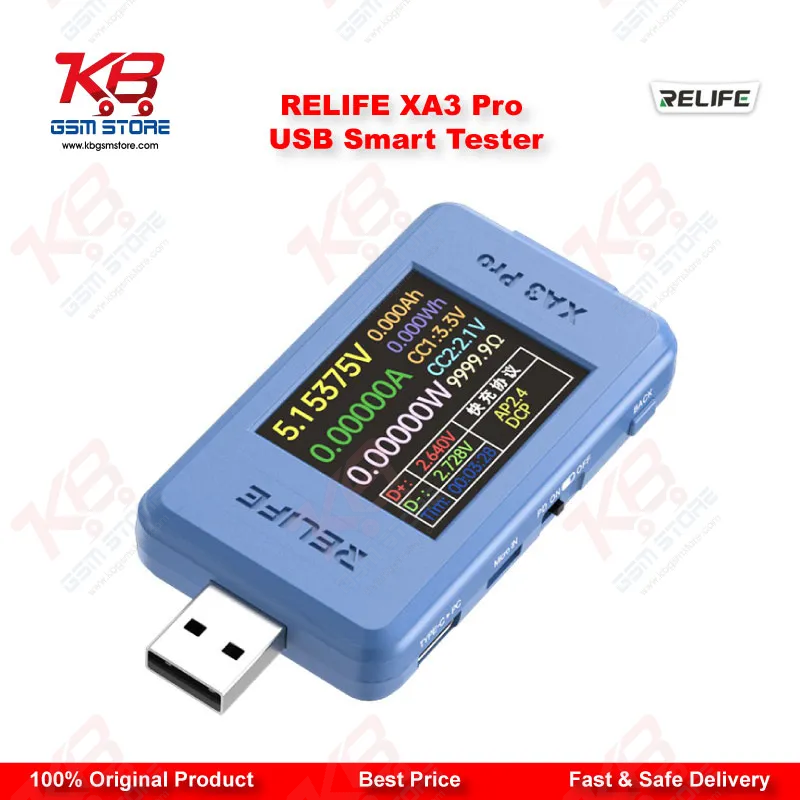

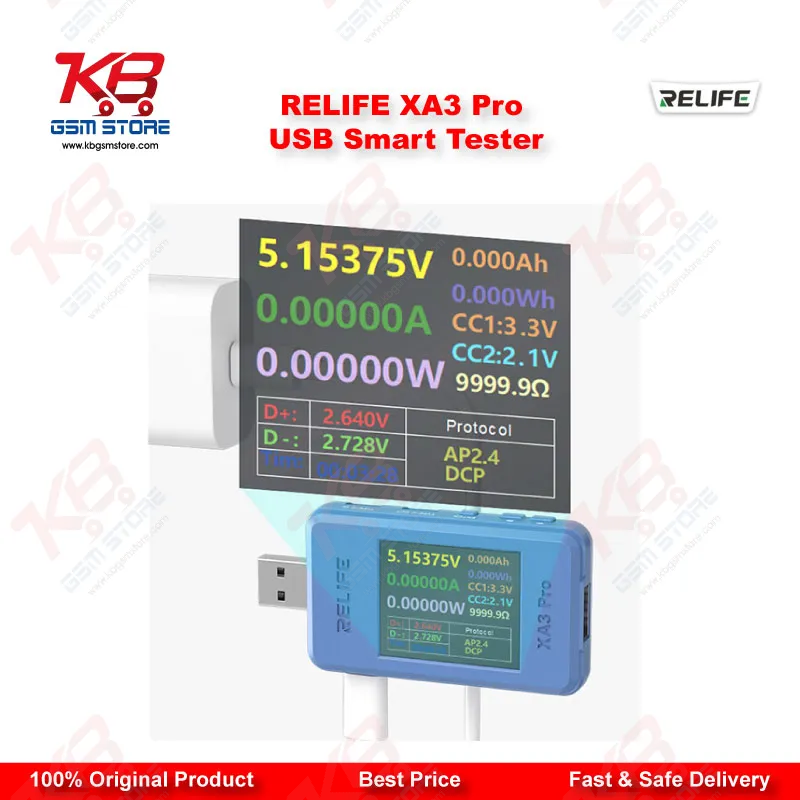

The 1.77-inch TFT display handles all of this without forcing you to squint at a tiny single-line screen. It supports both digital and curve display modes, so you can watch a voltage or current curve in real time to catch a charger that's cutting out intermittently, something a static reading would miss entirely. A long press flips the screen orientation, handy when the tester is plugged in at an awkward angle on a crowded bench.
Physically, the XA3 Pro is built to live in a tool pouch or drawer without taking up space. At 82 x 42.8 x 12.3mm and just 27.5g, it's light enough to carry between the shop and a client site for on-site charging diagnostics, which is common practice for service center technicians handling corporate device fleets.
For a workshop already running ISP tools, eMMC programmers, or reballing stations, the XA3 Pro fits as the first diagnostic step before any board-level work starts. Confirming clean charger output and correct protocol negotiation up front means less time spent chasing a "hang on logo" or "dead after flash" issue that actually originates from a faulty adapter rather than the phone itself. It's a low-cost addition to any repair bench that pays for itself the first time it prevents an unnecessary IC change.
