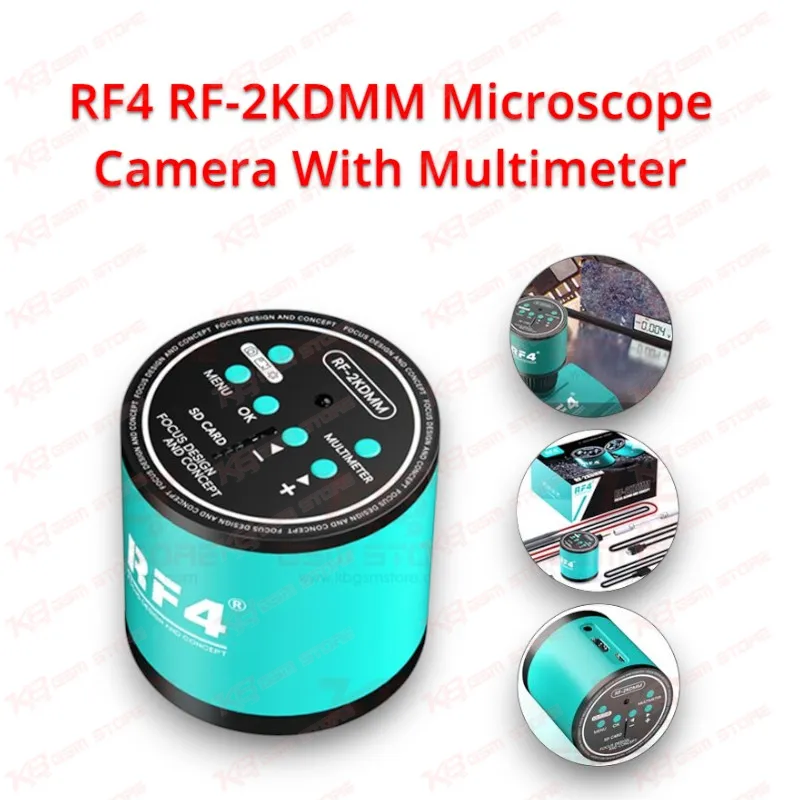

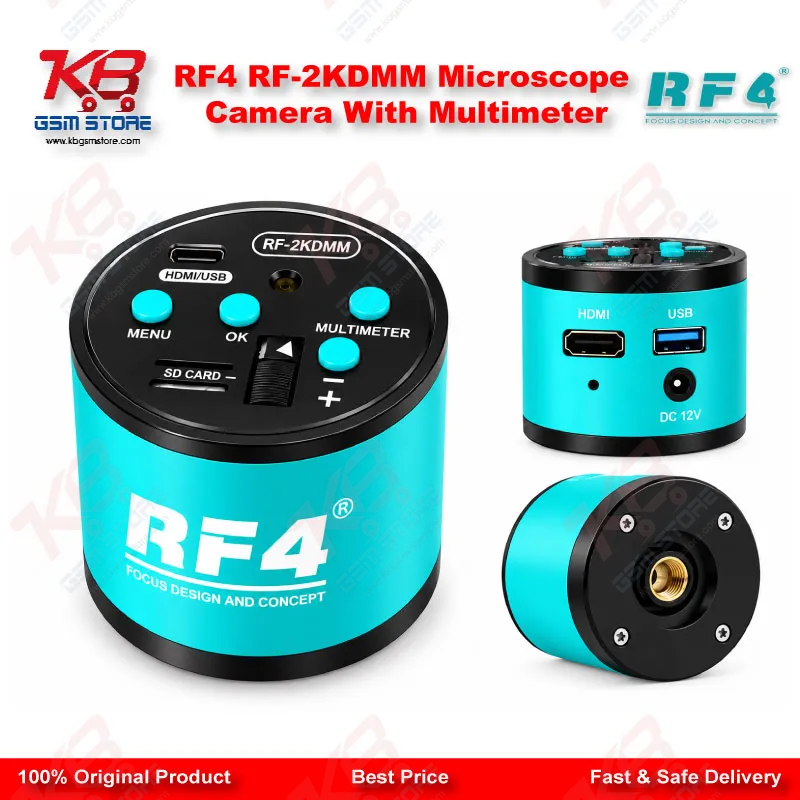

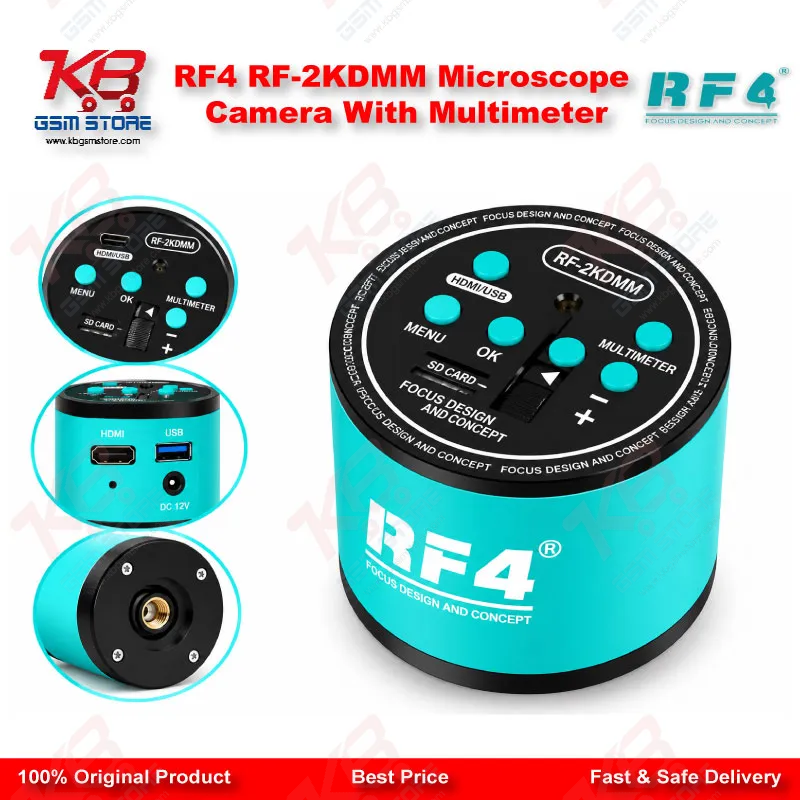

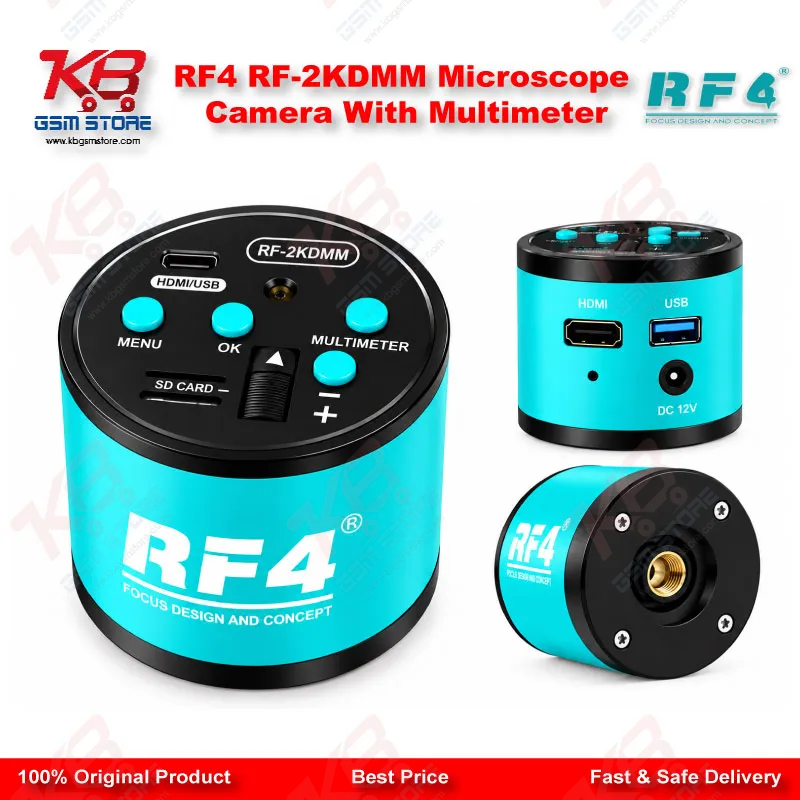

Every board-level technician knows the moment: the phone sits under the microscope, the probes land on a capacitor near the PMIC, and your eyes jump from the eyepiece to a separate multimeter screen and back again, losing the exact pad you were touching. The RF4 RF-2KDMM Microscope Camera With Multimeter removes that jump completely. RF4 built this camera for stereo trinocular microscopes and gave it a feature the brand describes as a first in the industry: a multimeter function that plugs straight into the camera and shows its live reading in the lower right corner of your monitor, right beside the magnified image of the board. You probe, you watch the pad, and you read the value on one screen without turning your head. That single change speeds up fault finding on dead phones, short-circuit hunting on the VBAT line, and component checks around charging ICs, because your eyes never leave the work area. On the imaging side, a 2K 1/2.8-inch CMOS sensor with 1920×1080 effective pixels and a 2 µm pixel size drives the picture, and the camera outputs a 2K 60 frames-per-second signal over HDMI. Sixty frames per second matters more than most buyers expect: when you move tweezers, drag a soldering tip across a flex connector, or push hot air over an underfill-covered CPU, a low-frame-rate camera smears the motion and your hand-eye coordination suffers, while a 60FPS feed keeps tip movement smooth and natural, so microsoldering under the monitor feels close to working through the eyepieces. For recording, the RF-2KDMM offers three video modes: 4K at 25 frames for maximum detail, 1080P at 30 frames for clear everyday clips, and 720P at 60 frames when you want smooth motion. That flexibility lets you record a before-and-after of a reballed PMIC for a customer, build a training library for junior technicians in your shop, or produce repair content for social media without extra capture hardware. A USB connection gives you 1080P at 20 frames, 720P at 30 frames, and WVGA at 60 frames when you want to feed the image to a PC. A professional image-processing DSP with 3D noise reduction cleans up the picture and restores natural colours and fine detail, which helps you separate a burnt resistor from a dark-coloured one, spot a cracked BGA solder joint, or confirm that a filter coil sits flat after reflow. Stepless 1X to 16X magnification lets you zoom smoothly on screen without swapping objectives, so you can go from a full-board overview straight to a single pin on a charging port connector. The menu gives you real control over the image instead of fixed presets: AE lock and ten-level exposure compensation hold brightness steady when your ring light reflects off shiny shields, white balance runs in auto mode, manual mode with ten-level R, G and B adjustment, or calibration mode, and contrast, saturation and sharpness each adjust across ten levels. That depth matters on Pakistani repair benches, where lighting varies from shop to shop and a camera that locks exposure saves you constant readjustment. Comparison tools add serious diagnostic value. The RF4 RF-2KDMM Microscope Camera With Multimeter freezes a full-screen image and runs picture-in-picture comparison in left-right, up-down, and quarter-screen layouts. In practice, you freeze a reference image of a known-good board, then compare it live against the faulty unit under your lens, which makes missing components, corroded pads after water damage, and wrongly oriented parts obvious in seconds. Eight groups of on-screen grid lines, each adjustable in position, colour, and thickness, help you align a CPU before reflow, centre a stencil during reballing, or check the placement of a replacement IC against the silkscreen outline. The on-screen menu runs in English, Simplified Chinese, or Traditional Chinese. Now back to the feature that sets this model apart. The integrated multimeter function handles resistance, voltage, diode, capacitance, and frequency detection on BGA, SMD, and PCB work. Think about how you actually diagnose a dead phone with a short: you inject voltage, find the hot component, then confirm with diode-mode readings against a reference board, and every one of those steps now happens on one display. On a charging issue, you read voltage at the charging IC input and output while viewing the exact test point under magnification. On a network issue, you check resistance and diode values around the RF section while the zoomed image confirms you touched the right pad and not its neighbour. When a phone hangs on the logo or goes dead after flash and you suspect a hardware fault rather than a software problem, diode-mode readings on the memory lines tell you quickly whether the eMMC or UFS section deserves attention before you move to your eMMC Programmers, UFS Adapters, or ISP Pinout Tools. The package includes the camera, two test leads, an extension cable, an HD cable, and a Type-C cable, so you can set up the measurement side right out of the box. Where does this camera fit in a complete repair workflow? It sits on the trinocular port of stereo Microscopes and becomes the visual hub of your bench. Your Hot Air Stations and Soldering Stations handle the rework, your Reballing Kits handle BGA restoration, your PCB Holders keep the board steady, and your Test Boxes and dedicated Multimeters cover heavier testing, while the RF-2KDMM ties inspection and measurement together on one screen. For shops currently running a basic USB microscope camera, this model marks a clear upgrade path: higher frame rate, HDMI output that needs no computer, 4K recording, and a measurement overlay that a plain camera cannot offer. Service centres that train new technicians get extra value too, because a trainer can point at the monitor, show probe placement, and let students read the live value together instead of crowding around an eyepiece. The RF-2KDMM works at board level rather than tying itself to a specific handset, so it suits every major platform you see in a Pakistani repair shop, including Samsung, Oppo, Vivo, Infinix, Tecno, Xiaomi, Realme, and iPhone boards, and suppliers also promote it for car ECU repair and general electronics PCB work. If your daily workload includes IC replacement jobs, CPU reballing, charging port replacement, or short-circuit tracing on dead handsets, the RF4 RF-2KDMM brings magnification, recording, comparison, and live measurement into one compact camera, and KB GSM Store stocks it for technicians, repair shops, and service centres across Pakistan who want to turn a standard microscope into a complete inspection and diagnosis station.
