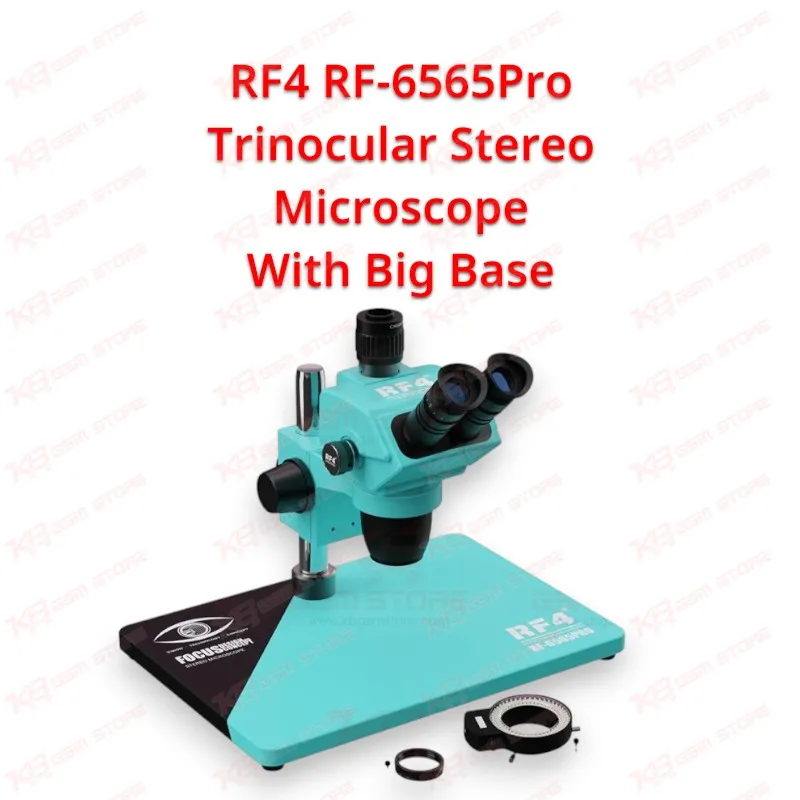

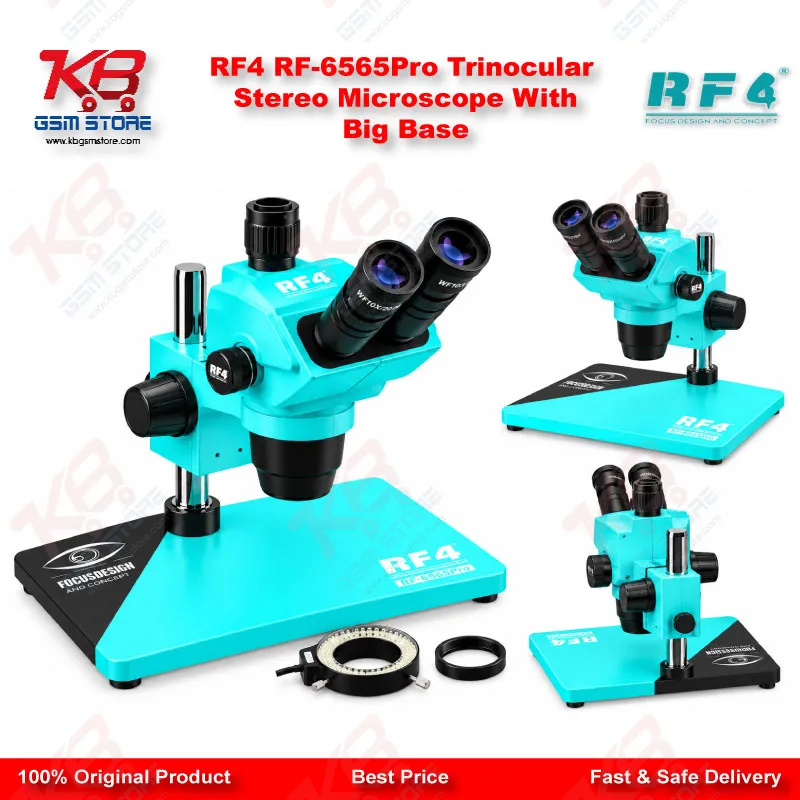

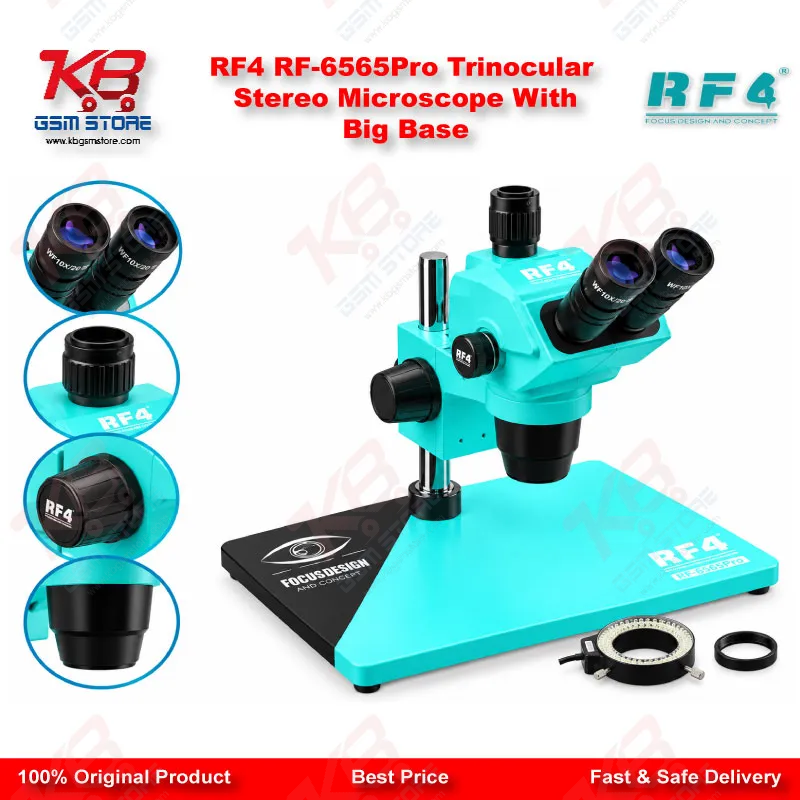

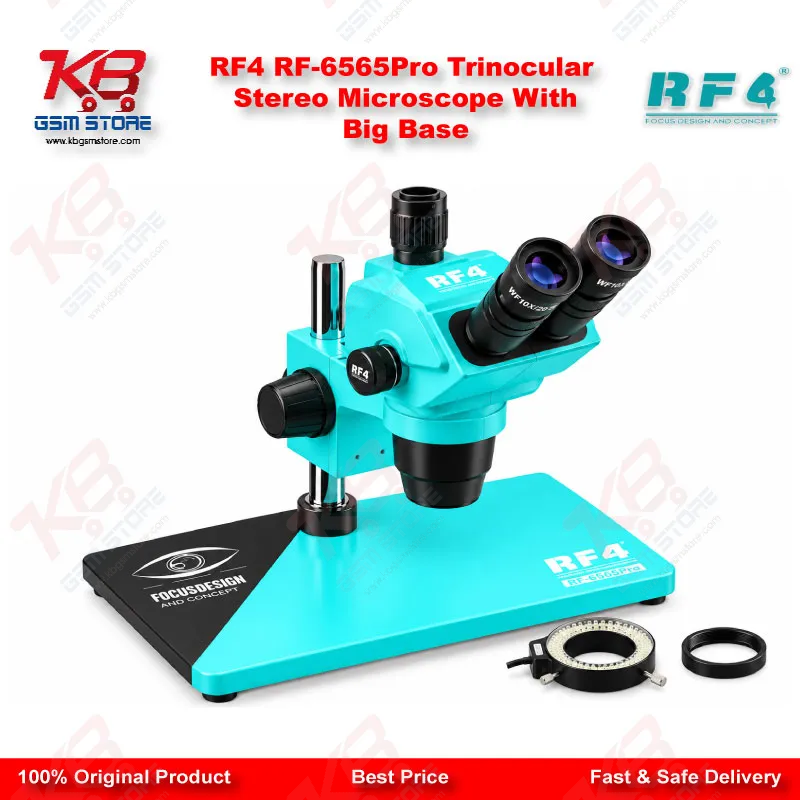

Every serious board-level repair starts with what you can actually see, and the RF4 RF-6565Pro Trinocular Stereo Microscope With Big Base puts a clear, three-dimensional view of the smartphone motherboard right in front of your eyes. When a customer walks into your shop with a dead phone, a charging issue, a network issue, or a handset stuck in a boot loop, the fault usually hides in a component smaller than a grain of rice: a cracked 0201 capacitor, a lifted pad under a PMIC, a corroded filter near the charging port, or a broken trace between the CPU and the memory. A stereo microscope turns those guesses into confirmed findings, and this RF4 model gives you the optical range to move from a full-board overview down to individual solder balls without switching tools. The optical system runs a continuous zoom from 6.5X to 65X, built from a 0.65X-6.5X zoom objective paired with WF10X/23mm wide-field eyepieces. At the low end you see a large section of the logic board, which helps you plan hot air nozzle placement, spot missing shields, and locate liquid damage patterns across several component groups at once. As you turn the zoom knob, the image stays in stereo, so you judge depth naturally: you can tell whether a solder joint sits flush or floats above its pad, whether a connector pin bends upward, and whether residue sits on top of a component or wicks underneath it. That depth perception separates a stereo microscope from a flat digital camera view, and it matters most when your tweezers and soldering iron tip operate in the same tight space as the part you inspect. RF4 adds a nine-speed zoom lock key to the zoom mechanism, which lets you park the magnification at a repeatable step. This helps when you move back and forth between tasks, for example checking a reballed CPU at one fixed level and then returning to exactly the same view after flux cleaning. The 23mm field of view on the WF10X eyepieces gives you a wide, comfortable view circle, and the adjustable eyepiece design lets you correct focus differences between your two eyes so both images merge cleanly without eye strain. The head sits at a 45-degree incline and rotates a full 360 degrees, so you can turn the optics toward a second technician, a trainee, or a customer without moving the board under the lens. The trinocular design is where this model earns its place on a modern repair bench. The third port carries a 0.5X camera connector, and the RF-6565Pro zooms the camera path and the eyepiece path synchronously. When you mount a compatible microscope camera and connect it to a monitor, the screen follows every zoom change you make at the eyepieces, so you never re-zoom the camera separately. This synchronous zoom helps in several daily situations: you can show a customer the corrosion behind their charging problem before you quote a price, record a CPU reballing session for your training archive, share a live view with students at a technical institute, or photograph a board before and after repair for your service records. Repair shops that show customers the actual hardware fault on screen find it far easier to get approval for an IC-level job. Lighting decides how much detail you actually extract from a lens, and RF4 includes a 144-LED ring light with adjustable brightness. The ring surrounds the objective and throws even, shadow-free illumination across the board, which matters when you inspect shiny BGA balls, black epoxy underfill, and reflective shield frames that create glare under a single spot lamp. You can dim the ring for reflective surfaces and raise it for darker underfilled areas around the CPU and the eMMC or UFS memory. RF4 also fits a dustproof protective lens in front of the objective. During hot air rework, flux burns off and smoke rises straight toward the optics; the protective lens takes that exposure instead of the objective glass, and you can clean it without disturbing the optical alignment. The multi-layer lens dust structure adds a second line of defense against the fine dust that settles in every busy workshop. The big base completes the package and makes a real difference in stability. RF4 builds the body from all-metal parts, with aluminum alloy for the black sections and chrome-plated copper for the silver bayonet, so the whole assembly feels solid and resists wobble when you lean on the bench or apply pressure with a soldering iron. The stand uses a 32mm column, the lens holder takes a 76mm body, the center distance measures 155mm, and the focus mechanism gives you 50mm of lifting range. That working space leaves enough clearance to fit a PCB holder, a preheater platform, or a board fixture under the lens while you still have room to maneuver a hot air nozzle and a soldering iron at a comfortable angle. A heavy, wide base also keeps the microscope from tipping when you swing the head toward a monitor or a colleague. In the repair workflow, this microscope touches almost every hardware stage. During diagnostics, you pair it with a DC power supply and a multimeter to trace a short circuit, then use the magnified view to find the exact capacitor that heats up or shows burn marks. During removal, it guides your hot air station as you lift a PMIC, charging IC, audio IC, or RF chip without damaging nearby pads. During preparation, it lets you check pad condition after wick cleaning and confirm that no bridges remain before you place a new part. During reballing, it shows you whether each ball sits centered on the stencil and whether the reflowed array looks uniform. During jumper work, it gives you the precision to route a thin copper wire from a broken trace to a healthy test point. For eMMC and UFS repair, it helps you locate ISP pinout test points accurately before you solder programming wires for your box. After the repair, a final inspection at 65X catches the tiny solder balls and flux residue that cause intermittent faults and customer comebacks. For technicians who currently rely on a basic binocular microscope, the RF-6565Pro represents a clear upgrade path toward camera-assisted work, and for shops just moving into board-level repair, it provides the magnification range, lighting, and stability that serious IC work demands from day one. Combine it with a quality soldering station, a hot air station, a reballing kit, and a PCB holder, and your bench covers the full cycle from fault finding to final quality check on iPhone, Samsung, Oppo, Vivo, Infinix, Tecno, and every other smartphone board that reaches your counter.
