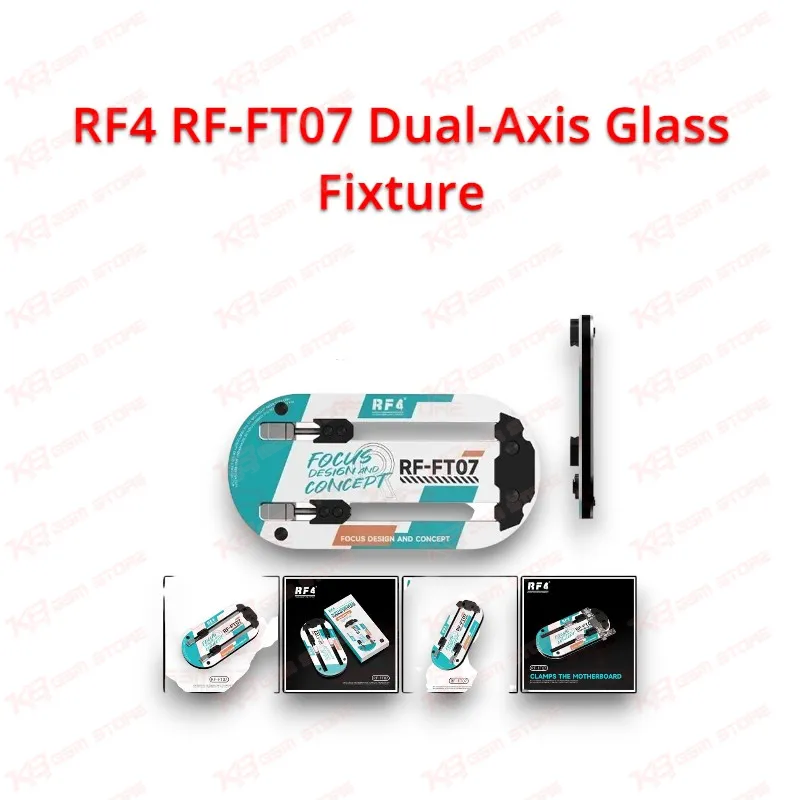

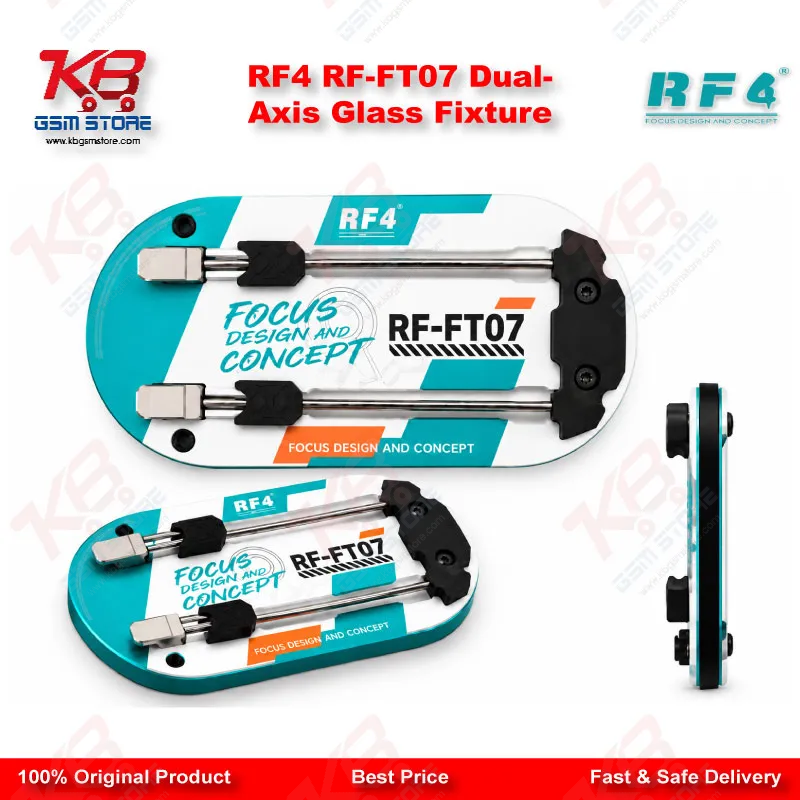

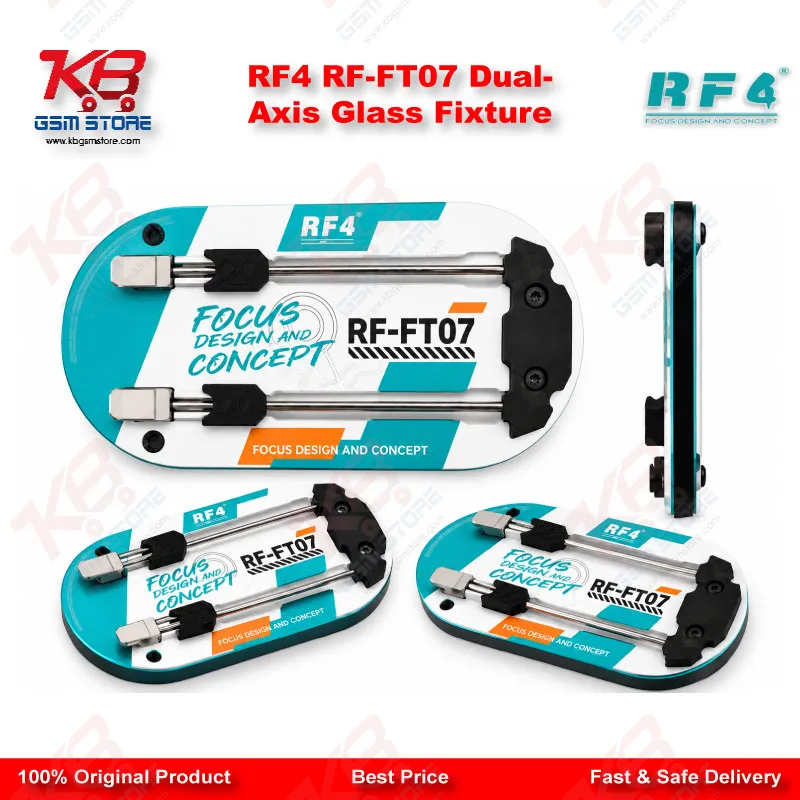

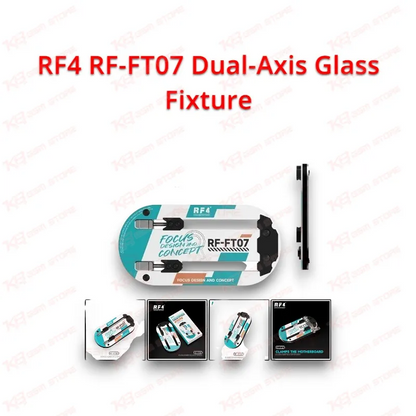

RF4 RF-FT07 Dual-Axis High-Temperature Reinforced Glass Motherboard Repair Fixture

When you're holding a board for IC change or chip-level work, the fixture under your hands matters as much as the iron in them. The RF4 RF-FT07 Dual-Axis High-Temperature Reinforced Glass Motherboard Repair Fixture gives your repair bench a stable base that won't warp or crack when hot air gets close to it during soldering.

The glass base is built with heat-insulating tempered glass, so it absorbs the heat from your hot air gun or soldering iron without transferring damage to the motherboard sitting on top. You get a flat, reliable platform that stays usable shift after shift, even in workshops running multiple boards a day.

The dual-axis movement is what separates this fixture from a basic single-clamp holder. You can adjust the position of the motherboard along two axes instead of one, which means you reach awkward IC and chip locations without fighting the board's natural shape. Whether you're working on a hang on logo case, a board with network issue symptoms, or a dead after flash board that needs a chip reflow, the dual-axis adjustment lets you angle the board exactly where your iron or hot air needs to go.

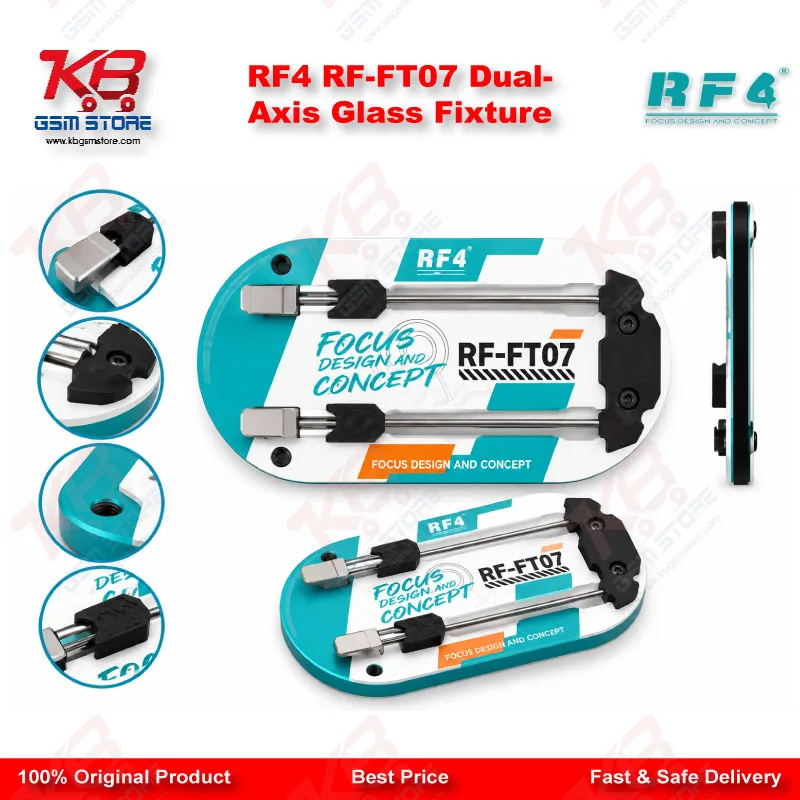

The double-layer clamping mouth is the other piece that makes this fixture worth keeping on your bench. It grips the motherboard and chip from two contact points instead of one, which reduces the slipping you get with cheaper single-point clamps. When you're applying pressure during a reball or pressing a chip back into place after jumper lagana work, that extra grip stops the board from shifting mid-task and ruining your alignment.

Universal compatibility is built into the design, so the RF-FT07 works across a wide range of mobile phone motherboards and PCBs rather than locking you into one device family. For a Pakistani repair shop juggling Android boards from different brands on the same day, that flexibility means one fixture covers most of your daily workload instead of needing a separate holder for every board size.

In a typical mobile repair workflow, this fixture sits at the diagnostic and rework stage — after you've identified a hardware fault through testing, and before you start soldering, desoldering, or chip replacement. It holds the board steady while you isolate a faulty IC, run continuity checks with a multimeter, or prep the board for reballing under a microscope. For PCB repair tasks involving CPU or eMMC-related chip work, having the board locked in place at the right angle cuts down repair time and lowers the risk of damaging surrounding components.

Durability is built around materials chosen for stability and resistance to heat over repeated use, so the fixture holds its shape and grip strength through continuous soldering sessions rather than degrading after a few jobs. For service centers handling network issue repairs, display problem boards, or software marna jobs that also need hardware-side chip work, the RF-FT07 fits naturally next to your hot air station, soldering iron, and microscope as a core piece of your rework station setup.

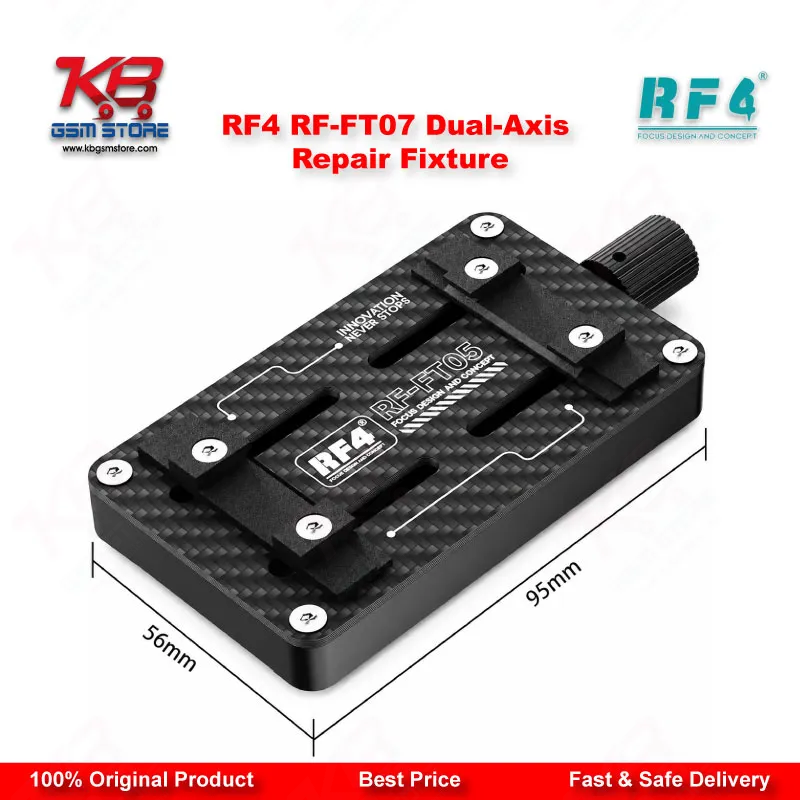

Compact in size and reasonably weighted for desk use, the fixture doesn't take up excessive bench space, which matters in smaller repair shops where every inch of the workstation counts. For technicians who handle a high volume of boot loop issue and charging issue repairs daily, a dependable holding fixture like this reduces handling errors and keeps your soldering work consistent from board to board.
