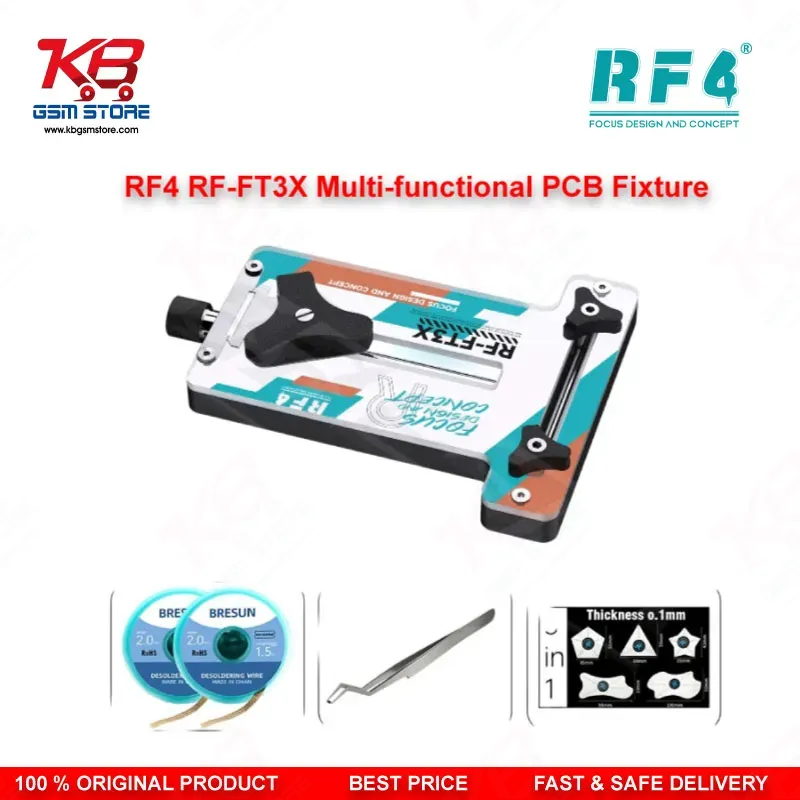

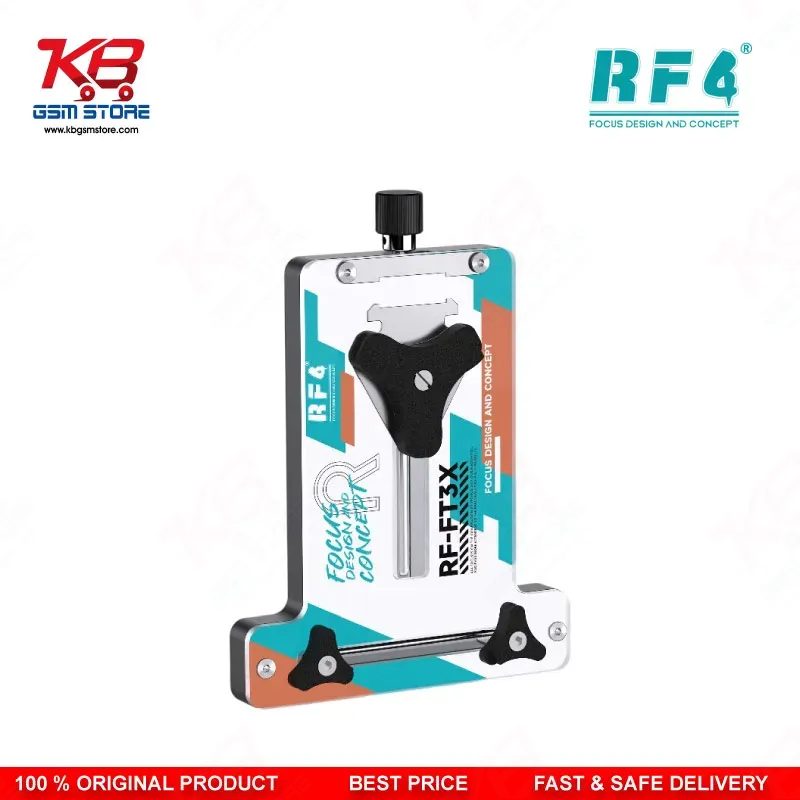

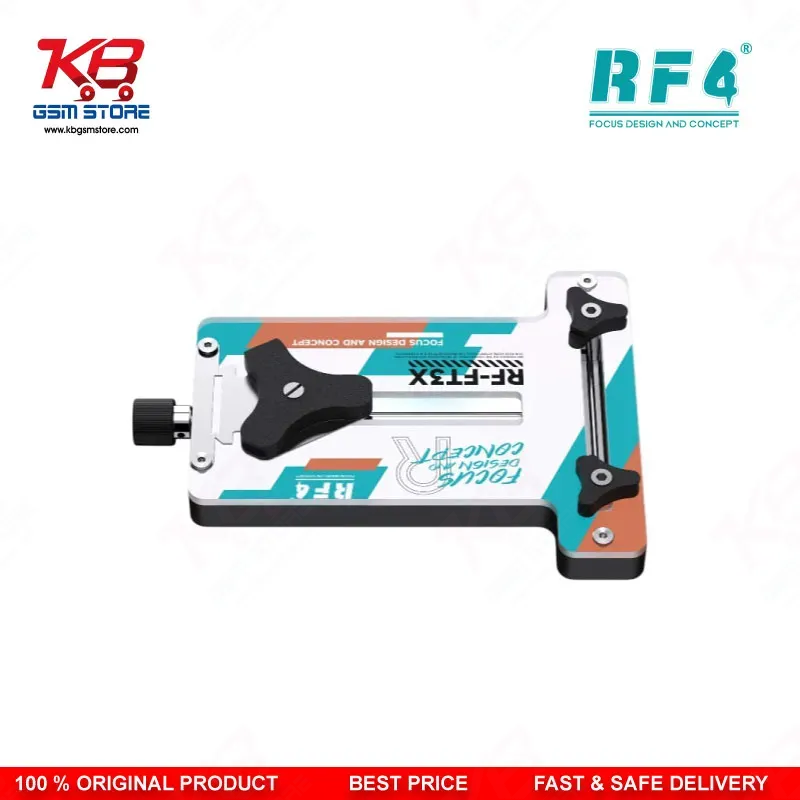

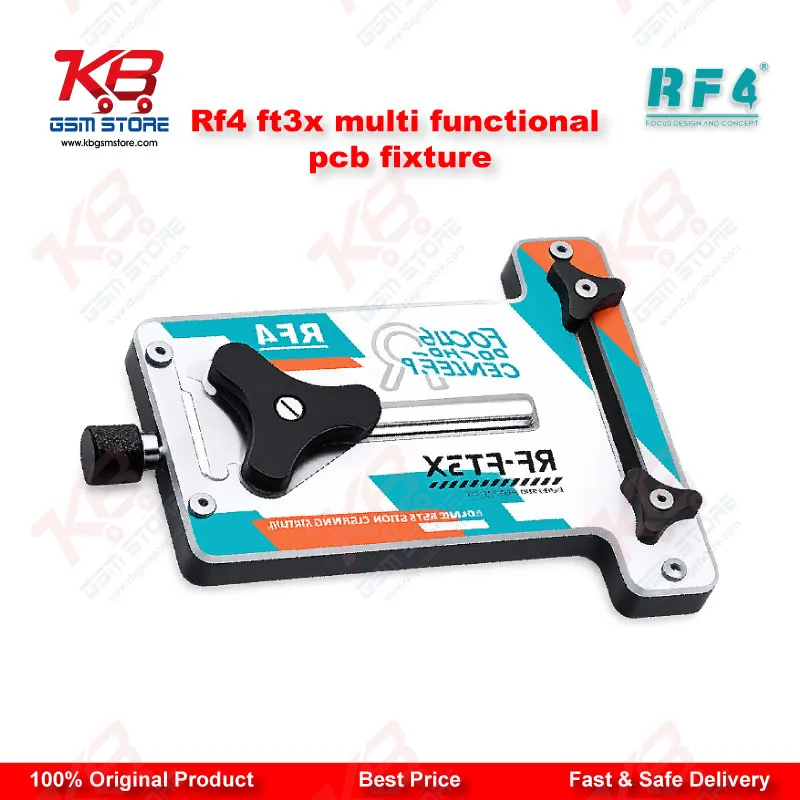

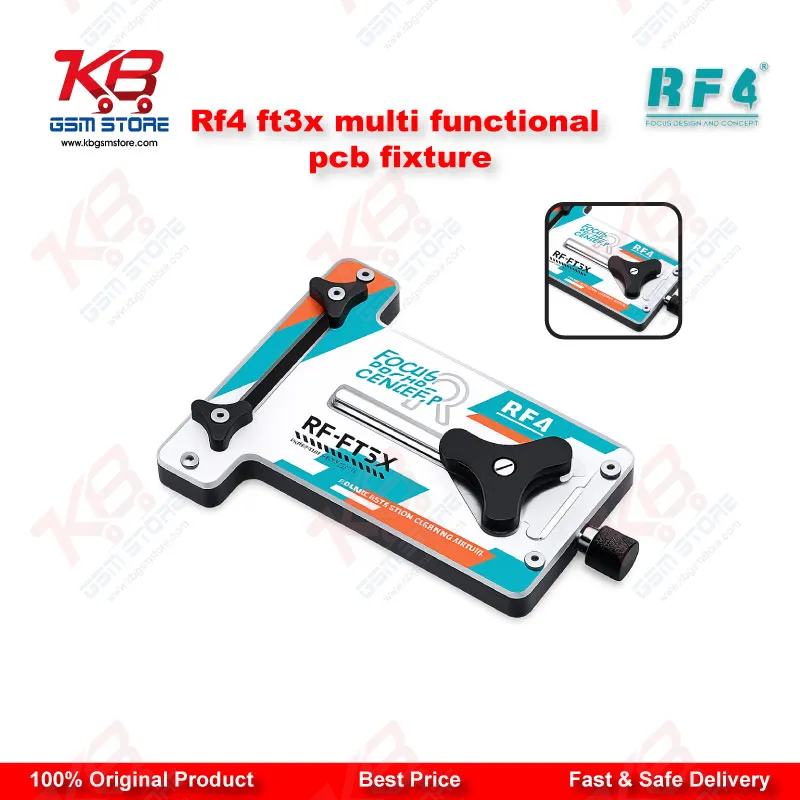

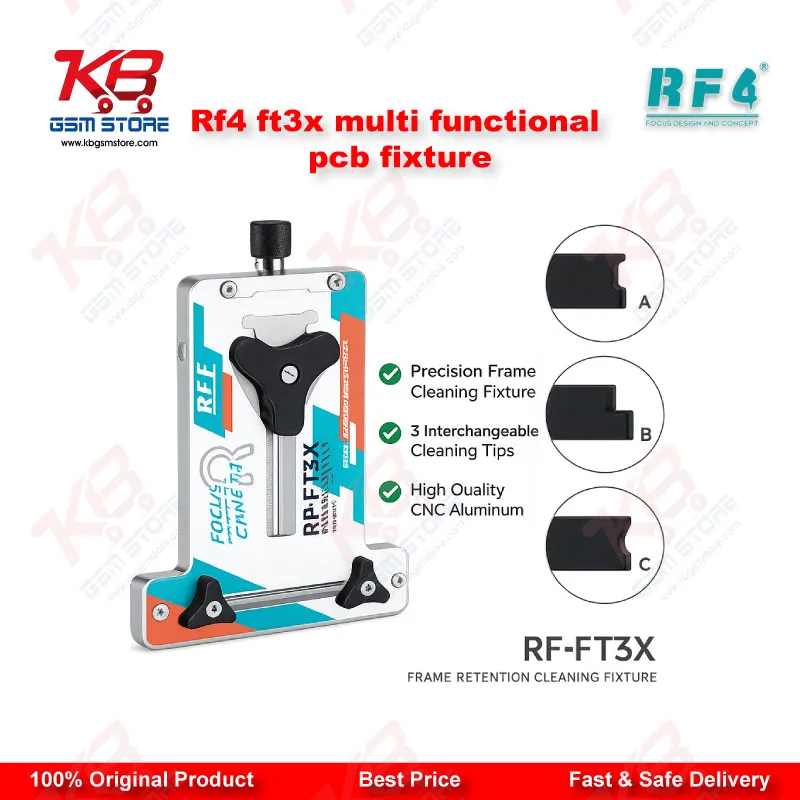

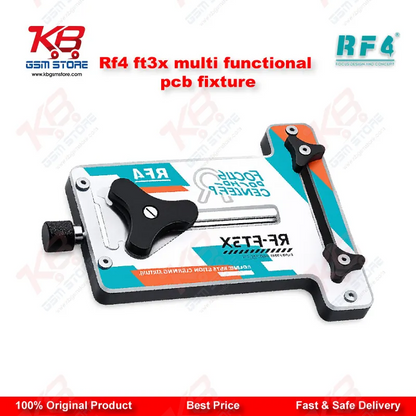

When you're working on a dead phone motherboard, the last thing you want is a board that shifts position halfway through a reflow. That's exactly the problem the RF4 RF-FT3X solves on your repair bench. Built as a multi-functional PCB fixture, it gives you a stable platform that holds the motherboard in place while you apply hot air, reball a BGA chip, or run jumper wires between test points.
The base plate is made from heat-insulated glass, so it stays cool to the touch and resistant to warping even during extended hot air sessions on the same spot. Underneath, a metal frame keeps the whole fixture rigid, which matters when you're applying downward pressure to clamp an oddly shaped board or pressing a chip into place during reballing.
What sets the RF-FT3X apart from basic PCB holders is the dual independent sliding block design. Instead of a single fixed clamp that forces every board into the same position, you get two sliders that move on the left and right sides independently. This means you can grip a small tablet motherboard on one side and a wider laptop PCB on the other without swapping fixtures or fighting with the clamp to get an even grip. For repair shops in Pakistan handling a mix of Android, iPhone, and laptop boards in the same day, this flexibility cuts down the time you spend repositioning between jobs.
The three rotation modes are where this fixture earns its place in chip-level repair work. Mobile phone motherboards are getting denser, and BGA chips are often tucked into corners or under connectors where straight-on access is impossible. With the RF-FT3X, you rotate the board to whatever angle gives you a clear line to the chip, lock it in place, and continue your soldering or hot air work without holding the board with one hand. This is especially useful during CPU reballing, where you need both hands free to manage the stencil and solder paste while the board stays perfectly still underneath your microscope or hot air station.
Irregularly shaped boards are common in real workshop conditions, especially with custom Chinese phone PCBs, gaming phone motherboards, and laptop boards with non-standard edges. The clamping mechanism on the RF-FT3X is designed to adapt to these shapes rather than forcing a rectangular grip, which means fewer cracked boards from uneven pressure during clamping.
In a typical workflow, this fixture sits between your inspection stage and your rework stage. After diagnosing a board with charging issue, no display, or network issue symptoms and identifying the faulty IC or connector, you move the board onto the RF-FT3X, lock it at the angle you need, and proceed with desoldering, IC change karna, or jumper lagana directly on the held board. Once rework is complete, you rotate back to a flat position for final inspection before reassembly.
For service centers and repair shops running multiple boards through the bench daily, having a fixture that adapts to different board sizes and angles reduces handling time and protects boards from accidental drops or shifts during delicate operations. The RF4 RF-FT3X fits naturally alongside your hot air station, soldering iron, and microscope as a core part of your PCB rework setup.
