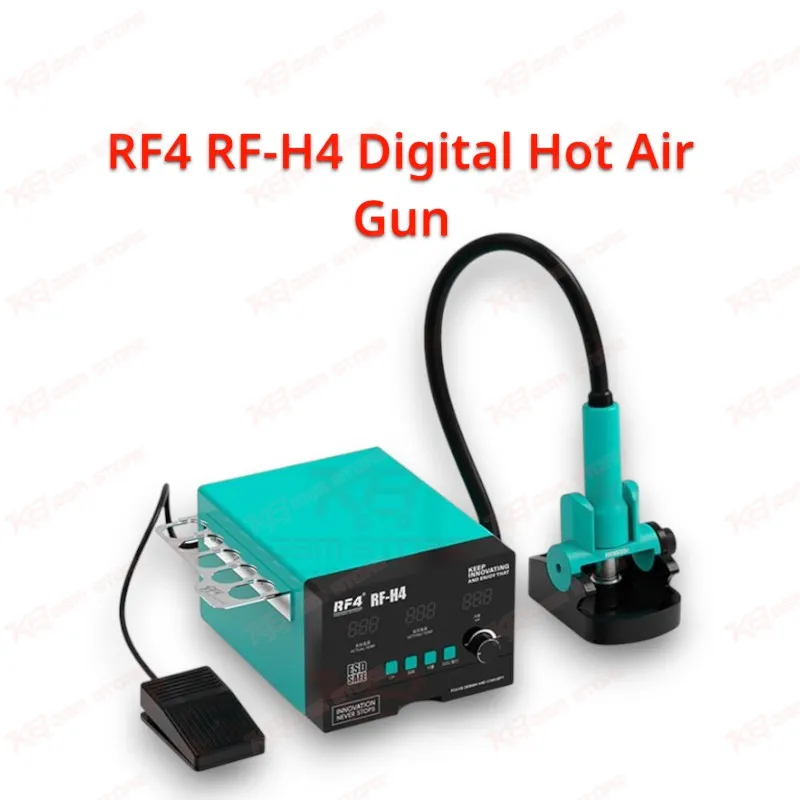

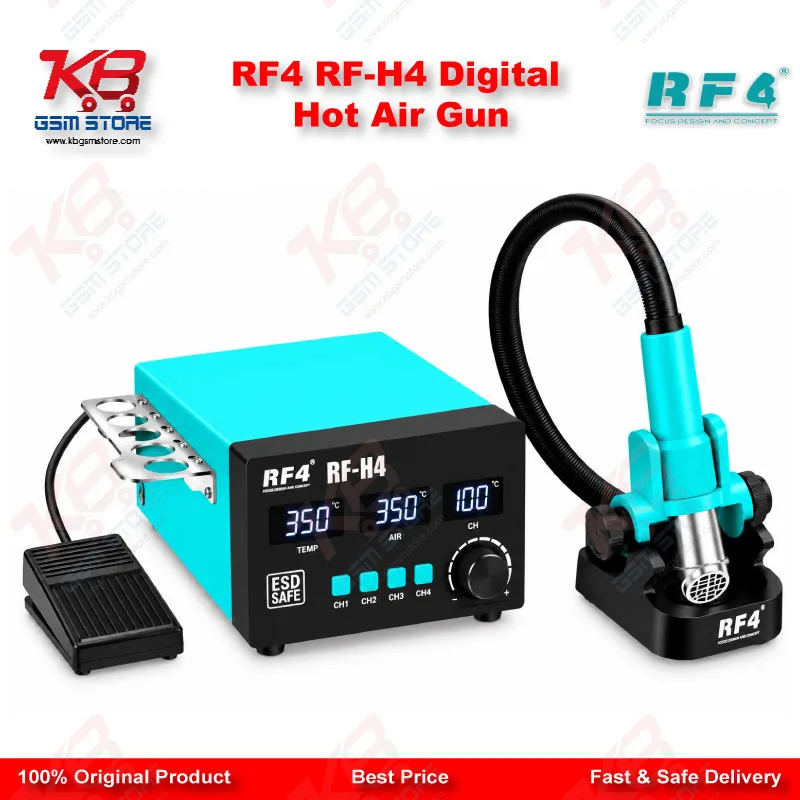

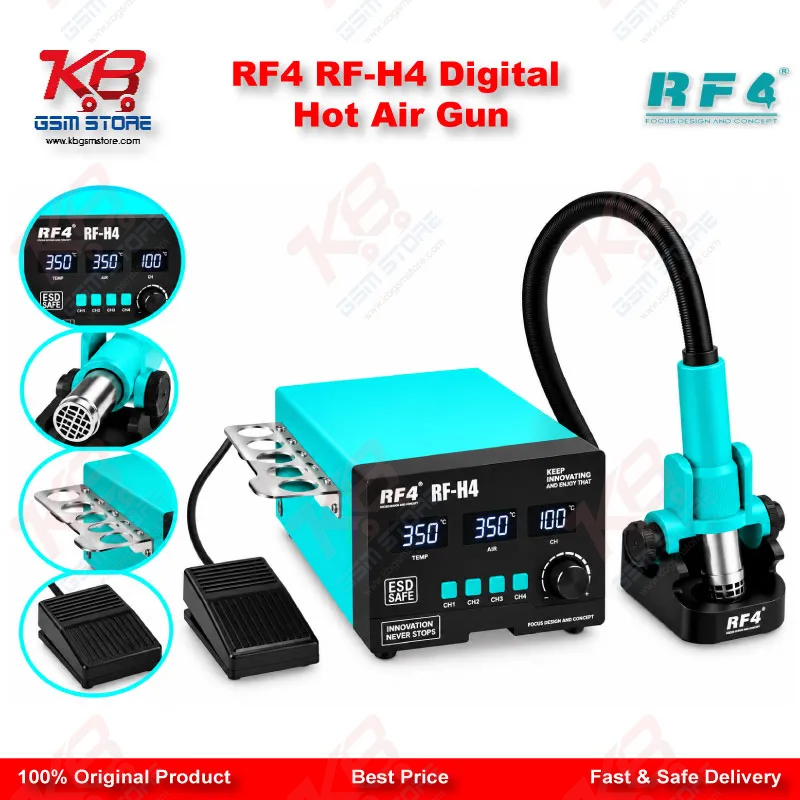

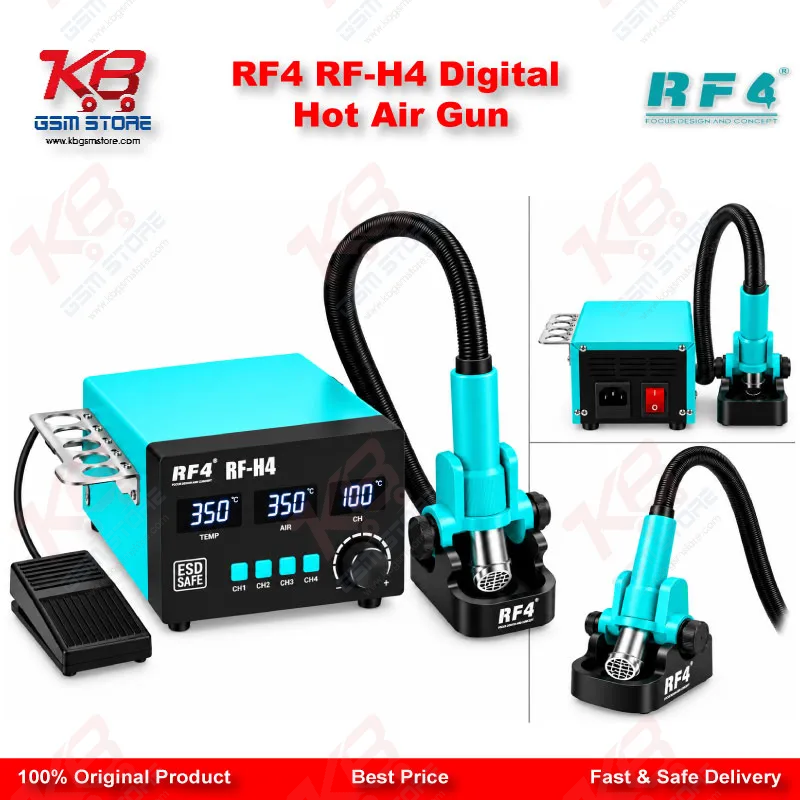

Every board-level job on your repair bench follows the same rhythm: you diagnose the fault, you heat the area, you lift the component, you clean the pads, and you place the new part, and the RF4 RF-H4 Digital Hot Air Gun takes charge of the heating stages where most rework jobs succeed or fail. RF4 built this 1200W hot air rework station for technicians who handle dead phones, charging faults, network faults and display problems every day and who need heat that arrives fast, holds steady and stays under control. The station runs a temperature range of 100°C to 480°C, so you can work gently around plastic connectors and flex sockets at the low end and push enough heat into a thick multilayer motherboard at the high end to reflow a CPU, eMMC or UFS chip. A high-speed turbo fan spins at 15,000 rpm and delivers up to 50 litres of air per minute, and you control that airflow from 5% to 100%, which means you can drop the air right down when tiny capacitors and resistors sit next to the target component and raise it when you need to move heat across a large shield or a BGA package. That wide airflow window matters in real workshop conditions, because blowing small parts off the board creates a second fault while you fix the first one. Temperature control runs on a sensor-based closed loop with microcomputer zero-trigger control, so the heater reads its own output and corrects in real time instead of drifting once the air starts moving; you set a value, and the RF4 RF-H4 holds it without the wind speed pulling the temperature around. The digital display shows your values clearly, so you always know exactly what heat reaches the board instead of guessing from a dial position. For a busy repair shop, the three memory channels CH1, CH2 and CH3 save real time: you store a separate temperature and airflow pair on each channel, so one preset can handle charging IC and PMIC removal, a second can handle connector and flex socket work, and a third can handle heavier CPU or memory chip reflow, and you switch between them with a single press instead of reprogramming the station for every job. The password protection and key lock function stops apprentices or other bench users from changing your tuned settings, which keeps results consistent in a shop where several technicians share one station. The handle holder uses a magnetic switch, so the moment you rest the handle, the station drops into sleep mode, stops heating and keeps blowing air to cool the heating element; lift the handle again and it returns to your working settings immediately. This automatic sleep and cooling behavior protects the heater core and the handle from heat soak, extends element life, and cuts the risk of a hot nozzle sitting idle next to plastic trays, battery packs or flex cables on a crowded bench. The RF4 RF-H4 also includes a one-click cold air function, which lets you switch to cooling air on demand to bring a freshly reflowed area down in a controlled way or to cool the handle before you change nozzles. The station accepts five nozzle sizes of 4mm, 5mm, 7mm, 9mm and 11mm, so you can focus heat into a narrow stream for small ICs and passive components or spread it wider for large BGA chips and shielding frames. In practice, this hot air gun covers a huge share of daily hardware work in Pakistani repair shops: you use it to remove and replace charging ICs when a phone shows a charging issue, to lift PMICs and power ICs on dead phones, to swap audio ICs, to reflow or replace network and RF ICs on phones with a network issue, to remove and refit eMMC and UFS memory chips before data recovery or programming, and to reflow CPU packages on boards that hang on logo or show a boot loop issue after a hardware fault. It also handles charging port replacement, FPC connector replacement, display connector repair, shield removal and back-panel adhesive softening. Hot air rework rarely works alone, and the RF4 RF-H4 sits at the center of a complete bench setup: pair it with a reliable soldering station for pad cleaning and tinning after you lift a chip, a PCB holder to keep the motherboard flat and stable during heating, and a microscope to inspect pads, solder balls and nearby components before and after reflow. When you remove memory chips, the workflow naturally continues into reballing kits and stencils for restoring solder balls, eMMC programmers and UFS adapters for reading or writing chip data, and ISP pinout tools when you prefer to access memory in-circuit without lifting the chip at all. After the rework, a multimeter lets you check for shorts and confirm voltage lines, and test boxes help you verify that the phone powers up and flashes correctly before it goes back to the customer. Technicians upgrading from a basic analog hot air unit will notice the difference in heat recovery, stability and repeatability, and shops that already run hot air stations can add the RF4 RF-H4 as a dedicated high-power unit for heavy BGA work while keeping a smaller station for light jobs. RF4 has earned a strong reputation among Pakistani technicians for soldering and rework gear, and this model follows that pattern with a design that focuses on control, safety and consistent output rather than unnecessary extras. KB GSM Store supplies the 220V version, which suits standard Pakistani mains power, so you can plug it straight into your workshop without a converter. The package includes the main station and a power cable, so you get a ready-to-use unit for your bench. Whether you run a small repair counter in a local market, a busy service center handling bulk hardware jobs, or a training institute teaching students IC replacement and BGA rework, the RF4 RF-H4 Digital Hot Air Gun gives you the heat control, airflow range and memory presets that professional board-level repair demands, and it helps you finish more jobs correctly on the first attempt instead of returning phones with new faults created during rework.
