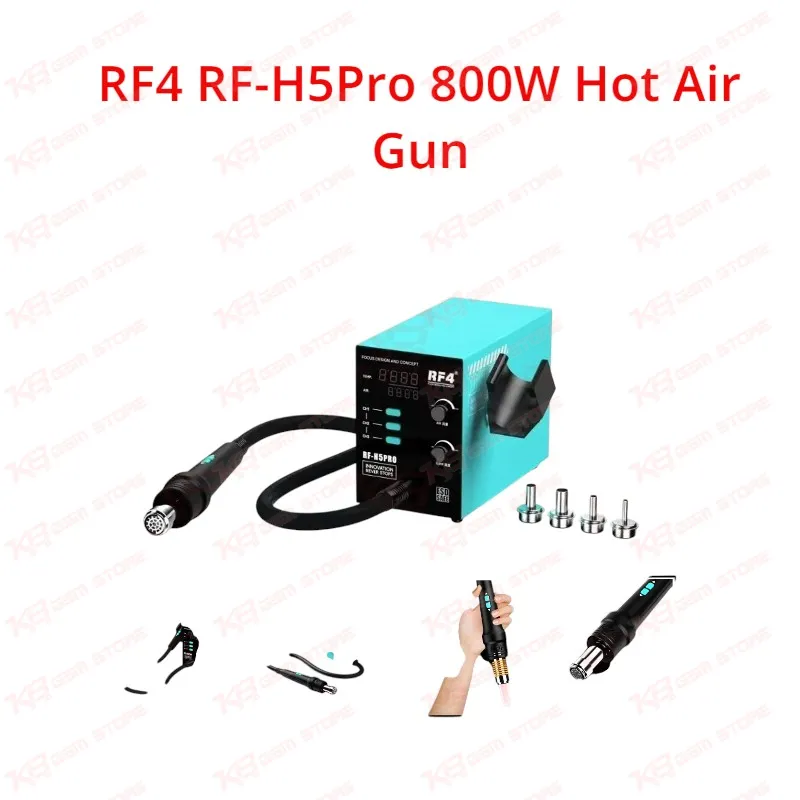

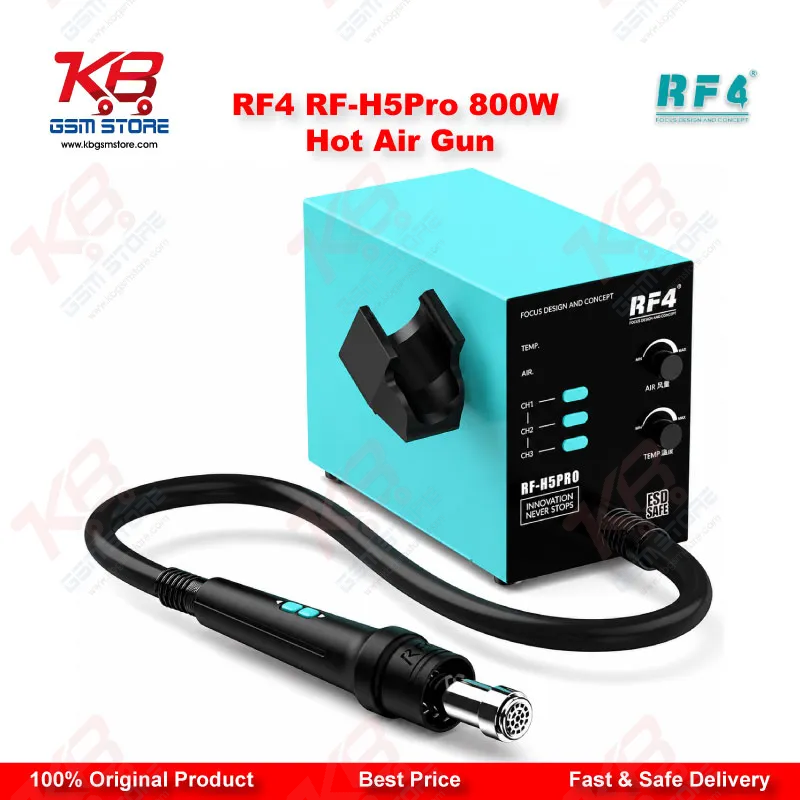

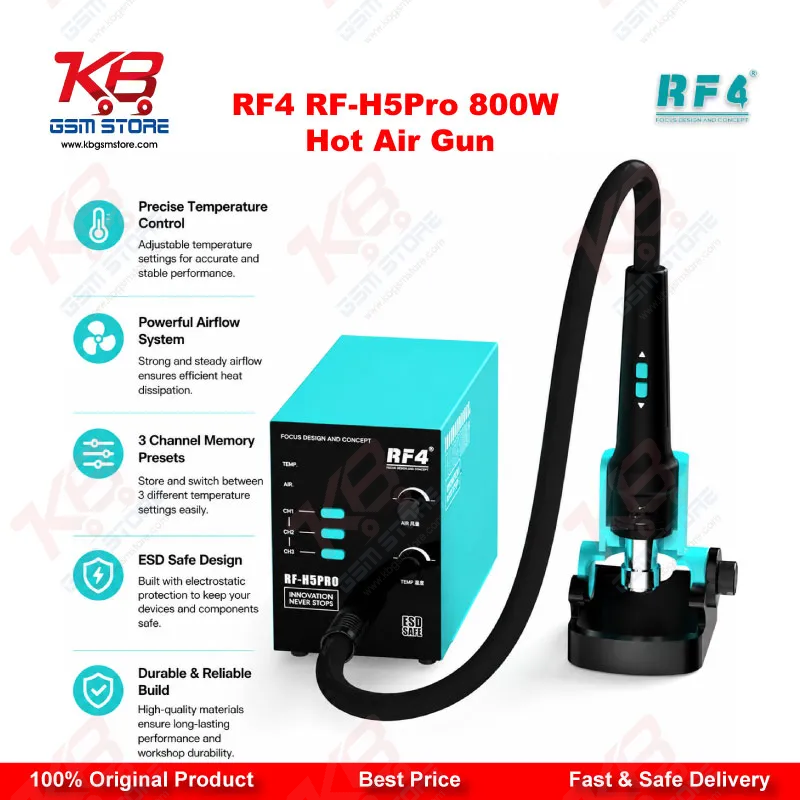

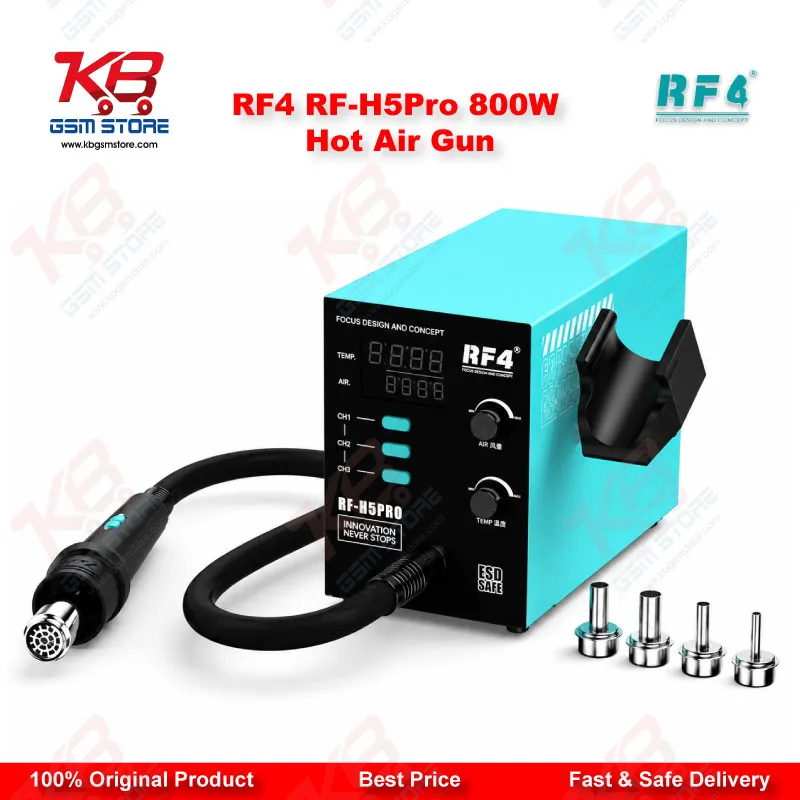

RF4 RF-H5Pro 800W Hot Air Gun BGA Rework Station

RF4 RF-H5Pro 800W Hot Air Gun BGA Rework Station

Rs.24,500.00 PKR
Rs.24,500.00 PKR
Sale Sold out
Shipping calculated at checkout.

The RF4 RF-H5Pro 800W Hot Air Gun is a professional-grade BGA rework station built for precision soldering and desoldering. Featuring a high-speed brushless turbine fan, a full LCD display, and a wide temperature range of 100°C to 500°C, it delivers consistent airflow and pinpoint thermal control. Three custom presets and single-handed handle controls make complex PCB repairs faster and more efficient than ever.

MST-SOLDERING-TOOLS-1253

⚖️ Weight: 4.0 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

RF4 RF-H5Pro 800W Hot Air Gun — Professional BGA Rework Station for Precision PCB Repair

Whether you are a professional electronics technician or a serious DIY repair enthusiast, the RF4 RF-H5Pro 800W Hot Air Gun is engineered to meet the demands of high-precision soldering and desoldering work. Designed as a complete BGA rework station, this unit combines intelligent thermal management with ergonomic usability to give you full control at every stage of your repair workflow.

Intelligent Temperature Control with LCD Precision

The RF-H5Pro features an LCD segment code display that delivers real-time temperature readout with a constant temperature precision of ±2°C. This level of accuracy ensures that heat-sensitive components on modern PCBs are never over-exposed, protecting your boards and reducing rework errors. The temperature range spans from 100°C to 500°C, making it equally suitable for delicate SMD component work and heavy-duty desoldering tasks.

High-Speed Brushless Turbine Fan for Balanced Airflow

At the core of this rework station is a high-speed brushless turbine fan running at 13,000 RPM. This generates a steady, balanced airflow that can be adjusted from 1% to 100%, giving you complete command over heat distribution. Whether you need a focused stream for chip-level work or a wider flow for larger components, the RF-H5Pro adapts instantly.

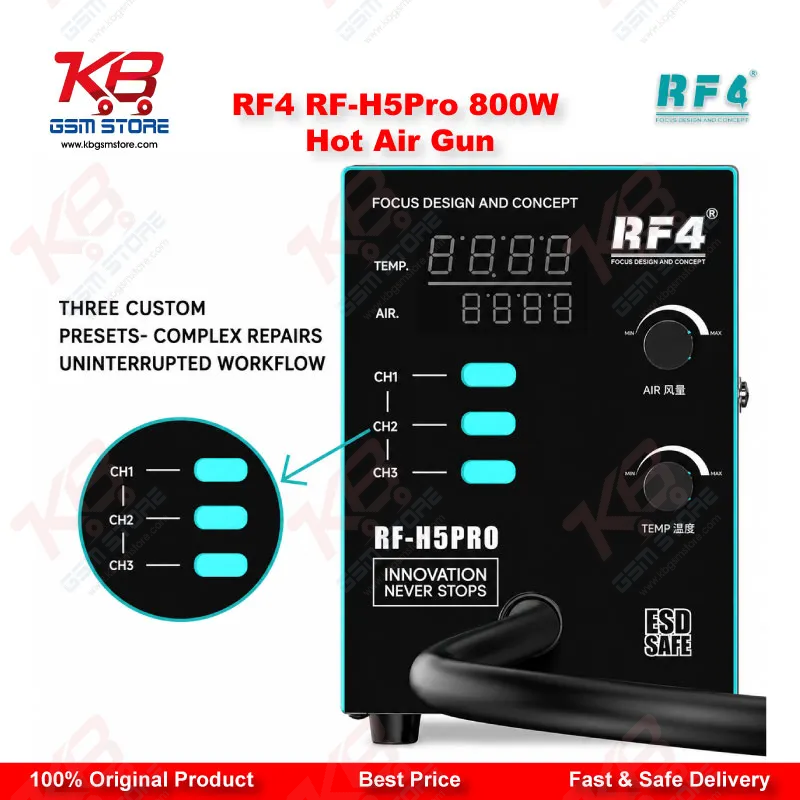

Three Custom Presets for Uninterrupted Workflow

Time is critical during complex board repairs. The RF-H5Pro addresses this with three programmable temperature presets, allowing technicians to switch between commonly used temperature profiles without stopping to reconfigure. This feature is especially valuable in professional repair shops handling a variety of motherboards, mobile devices, and consumer electronics.

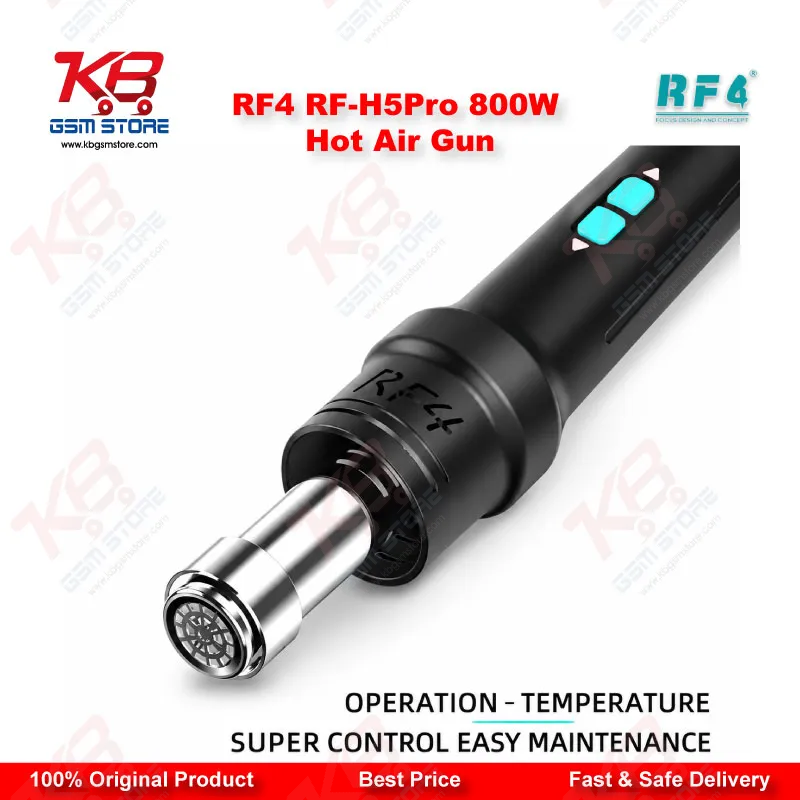

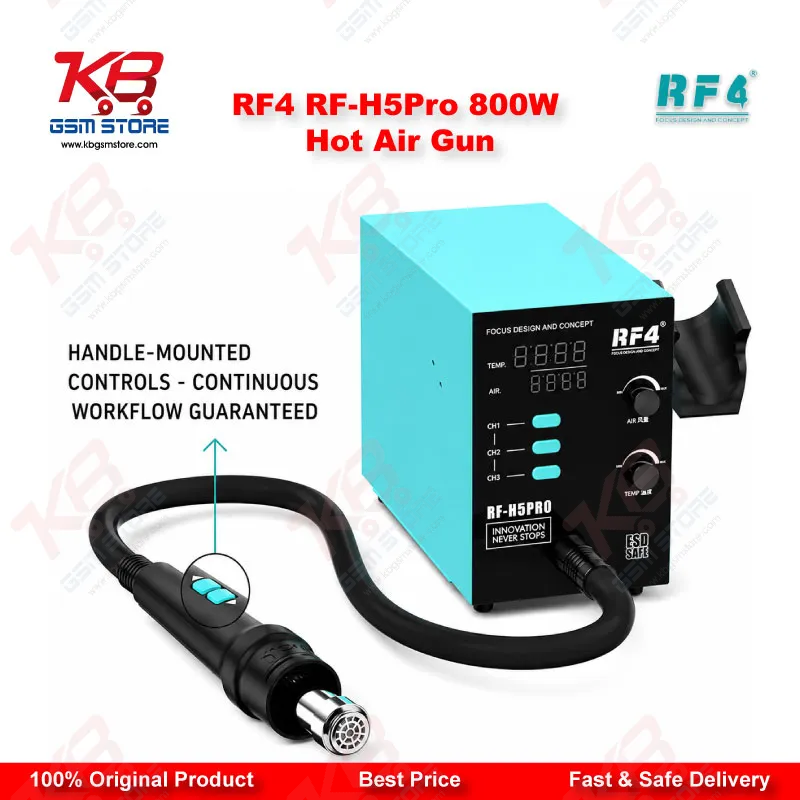

Handle-Mounted Controls for Single-Handed Operation

Productivity is further enhanced by the handle-mounted control interface, which allows you to adjust temperature and airflow on the fly using a single hand. This design keeps your other hand free to position components, use tweezers, or stabilize the board, resulting in more precise and efficient repairs.

Built for Durability and Long-Term Use

Weighing 2.16 kg and constructed to professional workshop standards, the RF-H5Pro is built for daily use. The 800mm handle cable provides comfortable reach and flexibility during extended repair sessions. The station includes four interchangeable nozzles to support different nozzle profiles for various component types and board configurations.

Ideal for Pakistan's Electronics Repair Market

From mobile phone repair technicians in Lahore to electronics workshops in Karachi, the RF4 RF-H5Pro is a dependable, high-performance BGA rework station that delivers results without compromise. It runs on standard 220V supply, compatible with Pakistan's power grid, and is ready to use straight out of the box.

Upgrade your repair station with the RF4 RF-H5Pro and experience the difference that precision engineering makes in your everyday soldering workflow.

Key Features

  • 800W power output with a wide temperature range of 100°C to 500°C for versatile soldering and desoldering tasks
  • High-speed brushless turbine fan at 13,000 RPM delivers balanced, consistent airflow from 1% to 100%
  • LCD segment code display with ±2°C constant temperature precision for accurate thermal control
  • Three programmable presets allow instant switching between temperature profiles for uninterrupted repairs
  • Handle-mounted controls enable full single-handed operation, keeping your workflow efficient and hands free
  • Compatible with Pakistan's 220V power grid, ready for immediate professional use
  • Includes four interchangeable nozzles to support a wide range of BGA rework and PCB repair applications
  • 800mm handle cable provides flexible reach and comfort during extended repair sessions

Specifications

Name RF4 RF-H5Pro Hot Air Gun BGA Rework Station
Brand RF4
Model H5 Pro
Voltage 220V
Power 800W
Temperature Range 100°C to 500°C
Air Volume 1% to 100% adjustable
Display LCD segment code display
Body Weight 2.16 KG
Temperature Precision ±2°C
Fan Type High-speed brushless turbine fan
Fan Speed 13,000 RPM
Handle Cable Length 800mm

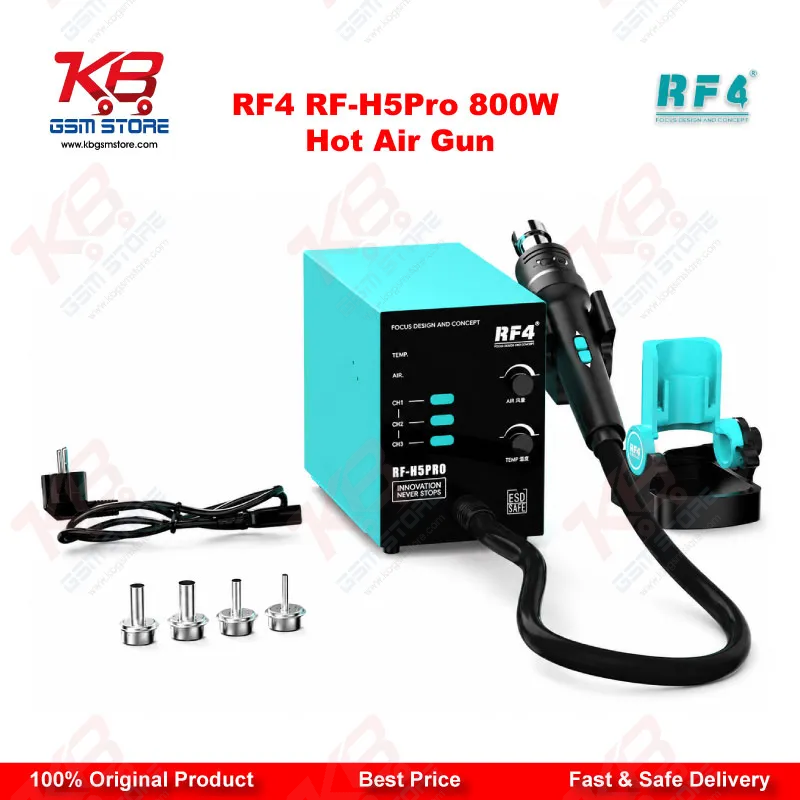

Package Contents 1x Rework Station, 1x Power Cable, 1x Handle Holder, 4x Nozzles

FAQ

Q1: What is the RF4 RF-H5Pro and what is it used for?
The RF4 RF-H5Pro is an 800W professional hot air gun BGA rework station used for soldering, desoldering, and reworking PCB components including BGA chips, SMD parts, and mobile phone boards.
Q2: What is the temperature range of the RF4 RF-H5Pro?
The RF4 RF-H5Pro offers a wide temperature range of 100°C to 500°C, making it suitable for both delicate SMD component work and heavy-duty desoldering tasks.
Q3: How accurate is the temperature control on this rework station?
The RF-H5Pro maintains a constant temperature precision of ±2°C, ensuring stable and reliable heat delivery for sensitive PCB repairs without risk of overheating components.
Q4: What type of fan does the RF4 RF-H5Pro use?
It features a high-speed brushless turbine fan running at 13,000 RPM, which delivers balanced and consistent airflow adjustable from 1% to 100% air volume.
Q5: Does the RF4 RF-H5Pro work on Pakistan's power supply?
Yes, the RF4 RF-H5Pro operates on 220V, which is fully compatible with Pakistan's standard power grid and requires no additional voltage converter.
Q6: How many nozzles are included in the package?
The package includes 4 nozzles of different sizes, allowing you to handle a wide range of BGA rework, chip-level repairs, and component desoldering tasks with ease.
Q7: Does this rework station have preset temperature settings?
Yes, the RF-H5Pro comes with three custom programmable presets, allowing technicians to save their most-used temperature profiles and switch between them instantly without interrupting their workflow.
Q8: Can I control the temperature with one hand?
Yes, the RF-H5Pro is designed with handle-mounted controls that allow full single-handed adjustment of temperature and airflow, keeping your other hand free to work on the board.
Q9: What display does the RF4 RF-H5Pro use?
It uses an LCD segment code display that provides a clear real-time readout of temperature and airflow settings for precise and easy monitoring during repairs.
Q10: What is the weight of the RF4 RF-H5Pro rework station?
The body weight of the RF4 RF-H5Pro is 2.16 KG, making it a solid and professional-grade unit suitable for daily workshop use without being overly heavy.
